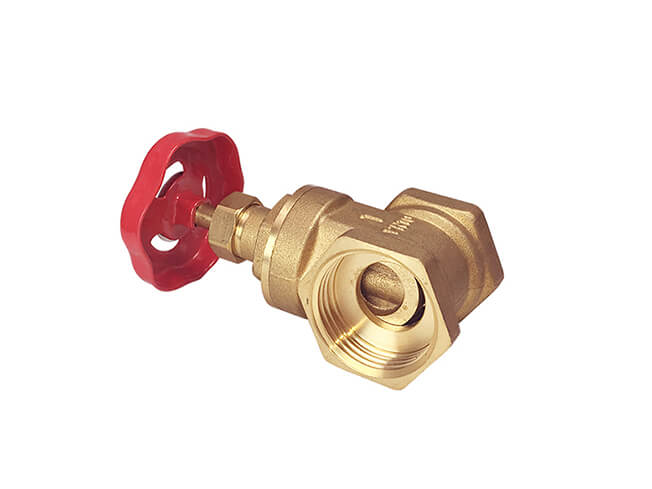

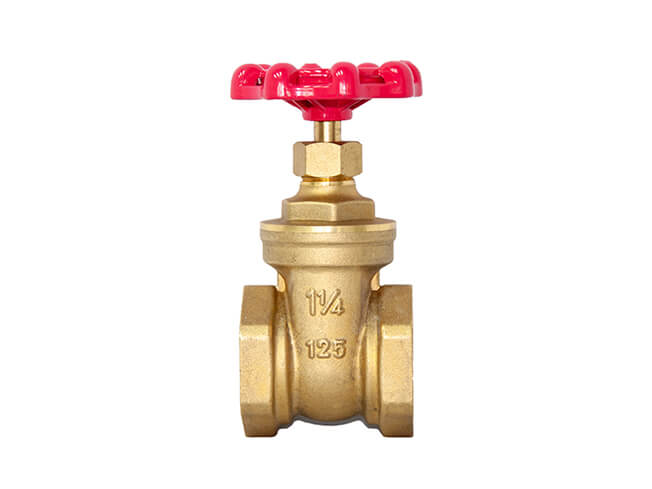

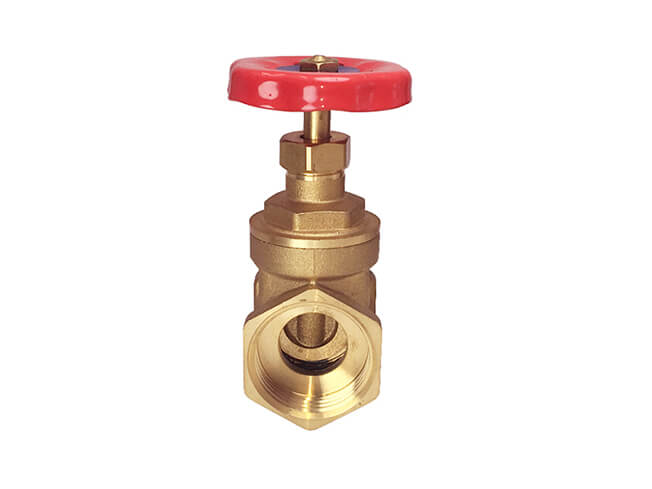

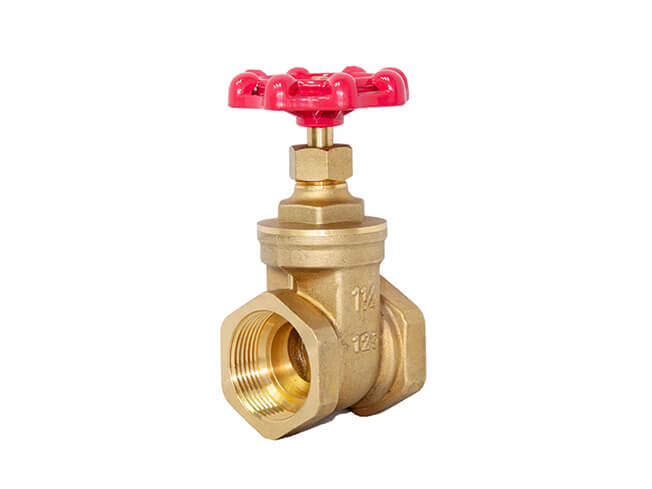

Brass Threaded Gate Valve
Size:1/2"~4
Pressure Rating: 0-16 BAR
Material:Brass
Design Standard:BS5153,GB/T122234,JIS B2073
Inspection Standard:API 598,JB/T9092,JIS B2003
Application medium:Water, gases and liquids
Application Temperature: -20°C to 120°C
Applied projects:Petrochemical/ Power plant/Refining/Oil & Gas/ Metallurgy etc.
WESDOM gate valves are reliable, offering a tight shut-off and low pressure drop. The design covers a wide range of requirements to meet any customer need from general to severe service conditions. WESDOM gate valves are in compliance with the latest edition of API600 , API6D , ASME B16.34,etc.
These threaded gate valves have a high-quality brass body with a cast iron hand wheel and are suited for both domestic and commercial applications.
Our brass gate valve has a maximum pressure rating of 16 Bar and a temperature rating of -10°C to +90°C.
Features:
①BSP Threaded Brass Gate Valve.
②Brass body with a metal seat and PTFE gland.
③0-16 BAR pressure range with media temperatures from -20°C to 120°C.
④Great for a wide range of gases and liquids.
⑤Valves must be installed in a piping system whose normal pressure and temperature does not exceed the stated rating of the valve. It may be hazardous to use these valves outside of their specified pressure and temperature limitations. To ensure ease of operation, adjustment, maintenance and repair, valve siting should be decided during the system design phase. To prevent imposing strain on the valve seat, pipe work and valves must be adequately supported.
⑥OPENING: an anti-clockwise rotation of the hand wheel will open the valve. When it will go no further return the hand wheel clockwise 1/2 turn.
⑦CLOSURE: a clockwise rotation of the hand wheel will close the valve. Closure will be confirmed when the handle can be turned no further.

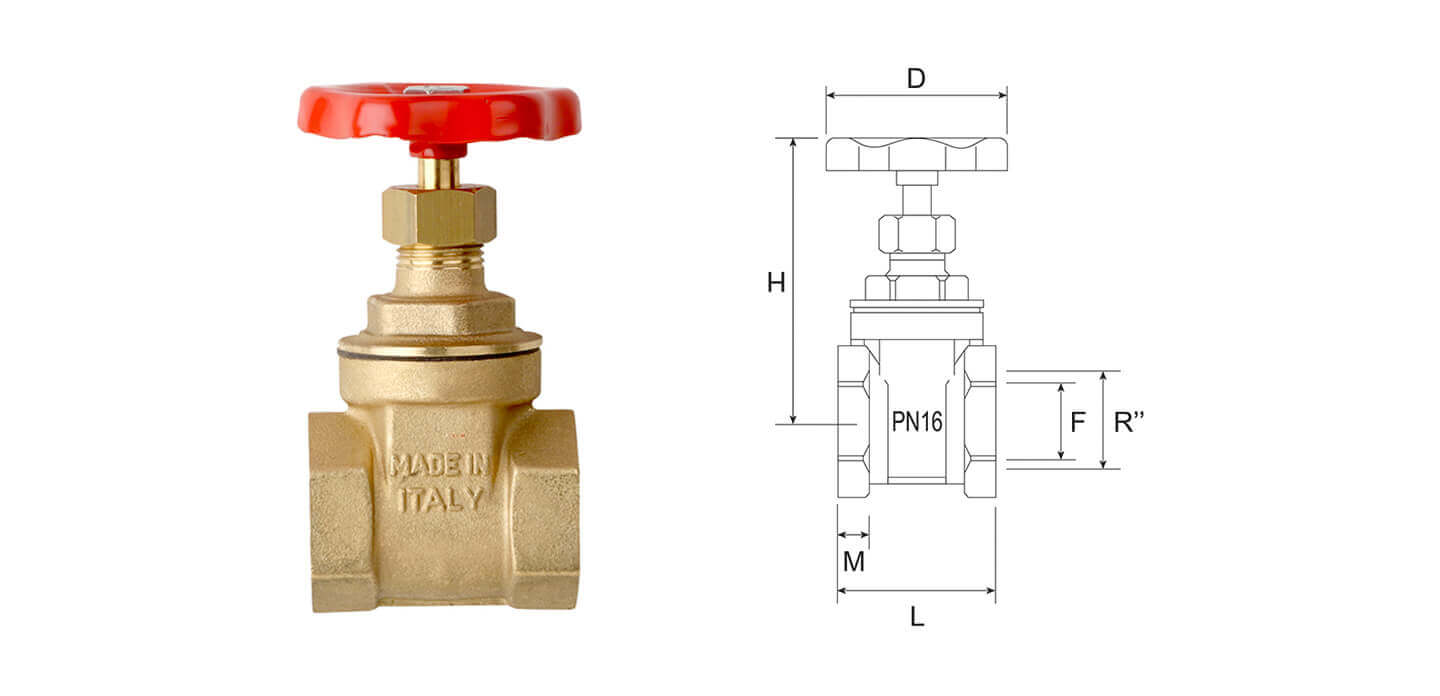

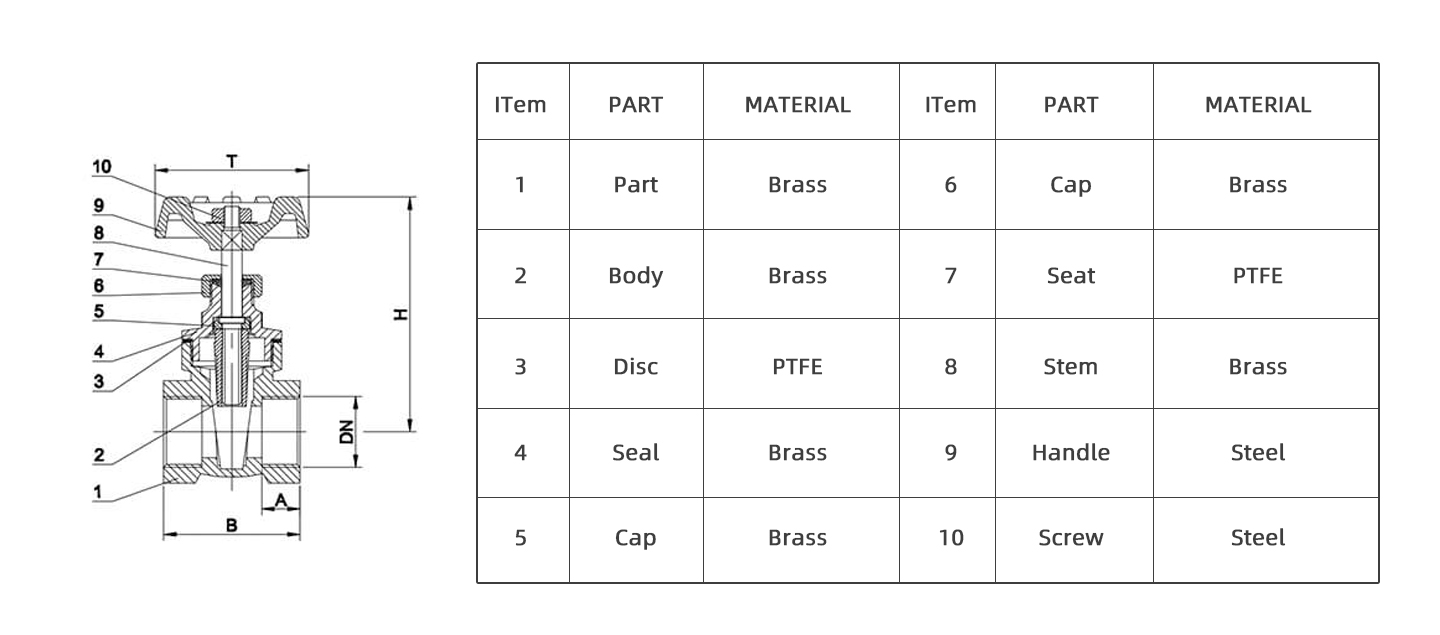

| Size | DN | A | B | H | T | W (kg) |
| 1/2″ | 14.5 | 13 | 44 | 78 | 53 | 0.3 |
| 3/4″ | 19 | 13 | 49 | 82 | 53 | 0.4 |
| 1″ | 25 | 15.5 | 54.5 | 95 | 60 | 0.5 |
| 1-1/4″ | 30 | 16.5 | 60 | 116 | 72 | 0.8 |
| 1-1/2″ | 37 | 17 | 61 | 121 | 72 | 1.0 |
| 2″ | 47 | 20 | 70.5 | 150 | 87 | 1.6 |
| 2 ½” | 62 | 22 | 87 | 192 | 96 | 2.7 |
| 3” | 76 | 26 | 97 | 205 | 107 | 3.6 |
| 4” | 97 | 30 | 110 | 260 | 126 | 5.9 |
Canadian Architecture Project
Main products:
Gate valves, globe valves, Y strainers
Client feedback:
Customer feedback said: “Every time I received the products from WESDOM, I am always deeply shocked and moved. WESDOM is a very valuable and trusted partner”;

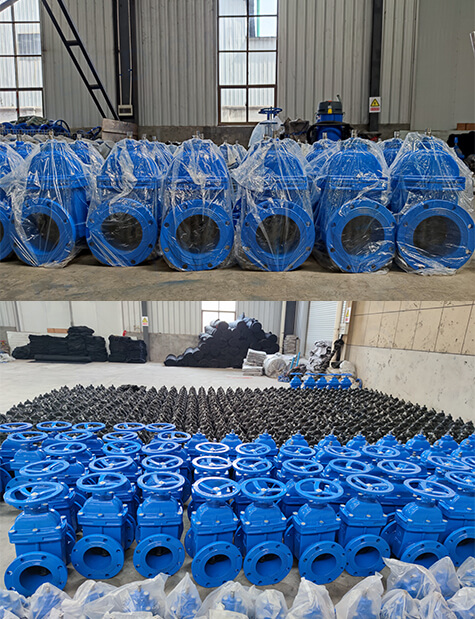

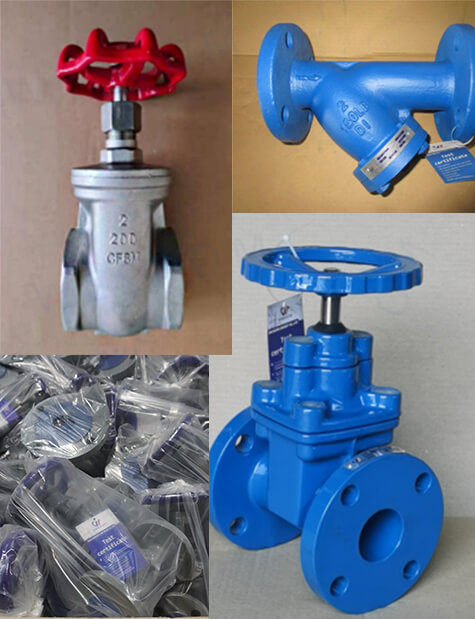

Project pictures:
Application
CAUTION: Service applications with extremes of temperature may cause the wedge to become tight in the valve. The valve may be become stiff to operate in these circumstances. Suitable hand protection should be worn when operating valves used in extreme temperature applications.
