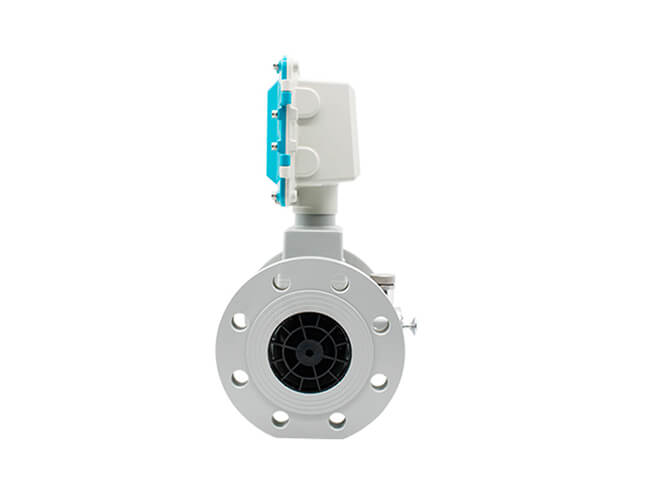

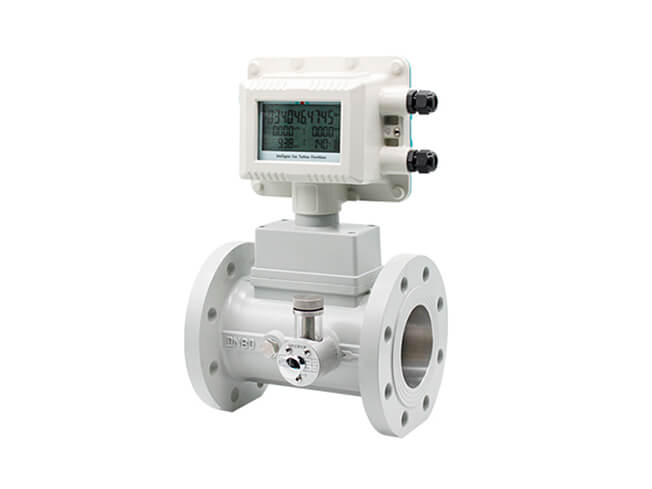

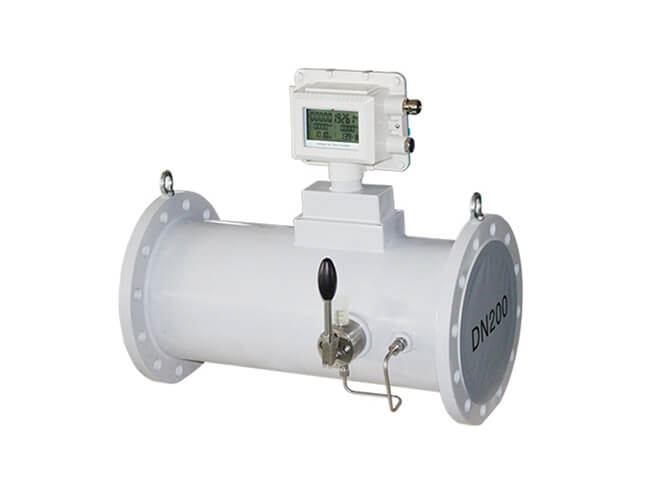

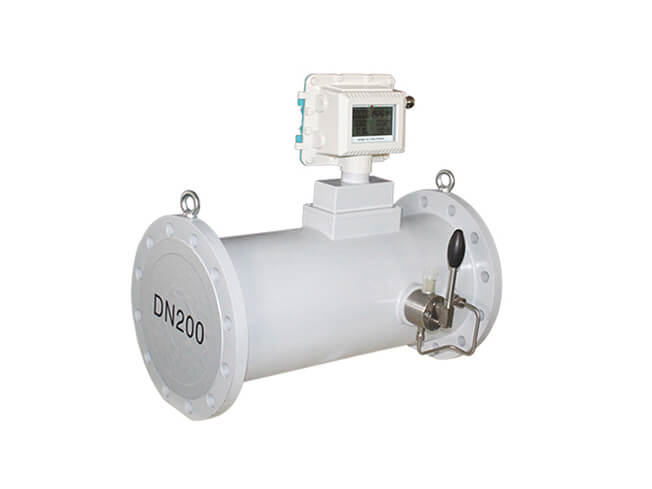

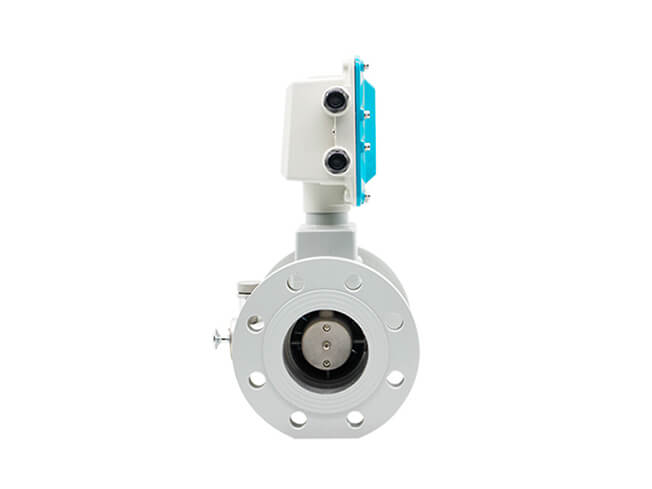

Gas Turbine Flow Meter

Accuracy Natural Lpg Gas Turbine Air Flow Meter

Size: DN25mm-DN400mm

Pressure Rating: 1.6Mpa/2.5Mpa/4.0Mpa

Range Ratio: Max 40:1 (under P=101.325Kpa,T=293.15K)

Design Standard: IP65, IP68

Inspection Standard: IP65, IP68

Application medium: Various Gas

Application Temperature:-40~+220 degC

Accuracy: 1.5% (Standard), 1.0% (Optional)

Repeatability: Better than 0.2%

Applied projects: Widely used in various industries


Product details


Gas turbine flow meter is a new generation of high-precision and high-reliability gas precision measuring instrument, which is based on the advanced technology of flow meters domestic and abroad. It has excellent low-pressure and high-pressure metering performance, various signal output modes and low sensitivity to fluid disturbance. It is widely used for natural gas, coal-based gas, liquefied gas and other gases application.


(1)LCD HD display;

Gas Turbine Flow Meter

(2)Digital board,stronganti-interference ability;

(3)Support display to rotate 360°;

(4)Easy to read data in differentdirections;

(5)Dynamic detect temperature&pressure data;

(6)Automatic T&P compensation ;

(7)Compression factor correction;

(8)Dual Power Supply;

(9)Flash Data Storage Technology;

(10)Easy oil filling operation;

(11)Ensure bearings work smoothly;

(12)Widely used in various industries.

Gas Turbine Flow Meter Advantages and Disadvantages:

(1)Gas turbine flow meter is with advanced rectification technology and dust-proof structure.

(2)It is with built-in temperature and pressure sensors which can achieve automatically compensation to make sure high accuracy.

(3)Gas turbine flow meter provides good solution for custody transfer between parties.
(4)Compared with precession vortex flow meter, gas turbine flow meter is with low pressure loss, low initiating flow and wider measurement range.

(5)The display of gas turbine flow meter support to rotate 350°, easy to read data in different directions.

Gas Turbine Flow Meter

Technical data:

Gas Turbine Flow Meter Dimension:

Size L D K N-φh H W Remarks
DN25(1″) 200 115 85 4-φ14 335 200 1.Flange information according to PN16 GB9113.1-2000

2.Other flanges are available

DN40(1½”) 200 150 110 4-φ18 365 230
DN50(2″) 150 165 125 4-φ18 375 275
DN80(3″) 240 200 160 8-φ18 409 280
DN100(4″) 300 220 180 8-φ18 430 285
DN150(6″) 450 285 240 8-φ22 495 370
DN200(8″) 600 340 295 12-φ22 559 390
DN250(10″) 750 405 355 12-φ26 629 480
DN300(12″) 900 460 410 12-φ26 680 535
DN400(16″) 1200 580 525 16-φ30 793 665


Gas Turbine Flow Meter Parameters:

Nominal Diameter DN25-DN400
Nominal Pressure 1.0Mpa/1.6Mpa/2.5Mpa/4.0Mpa
Range Ratio Max 40:1 (under P=101.325Kpa,T=293.15K)
Accuracy 1.5% (Standard), 1.0 (Optional)
Repeatability Better than 0.2%
Explosion Proof ExiallCT6Ga
Protection IP65
Shell Material Aluminum Alloy/Carbon Steel/Stainless Steel
Power Supply 3.6V Lithum Battery Powered
External power DC18-30V
output Signal 4-20mA,Pulse,Alarm
Communication RS485 Modbus RTU


Model Selection:

Model QTWG
DN XX XX–Nomianal dia. Such as 100standard DN100
Structure M Compact type
Output I0 I0–Two wire current output
Converter 1 1–Without temperature and pressure compensation
2 2–With temperature and pressure compensation
Power supply 0 0–External power 24-30VDC (two wire)
1 1–External power 24-30VDC (two wire)
2 2–Lithium battery (3.6V)


P1 0.5MPa
P2 1.0MPa
P3 1.6MPa
P4 2.5MPa
P5 4.0MPa
EX With Ex-proof


Installation Requirement for Gas Turbine Flow Meter:

(1)In order to obtain a stable and accurate flow measurement, it is very important that the flow meter is installed correctly in the pipe system;

(2)Flow meter need to be installed on horizontal pipeline.

(3)The inner diameter of the flow meter need to be as same as inner diameter of pipeline, and the axis of the flow meter should be concentric with the axis of the pipeline during installation;

(4)Recommend to install indoors. If need to install outdoors, please make good protection from direct sunlight and rain;

(5)In order to ensure the normal use of the medium is not affected when the flow meter is overhauled, a shut-off valve should be installed on the upstream and downstream of the flow meter. A bypass pipeline should be provided.

(6)The flow control valve must be installed downstream of the flow meter, and the upstream valve must be fully open when the flow meter is used.

Gas Turbine Flow Meter Maintenance:

(1)Gas turbine flow meter need to do oil filling operation regularly to ensure bearings work smoothly.

(2)There’s oil filling operation indication on each Q&T gas turbine flow meter’s body. Follow the indication to do oil filling regularly is fine.

wesdom gate valve

Project case

OEM service for Mexico Flow Meter

We are providing OEM services for our Mexico customer various flow meters.

The average order quantity nearly is 30PCS every month. These flow meters mainly applied in Mexico food, beverage, chemical, wine factory and water treatment system, etc.

Product packaging and transportation



wesdom gate valve


Gas turbine flow meter is mainly used for natural gas, LPG, coal gas etc. Widely used in various industries of gas metering and gas pressure regulating stations such as petroleum, chemical, electric power, industrial boilers, gas transmission and distribution pipeline networks, and urban natural gas metering.
