To solve your problems and provide the best solution is the direction we have been committed to.

Textile

We support the sustainable creation of fabrics used globally through quality products and services.

Valves commonly used in textile mills

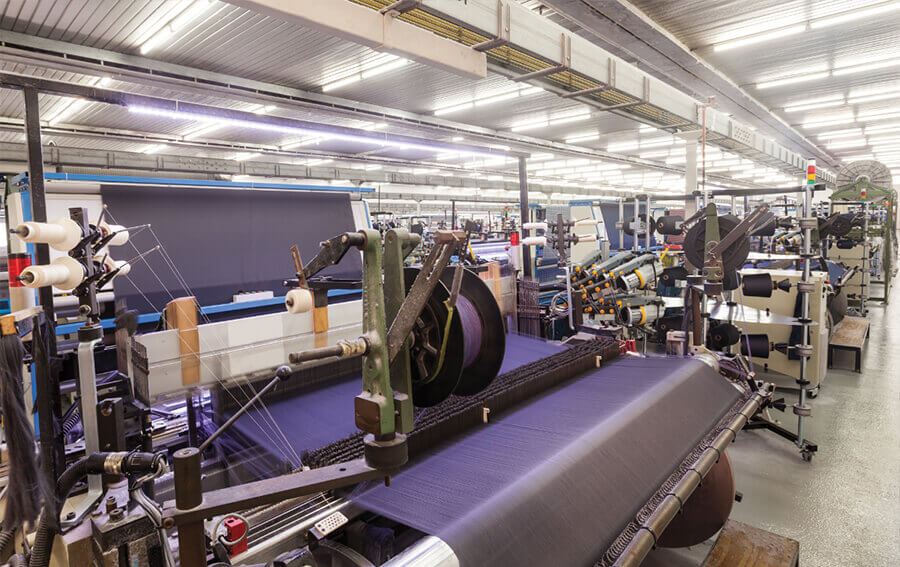

What is a textile mill?

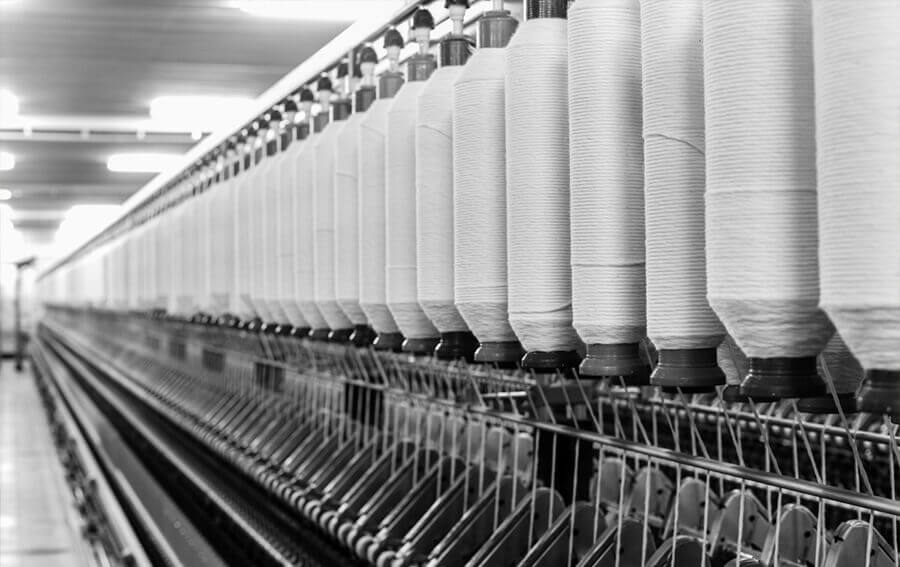

A spinning mill is a factory where different fibre raw materials are carded and twisted and then processed into yarn.

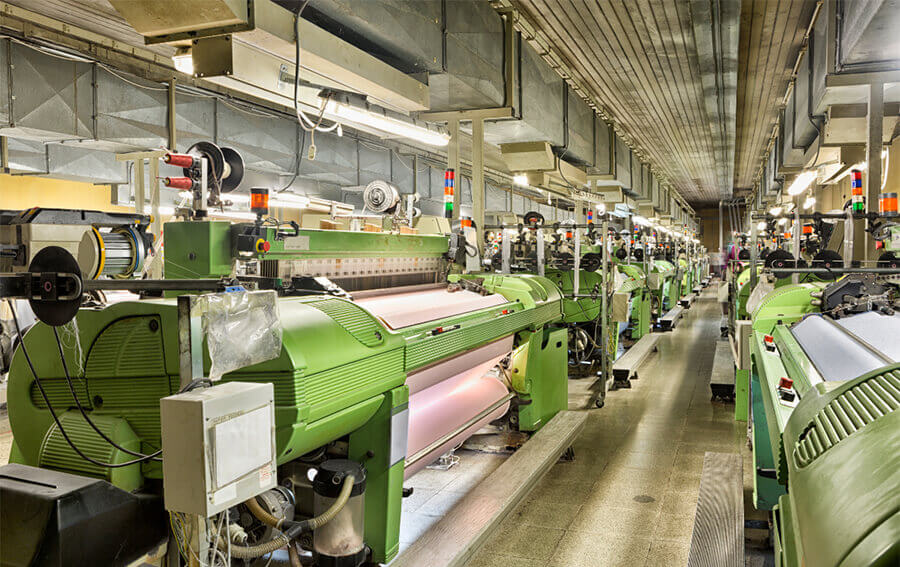

Textile

Functional areas of a textile mill.

Power, machine repair and water supply and drainage areas. This mainly includes the primary substation, the boiler room, the machine repair room, the water supply and drainage facilities (e.g. water purification and sewage treatment facilities, water transmission stations as well as ponds and water towers).

In printing and dyeing plants also include gas generating stations, and in chemical fibre plants also include air compression equipment, nitrogen production equipment, demineralised water equipment, biphenyl boiler rooms, carbon disulphide preparation, formaldehyde preparation, overhaul and other rooms.

check valve

Check and control valve

In the textile industry, a variety of check and control valves are used for a wide range of applications. Valve products help to regulate the heat in steam boilers, which are used for dyeing and drying cloth products; valves are also used to provide pressure relief for air compressors that are in continuous operation.

In addition, check and control valves can be used in conjunction with metering pumps to regulate the flow rate of liquids to provide precise volumes of water, chemicals and other liquid solutions. Other applications include the discharge of pumps, boilers and compressors.

Flange

A flange is a joint between pipes and is a type of connection. It mainly involves fixing two pipes, fittings or equipment on a flange respectively, adding flange gaskets between the two flanges and then using bolts to tightly bond the two flanges. This kind of connection between pipes is mostly used for cast iron pipes and rubber-lined pipes. Flanges are essential for the connection between pipes.

flange
ball valve

Pneumatic ball valve

Pneumatic ball valves are ball valves with pneumatic actuators, pneumatic actuators are relatively fast, the fastest switching speed of 0.05 seconds / time, so usually also called pneumatic fast cut off ball valves, is the evolution of the plug valve.

The pneumatic ball valve has a good high temperature resistance, in several hundred degrees in the environment can still be used, so its adaptation to the environment performance is relatively good. Of course, this kind of ball valve is also adapted to the low temperature environment.

Because the power source of the pneumatic ball valve is gas, generally 0.2-0.8MPa pressure, relatively safe. If the pneumatic ball valve leaks, the gas can be discharged directly compared to the liquid or electric, which is not polluting to the environment and has a high safety level.

Globe valve

Globe valves, also known as shut-off valves, are one of the most widely used valves. it is popular because of the small friction between the sealing surface during opening and closing, more durable.

globe valve

It is not only suitable for low and medium pressure, but also for high pressure. The closing principle of the stop valve is that the pressure of the valve bar makes the valve

The sealing surface of the flap and the sealing surface of the valve seat are closely fitted to stop the flow of media. China's valve "three to" has stipulated that the flow direction of the shut-off valve, - law using the top-down, so the installation of directional.

The advantages of the stop valve

 1, double seal design (bellows + packing) if the bellows failure, stem packing will also avoid;

 2、External leakage, and in line with international sealing standards;

 3、No fluid loss, reduce energy loss, improve plant equipment safety;

 4、Long service life, reduce the number of maintenance, reduce operating costs;

 5、Rugged bellows seal design ensures zero leakage from the stem, providing maintenance-free conditions.

 6、The bellows seal globe valve adopts the design of bellows seal, which completely eliminates the shortcomings of the common valve stem packing seal which ages quickly and leaks easily, not only improves the use of energy efficiency, increases the safety of production equipment, reduces maintenance costs and frequent maintenance, but also provides a clean and safe working environment.

For the most efficient and high quality results, many textile customers choose the valve products offered by WESDOM.

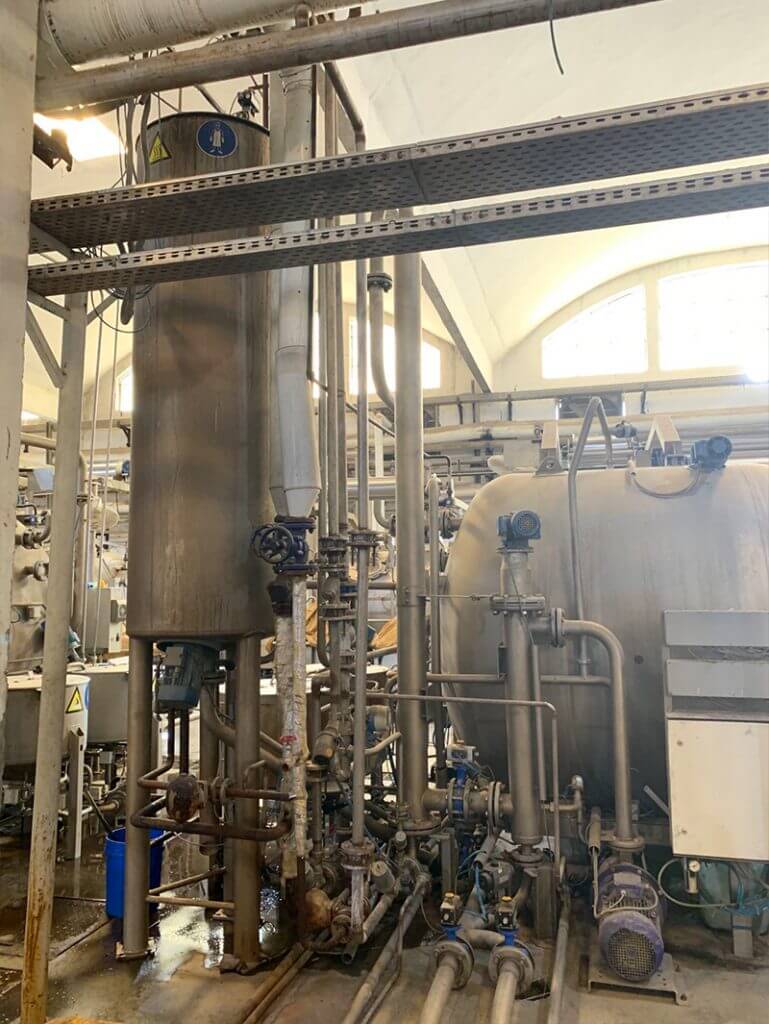

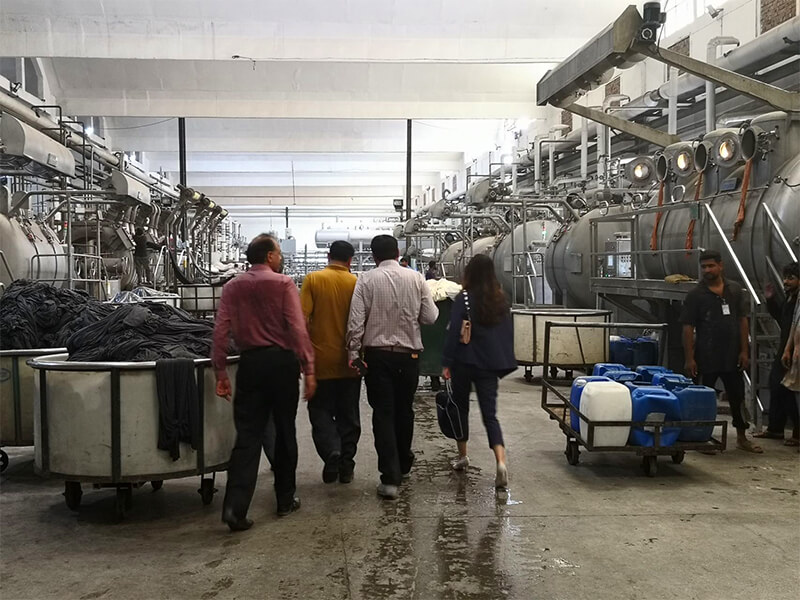

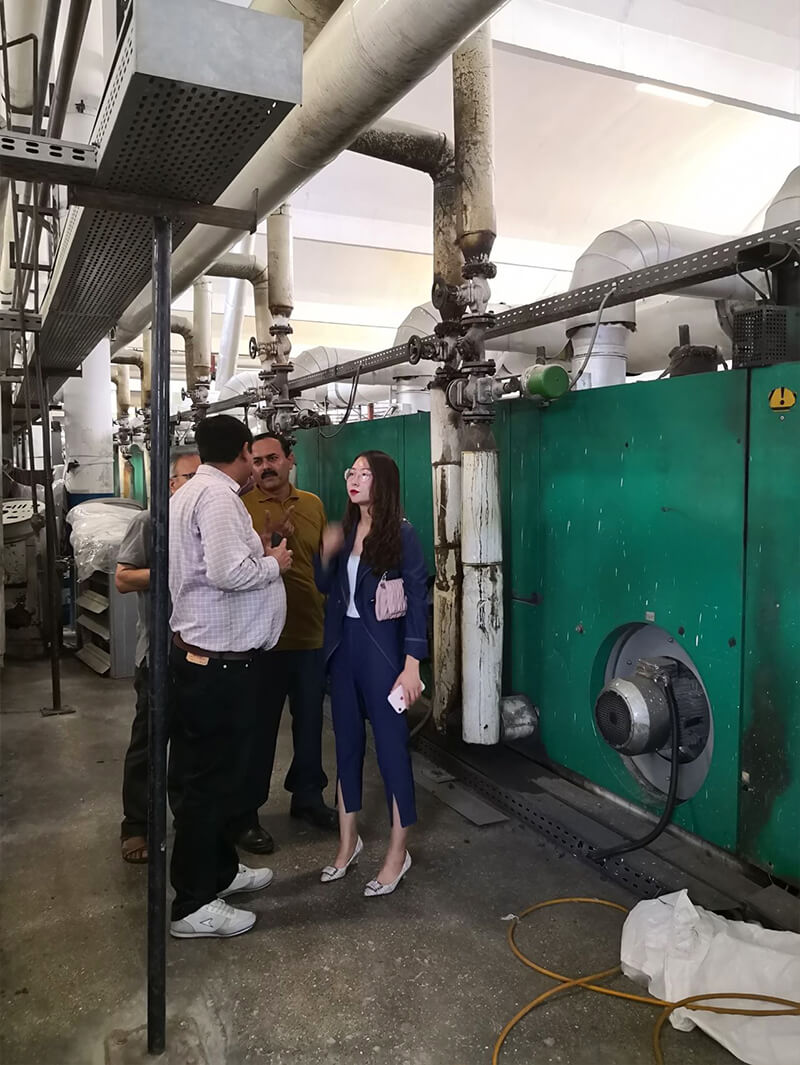

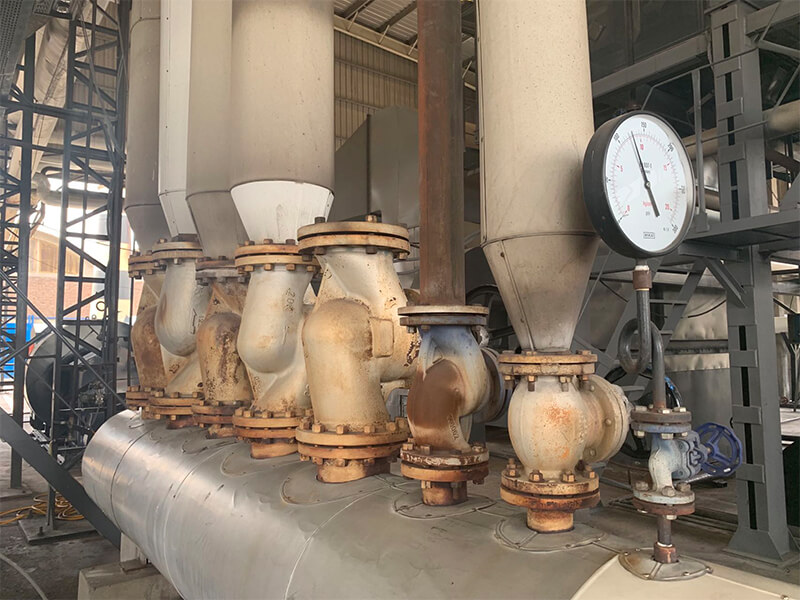

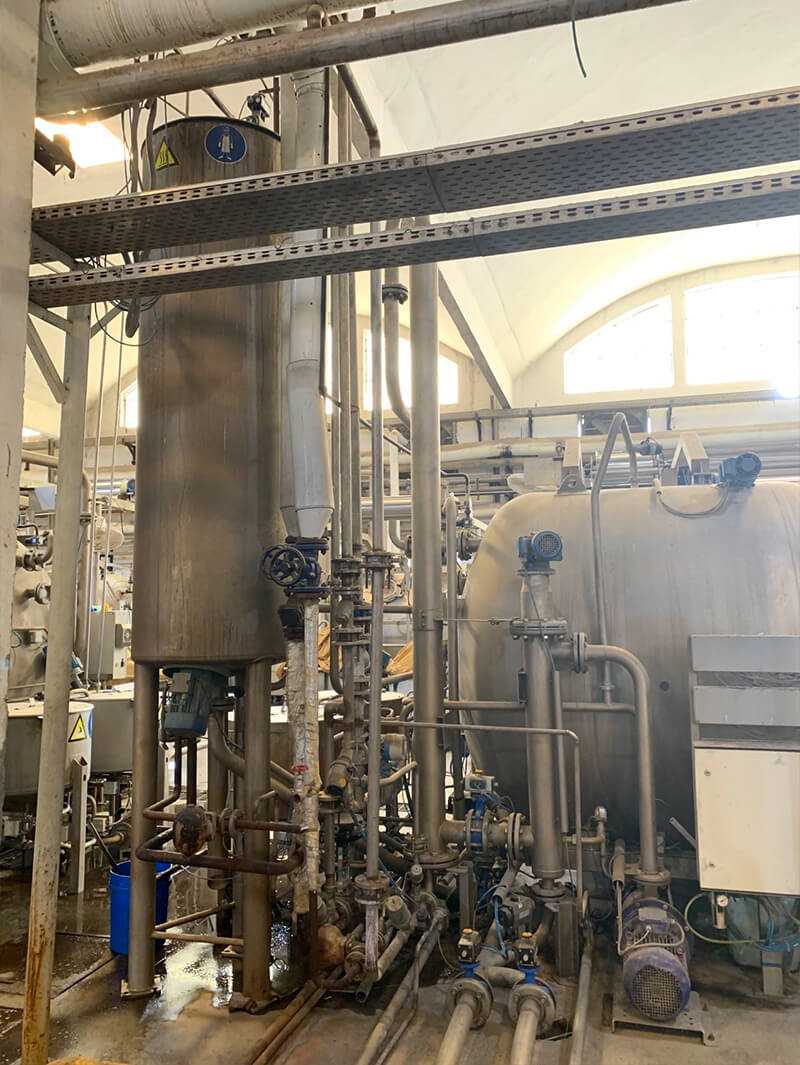

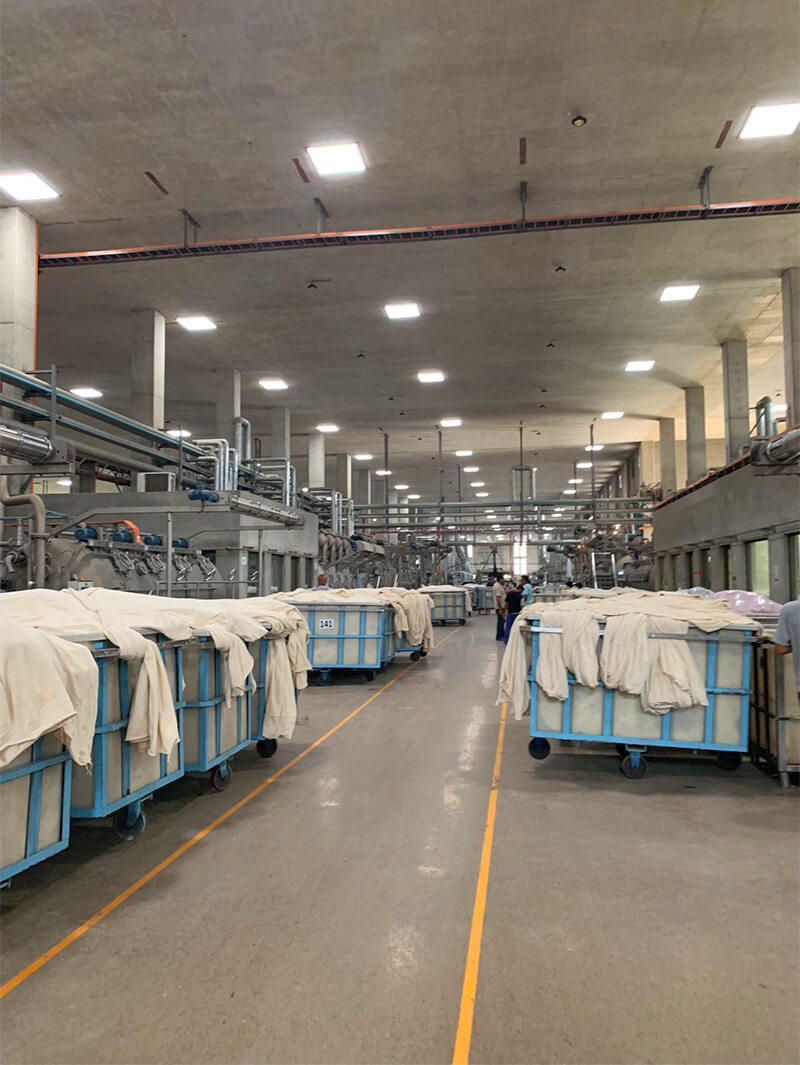

Famous Textile Factory Project in Pakistan

Client feedback:

The customer said: "Thank you very much for the on-the-spot inspection and very professional guidance of the WESDOM team." He was really shocked by the warm and considerate service and professional technical guidance of WESDOM. WESDOM is trustworthy!
