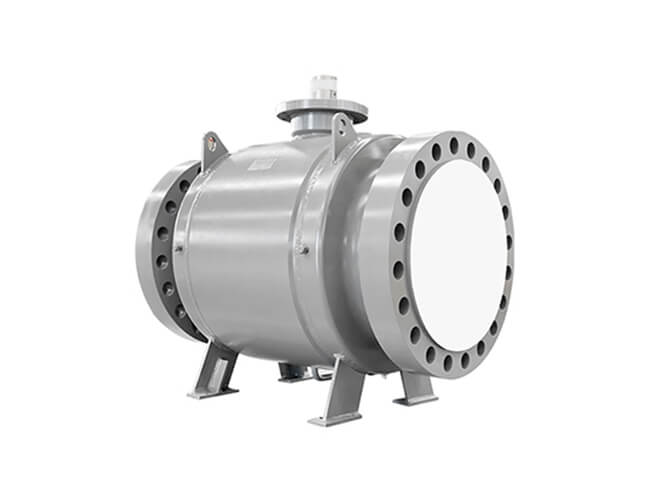

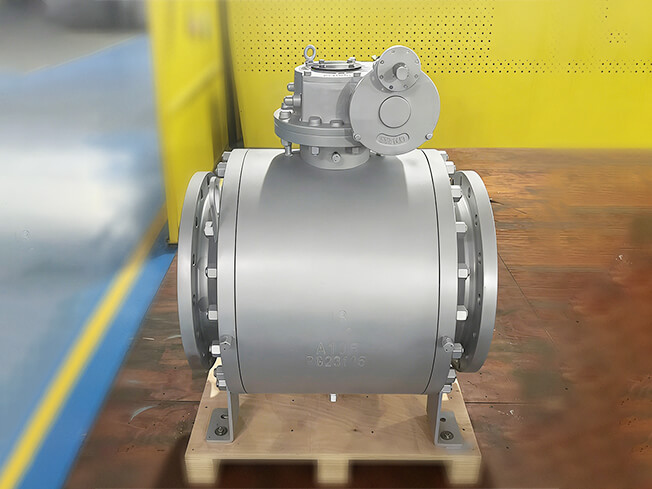

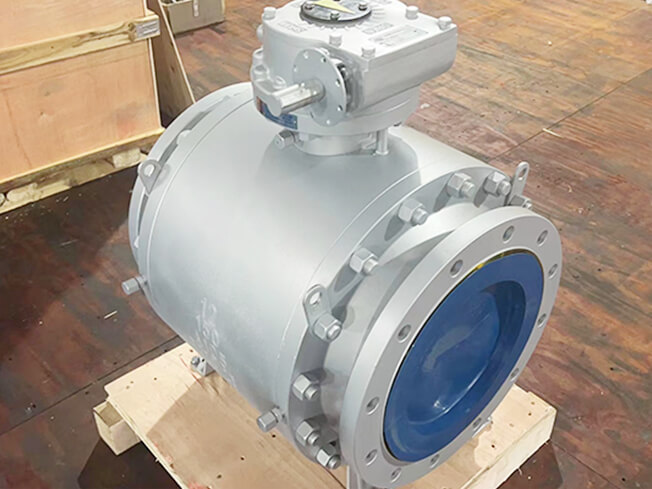

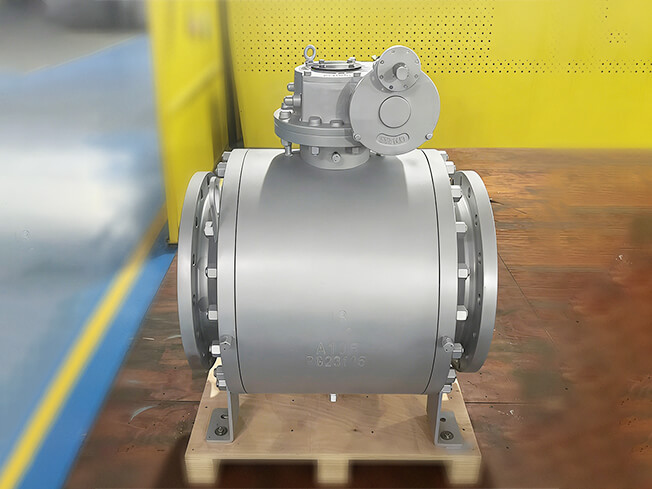

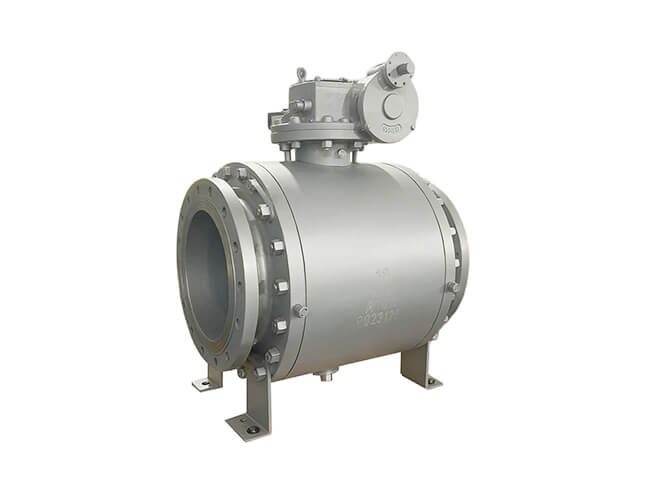

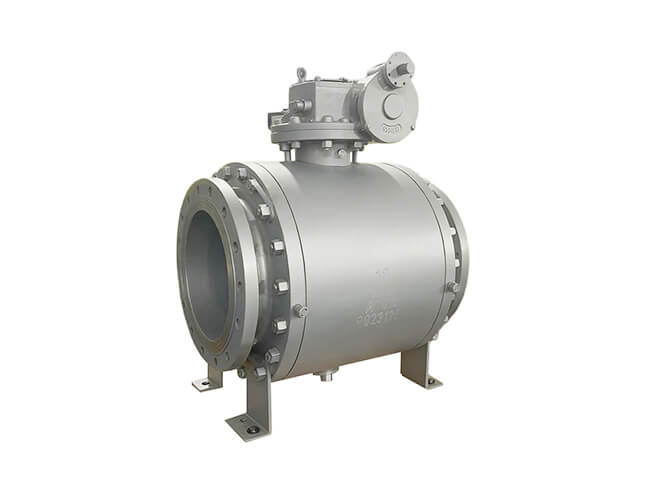

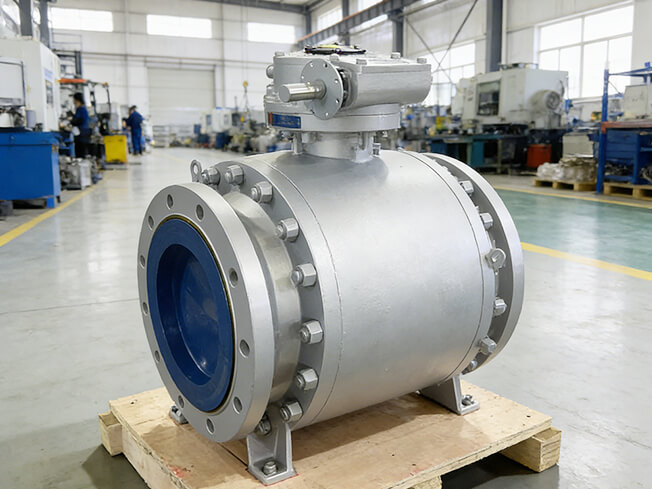

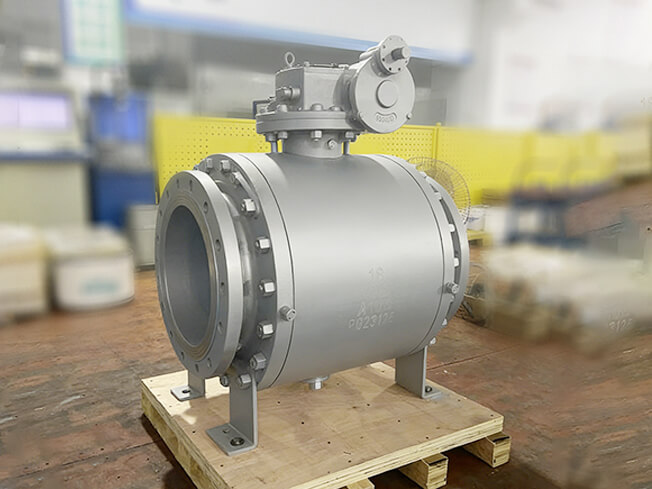

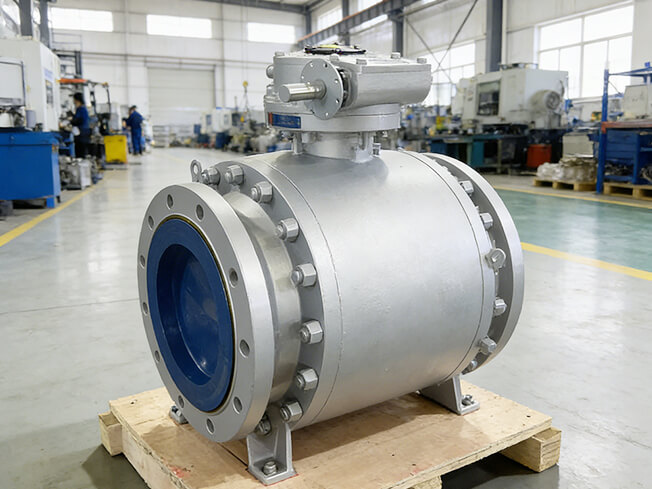

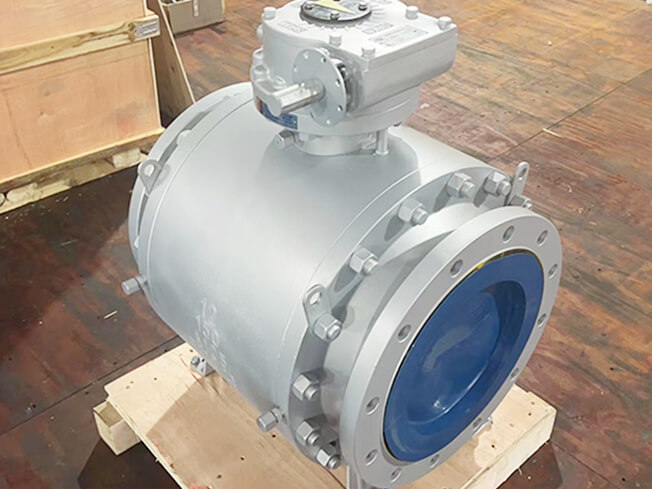

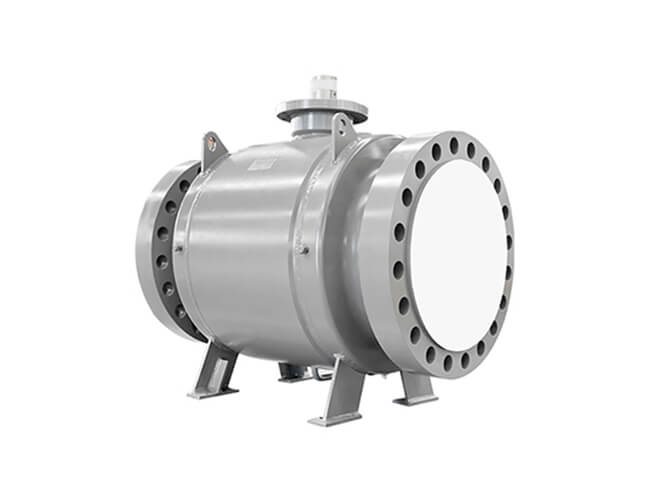

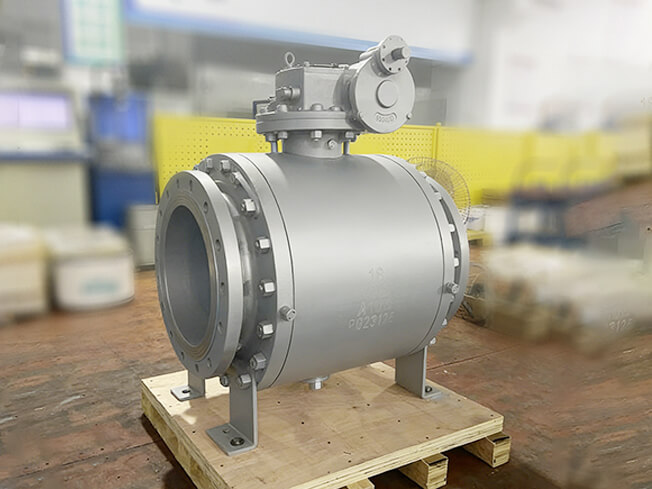

API 6D Ball Valve
Diameter: DN300~DN1500
Material: WCB, A105, F316, etc.
Pressure Rating: PN10~PN100 (ANSI Class 150~800)
Power: Manual (Gear-operated), Pneumatic, Motorized
Medium: Crude oil, natural gas, liquefied gas, chemical medium, clean water, sewage, steam, slurry, oil
Application: Oil & Gas Pipeline, Petrochemical Industry, Chemical Plant, Natural Gas Station, Long-distance Transmission Pipeline, Offshore Platform
The API 6D ball valve is designed, manufactured and tested in strict accordance with API 6D (American Petroleum Institute Standard 6D) and complies with ASME B16.34, API 598 and other related standards, which is a core control valve for pipeline systems.
The valve body is available in split body or integral structure, with smooth internal flow channel, low flow resistance, and can be equipped with pigging function to meet the needs of pipeline maintenance.
Features：
1. Strict standard compliance: Fully meets API 6D, API 6FA/607 (fire-safe), NACE MR0175 (anti-sulfide stress cracking) and other standards, with reliable quality and traceability.
2. Excellent sealing performance: Adopts metal-to-metal or soft-seal structure, realizes zero leakage, and is equipped with emergency sealant injection system for emergency maintenance of seat and stem seals.
3. Stable operation: Trunnion-mounted design reduces operating torque, with anti-static, anti-blowout stem and low-friction bearing structure, ensuring precise operation and long service life.
4. Convenient maintenance: Split body or top-mounted structure, supports on-line maintenance, and the valve seat and internal parts can be replaced without removing the valve from the pipeline, saving time and labor.
5. Strong adaptability: Customizable material and structure, suitable for low temperature (-101℃~350℃), high pressure, corrosive and abrasive media, meeting diverse industrial needs.
API 6D ball valves are available as below:
(1)API 6D trunnion mounted ball valves & Floating ball valve;
(2)Buttweld and flange ends;
(3)Manual and actuated operation;
(4)Blowout proof stem;
(5)Fire resistant construction;
(6)Anti-static design;
| Type | NPS(in) | 1/2 | 3/4 | 1 | 11/2 | 2 丨 3 | 4 | 6 | 8 | |||||
| Full bore | D(mm) | 13 | 19 | 25 | 38 | 51 | 64 | 76 | 102 | 203 |
| L(mm) | 108 | 117 | 127 | 165 | 178 | 203 | 229 | 394 | 457 | |
| H(mm) | 61 | 66 | 76 | 95 | 142 | 156 | 181 | 270 | 345 | |
| Do(mm) | 130 | 130 | 160 | 230 | 400 | 400 | 700 | 300, | 300* | |
| Reduced bore | NPS(in) | 3/4, 1/2 | 1*3/4 | 1«/2*1 | 2*H/2 | 3*2 | 4*3 | 6*4 | 8*6 | 10*8 |
| L(mm) | 117 | 127 | 165 | 178 | 203 | 229 | 267 | 292 | 330 | |
| D(mm) | 19 | 25 | 38 | 63 | 76 | 102 | 152 | 203 | 254 | |
| H(mm) | 82 | 85 | 100 | 120 | 153 | 162 | 119 | 290 | 340 | |
| Do(mm) | 130 | 130 | 160 | 230 | 400 | 400 | 460 | 300* | 300* | |
| d(mm) | 13 | 19 | 25 | 51 | 63 | 76 | 105 | 152 | 203 | |
Material list:
| Material List | ||
| No. I | Parts | | Material | |
| 1 | Body | ASTM A216Gr.WCB |
| 2 | Seat Seal | PTFE |
| 3 | Ball | 304S.S. |
| 4 | Stem | ASTMA182F6a |
| 5 | Gasket | PTFE |
| 8 | Packing | PTFE |
| 12 | Lever | ASTMA216Gr.WCB |
| 16 | Bonnet | ASTMA216Gr.WCB |
| 17 | Stud | ASTMA193Gr.B7 |
Specifications:
| Design and Manufacture | API 6D |
| Wall Thickness | API 6D |
| Face-to-Face Dimension | API 6D |
| Flange End Dimension | ANSI/ASME B16.5 (1” to 24”) ANSI/ASME B16.47 (26” & up) |
| Butt-Weld End Dimension | ANSI/ASME B16.25 |
| Inspection & Testing | API 6D/API 598 |
| Fire Safe Design | API 607/BS 6755 |
| Material | Nace MR 0175 |
Selection of API 6D Ball Valve:
1. Oil & Gas Industry: Suitable for on-off control of crude oil, natural gas long-distance transmission pipelines, offshore platforms, wellhead devices and refineries.
2. Petrochemical & Chemical Industry: Applicable to weakly corrosive, high-temperature and high-pressure chemical media, and two-phase mixed flow media transportation control.
3. Natural Gas System: Used for transportation and control of natural gas, liquefied gas in urban gas stations and gas transmission pipelines, ensuring zero leakage and safe operation.
4. General Industrial Pipeline: Suitable for clean water, sewage, steam, slurry and other media in power plants, water treatment and other fields, especially for large-diameter and high-pressure pipeline systems.
5. Special Working Conditions: Applicable to low-temperature, anti-sulfide, fire-safe and other special working conditions, such as high-integrity pressure protection systems (HIPPS) and emergency shutdown systems (ESD).
