API carbon steel gate valve

Product

Home / Products / Gate Valve / API carbon steel gate valve

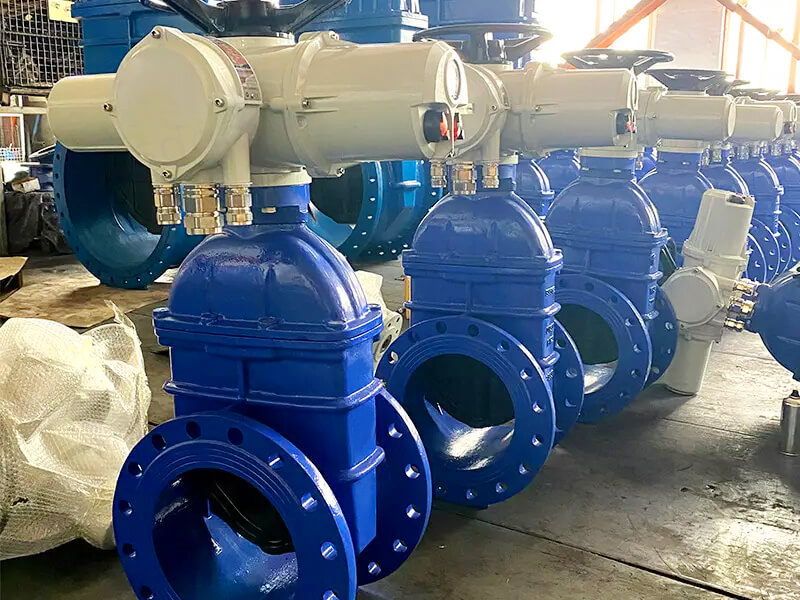

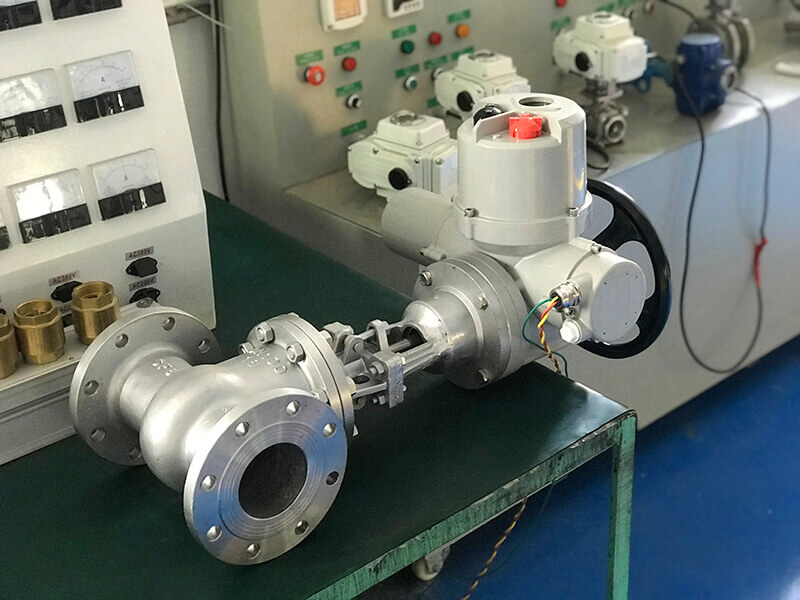

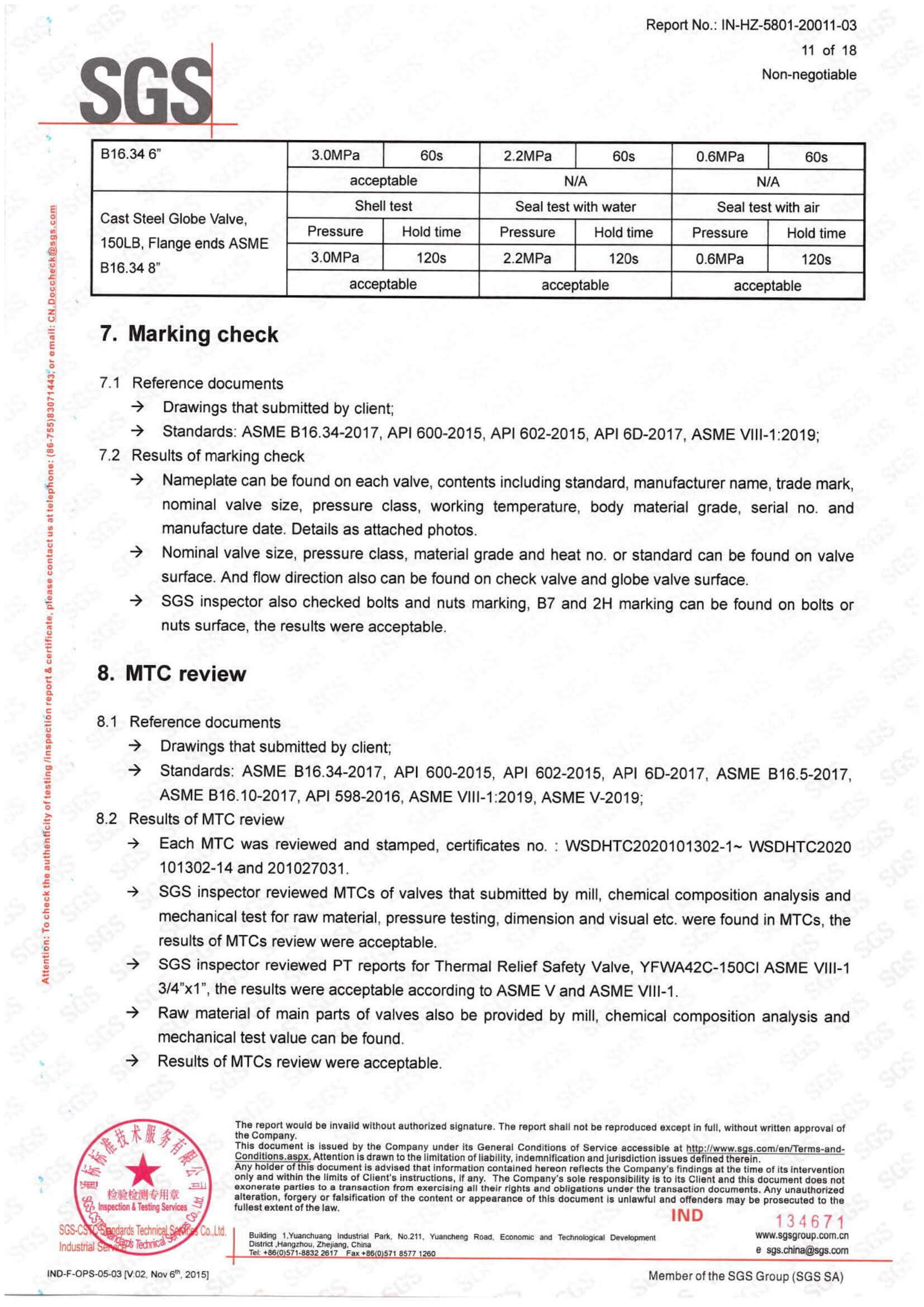

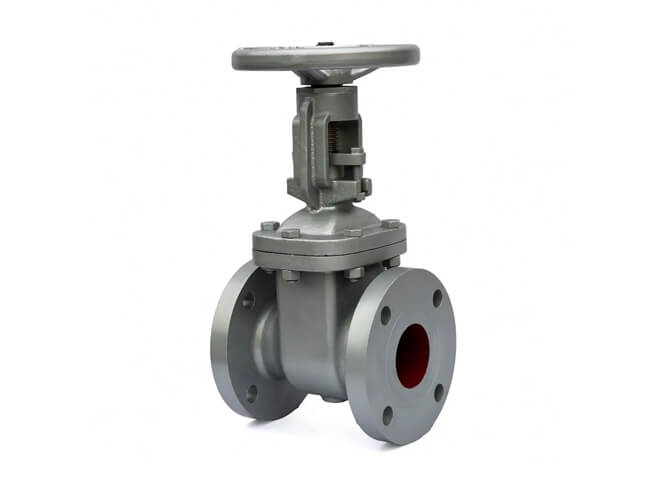

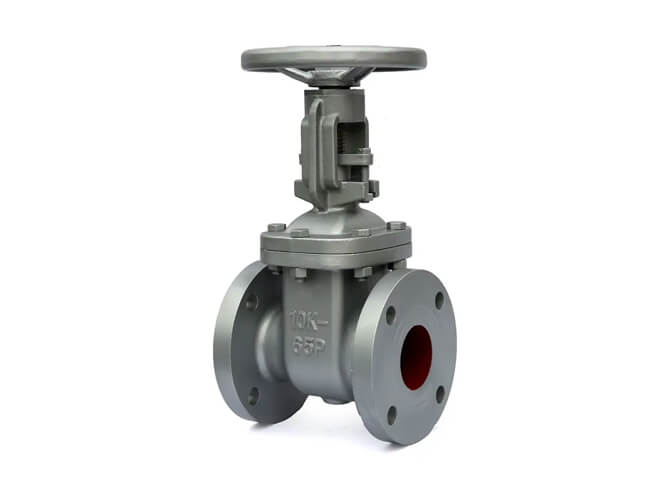

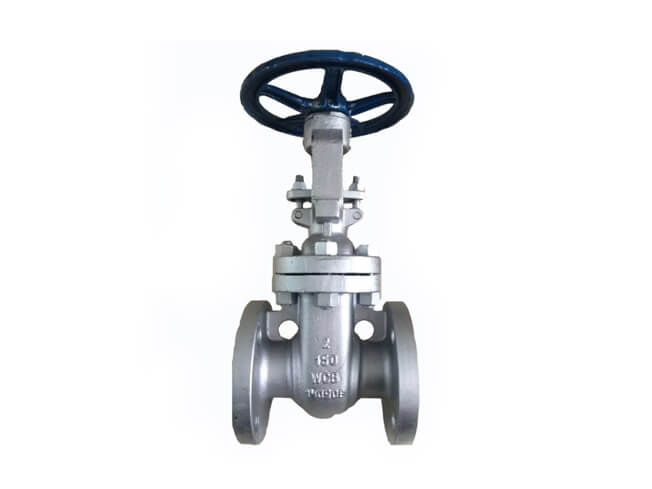

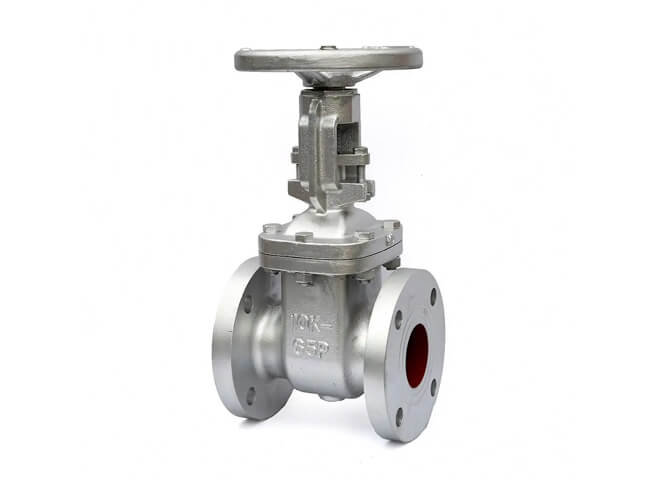

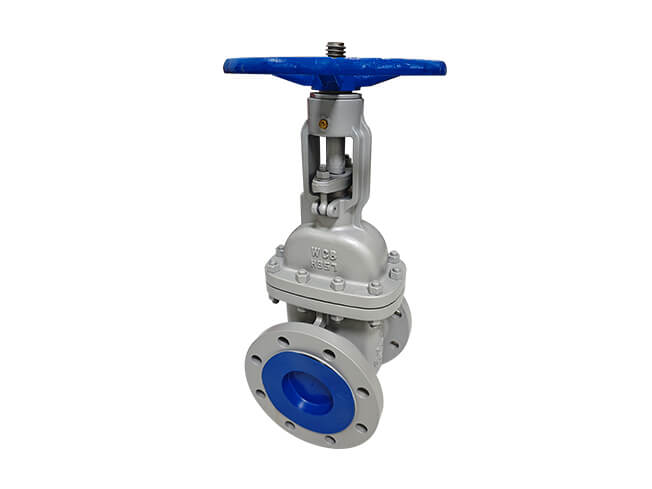

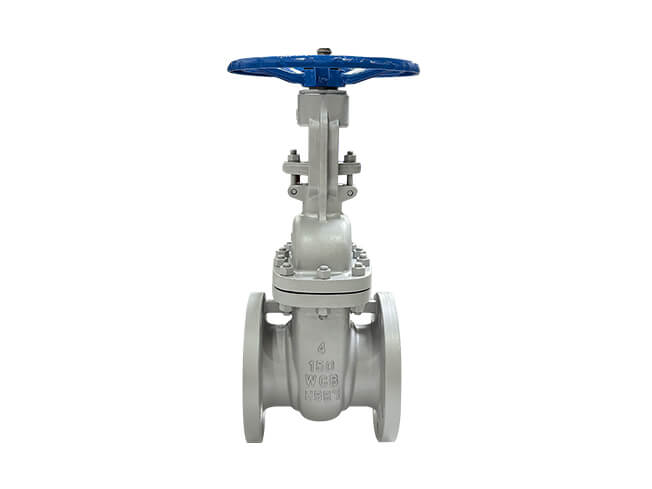

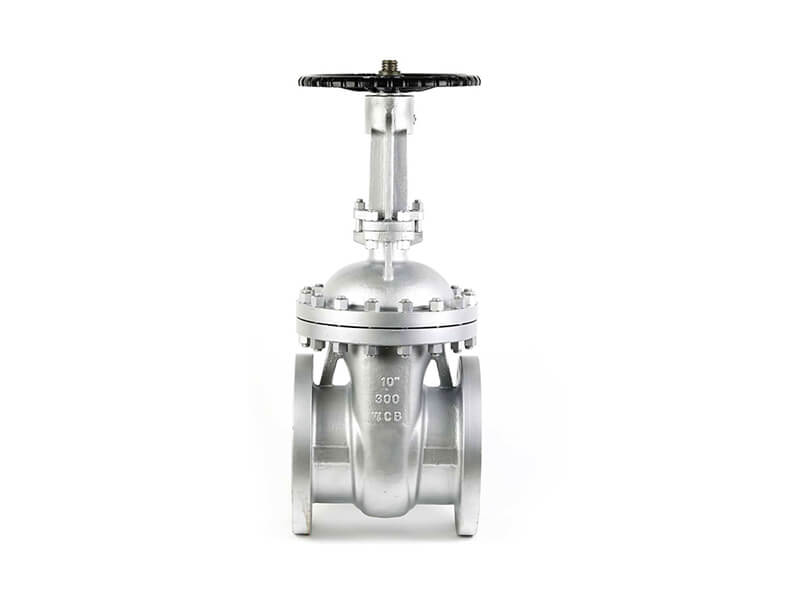

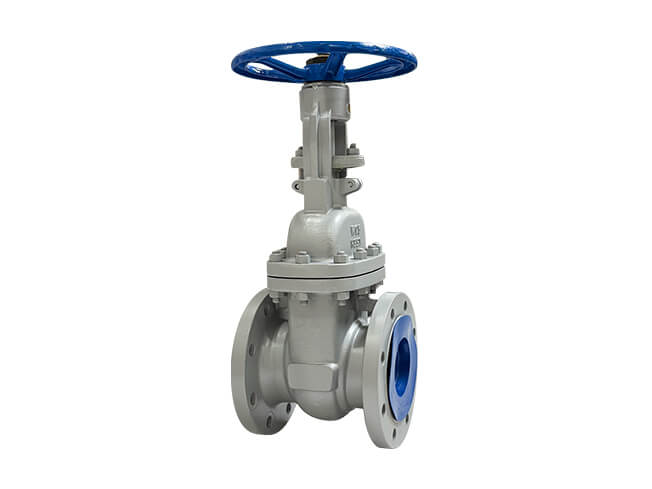

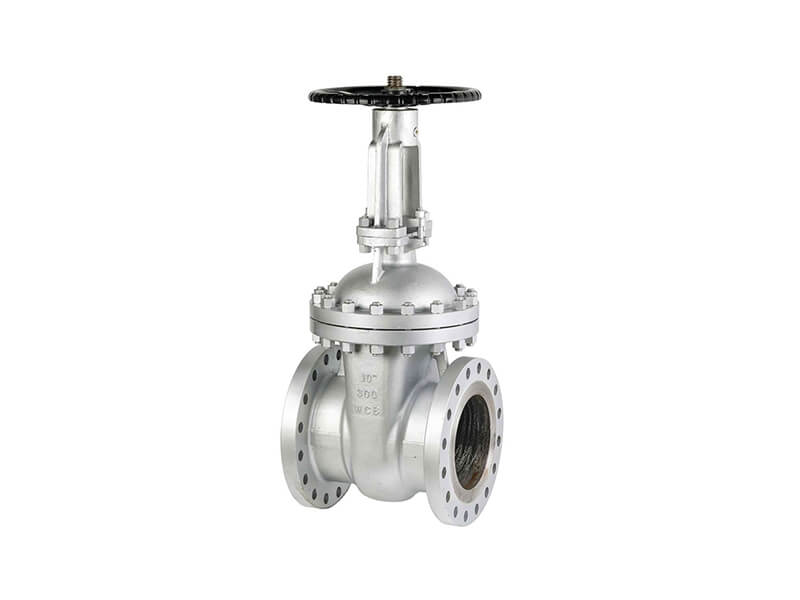

API carbon steel gate valve

Size:1/2”-48”

Pressure Rating:150LB- 600LB

Material:A216 GR.WCB, Alloy steel, SS304, SS316

Design Standard:API 600, API 6D

Inspection Standard:API 598

Application medium:Water, oil, gas

Application Temperature:-29-425℃

Applied projects:Petrochemical/ Power plant/Refining/Oil & Gas/ Metallurgy etc.

API carbon steel gate valve is one kind of equipment which can be widely used on oil and steam pipelines in petrochemical plant and coal-fired power plants to connect or truncate the medium in pipelines. Only used for full turn on or full turn off.carbon steel flange gate valve has the advantage of compact structure，reasonable design,good rigidity,smooth channel and small flow resistance coefficient,double sealing surface were made to wedge type.

Product details

Carbon cast steel flange Gate valve is one kind of equipment which can be widely used on oil and steam pipelines in petrochemical plant and coal-fired power plants to connect or truncate the medium in pipelines. Only used for full turn on or full turn off. This valve has the advantage of compact structure，reasonable design,good rigidity,smooth channel and small flow resistance coefficient.double sealing surface were made to wedge type.

Features：

(1)Small flow resistance .the way inside valve is direct through,the media can easily through the inside way, flow resistance are small.

(2)Operate portable and flexibly,compare with globe valve ,the way of Disc move is Vertical with media whether open or close.

(3)It is take a long time to open or close because long stem.

(4)Water hammer phenomenon will nor happen because it cost long time to open and close.

(5)The medium can flow in any direction on both sides, and is easy to install. Gate valves are symmetrical on both sides of the channel.

carbon gate valve

Pressure	Size		L			d	195	H1	W	W1	Weight(kg)
Pressure	NPS	DN	RF	RTJ	BW	d	195	H1	W	W1	H.W	G.O
Class150	1/2″	15	108	119	108	14	210	—	120	—	4	—
	3/4″	20	117	130	117	19	240	—	120	—	5	—
	1″	25	127	140	127	25	300	—	140	—	7	—
	11/4″	32	140	153	140	32	395	—	180	—	10	—
	11/2″	40	185	178	165	38	400	—	200	—	14	—
	2″	50	178	191	218	51	435	—	200	—	19	—
	21/2″	65	191	203	241	64	515	—	200	—	25	—
	3″	80	203	216	283	76	595	—	250	—	33.5	—
	4″	100	229	241	305	102	725	—	280	—	48.5	—
	5″	125	254	267	381	127	780	—	300	310	60.5	—
	6″	150	267	279	403	152	975	820	350	310	77	104
	8″	200	292	305	418	203	1150	1020	400	310	115	150
	10″	250	330	343	457	254	1380	1200	450	310	175	215
	12″	300	356	368	502	305	1545	1430	500	310	280	315
	14″	350	381	394	572	337	1733	1580	500	480	385	435
	16″	400	406	419	610	387	1915	1780	600	480	500	552
	18″	450	432	446	680	438	2122	1990	600	480	601	853
	20″	500	457	470	710	489	2520	2220	600	480	784	816
	24″	600	508	521	813	591	—	2800	—	600	1007	1185
	26″	650	559	—	864	633	—	2800	—	600	—	1550
	28″	70	810	—	914	684	—	3050	—	600	—	1880
	30″	750	810	—	914	735	—	3130	—	600	—	2300
	32″	800	711	—	965	779	—	3280	—	600	—	2550
	34″	850	762	—	1016	830	—	3500	—	600	—	2950
	36″	900	700	—	1016	874	—	3720	—	600	—	3390
