Check Valve with Counter Weight

check valve with counter weight

Nominal pass through: 40~1400mm

Nominal pressure: 1.0~2.5MPa

Applicable medium: water, oil, sewage, seawater

Applicable temperature: 0~80℃ (up to 200℃ if necessary)

Flange standard: GB/T 17241.6 GB/T 9113

Test standard: GB/T 13927 AP1598

Buffer check valve product overview:

Check valve with counter weight produced by our factory is mainly used at the pump outlet of industrial water supply and sewage treatment plant to prevent the backflow of the medium in the pipe network. Destructive water hammer is automatically eliminated so that pumps and piping are not damaged. The valve is mainly characterized by valve body, cutting flap and good buffer performance. It is the best product for industrial water and urban sewage.

Product details

check valves with counter weight are used on the outlet of the water pump of industrial water supply and sludge treatment plant to prevent the medium inside the pipe network from going back, and remove automatically the destructive water hammer so as to ensure both pump and pipeline not to get damaged. It consists of body, disc, buffer and micro-adjusting valve. And it features by the brand new structure, small volume, small fluid resistance, reliable seal, wearable and good buffering performance. It is really the best product for industrial use of water and city sludge drainage.

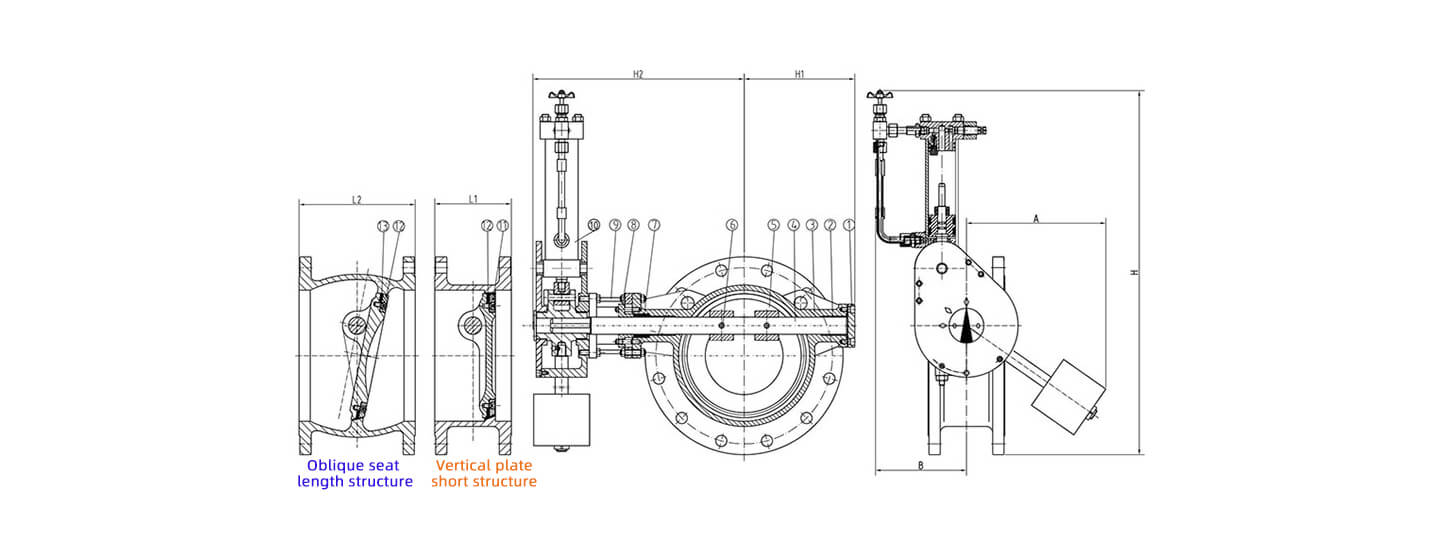

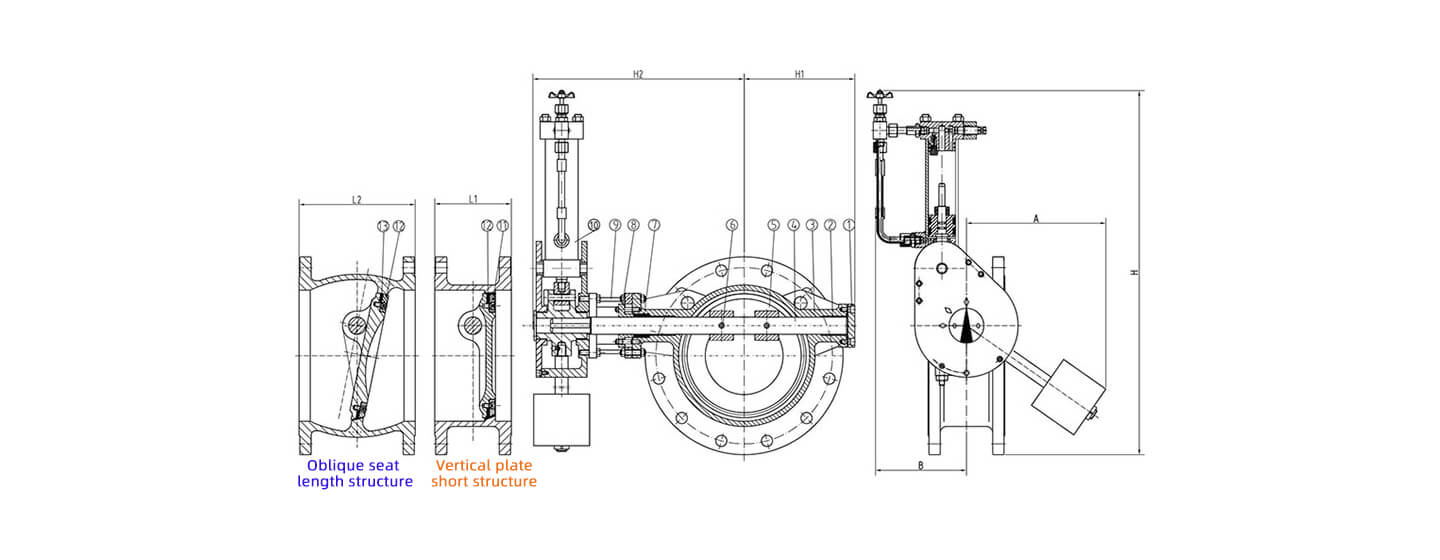

DN(mm) 200 250 300 350 400 450 500 600 700 800 900 1000 1200 1400
L 230 250 270 290 310 330 350 390 430 470 510 550 630 710
H 550 630 690 780 860 910 980 1070 1220 1320 1430 1550 1800 1980
B1 540 600 650 710 770 830 900 1090 1200 1320 1420 1550 1780 2000



wesdom gate valve

Project case

Project description:

WESDOM customizes the most suitable solutions for customers according to the actual needs of customers’ working conditions;

Client feedback:

WESDOM products are of high quality, Now all products have well installed on site.

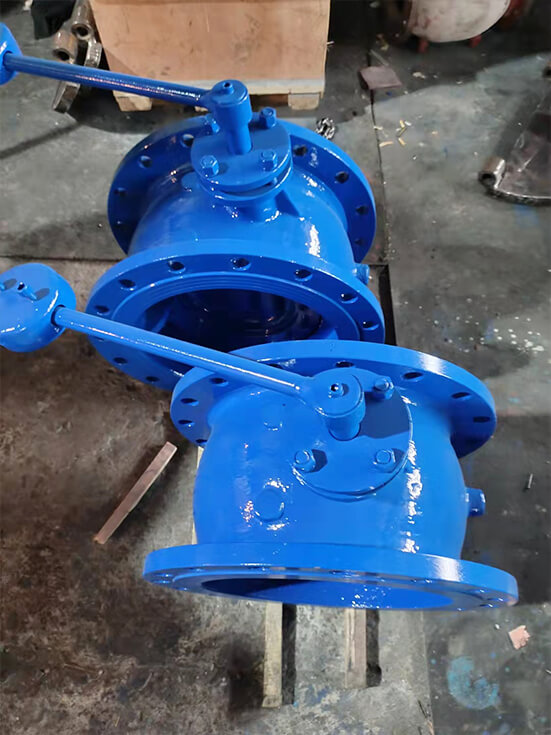

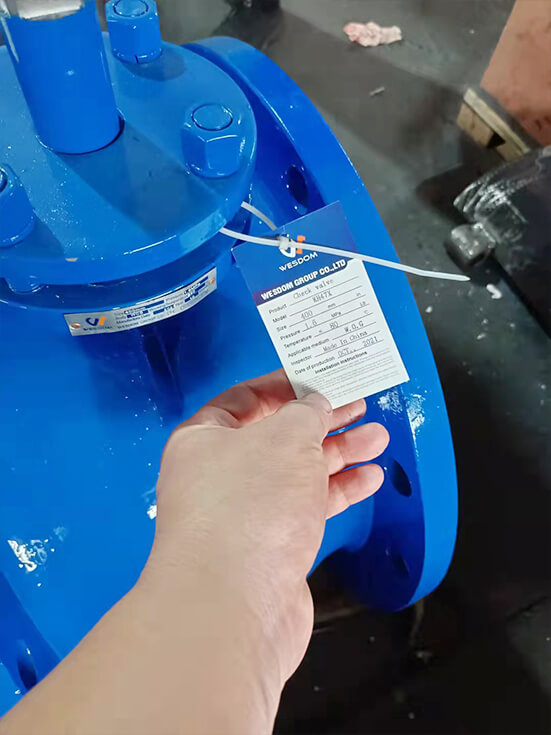

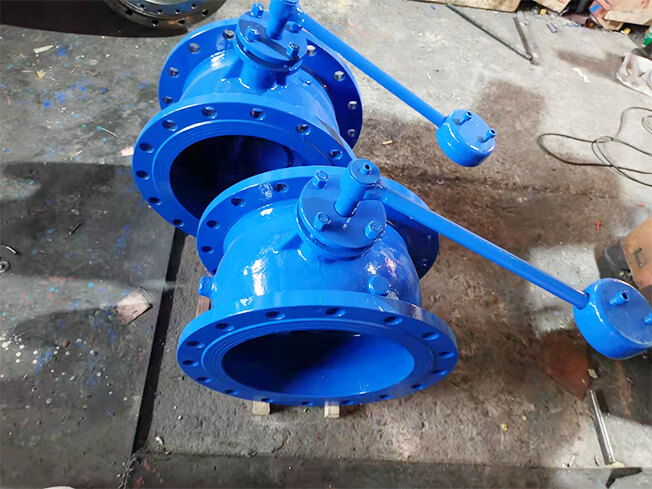

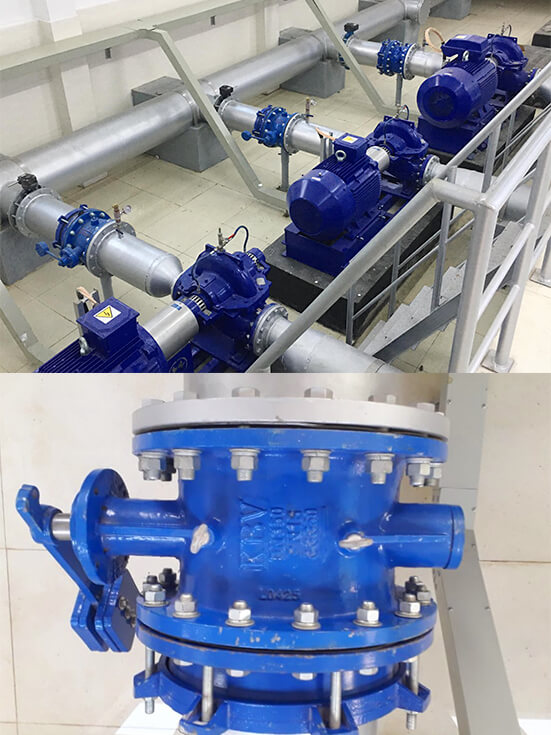

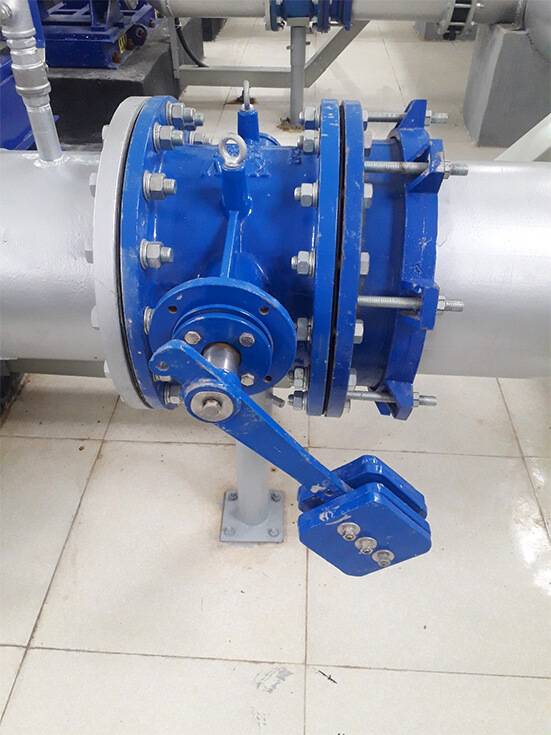

Project pictures:

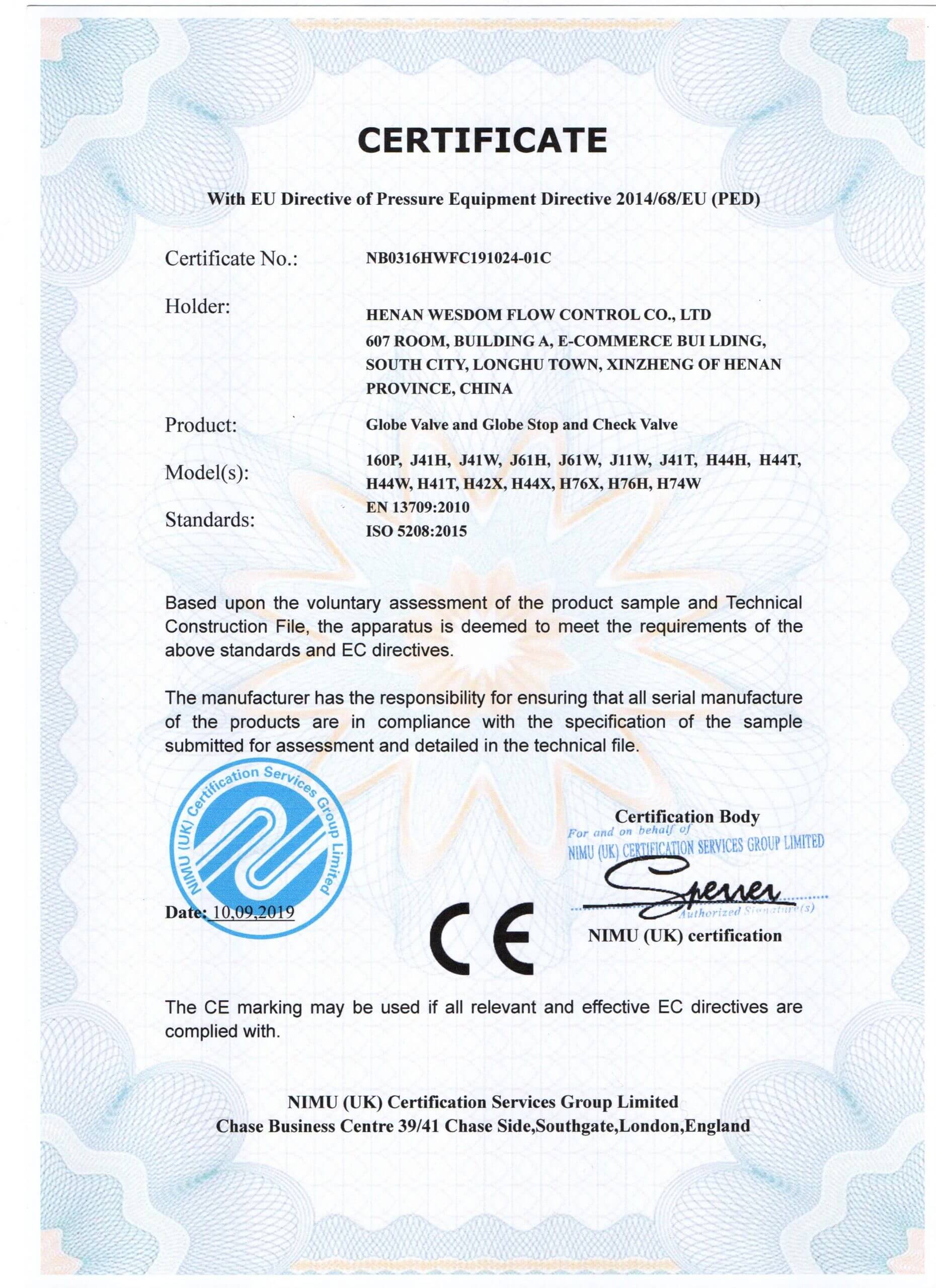

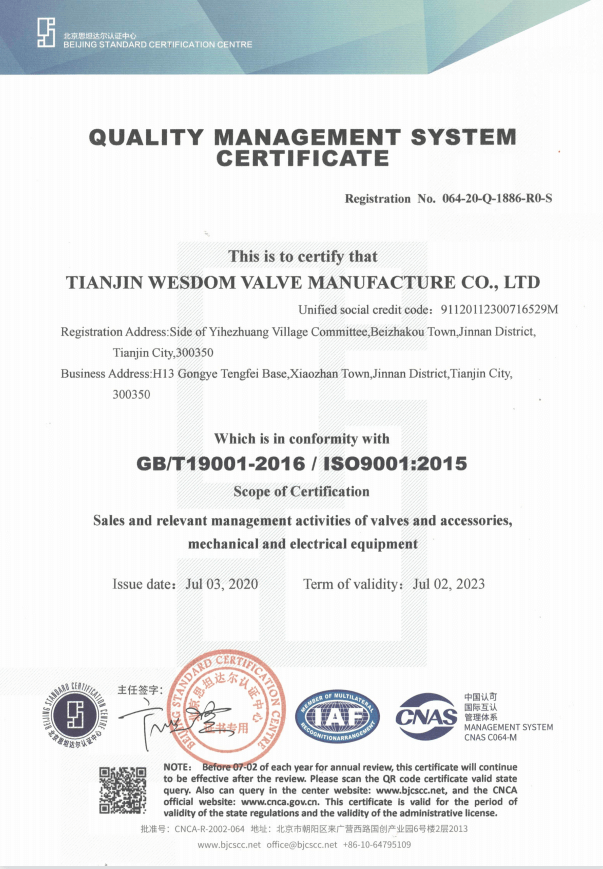

Certificate

Material

Part Name Valve body Valve disc Valve stem Filler Sealing ring
Material Grey cast iron,

Cast steel

Grey cast iron,

Cast steel,

Ductile iron

Stainless steel PTFE Nitrile rubber
