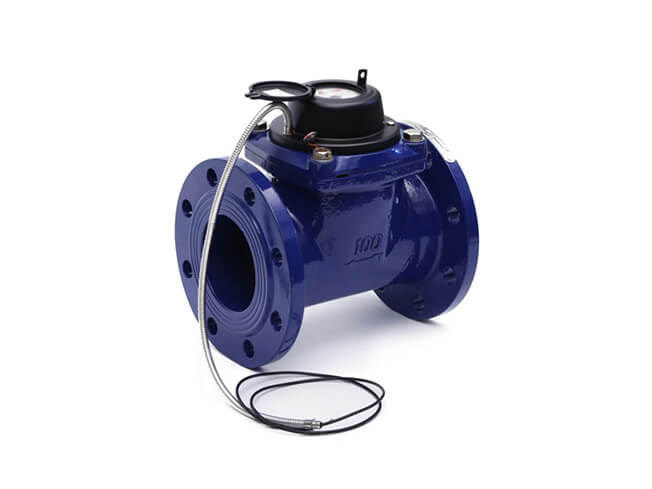

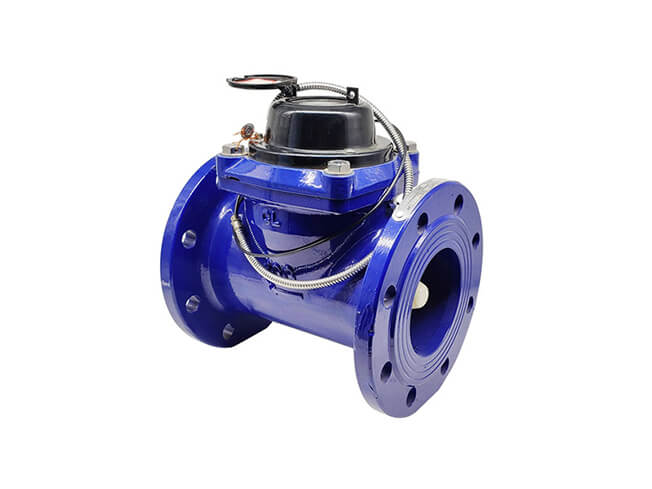

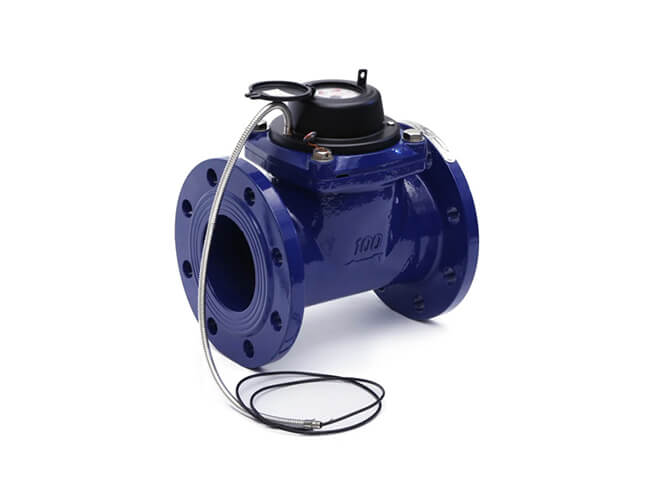

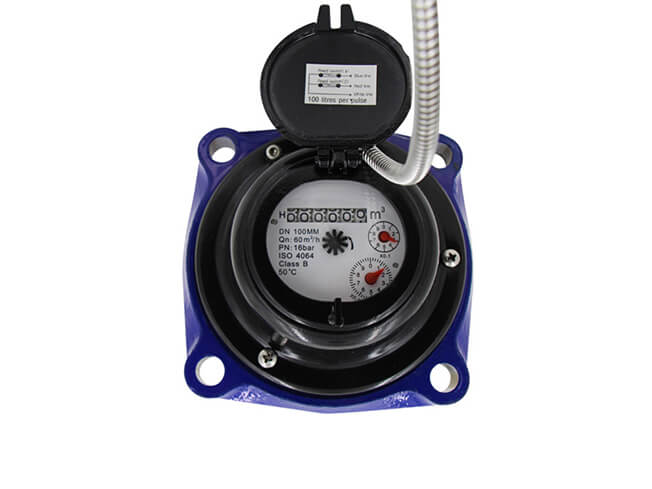

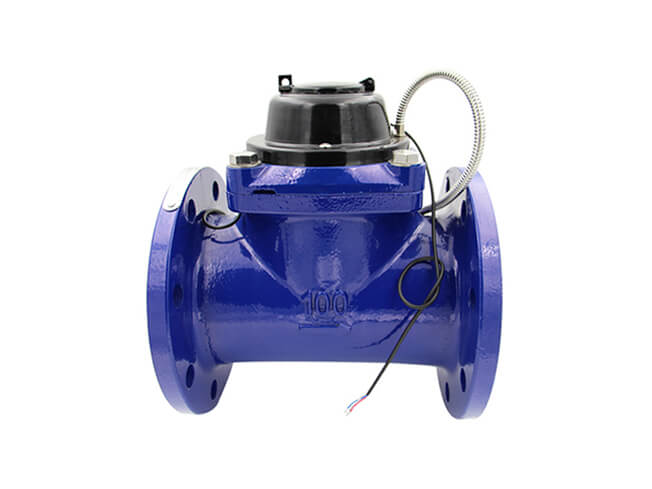

DI wotlman water meter

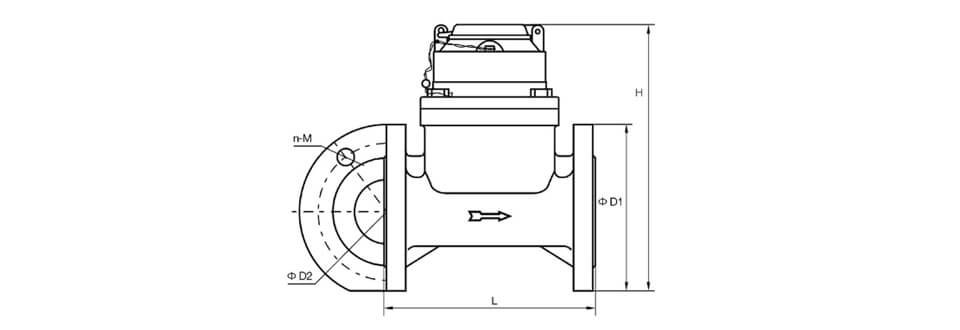

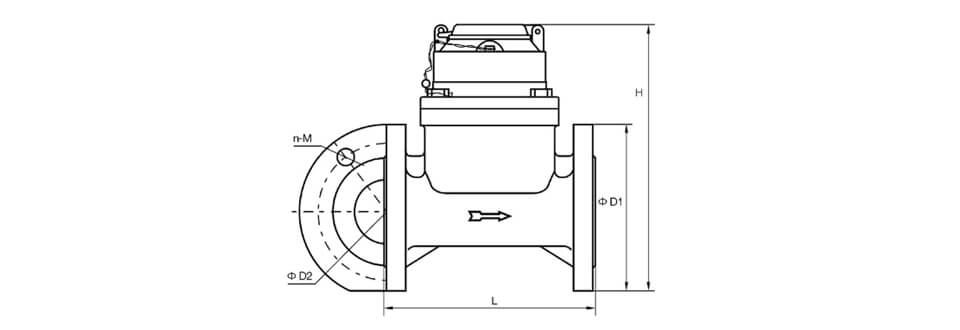

Dimension

Type	Size	L(Length)	H(Height)	Connecting Flange
				D1(Outside Diameter)	D2(Bolt Circle Diameter)	Connecting Bolts(n-M)
	mm
LXLC-50/DE	50	200	261	165	125	4-M16
LXLC-65/DE	65	200	271	185	145	4-M16
LXLC-80/DE	80	225	279	200	160	8-M16
LXLC-100/DE	100	250	289	220	180	8-M16
LXLC-125/DE	125	250	299	250	210	8-M16
LXLC-150/DE	150	300	319	285	240	8-M20
LXLC-200/DE	200	350	346	340	295	8-M20(1.0MPa)
						12-M20(1.0MPa)



Function

–Whole water meter has only one movable part of impeller, it greatly reduces mechanical wear and prolongs the working life.

–lncrease much of the sensitivity of measurement, solve the problem of small flow measurement of mechanical water meter, range ratio reaches R200, range ratio of some diameters can be made larger.

–Optimized error curve of water meter by piecewise linear, measurement accuracy is higher.

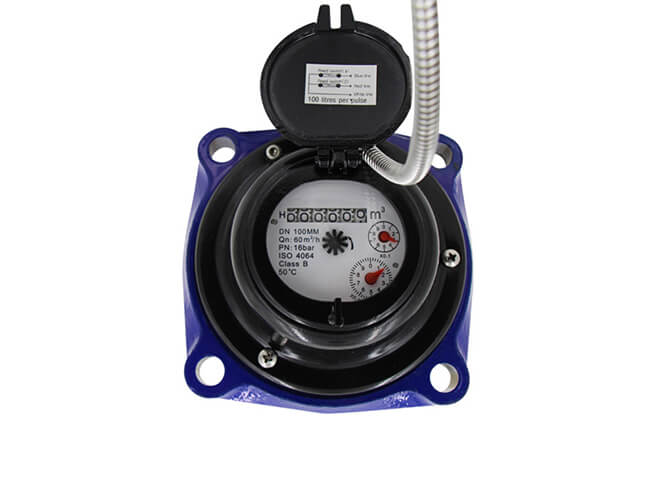

–Reading displays of digital LCD, indicate accurate information correctly.

–No magnetic design of whole water meter, avoid magnetic-field interference.

–Prompt and accurate measurement of the reverse water flow.

–Display function of instantaneous flow, may be calibrated on-site.

–Modular design, easy to install and maintain.

–Automatic processing different prices of using water.

–Combine with valve, realize the function of prepaid and remote control.

–Automatic storage of historical data of using water.

–Output Model: M-BUS\MOD-MUS\RS485.

–Remote diagnosis running status.

–Automatically upload data on specified date.

–Protection grade: IP68.



 Technical Parameters

–Quiescent current: 6uA

–Dynamic working current: 9uA

–Communication working current: 500uA

–Continuous working time: 6 years, 70% of remaining power

–Power supply: 3.6V

–Working temperature:-10~50℃

–Storage temperature:-10~60℃

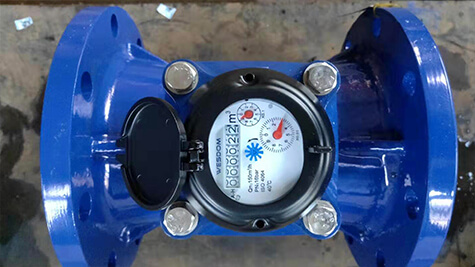

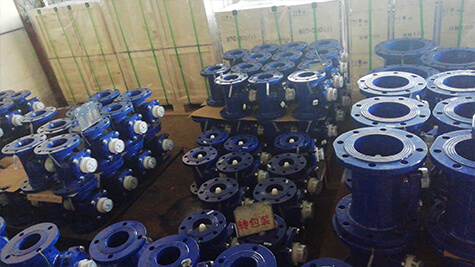

The Philippines – Water Treatment Plant Project

Main product:

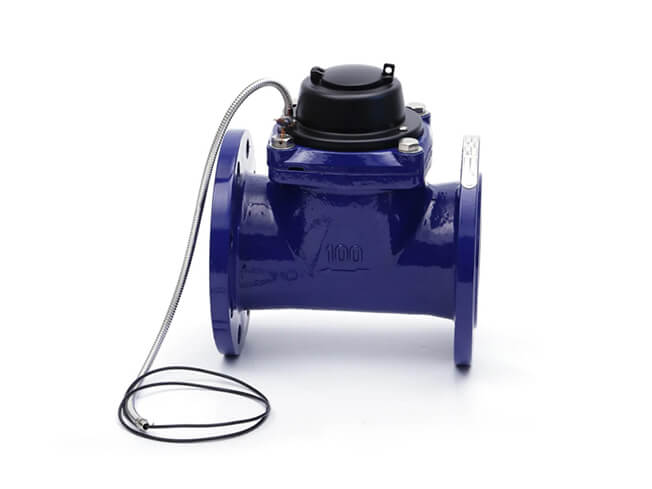

Flange water meter – LXXG model, cast iron water meter FOR irrigation

In the end, WESDOM reached cooperation with this client from the Philippines. By the way,he also purchased some other valves from WESDOM. After receiving the products, they expressed full of praises for the look and quality of the product.



–Removable element structure, easy installation and maintenance;

–Dry-dial, Magnetic drive;

–Large flow capacity, small pressure loss;

–Resist water hummer and pollution;

–Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;

–Selected high quality materials for steady and reliable characteristic;

–Technical data conform to international standard ISO 4064/ISO9100;

–With high accuracy;

–Product accessories include connectors, filters, connection accessories, pipe accessories, Flange, filter;

Supply Project

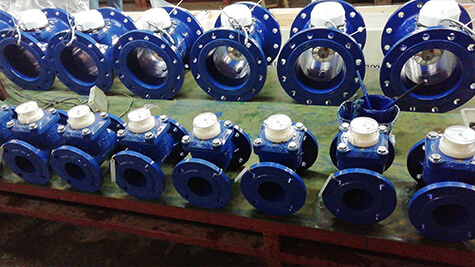

Indonesia Drinking Water Supply Project

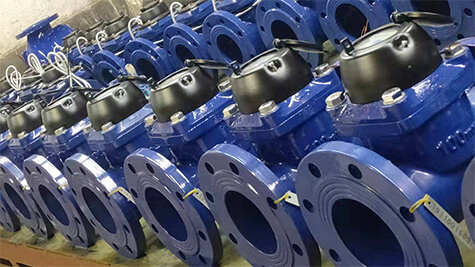

WESDOM Group water meter is applied to Indonesia drinking water supply project.

Customers are very pleasure to receive our products. And establish a long-term supply cooperation relationship with us!

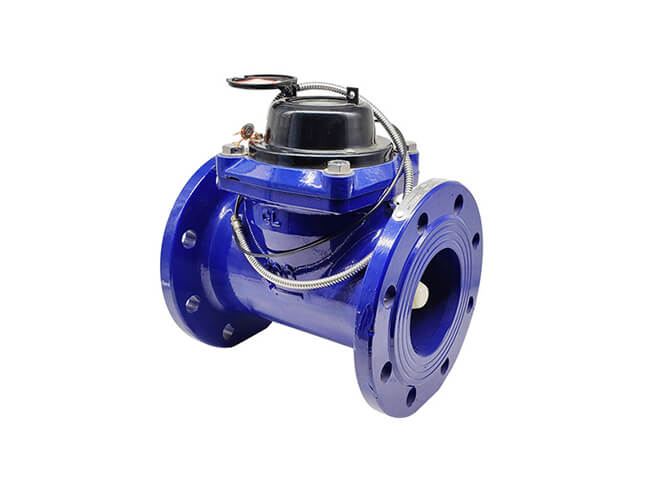

The main products we are: Flange Vlotman water meter.



FLOW TECHNIQUE SPECIFICATION

Nominal Flow	Maximum Flow Q4	Permanent Flow Q3	Q3/Q1	Q2/Q1	Transitiona lFlow Q2	Minimum Flow Q1	Minimum Reading		Minimum Reading
DN	m3/h				m3/h		Full Glass Seal	Common Seal	Full Glass Seal	Common Seal
50	31.3	25	50	1.6	0.8	0.5	0.0005	0.0002	999,999	999,999
				4	2
	50	40	80	1.6	0.8	0.5
				4	2
65	50	40	50	1.6	1.3	0.8	0.0005	0.0002	999,999	999,999
				4	3.2
			80	1.6	0.8	0.5
				4	2
80	78.8	63	50	1.6	2	1.3	0.002	0.002	999,999	9,999,999
				4	5
			80	1.6	1.3	0.8
				4	3.2
100	125	100	50	1.6	3.2	2	0.002	0.002	999,999	9,999,999
				4	8
			80	1.6	2	1.3
				4	5
125	200	160	50	1.6	4	3.2	0.002	0.002	999,999	9,999,999
				4	12.8
			80	1.6	3.2	2
				4	8
150	312.5	250	50	1.6	8	5	0.002	0.002	999,999	9,999,999
				4	20
			80	1.6	5	3.1
				4	12.4
200	500	400	50	1.6	12.8	8	0.002	0.002	999,999	9,999,999
				4	32
			80	1.6	8	5
				4	20
250	787.5	630	25	1.6	40.3	25.2	0.02	0.02	9,999,999	99,999,999
				4	100.8
			50	1.6	20	12.6
				4	50.4
300	1250	1000	25	1.6	64	40	0.02	0.02	9,999,999	99,999,999
				4	160
			50	1.6	32	20
				4	80
