WESDOM

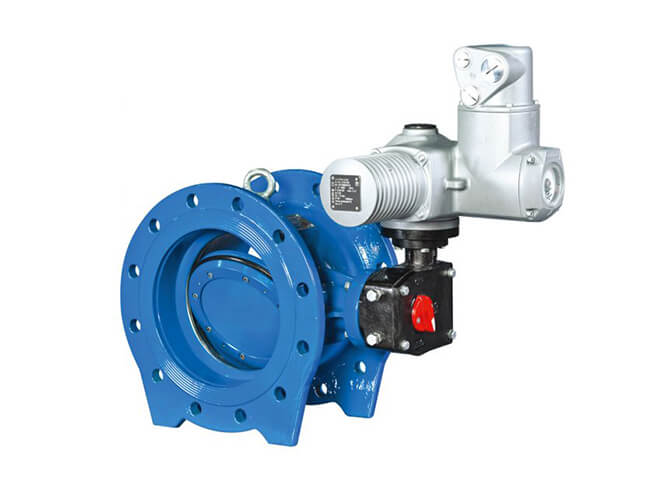

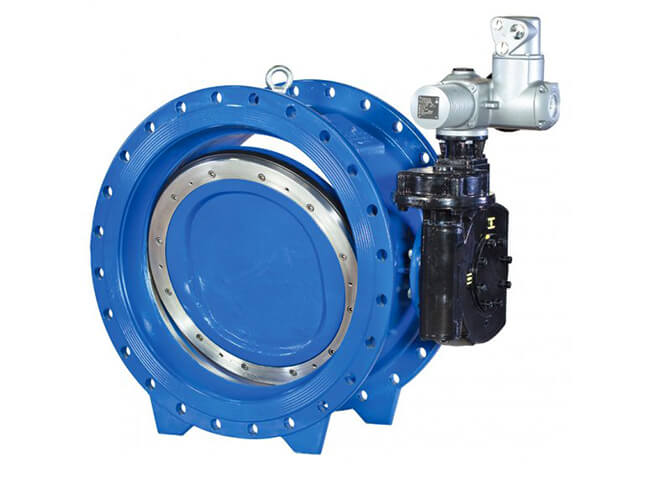

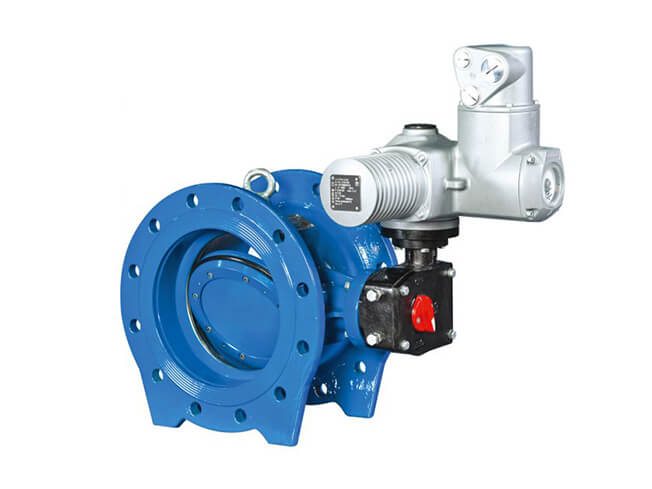

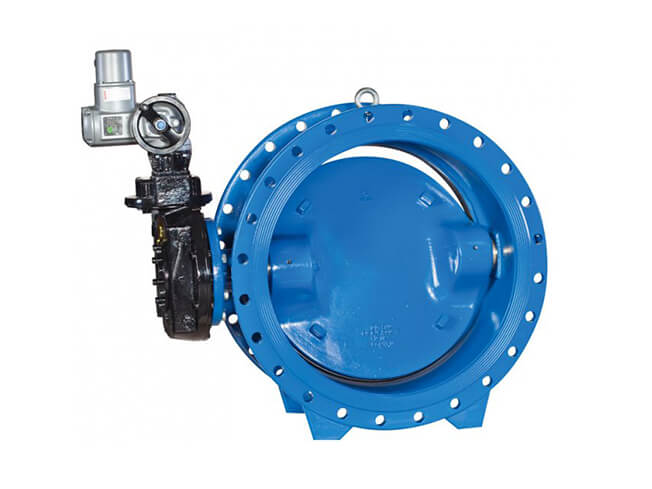

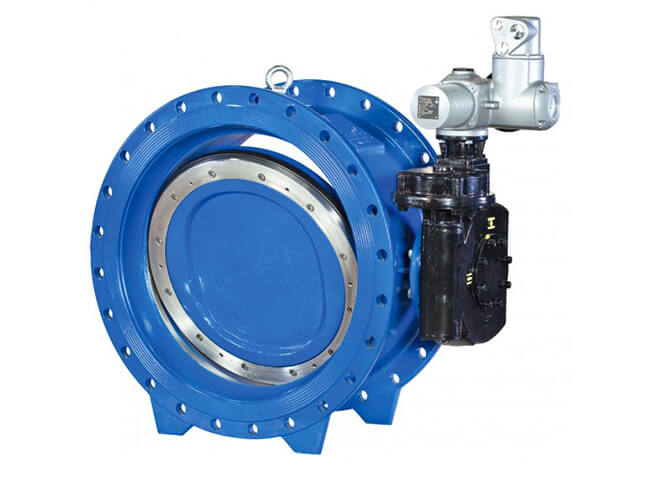

Electric three-eccentric metal hard seal butterfly valve

Electric three-eccentric metal hard seal butterfly valve

Size:DN40~DN2000

Pressure Rating:PN10, PN16, CL150, JIS 5K/10K

Material:SS304, SS316

Design Standard:EN 593, MSS SP67, API 609, BS5155

Inspection Standard:API 598, ISO 5208, EN 12266

Application medium:water, oil and gas

Application Temperature:-10 °C to 150°C

Applied projects:Petroleum/ Electricity/ Metallurgy/ Water/ Sewage/ Energy/ Construction

CATALOGUE DOWNLOAD

Product details

WESDOM double eccentric butterfly valves with tilted disc are designed for easy operation and long service life. The disc seal is made of WESDOM’s drinking water approved EPDM rubber featuring an excellent compression set and ability to regain the original shape. The high quality epoxy coating and fully encapsulated shaft/disc connection ensure optimal corrosion protection and durability.

Double eccentricbutterfly valve Product description:

Flange butterfly valve, mounting between flanges PN10/PN16/A150, with gear box.

The range of WESDOM valves can be used for overground installation, in valve chambers and buried systems.butterfly valves in a range of DN 150 to 2000 mm and PN 10, 16 and 25 bar have been designed to isolate the flow of fluid in:

①potable water supply pipelines and treatment plants.

②transportation of filtered and recycled water.

③irrigation distribution networks.

④water-pumping stations and hydroelectric plants.

⑤reservoirs.

butterfly valve



1 2 3 4 5 6
Key Valve shaft Seal housing O-ring O-ring Radial bearing
Stainless steel A2 Stainless steel AISI 420 Bronze EPDM rubber EPDM rubber Bronze/PTFE composite
7 8 9 10 11 12
Disc cover Disc cover gasket O-ring Dowel O-ring Plug
Stainless steel EPDM rubber EPDM rubber Stainless steel A2 EPDM rubber Steel
13 14 15 16 17 18
Body Disc Security plate Screw O-ring Spring washer
Ductile iron GJS-500-7 Ductile iron GJS-500-7 Stainless steel Stainless steel A2 EPDM rubber Stainless steel A2
19 20 21 22 23 24
Washer O-ring Nut Washer Screw Screw
Zinc EPDM rubber Stainless steel A2 Stainless steel A2 Stainless steel A2 Stainless steel A2
25 26 27 28 29 30
Thrust bearing Screw End plate Gasket Shaft, stub Safety key
Bronze Stainless steel A2 Ductile iron GJS-500-7 EPDM rubber Stainless steel AISI 420 Stainless steel A2
31 32 33 34 35 36
Screw Screw O-ring Bolt Washer O-ring
Stainless steel A2 Stainless steel A2 EPDM rubber Stainless steel A2 Stainless steel A2 EPDM rubber



The range of WESDOM valves can be used for overground installation, in valve chambers and buried systems. It includes a full range of operating accessories and actuators.

WESDOM valves are installed all over the Asia,Africa continent, the Middle East and throughout Europe. They have justifiably acquired a faultless reputation for their durability, reliability and quality worldwide.

DN L PN6/PN10/PN16 PN6
H1 H2 H3 L1 L2 L3 D D1 d n-do
100 127 310 109 242 52 45 210 210 170 144 4–19
150 140 440 143 340 52 45 210 265 225 199 8–19
200 152 510 182 410 77 63 315 320 320 254 8–19
250 165 565 219 445 77 63 315 375 375 309 12–19
300 175 630 244 482 95 72 242 440 440 369 12–23
350 190 715 283 565 110 91 275 490 490 413 12–23
400 216 750 312 600 220 91 275 540 540 463 16–23
450 222 820 344 670 147 147 420 595 595 518 16–23
500 229 845 381 695 147 147 420 645 645 568 20–23
600 267 950 451 780 533 179 476 755 755 667 20–26



Features:

①Design and Manufacture Conform to EN 593, API609,  JIS

②Disc firmly fixed to the shaft to prevent fluttering and a slight tilt allows for precise adjustment of the closed position

③Disc seal profile and rubber quality ensure low closing torque

④All rubber parts drinking water approved by multiple institutes

⑤Fasteners in stainless steel, A2

⑥Stainless steel shaft

Machined and epoxy coated ductile iron seat integrated in the body

⑦All threaded connections are sealed with O-rings for protection against medium and environment

Radial bearings in self-lubricating PTFE/bronze composite

⑧Shaft ends fully encapsulated in the disc and fixed with O-ring sealed dowels held in place with a security plate. Key and keyway as backup

⑨Replaceable shaft seals with two EPDM O-rings; gaskets to the exterior in hydrocarbon resistant NBR

⑩Coated with blue RAL 5017 FBE to DIN 3476, GSK and approved by WRAS-DVGW/W270/UBA, 250µm

Double eccentric butterfly valve Standard:

①Design and Manufacture Conform to EN 593, API609,  JIS

②Flange dimensions Conform to EN 1092-2 PN10, PN16, JIS5K, JIS10K,ANSI,B16.1,DIN2501,BS4504

③Face to Face dimensions Conform to EN558 series

④Top Flange dimensions Conform to ISO5211

⑤Testing Conform to API598、EN12266-1

Standard:

Body Test:  1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test:  1.1 times the working pressure with water.

Special Test: On request, any other test can be carried out according to special instruction by client.

wesdom gate valve

Project case

Tanzania Water Project

Main products:

Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.

Client feedback:

The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

Project pictures:

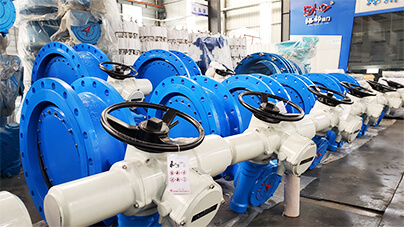

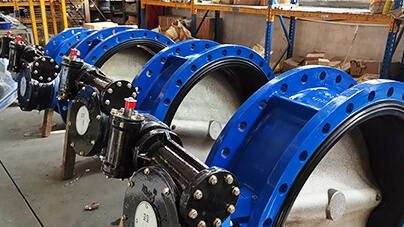

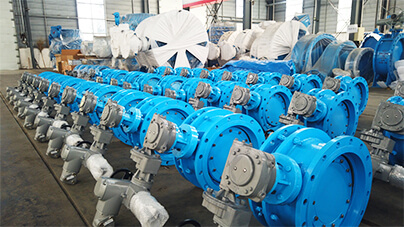

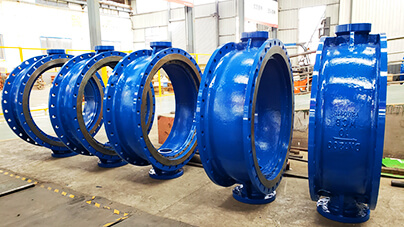

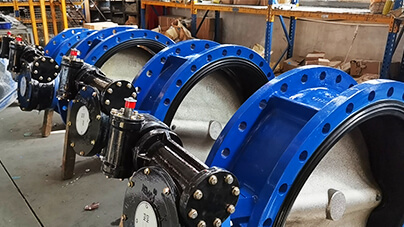

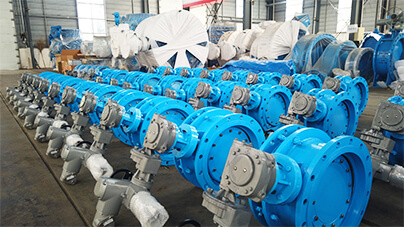

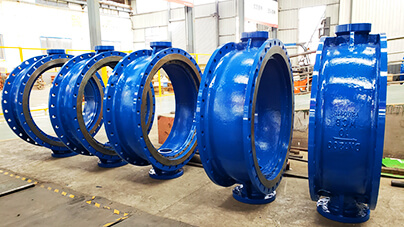

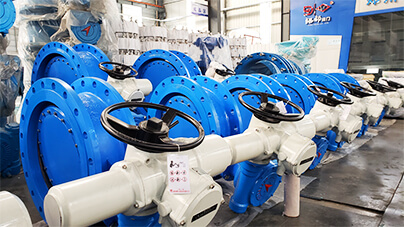

Product packaging and transportation

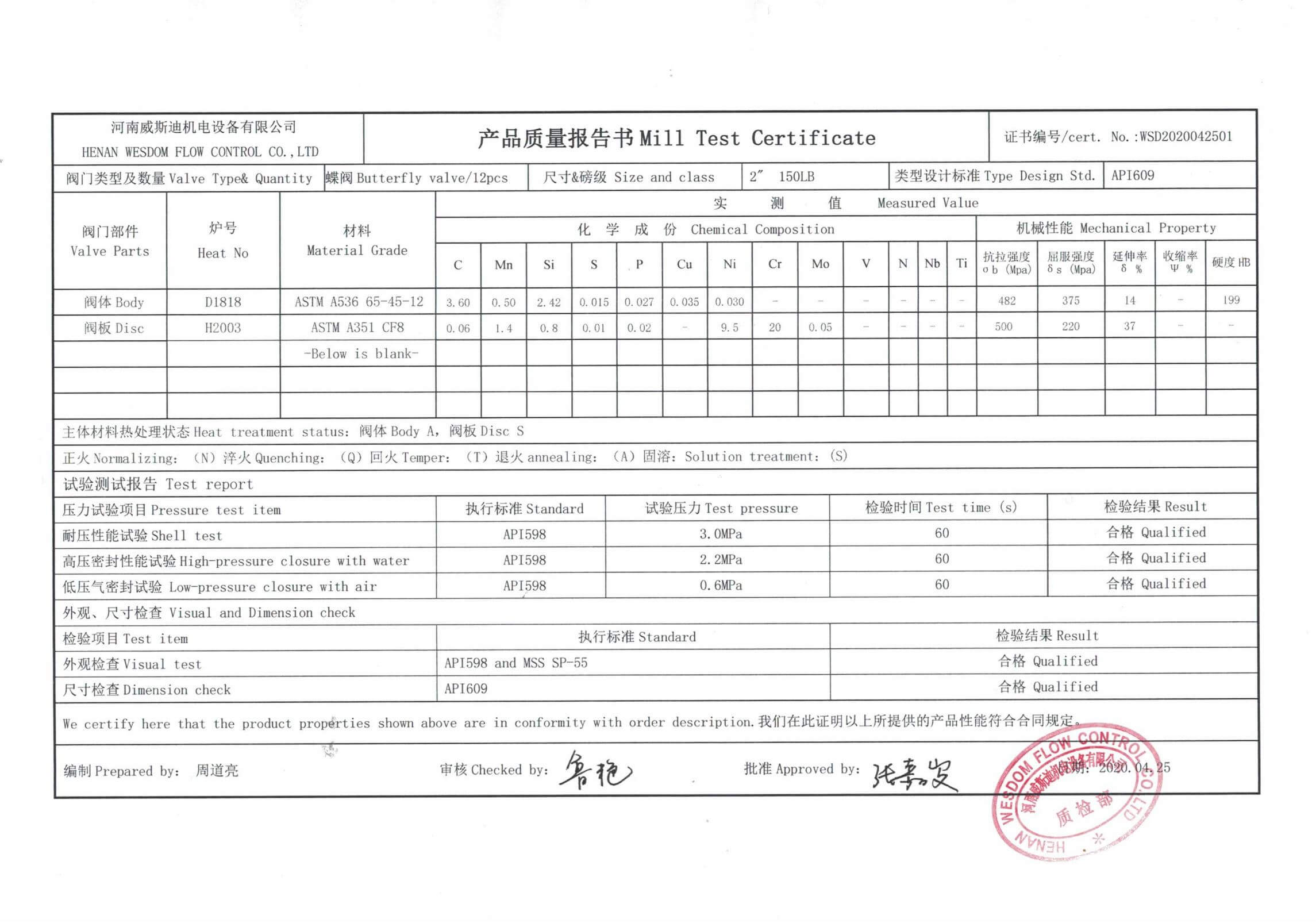

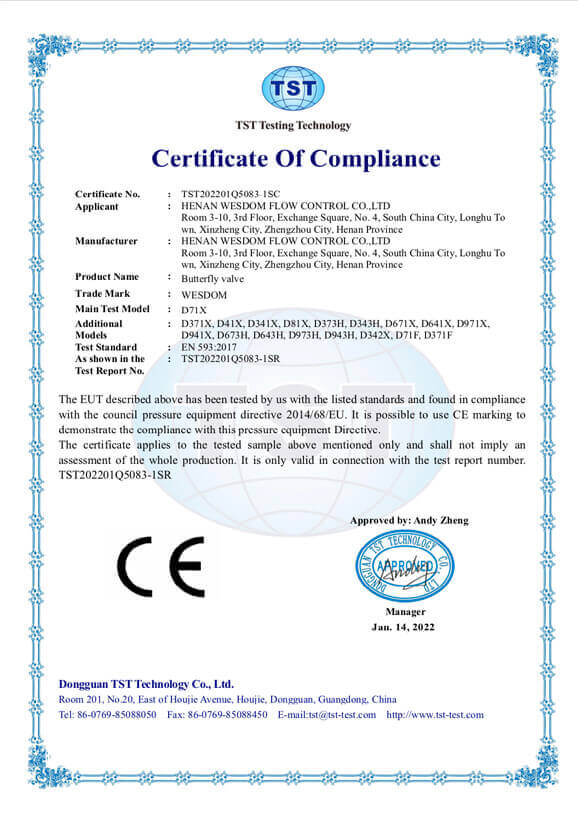

Certificate



Application

The triple eccentric butterfly valve is widely used in metallurgy, electric power, petrochemical, water supply and drainage, and municipal construction and other industrial pipelines with a medium temperature of 425 ℃ or less to adjust the flow rate and load and cut off the fluid.

The maximum pressure rating of the triple eccentric butterfly valve produced by wesdom Valve can reach 2500 pounds, and the standard diameter can reach 120 inches.

The connection mode of the triple eccentric butterfly valve: the clamp, the lug, the flange, the ring connection, the butt welding, the jacket, etc. can be selected, and various structural lengths and standards can be corresponded.

The triple eccentric butterfly valve has a large choice of materials, high and low temperature, and various acids, alkalis and other corrosive media.

Which is widely used in medium temperature under 425°c of metallurgical, power, petrochmical, and municipal construction, drainage and industrial pipe, for regulating traffice and truncated fluid to use.
