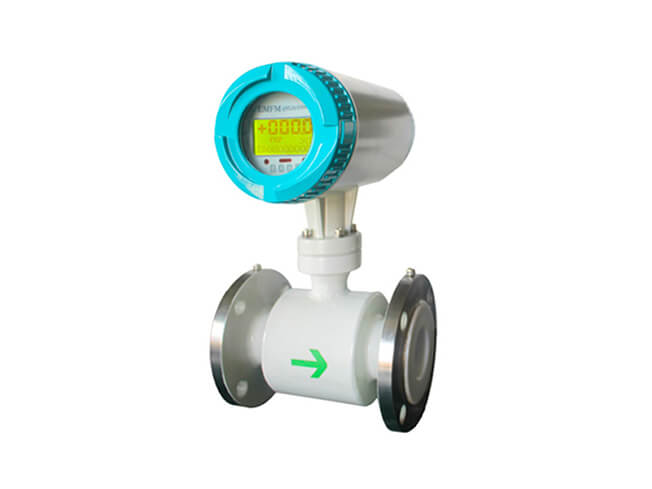

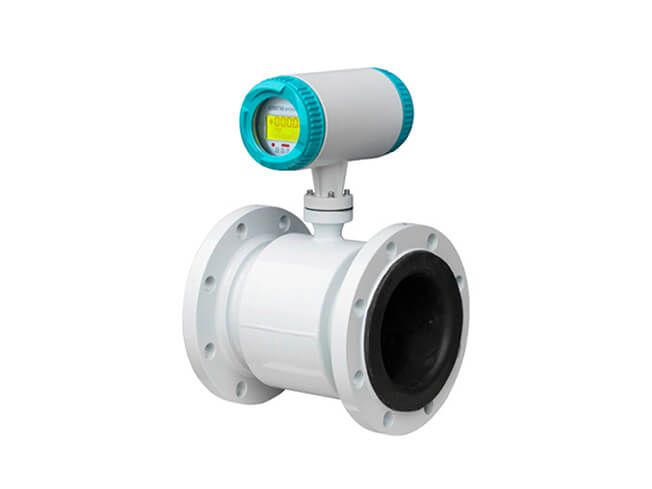

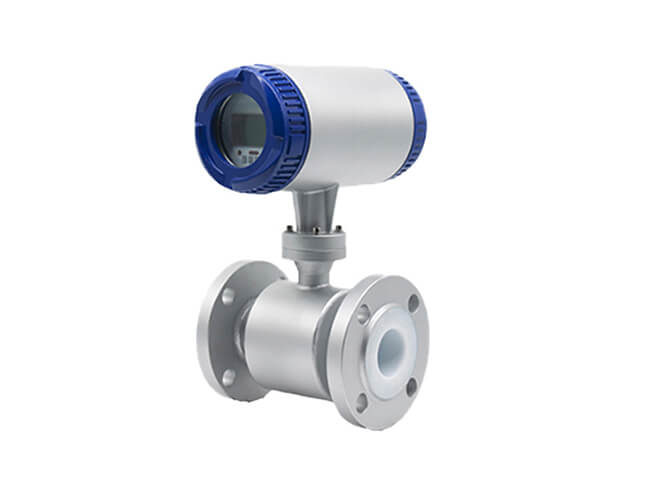

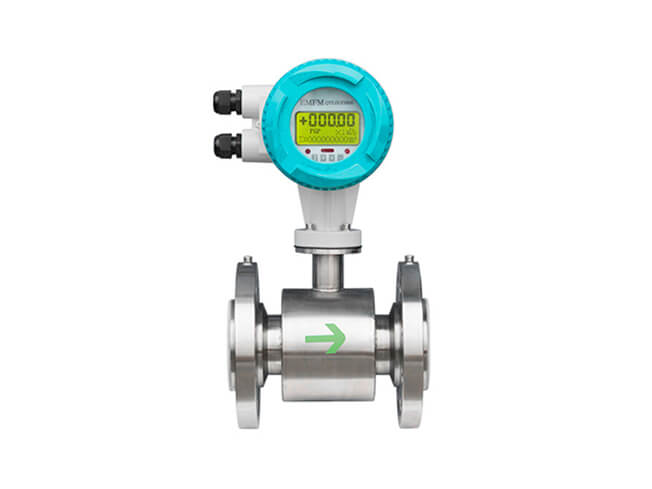

Electromagnetic Flow meter stainless steel water flow meter

Electromagnetic Flow meter stainless steel water flow meter

Size: DN3-DN3000mm

Pressure Rating:0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa...Max 42Mpa)

Material:stainless steel

Design Standard:Standards Compliance

Inspection Standard: Applied standard: ISO6817; Performance evaluation standard: ISO9104

Application medium:Water

Application Temperature:-20~+60deg C

Applied projects: Widely used in industries such as petroleum, chemical engineering, iron and steel,food, power, paper making, water treatment, petrochemical, medicine etc.

CATALOGUE DOWNLOAD

Product details

WESDOM flow meters are in high quality, from raw meter to final inspection, there is a strict quality control system. The flow maters and water meters WESDOM provide are all in high accuracy!

Main Performances Parameters

Size DN3-DN3000mm
Nominal Pressure 0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa…Max 42Mpa)
Accuracy +/-0.5%(Standard)
+/-0.3% or +/0.2%(Optional)
Liner PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode SUS316L, Hastelloy B, Hastelloy C
Titanium, Tantalum, Platinium-iridium
Structure Type Integral type, remote type, submersible type, ex-proof type
Medium Temperature -20~+60 degC(Integral type)
Remote type(Neoprene, Hard Rubber,Polyurethane, EPDM) -10~+80degC
Remote type(PTFE/PFA/FEP) -10~+160degC
Ambient Temperature -20~+60deg C
Ambient Humidity 5-100%RH(relative humidity)
Measuring Range Max 15m/s
Conductivity >5us/cm
Protection Class IP65(Standard); IP68(Optional for remote type)
Process Connection Flange (Standard), Wafer, Thread, Tri-clamp etc (Optional)



wesdom gate valve

Project case

Flow Meter project – Pakistan

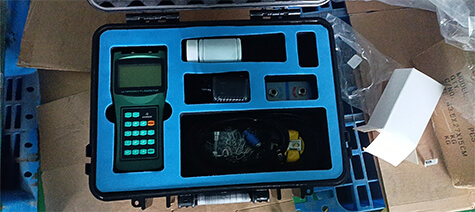

Portable ultrasonic flow meter is used in temporary on-site measurement of different pipelines throughout the project.

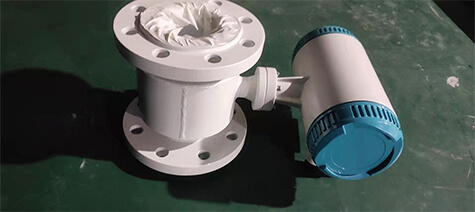

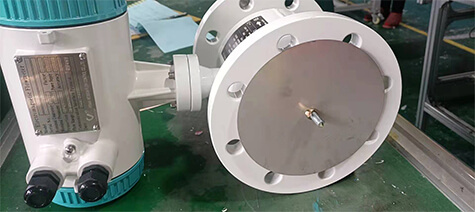

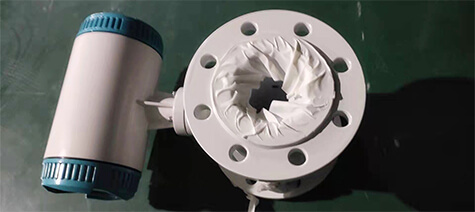

Product packaging and transportation

Certificate



wesdom gate valve

Features

–Bi-directional measurement,easy to install

–Automatic alarimm functionsfor self-diagnosis

–LCD backlight makes it easy to read day and night

–Double frequency excitation,stable zero point;

–Multi-Language, Module Design,Multifunctional Output;

Installation

Application

Applicable to conductive liquid;

Widely used in industries such as petroleum, chemical engineering, iron and steel,food, power, paper making, water treatment, petrochemical, medicine etc.

Environmental test

High & Low temperature tests, Different Humidity Test ,Make sure instruments can resist any harsh environments.
