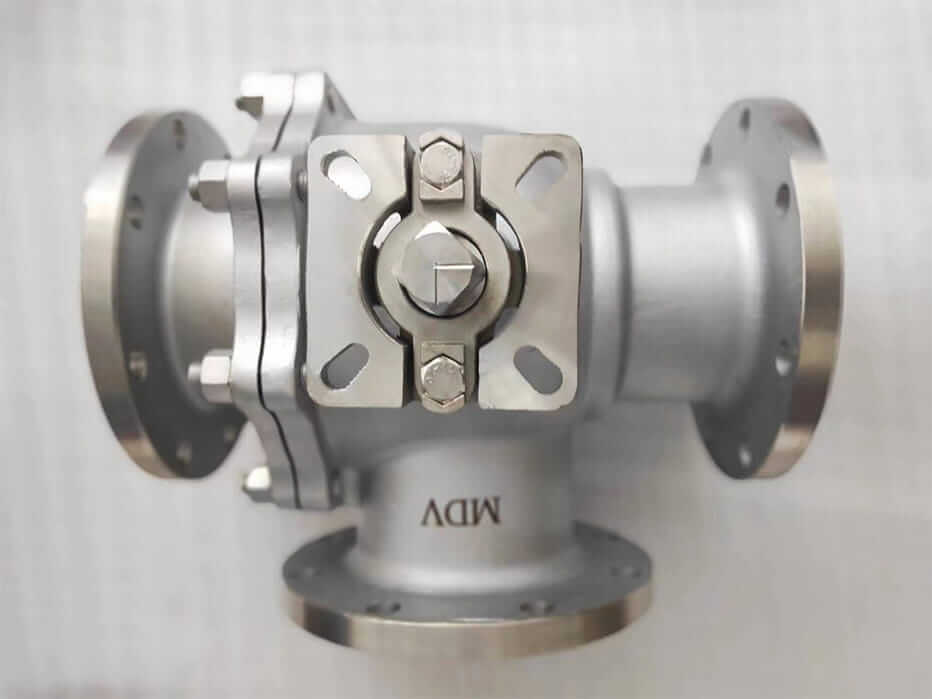

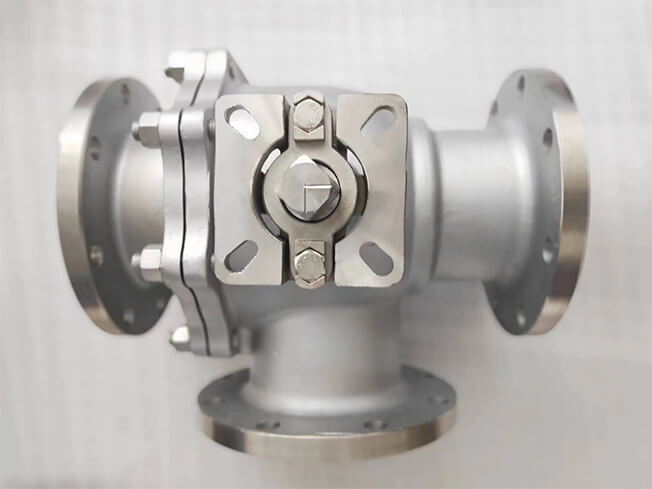

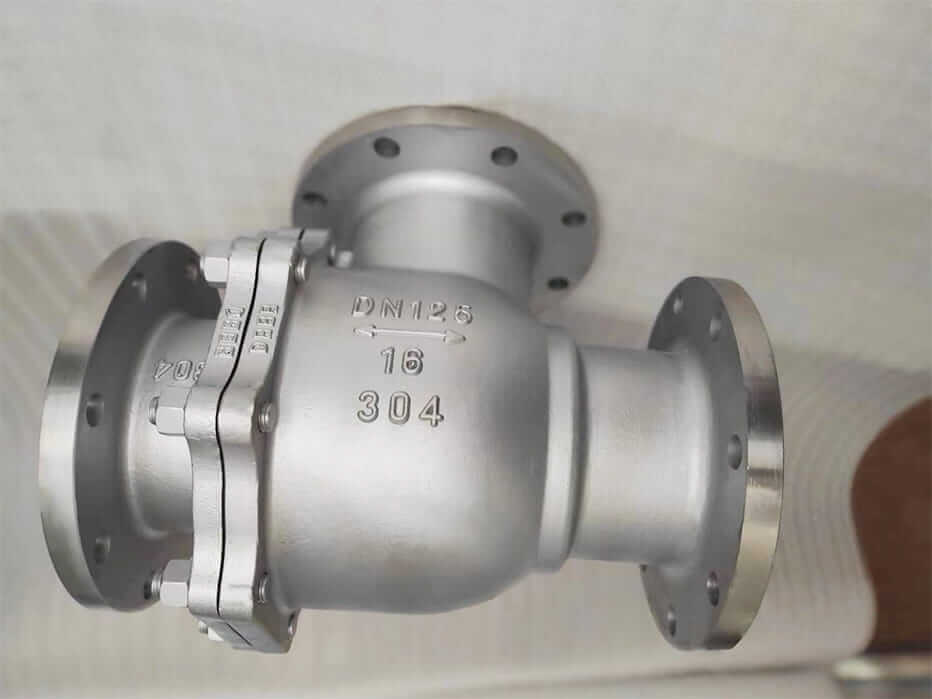

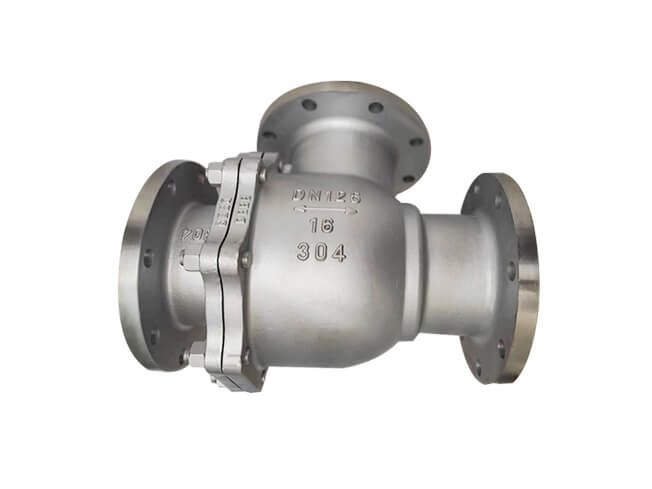

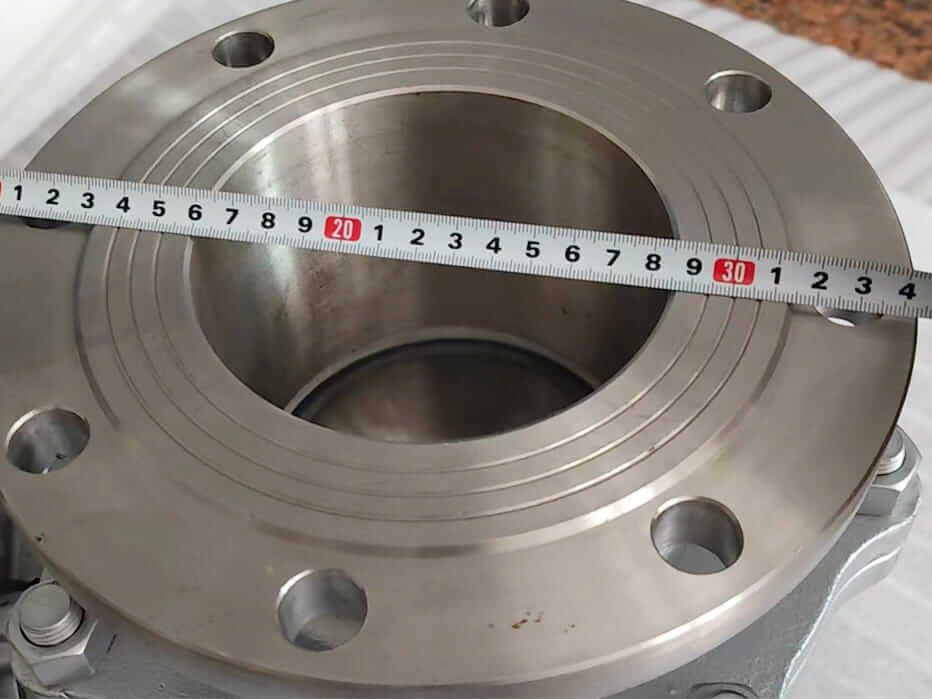

Flanged three-way ball valve
Size Range：1/2" ~ 2", DN15~DN50
Temperature：NBR: -5℃~80℃; EPDM: -5℃~120℃; VITON: -5℃~120℃; PTFE: -30°~180°
Pressure：1.6~6.4MPa
Port Thread：NPT, BSPP, BSP
Material：Brass or Stainless Steel
Boby Material：A351 CF8 CF8M WCB
Medium：Water, Air, Steam, Gas, Oil, etc
Application：Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
Three way ball valve can be divided in to L type and T type. L type three way ball valve (Q44F) is used to change the flow direction and connect mutually perpendicular two pipelines.
T type three way ball valve (Q45F) is utilized to divert, interflow and flow reversal, which can connect three pipelines or two pipelines. Three way ball valve usually adopts two valve seats, it can also utilize four valve seats as required.
Advantage:
①Reduces number of valves required in piping system
②Full port construction improves flow characteristics
③Standard mounting pad for ease of automation
④Live-loaded stem packing improves cycle life
⑤Balanced 4 seat construction provides for positive shut off
| Item | 3 inch 150LB Stainless Steel 316 Three Way L Type T type Multi Port 3 Way Flange Ball Valve |
| Size Range | 1/2″ ~ 2″, DN15~DN50 |
| Medium | Water, Air, Steam, Gas, Oil, etc |
| Temperature | NBR: -5℃~80℃; EPDM: -5℃~120℃; VITON: -5℃~120℃; PTFE: -30°~180° |
| Pressure | 1.6~6.4MPa |
| Port Thread | NPT, BSPP, BSP |
| Material | Brass or Stainless Steel |
| Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |
| Boby | A351 CF8 CF8M WCB |
| Ball | A216 WCB CF8 CF8M |
Performance parameter of three way ball valve:
| Test Pressure | Nominal Pressure (Mpa) | ||||
| Mpa | 1.6 | 2.5 | 4.0 | CL150 | JIS10K |
| Shell | 2.4 | 3.8 | 6.0 | 3.2 | 2.4 |
| Seal | 1.8 | 2.8 | 4.4 | 2.2 | 1.5 |
| Air | 0.5-0.7 | ||||
| Working Temperature | PTFE≤150℃ PTL≤300℃ | ||||
| Applicable Temperature | C: water, oil, gas; P: nitrose; R: acetate | ||||
Components Materials:
| Bonnet | WCB, CF8 |
| Ball | WCB+Hcr, CF8 |
| Stem | 2Cr13, CF8 |
| Seat | PTFE |
| Packing | PTFE |
| Nominal Pressure | Nominal Diameter | L | L1 | H | W | Weight(kg) | |||||
| Mpa | mm | in | mm | mm | mm | mm | 1.6 | 2.5 | 4.0 | CL150 | JIS10K |
| 1.6
2.5 4.0 CL150 JIS10K |
15 | 1/2 | 130 | 65 | 62 | 100 | 2.5 | 3.0 | 3.5 | 2.5 | 2.5 |
| 20 | 3/4 | 150 | 75 | 68 | 160 | 3.0 | 3.5 | 4.5 | 3.0 | 3.6 | |
| 25 | 1 | 160 | 80 | 75 | 160 | 4.8 | 5.0 | 6 | 5.0 | 5.0 | |
| 32 | 1 1/4 | 180 | 90 | 85 | 200 | 6.5 | 7 | 8.5 | 7 | 7 | |
| 40 | 1 1/2 | 200 | 100 | 95 | 200 | 8.5 | 9 | 10.5 | 9 | 9 | |
| 50 | 2 | 230 | 115 | 110 | 250 | 11 | 12 | 14 | 12 | 11 | |
| 65 | 2 1/2 | 290 | 145 | 130 | 300 | 15 | 17 | 20 | 16 | 16 | |
| 80 | 3 | 310 | 155 | 155 | 400 | 21 | 22 | 32 | 21 | 22 | |
| 100 | 4 | 350 | 175 | 180 | 500 | 33 | 36 | 50 | 36 | 36 | |
| 125 | 5 | 400 | 200 | 250 | 600 | 65 | 70 | 80 | 68 | 70 | |
| 150 | 6 | 480 | 240 | 275 | 800 | 103 | 110 | 120 | 105 | 105 | |
| 200 | 8 | 580 | 290 | 325 | 1000 | 152 | 168 | 180 | 160 | 160 | |
Indonesia Mining Plant
Main product:
L-type flanged three-way ball valve
Project description:
The high quality won good comments from customers!
Client feedback:
WESDOM products are of high quality, Now all products have well installed on site.
Project pictures:
Electromagnetic flowmeters are widely used in petrochemical industry, iron and steel metallurgy, water supply and drainage, water conservancy irrigation, water treatment, sewage treatment stations, papermaking (pulp), mud, medicine, food and other industrial and agricultural applications. Process flow measurement and control in production companies.
