High Platform Ball Valve

High Platform Ball Valve

Size: 1/2”~4”

Pressure Rating: 1000WOG

Material: SS304, SS316

Design Standard: ASME B16.34,GB/T12237,JISB2071

Inspection Standard: API598,GB/T13927,JISB2003

Application medium: Water, Sewage, Gas

Application Temperature: 0-150℃

Applied projects: Petrochemical, Power plant, Refining, Oil & Gas, Metallurgy etc

CATALOGUE DOWNLOAD

Product details

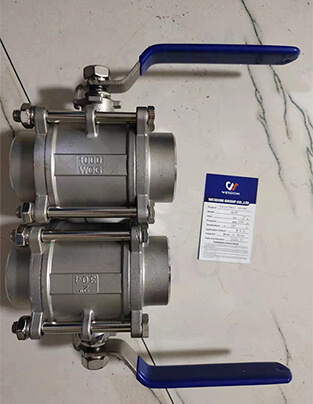

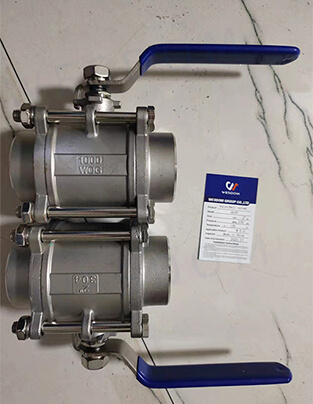

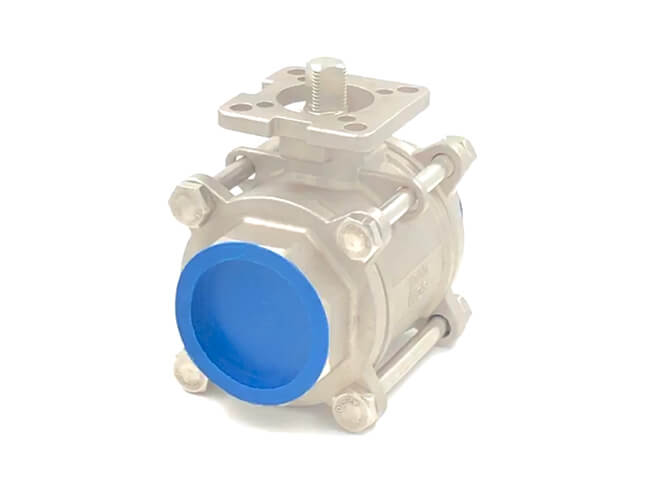

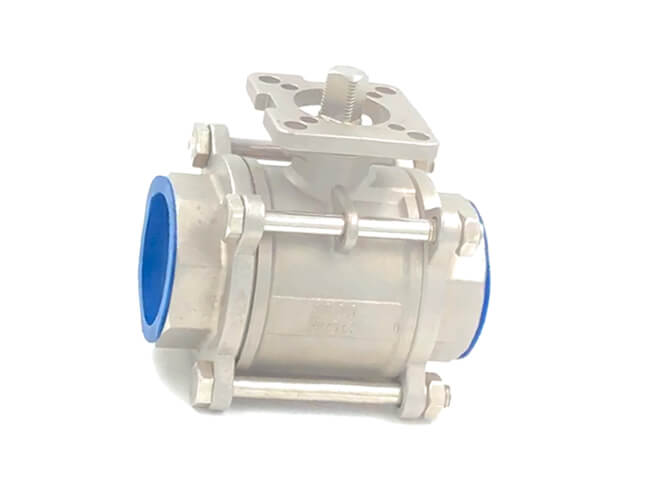

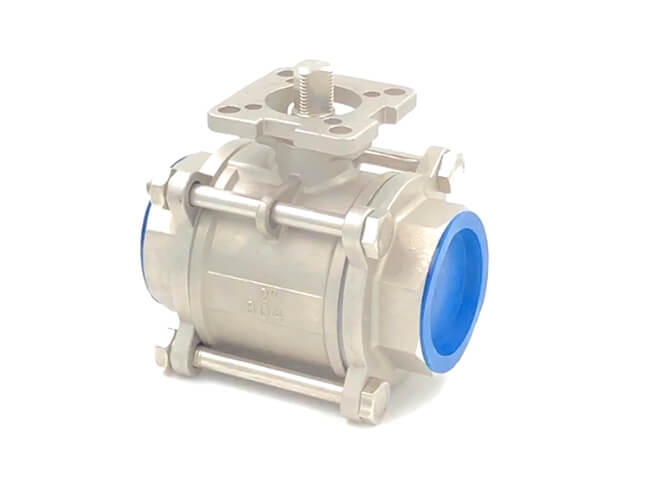

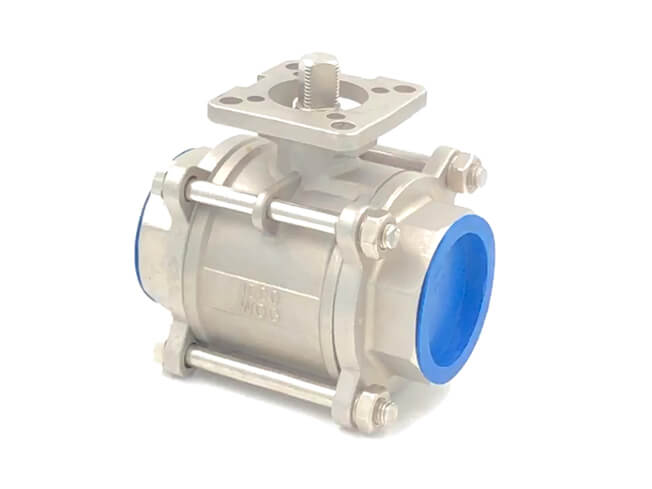

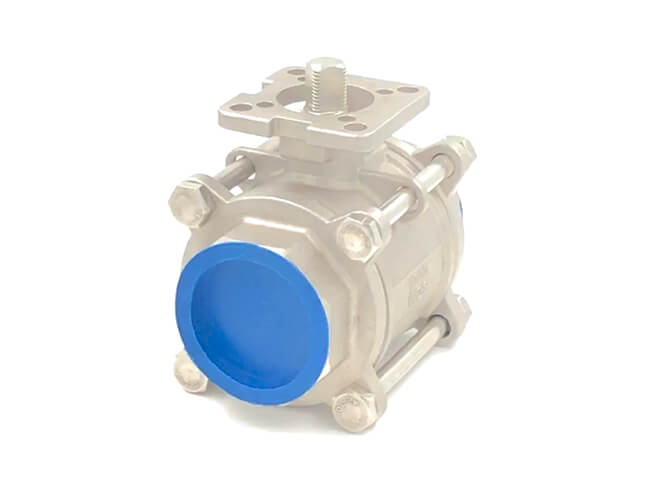

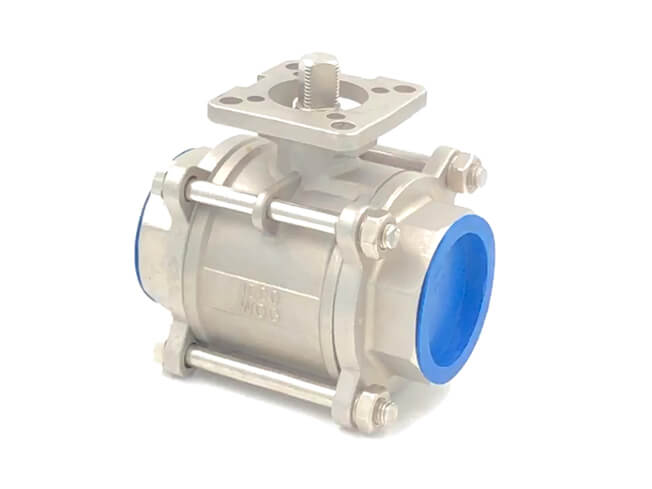

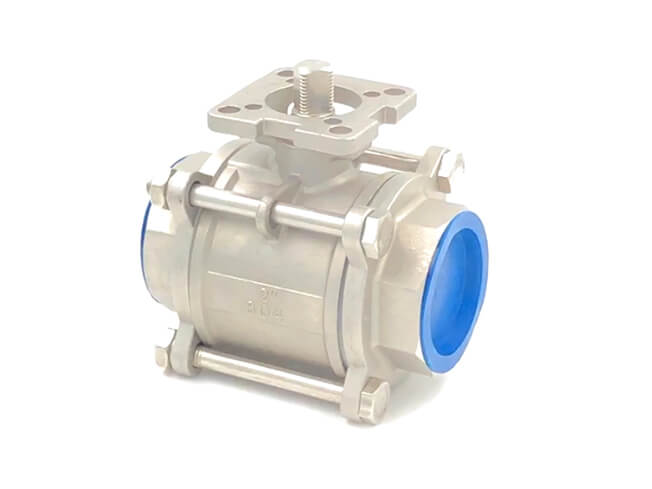

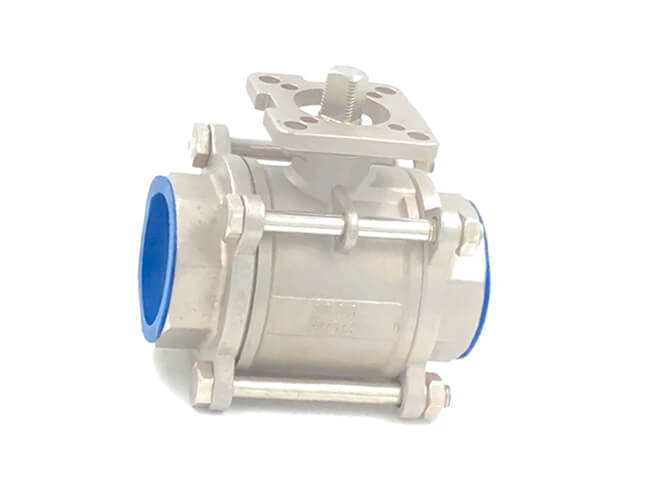

This is three piece internal threaded ball valve with high platform, after being equipped with actuators, it can be widely used in electric, water, food, pneumatic, chemistry industries. Fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the passage of the medium will not cause the erosion of the sealing surface of the valve.

The high platform is designed with ISO5211, and the driving device is easy to install. The ball valve has simple structure, small size, light weight, easy to install and fast maintenance, various connection modes, and a wider range of use.

For example: flange connection, clamp connection, threaded connection, butt welding connection, socket welding connection and other characteristics, suitable for different connection requirements. The product can also provide linear channel ports, V-shaped channel ports and so on.

Feature:

(1)Precision Casting Valve Body

(2)Anti-release stem

(3)Full Path Design

(4)Design of Decompression Hole for Ball Groove

(5)Design of Direct Platform

(6)Antistatic Design

(7)Various standard threads: NPT/BSPP/BSPT/PT

(8L)ock handle optional

(9)Work Pressure: 1000PSI/PN63



ball valve

Size 1/4 3/8 1/2 3/4 1 11/4 11/4 2 2/21 3 4
Φd 11 12.7 15 20 25 32 40 50 65 80 100
L 47.6 47.6 55 73.6 81 91 103 120 155 182 218.4
L1 112 112 112 138 138 160 205 205 252 252 324
H 61 61 62 70 74 86 92 99 147 158 172
B 11 11 12 11 11 15 15 15 20 20 20
ISO
5211
F03 F03
F04
F04
F05
F05
F07
F07
F10



Materials:

PARTS Materials Parts Materials
BONNET WCB,CF8,CF8M STEM 304,316
GASKET PTFE STEM WASHER PTFE
SEAT PTFE PACKING PTFE
BALL CF8,CF8M GLAND 304
BODY WCB,CF8,CF8M HANDLE 304+PVC
BOLT 304 SPRING WASHER 304
SPRING WASHER 304 NUT 304
NUT 304
