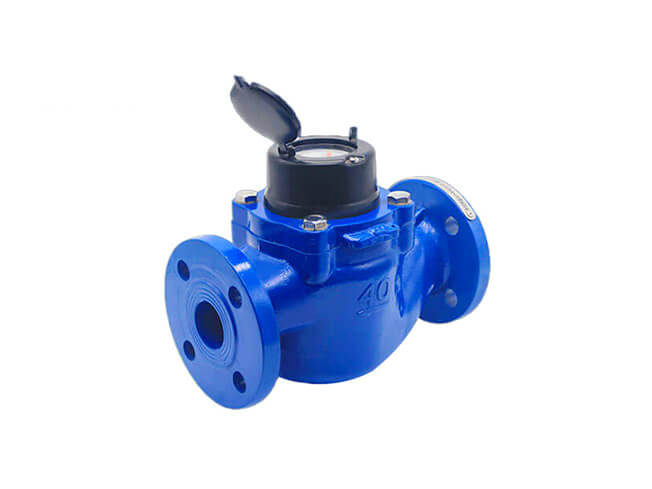

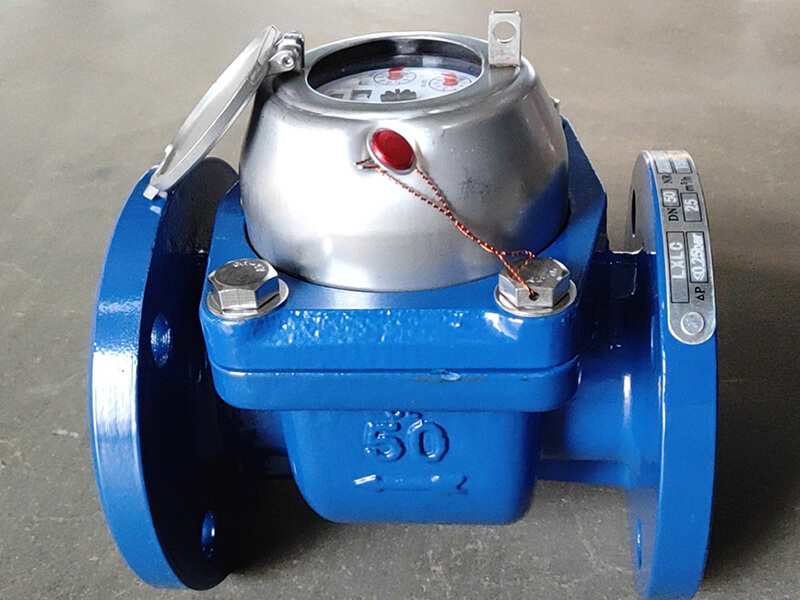

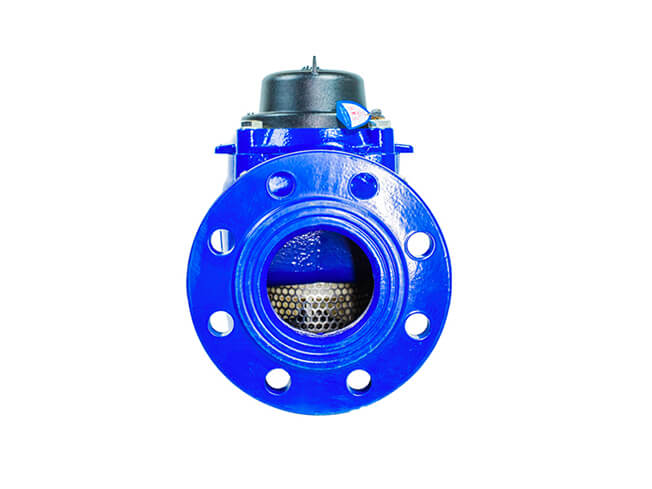

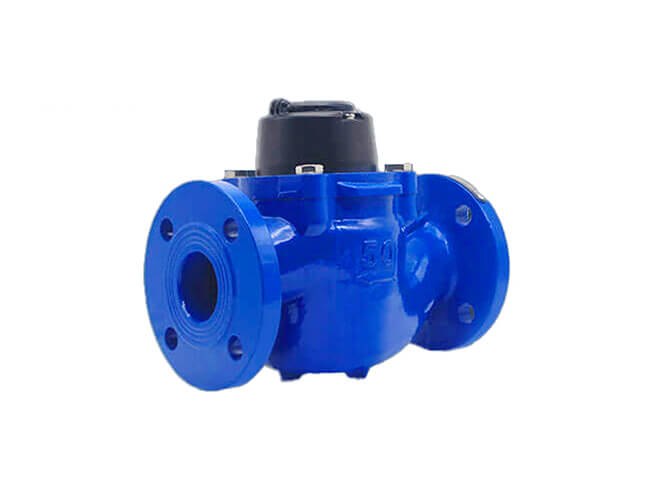

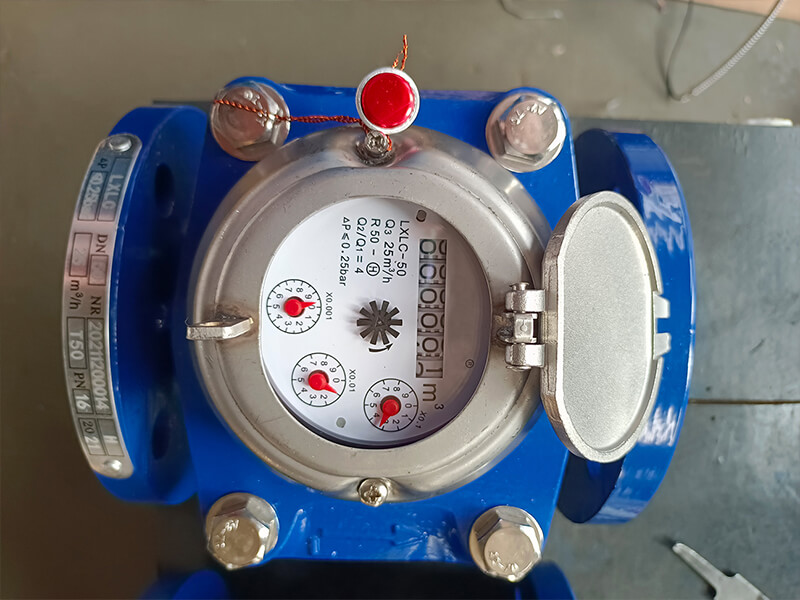

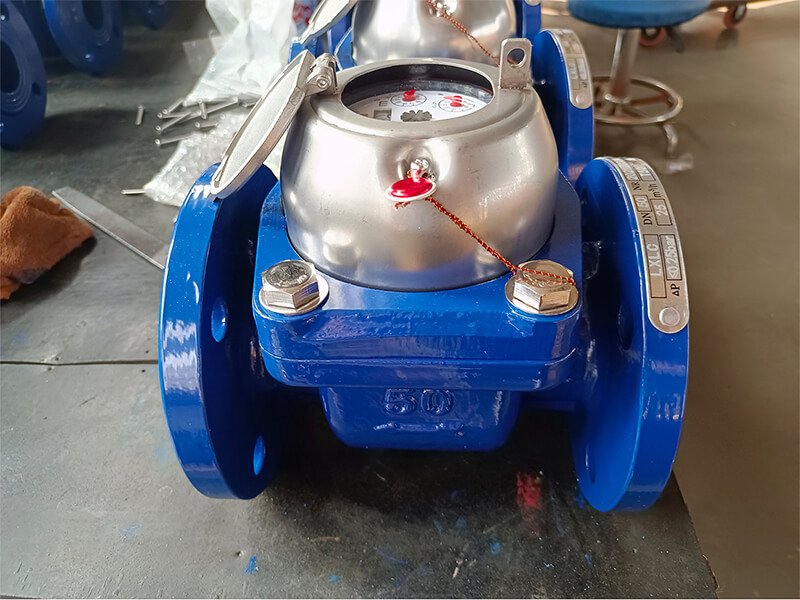

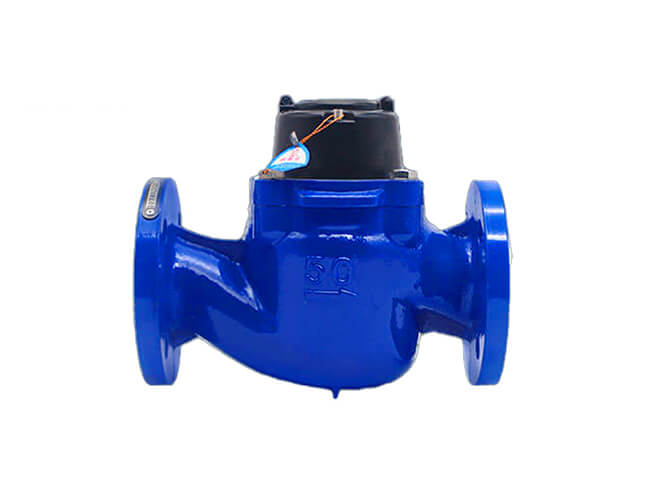

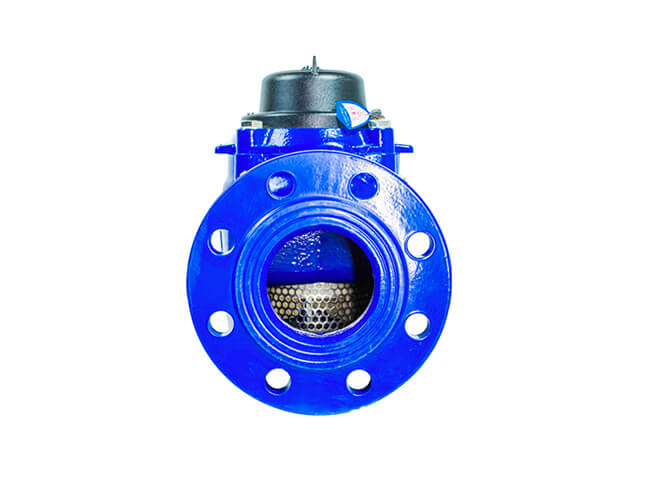

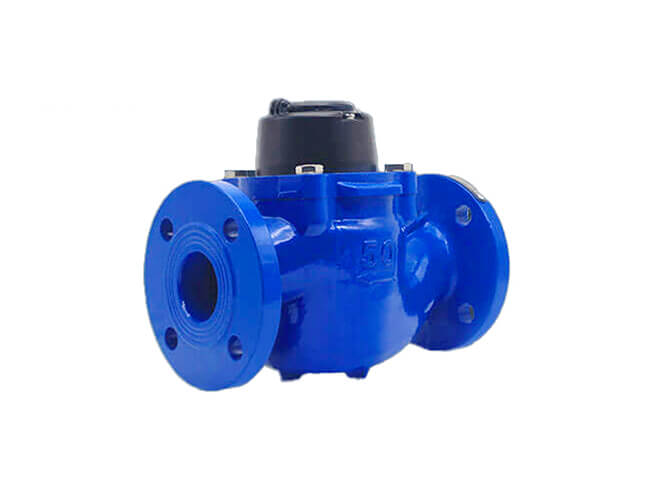

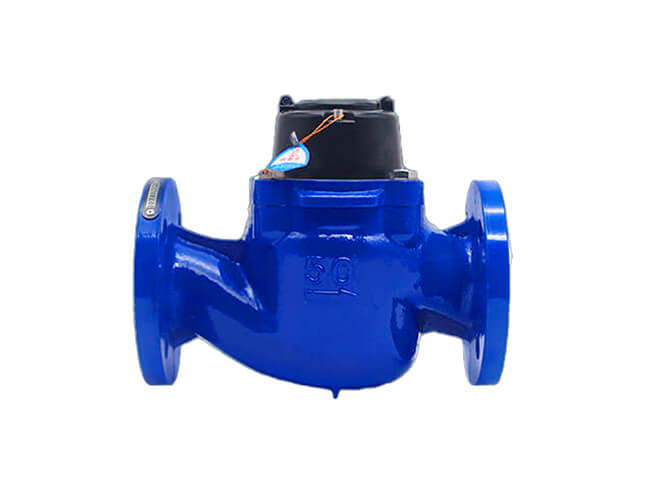

LXCLG(R) Vertical removable element woltman cold (hot) water meter
Size: DN50~300mm
Pressure Rating: ≤1.6Mpa (16 bar)
Material: DI
Design Standard: Standards Compliance
Inspection Standard:Technical data conform to international standard lSO 4064
Application medium:Water
Application Temperature:0.1 °C~40°C for cold water meter
Applied projects:Water Treatment
Dimension
| Type | Size | L(Length) | H(Height) | Connecting Flange | ||
| D1(Outside Diameter) | D2(Bolt Circle Diameter) | Connecting Bolts(n-M) | ||||
| mm | ||||||
| LXLC-50 | 50 | 200 | 261 | 165 | 125 | 4-M16 |
| LXLC-65 | 65 | 200 | 271 | 185 | 145 | 4-M16 |
| LXLC-80 | 80 | 225 | 279 | 200 | 160 | 8-M16 |
| LXLC-100 | 100 | 250 | 289 | 220 | 180 | 8-M16 |
| LXLC-125 | 125 | 20 | 299 | 250 | 210 | 8-M16 |
| LXLC-150 | 150 | 300 | 319 | 285 | 240 | 8-M20 |
| LXLC-200 | 200 | 350 | 346 | 340 | 295 | 8-M20(1.0DE) |
| 12-M20(1.0MPa) | ||||||
| LXLC-250 | 250 | 450 | 450 | 395(1.0MPa) | 350(1.0MPa) | 12-M24(1.6MPa) |
| 405(1.6MPa) | 355(1.6MPa) | 12-M20(1.0MPa) | ||||
| LXLC-300 | 300 | 500 | 478 | 445(1.0MPa) | 400(1.0MPa) | 12-M20(1.0MPa) |
| 460(1.6MPa) | 410(1.6MPa) | 12-M24(1.6MPa) | ||||
Features：
①Removable element structure, easy installation and maintenance, register for universal use within this range detachable without removing the meter from the pipeline.

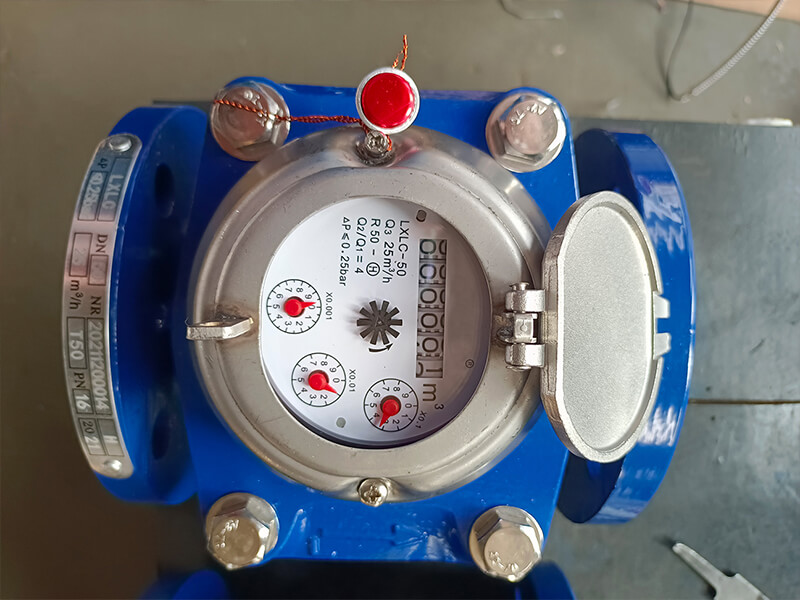

②Dry-dial, Magnetic drive sensitive action, small pressure loss.
③Vacuum sealed register ensures the dial keeps free from fog and keeps the reading clear in a long term service.
④Selected high quality materials for steady & reliable characteristics.
⑤Technical data conform to international standard lSO 4064.

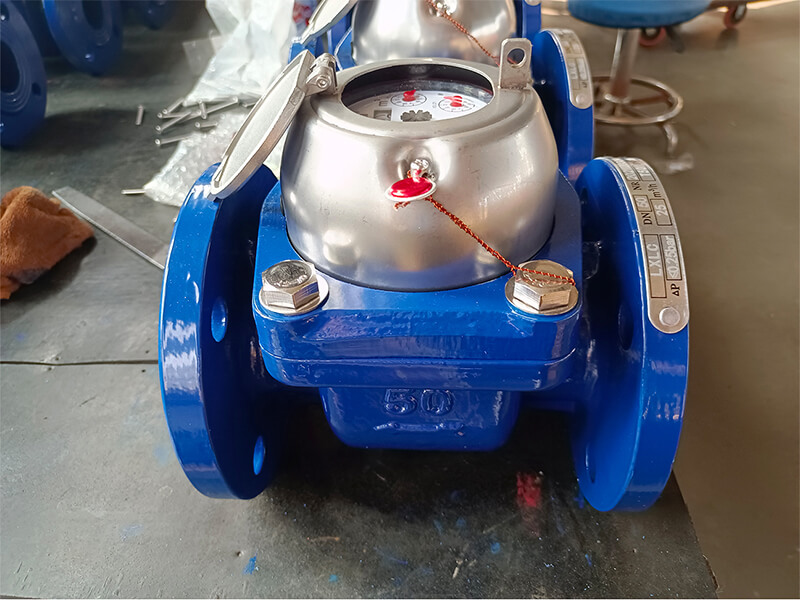

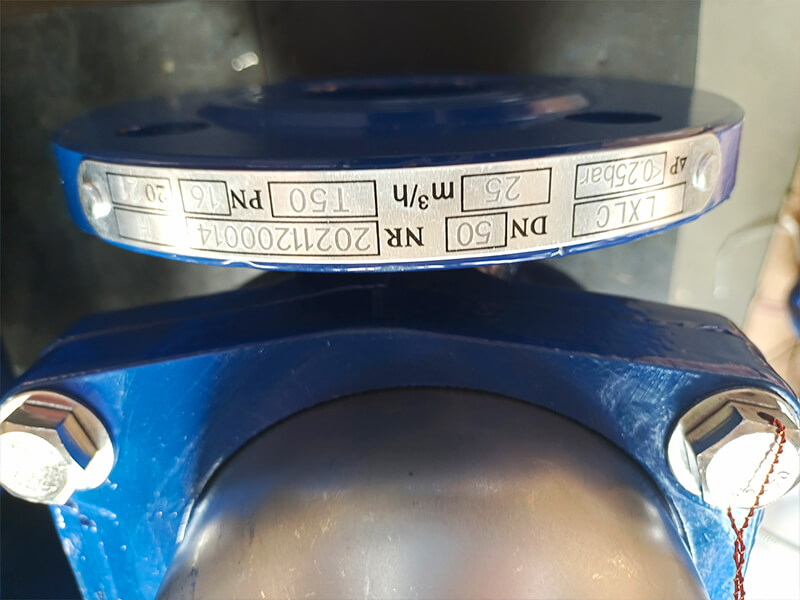

Indonesia – Drinking Water Supply Project
WESDOM water meter is applied to Indonesia drinking water supply project.
Customers are very pleasure after receiving our products. And then establish a long-term supply cooperation relationship with us!
Main products:
Flanged Vlotman water meter.
Operation
①The Operation Description of The Two Reed Switches System
②Please see the diagram of the two reed switches system below. The two reed switches would be operated”ON”OR”OFF”respectively by the magnet fitted to the pointer orgear during its running on the register, but never”ON”at the same time, unless the out-of-magnet attackes.
③The two reed switches operate two”ON” and two”OFF” in one round of the pointer or the gear means one signal.
④Output, this principle prevents the loss or over counting of signal output due to the switches joggling or the pipe vibrating, so assures reliability of the signal output.
Application
Water meters, which are instruments for measuring the flow of water, mostly the cumulative flow measurement of water, are widely used in practical life, mainly in agricultural irrigation, water treatment and other working conditions.
