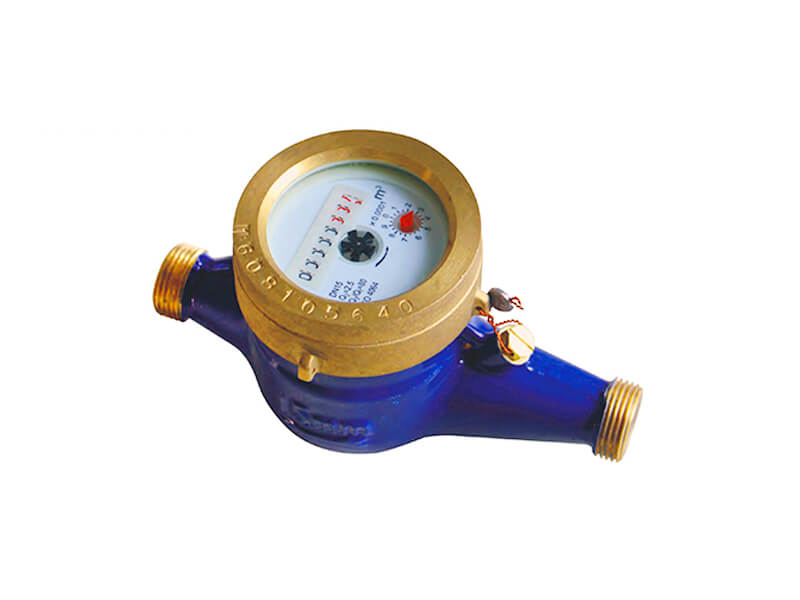

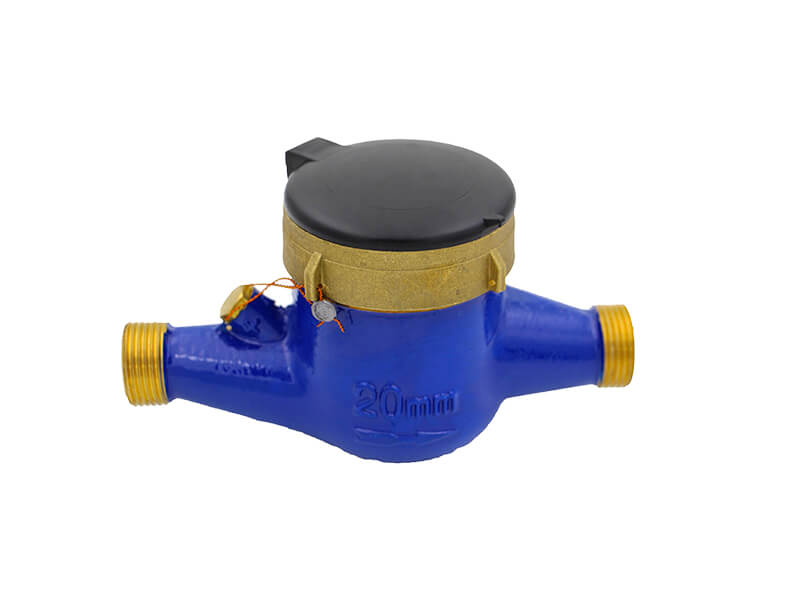

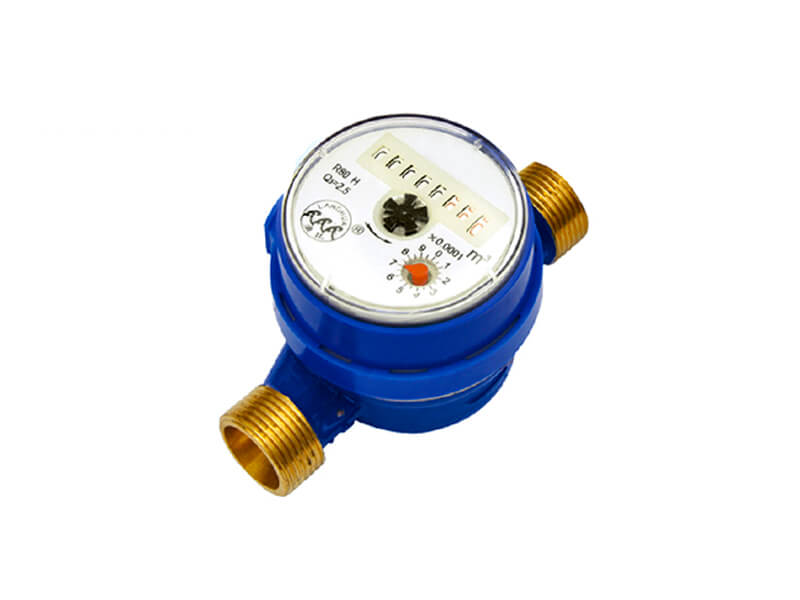

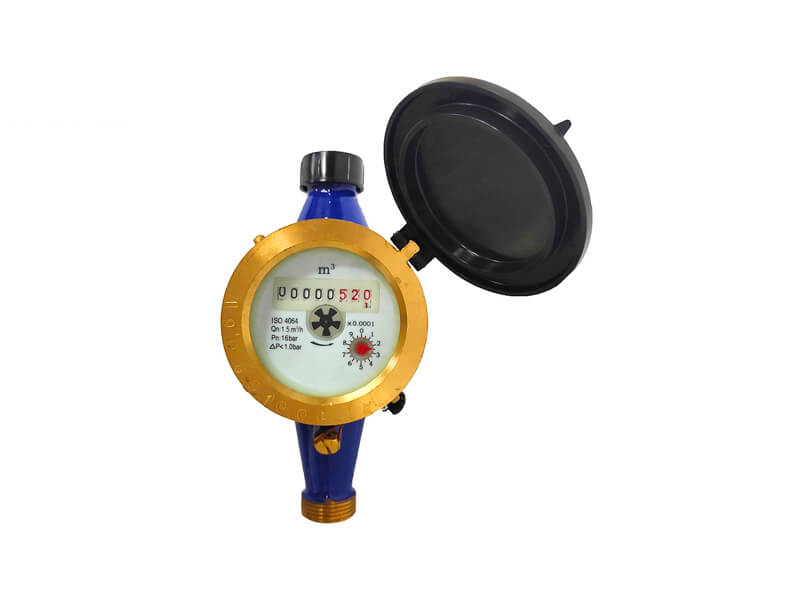

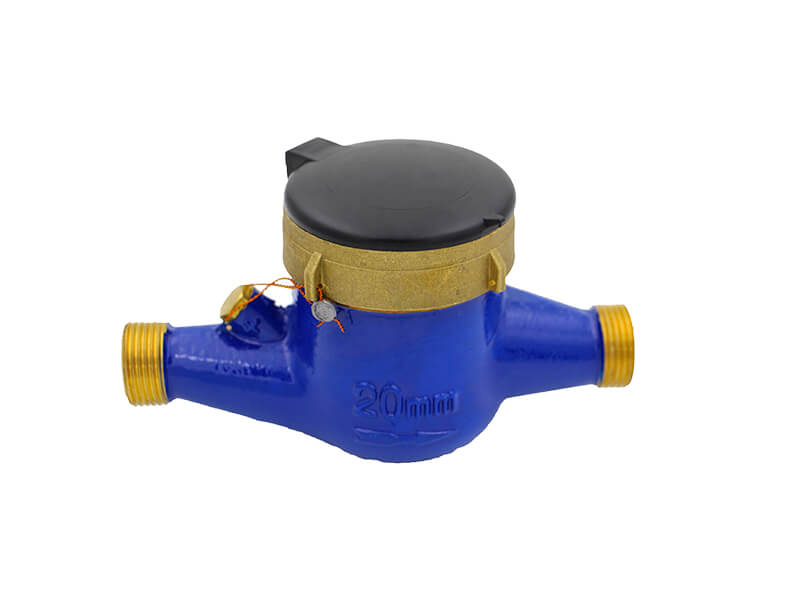

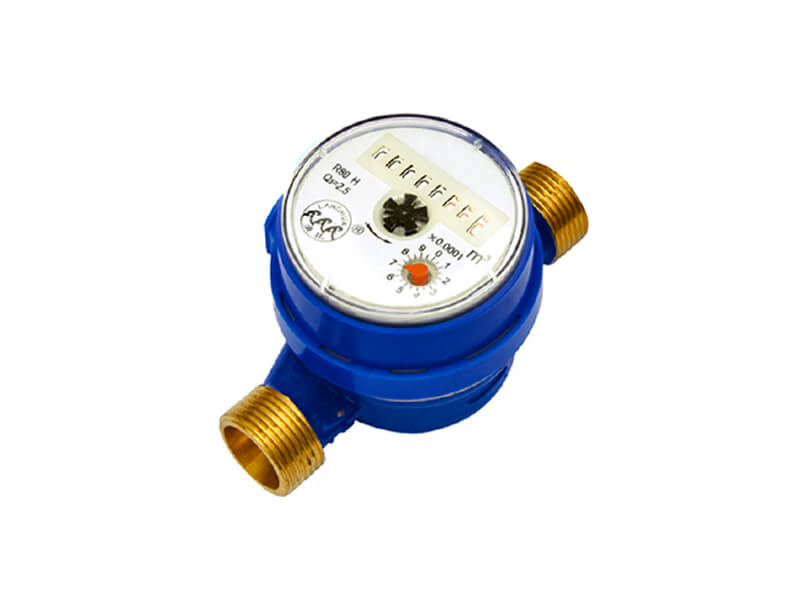

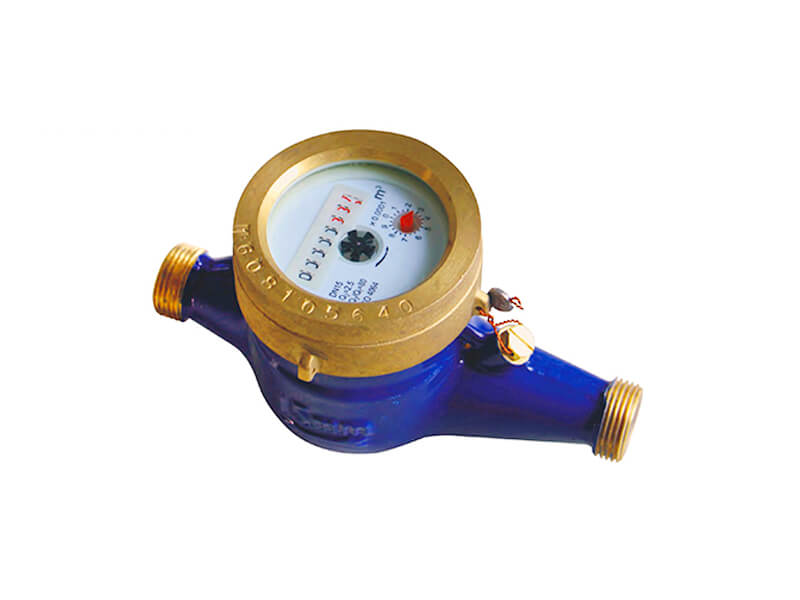

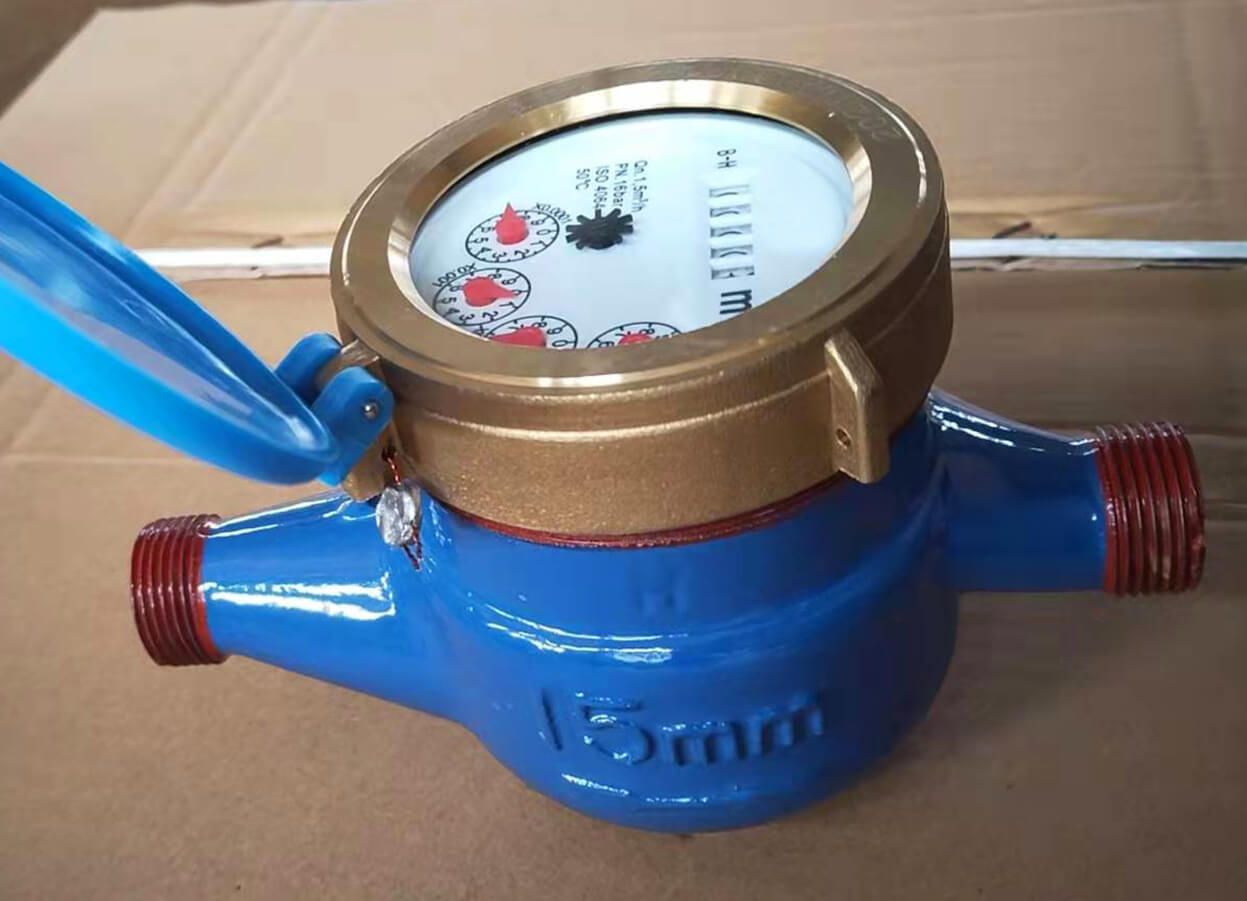

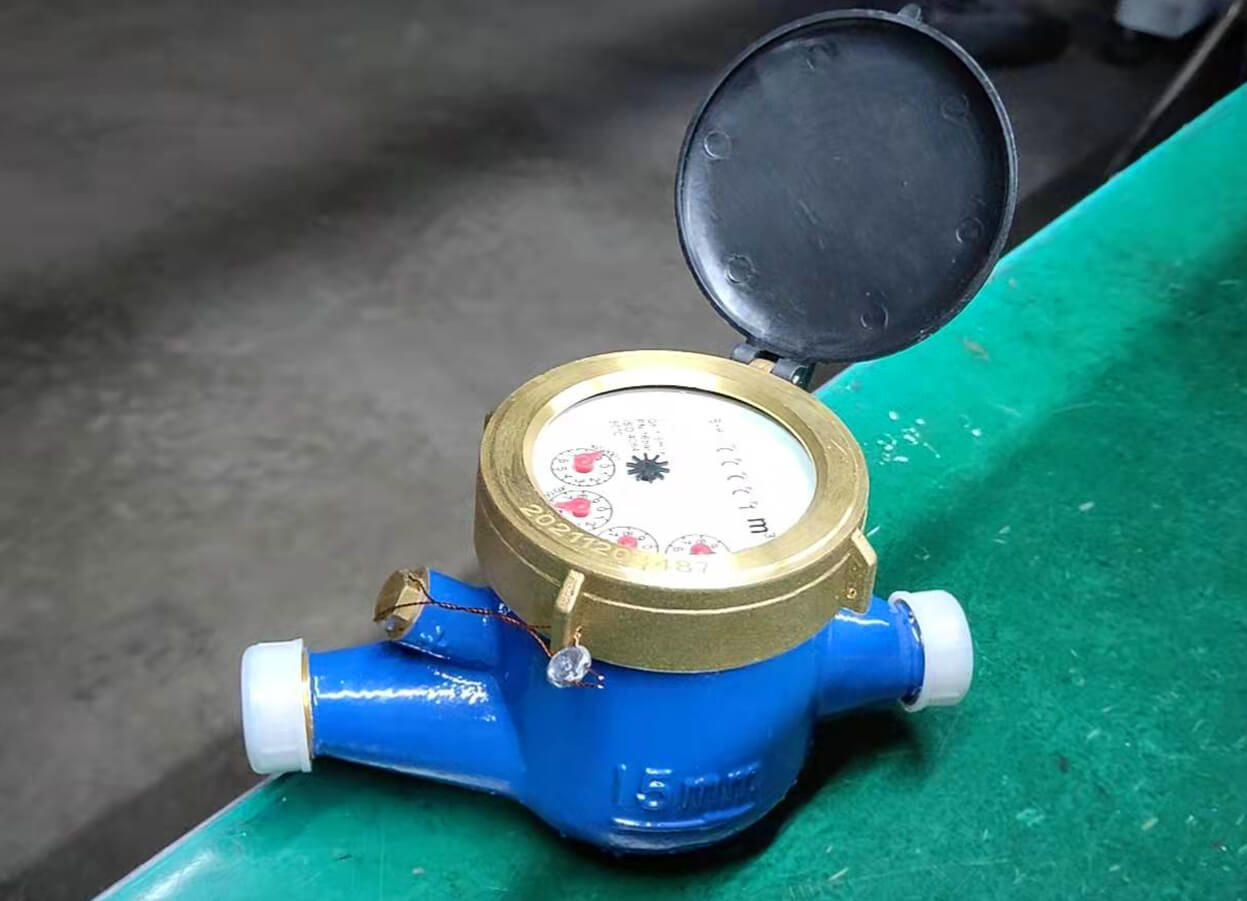

MULTI-JET cold (hot) dry-dial 8 Rollers water meters

MULTI-JET cold (hot) dry-dial 8 Rollers water meters

Size: DN15~20mm

Pressure Rating:≤1.6Mpa (16 bar)

Material:Brass

Design Standard:Standards Compliance

Inspection Standard:Technical data conform to international standard lSO 4064

Application medium:Water

Application Temperature:0.1 °C~40°C for cold water meter

Applied projects:Water Treatment

WESDOM flow meters are in high quality, from raw meter to final inspection, there is a strict quality control system. The flow maters and water meters WESDOM provide are all in high accuracy!

CATALOGUE DOWNLOAD

Product details

WESDOM flow meters are in high quality, from raw meter to final inspection, there is a strict quality control system. The flow maters and water meters WESDOM provide are all in high accuracy!

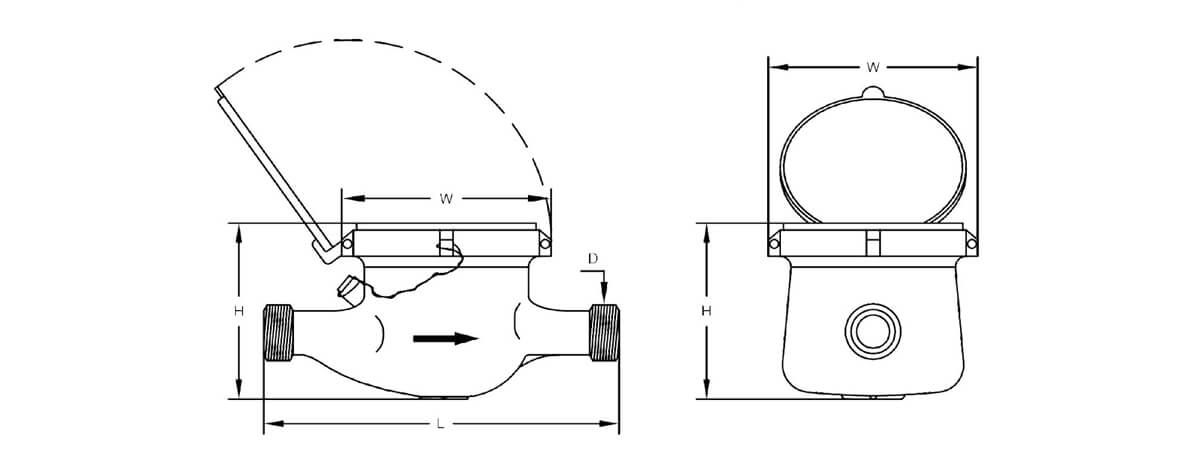

DN (mm) 15 20
Size (inch) 1/2″ 3/4″
Length(L) 165 190
Width (W) 89 89
Height (H) 98 98
Connecting Thread D G3/4B G1B



wesdom gate valve

Project case

Philippines Water Treatment Project

Project description:

WESDOM water meter is applied to the Philippine water treatment project. WESDOM’s  considerate service and high-quality products have won highly praise from customers and established a long-term cooperative relationship with us!

Main products:

LXSG DN15 cast iron & brass thread water meter;

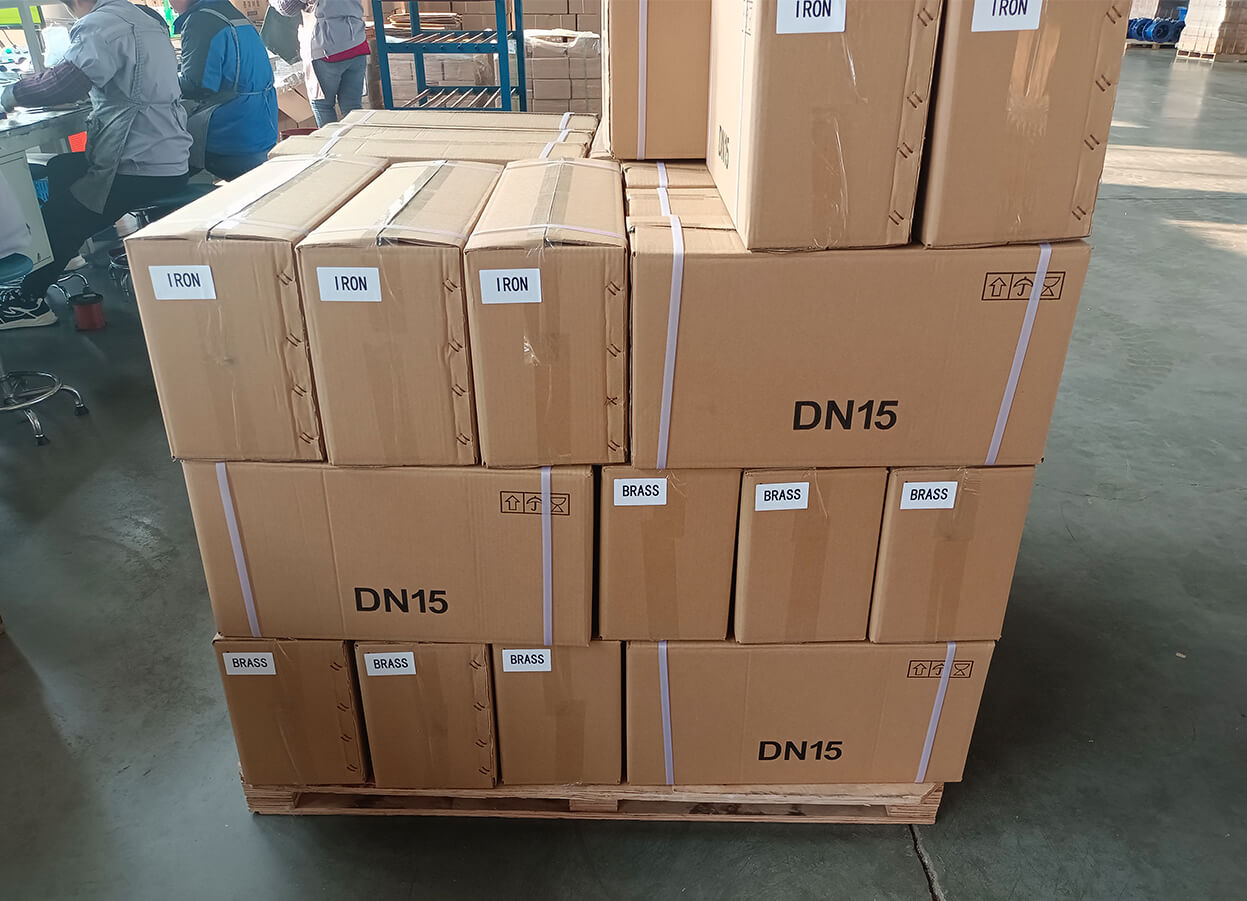

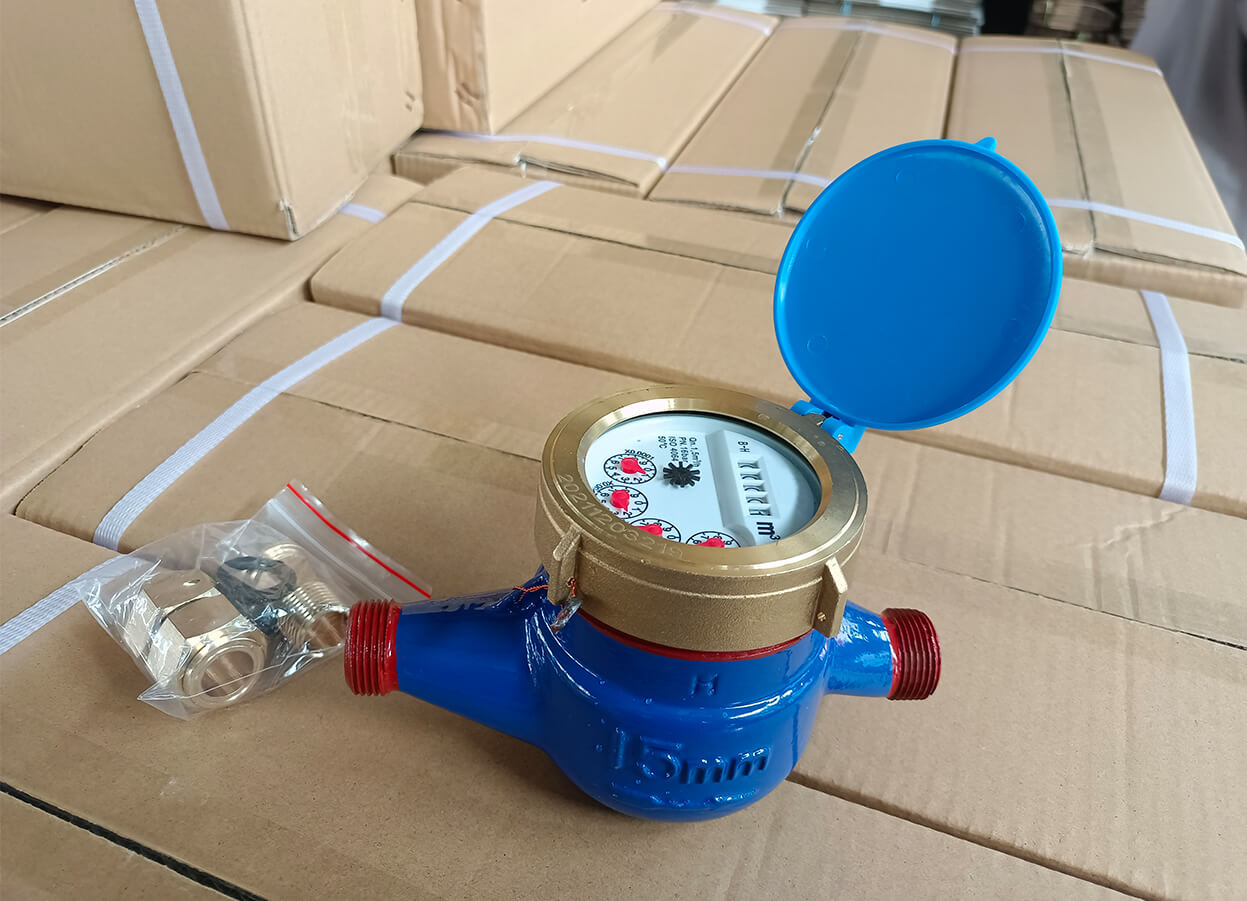

Product packaging and transportation



wesdom gate valve

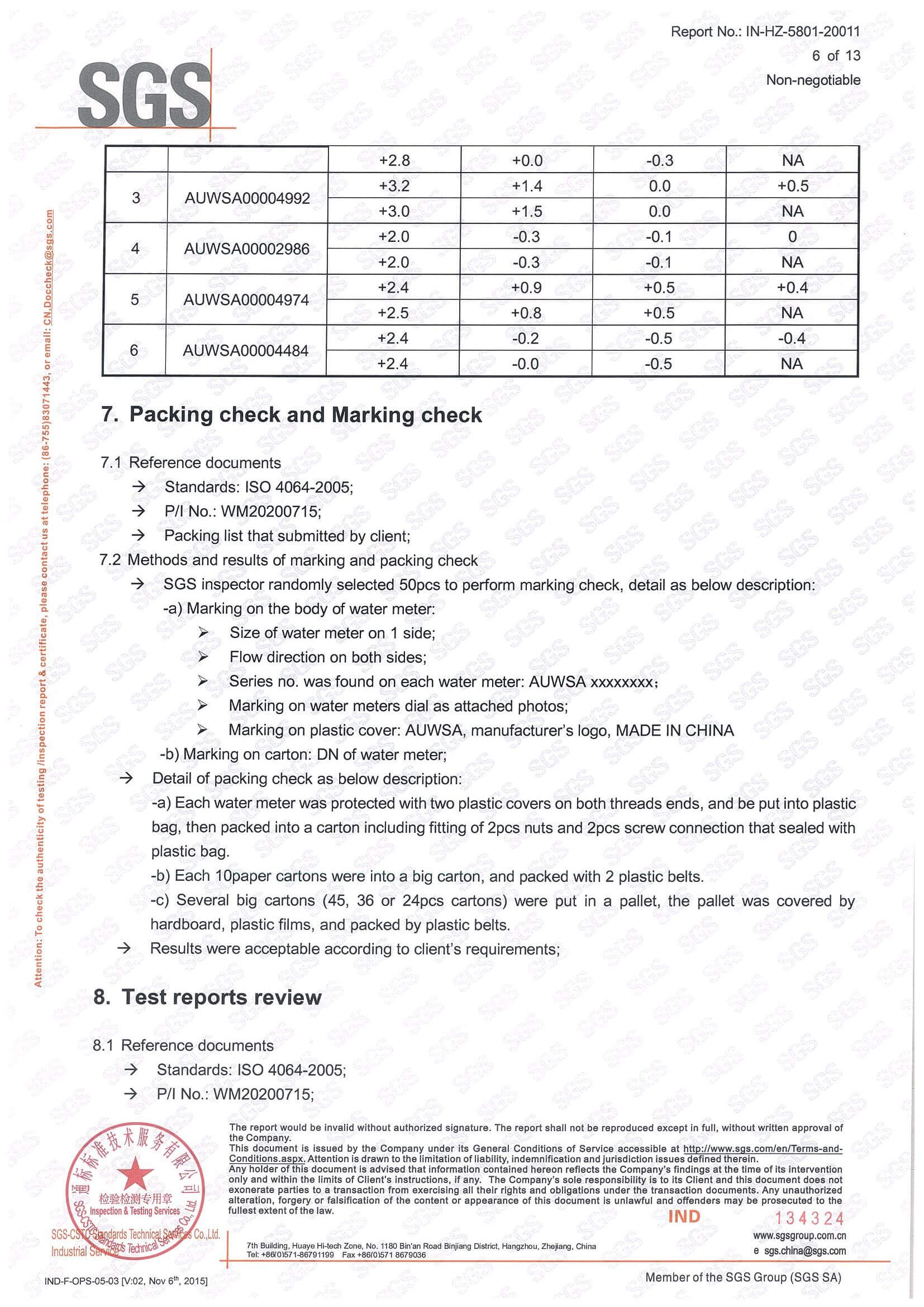

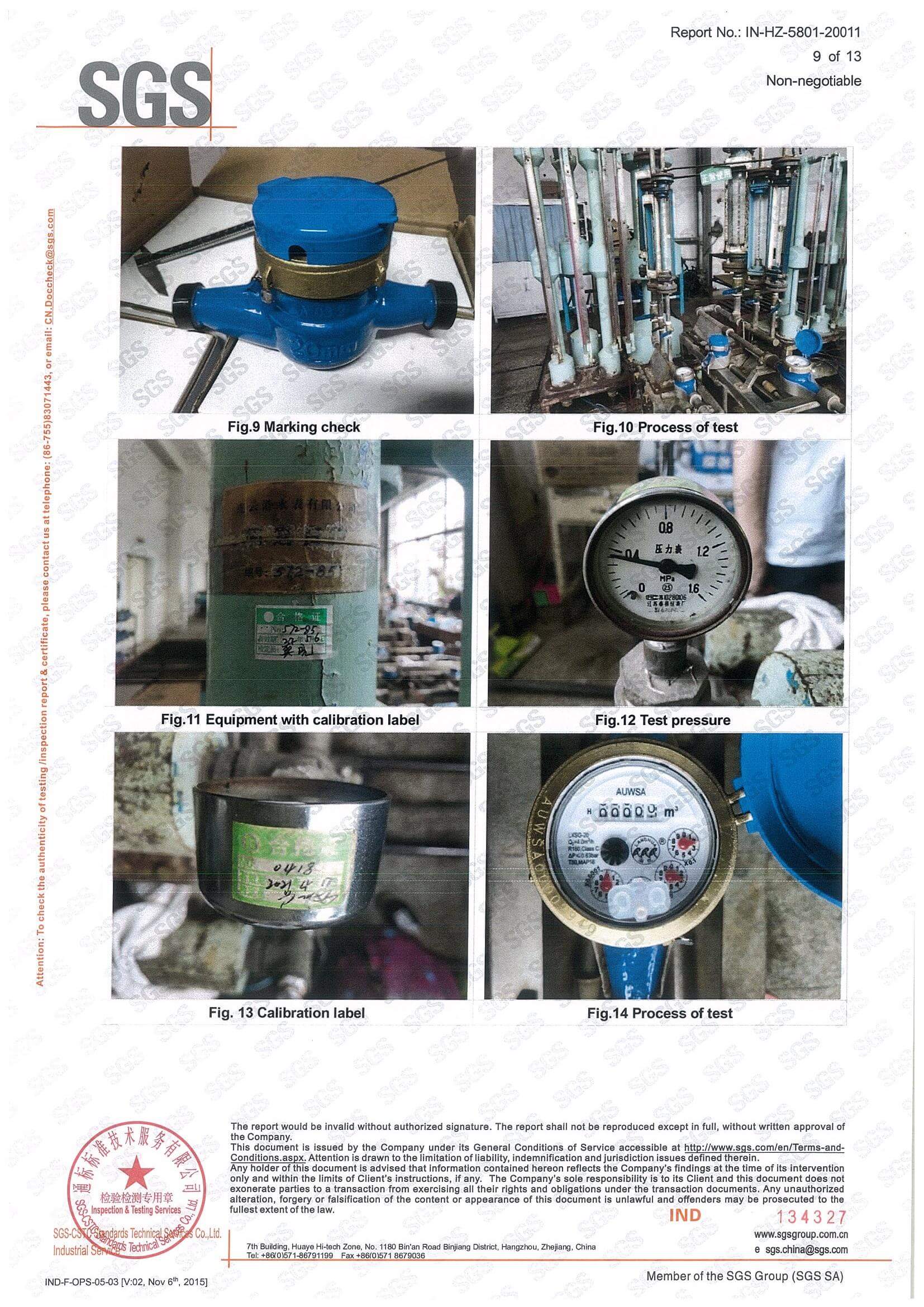

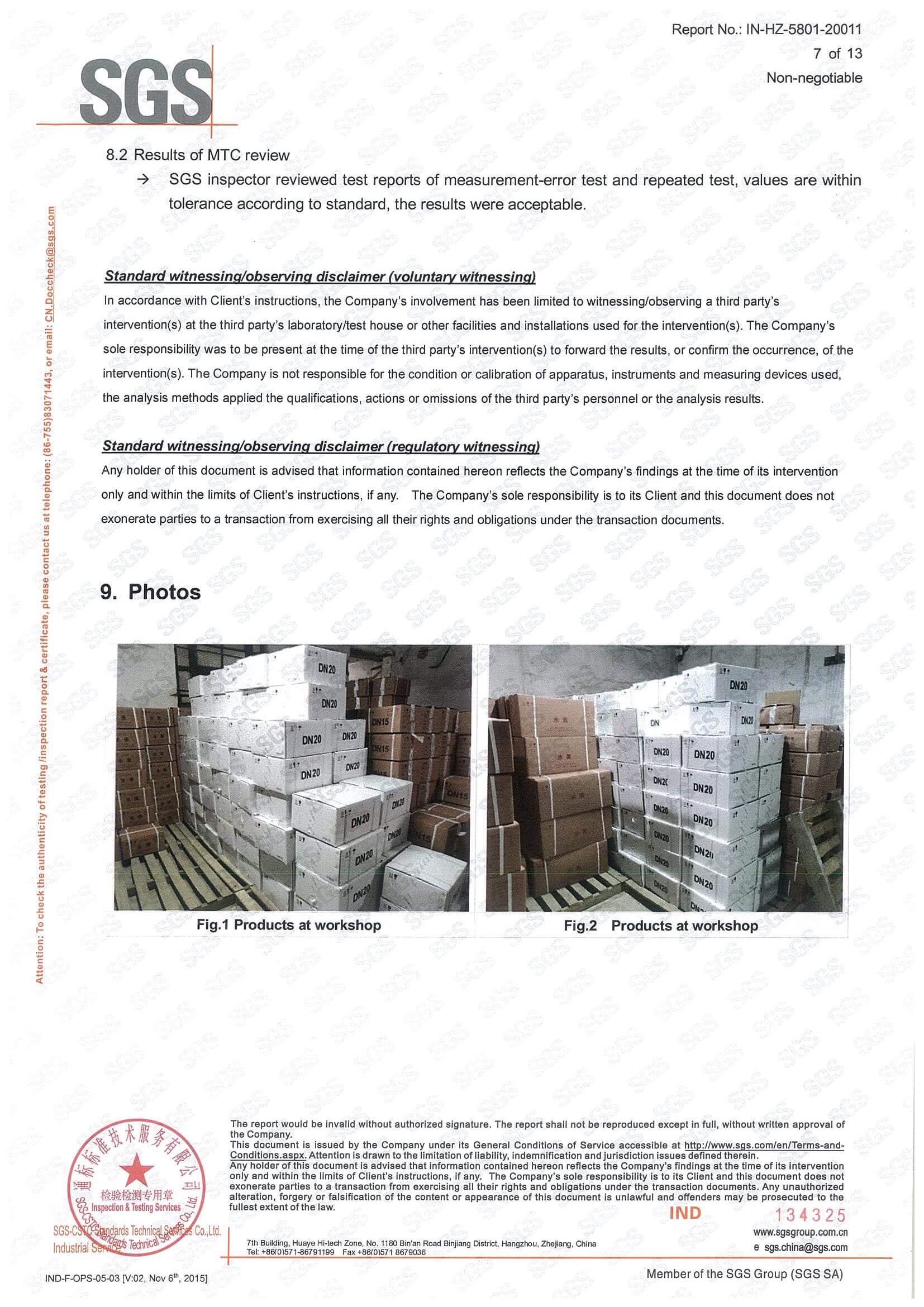

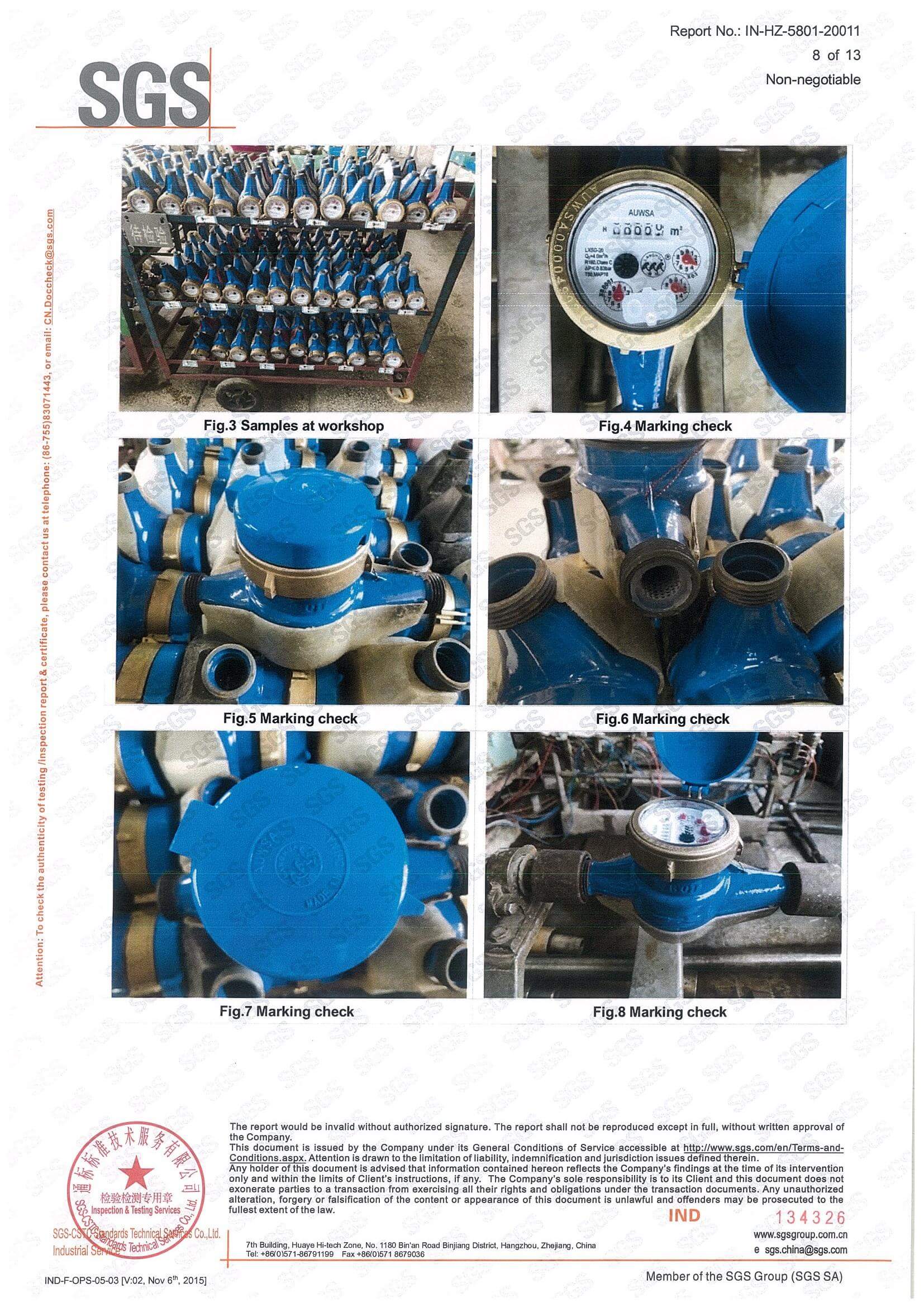

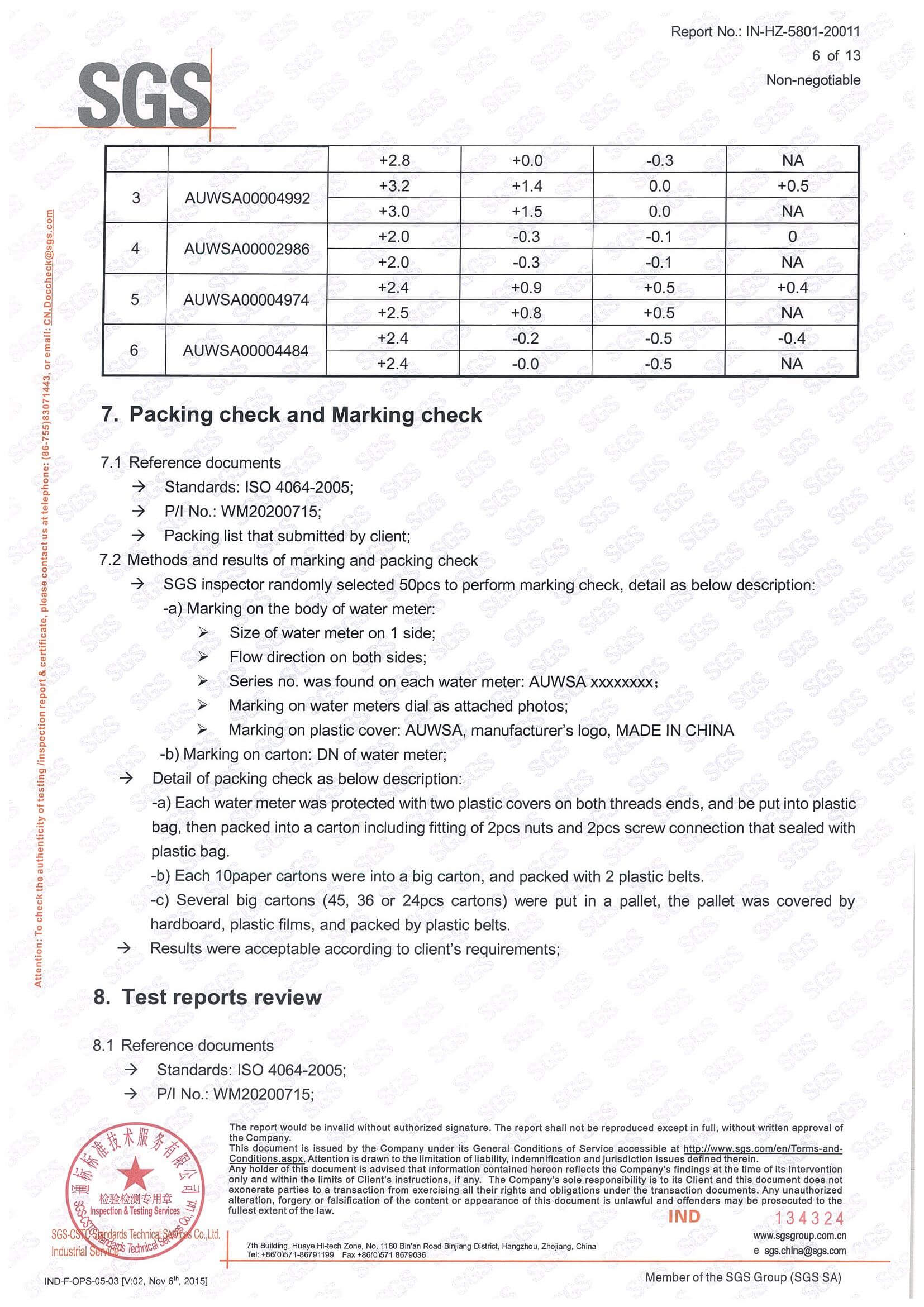

Certificate

Features

–Small register and body,Brass and cast iron body can be choose.

–Magnetic Drive, Lower transmission resistance.

–Magnetic shield, for external magnetic field protection.

–Sealed dry register ensures long time clear reading.·External regulating device.

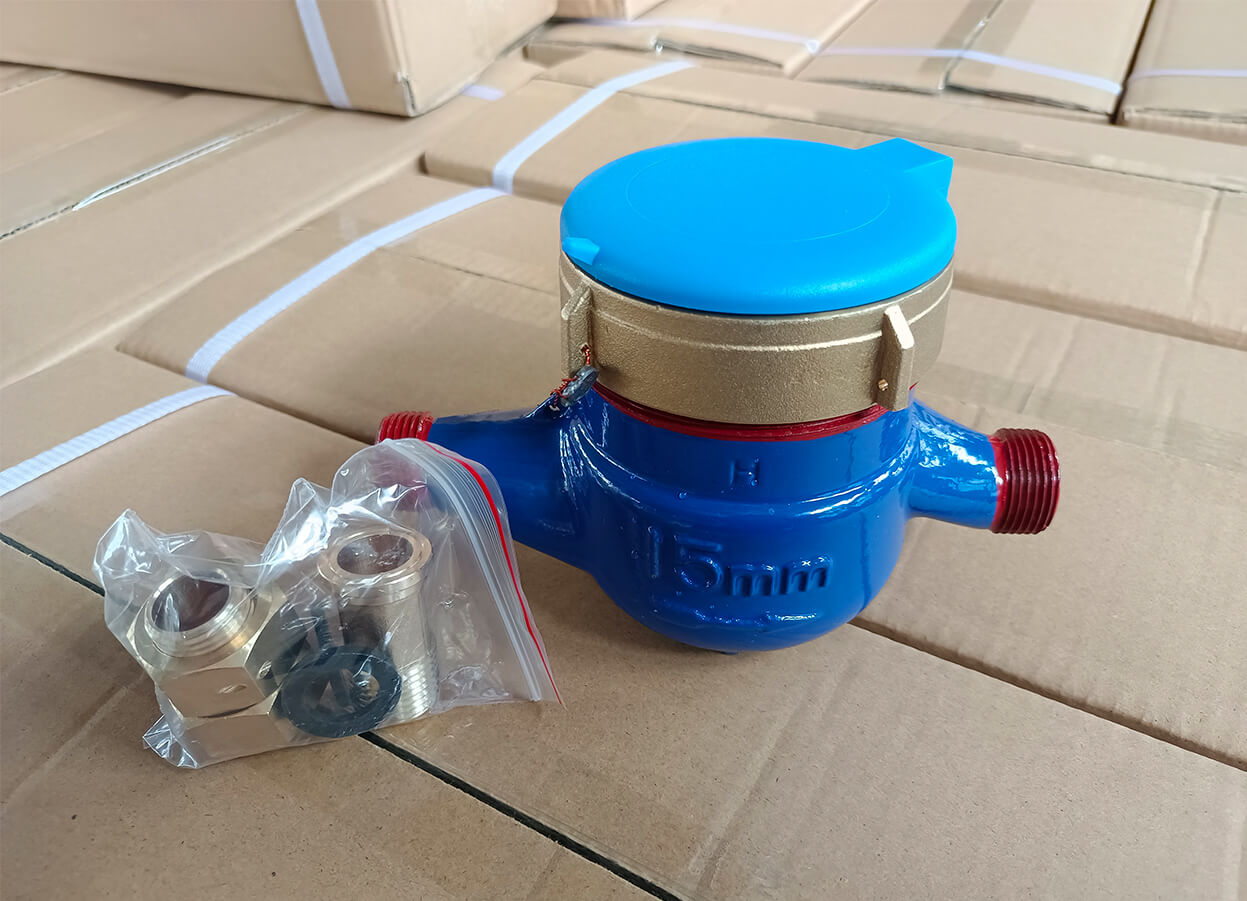

–Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.

Optional Features

–Register Sealed type: Dry type.

–Accuracy: R=80.

–Size: 15~20mm.

–Cold / hot water.

–Non return valve.

–Reed switch option.

–Several lengths and connections available on request.

–Thread end type: BSP/ NPT.

Technical Data

DN(mm) 15 20
Size(inch) 1/2″ 3/4″
Q4(l/h) 3125 5000
Q3(l/h) 2500 4000
R=80 Q2(l/h) 50 80
Q1(l/h) 31.25 50
R=100 Q2(l/h) 40 64
Q1(l/h) 25 40
Max.Reading(m3) 99.999 99.999
Min.Reading(Liter) 0.05 0.05
Max.Pressure(Bar) 16 16
Pressure Loss 63
Max.Temperature T=50/90
Pulse Output Option Vmax=24V
Imax=100mA
Pmax=2W
