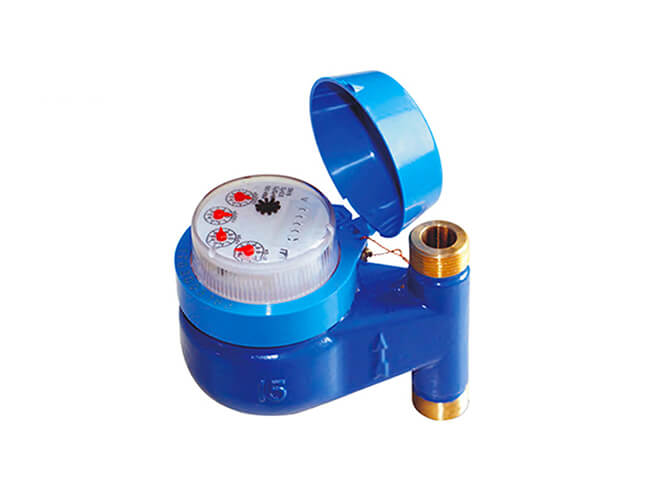

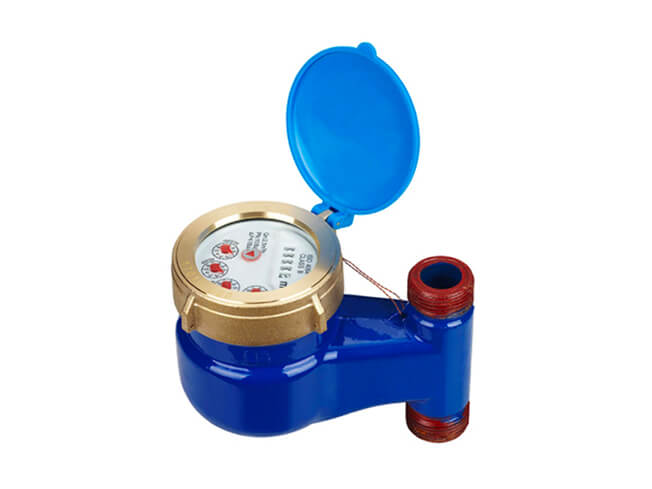

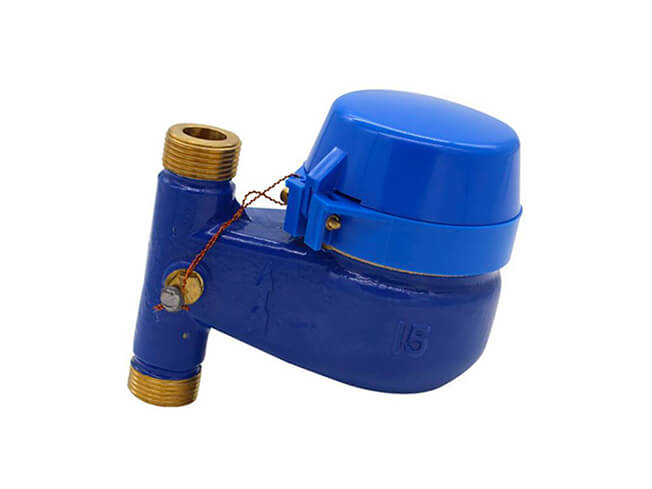

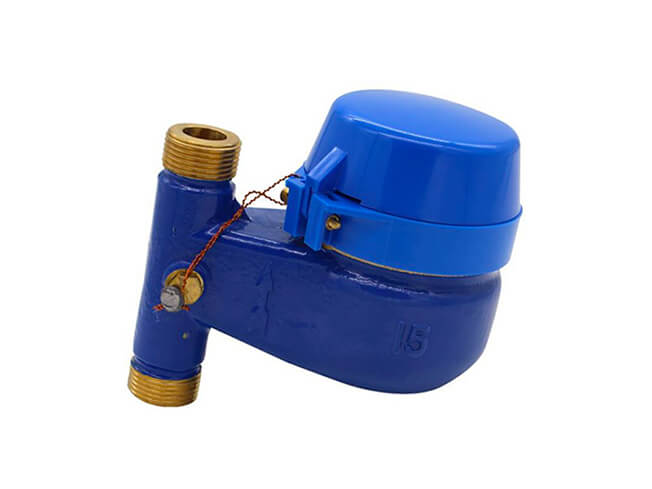

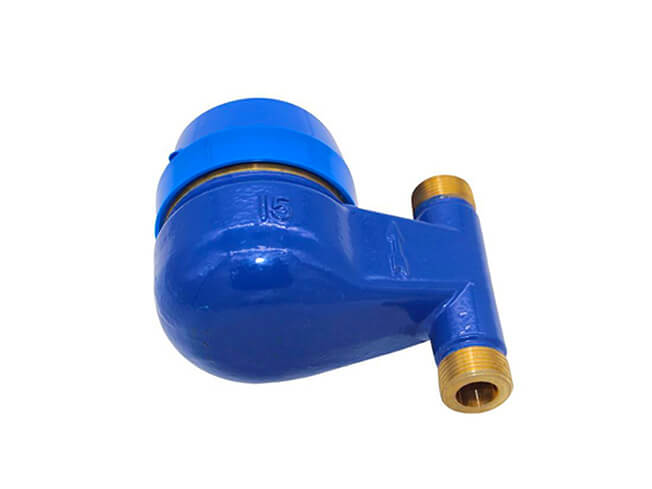

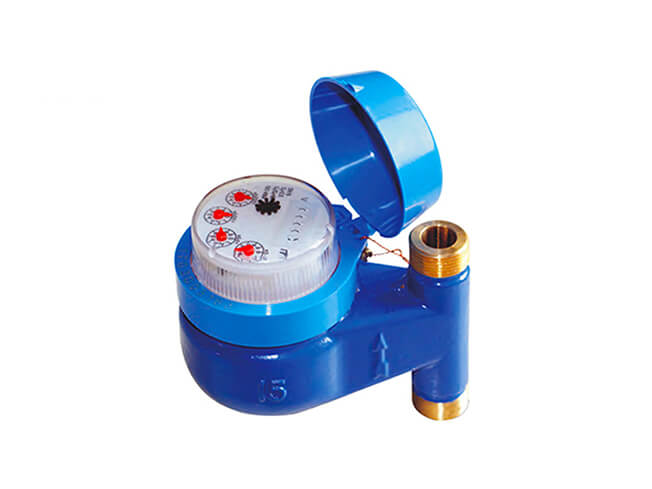

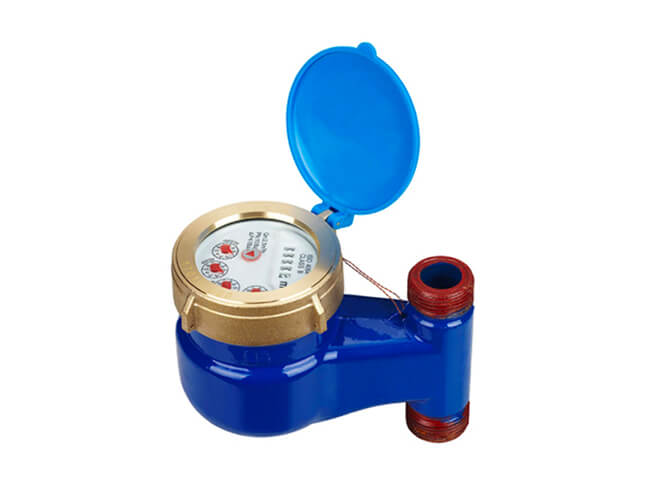

MULTI-JET cold (hot) dry-dial Vertical Type Water Meters

MULTI-JET cold (hot) dry-dial Vertical Type Water Meters

Size: Plastic body: DN15~50mm

Pressure Rating:≤1.6Mpa (16 bar)

Material:Brass

Design Standard:Standards Compliance

Inspection Standard:Technical data conform to international standard lSO 4064

Application medium:Water

Application Temperature:0.1 °C~40°C for cold water meter

Applied projects:Water Treatment

CATALOGUE DOWNLOAD

Product details

WESDOM flow meters are in high quality, from raw meter to final inspection, there is a strict quality control system. The flow maters and water meters WESDOM provide are all in high accuracy!

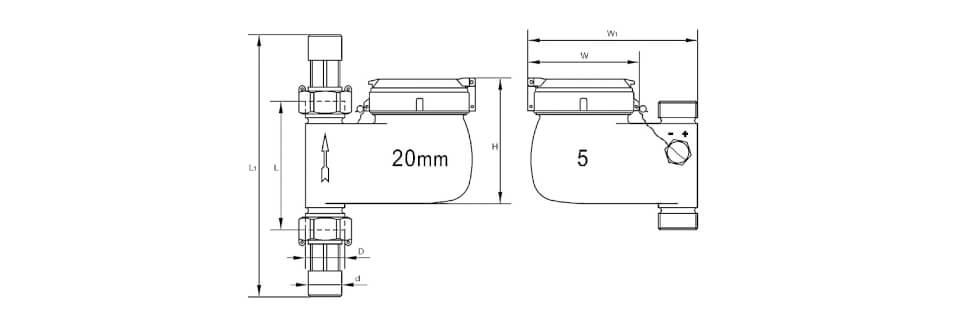

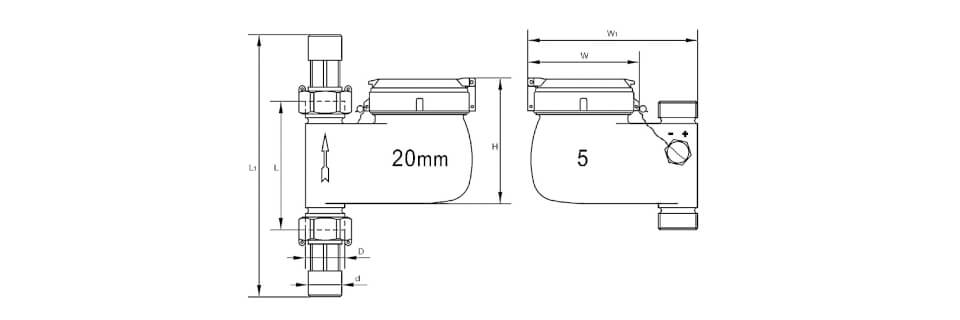

DN (mm) 15 20 25 32 40 50
Size (inch) 1/2″ 3/4″ 1″ 1-1/4″ 1-1/2″ 2″
L1 194 204 228 274 278 280
L 100 100 108 150 150 160
H 99.5 99.5 122.6 133.6 133.6 187.5
W1 133 137 166 220 228
Connecting

Thread D

G3/4B G1B G11/4B G11/2B G2B Flange

connect

D R1/2 R3/4 R1 R11/4 R11/2



wesdom gate valve

Project case

Cameroon customer single flow water meter and volumetric water meter order

Main products:

Single-flow water meters and volumetric water meters

Customer feedback:

All items are of great quality!

wesdom is a very trustworthy friend. Every time the products acquired are great, we will establish a long-term cooperative relationship with wesdom!

Product packaging and transportation



wesdom gate valve

Certificate

Features

Features

–Magnetic Drive, Lower transmission resistance.

–Magnetic shield, for external magnetic field protection.

–Sealed dry register ensures long time clear reading.

–External regulating device.

–Accresscries: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.

Optional Features

–Register Sealed type: Dry type; Super-dry type.

–Accuracy: R=80.

–Size: 15~50mm.

–Cold / hot water.

–Non return valve.

–Reed switch option.

–Several lengths and connections available on request.

–Thread end type: BSP / NPT.

Installation

–The meter should be installed in vertical position with the direction of the flow as indicated by the arrow cast in the meter body with the register face upwards.

–Pipeling must be flushed before installation.

–The meter should be constantly full of water transportation.

Maximum Permissible Error

–ln the lower zone from qmin inclusive up to but excluding qt is土5%.

–ln the upper zone from qt inclusive up to and including qs is土2%; 土3% for hot water meter.
