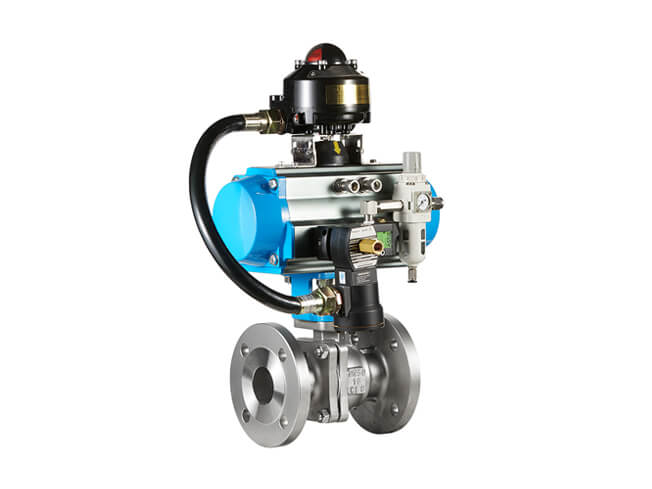

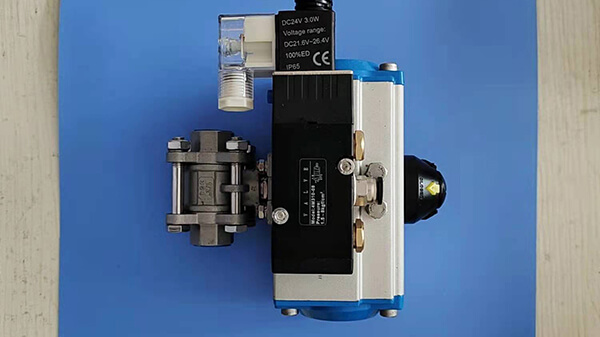

Pneumatic ball valve
Size: 1/2”-12”
Pressure Rating: PN10-PN40,150LB-300LB
Material: Carbon Steel Stainless Steel
Design Standard: API6D,ASME B16.34
Inspection Standard: API598
Application medium: water, oil, powder
Application Temperature: 0-200℃
Applied projects: Pneumatic ball valve is widely used in natural gas, oil products, chemical, metallurgy, paper making, power, mining, printing and dyeing, biological pharmaceutical, daily chemical, food and beverage, water treatment and air treatment and other industries of fluid automatic control or regulation control, and automatic pneumatic instrument matching use.

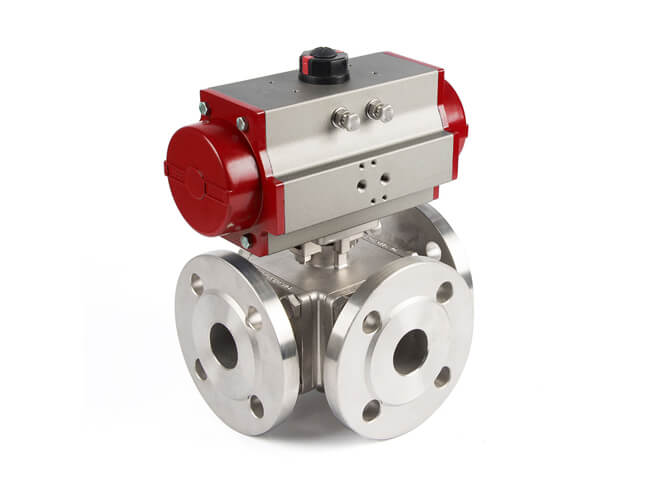

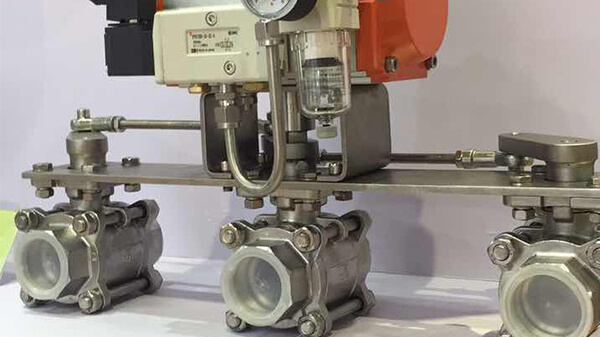

WESDOM BALL VALVES are reliable, offering floating type, trunnion mounted type, segment ball type, three-way and four-way type which can be applied in wide range of fields. There are also many kind of sealing material for client’s selection, like PTFE seat, metal seat and ceramics seat, etc.

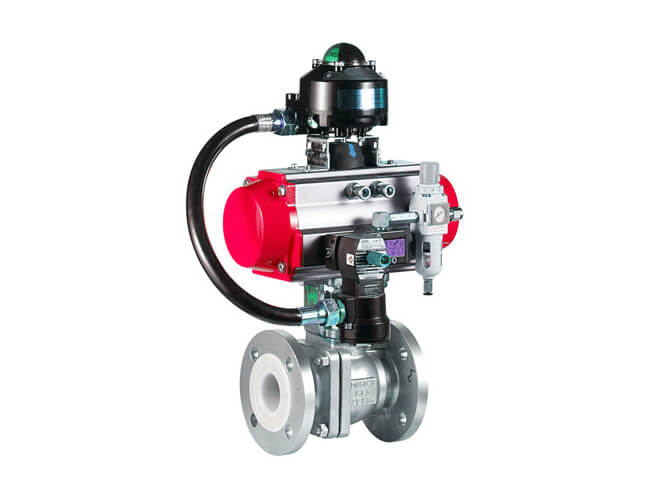

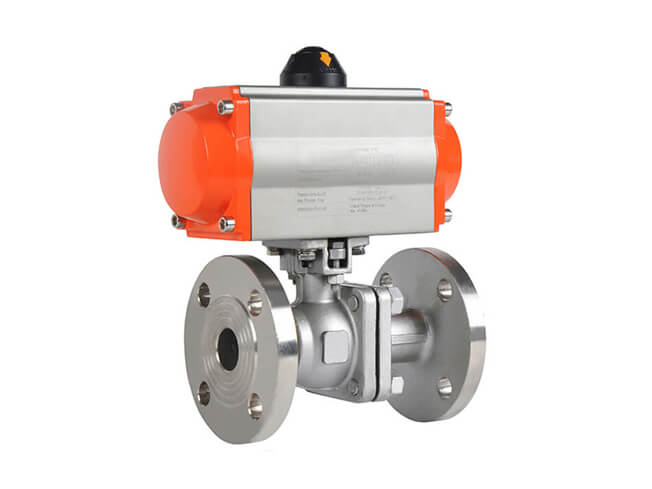

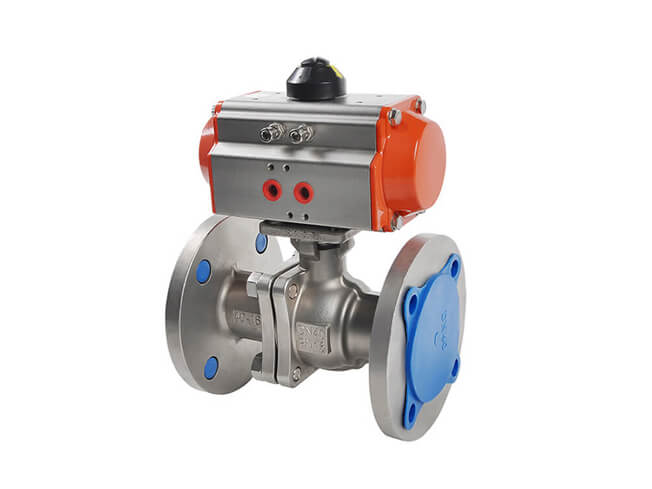

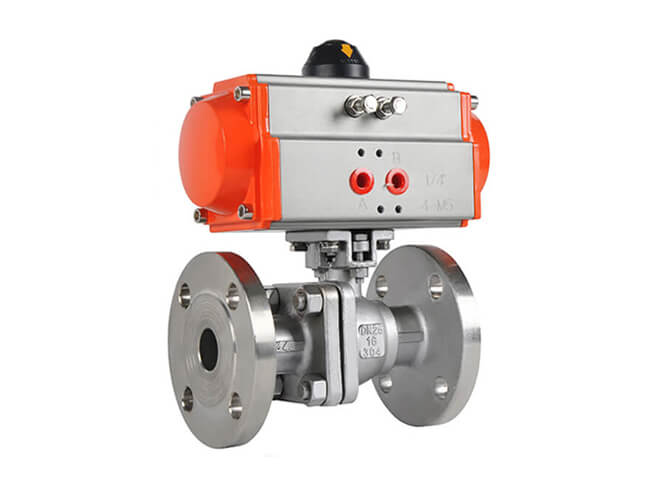

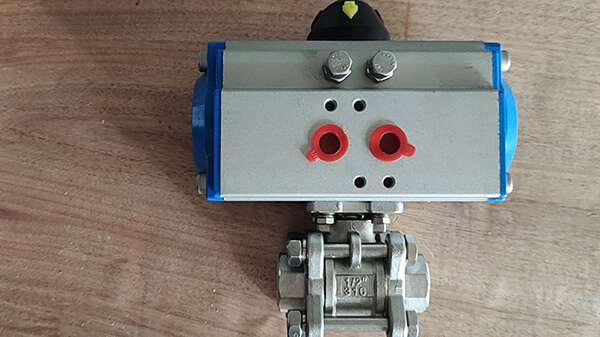

Economical price flanged type pneumatic actuated ball valve comes with 6 inch fluid port and 1/4 inch air supply port, stainless steel body material, high performance PTFE plastic seat, optional 2 way or 3 way. Industrial air powered ball valve is widely used for water, gas, oxygen and other air and fluid control.

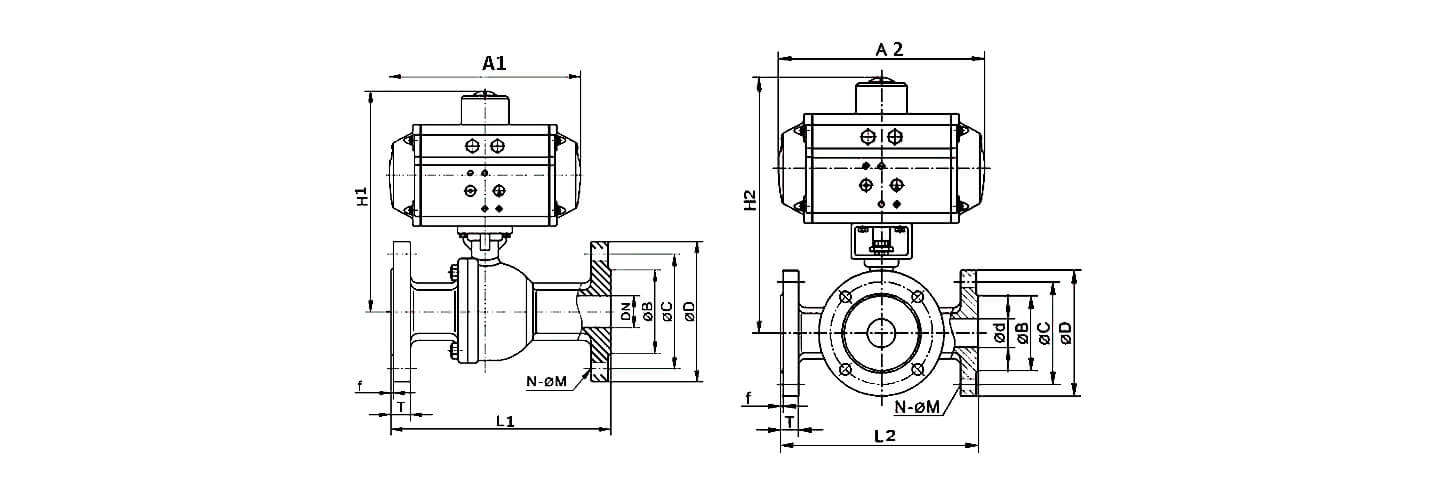

Flanged Ball Valve Body Dimension (Unit: mm)

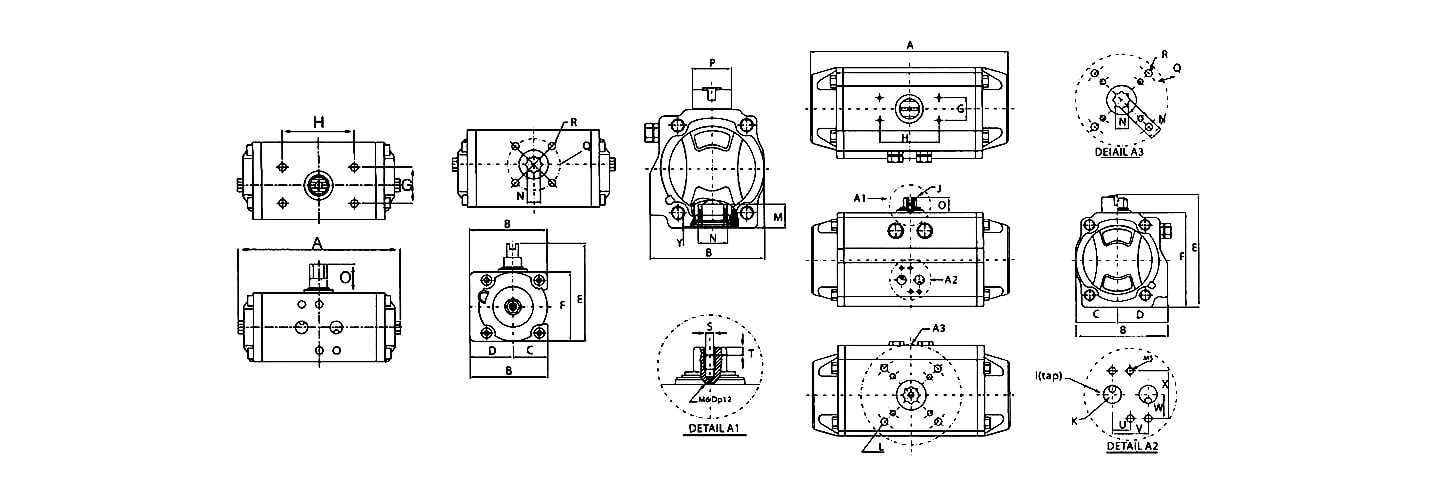

Pneumatic Actuator Dimension (Unit: mm)
Technical parameter:
Technical parameters of pneumatic actuator ball valve:
| Size Range | DN15 to DN300(1/2in to 12in) |
| Body Material | Stainless steel 304/316/316L, WCB or UPVC |
| Connection Type | Flanged (ANSI/JIS/DIN/GB) |
| Pressure Rating | 10bar, 16bar, 25bar, 40bar, 64bar, Class150 |
| Structure Type Options | 2-way, 3-way or 4 way |
| Sealing Material | NBR, EPDM, VITON, PTFE |
| Core Material | Stainless steel |
| Application Medium | Wastewater, hot oil, hot water, cool water, and so on |
ATO-AT160D
| Q | A | B | C | D | E | F | G | H | I |
| Φ102/Φ125mm | 450mm | 193mm | 89mm | 104mm | 226mm | 197mm | 30mm | 80mm | PF |
| J | K | O | P | S | T | U | V | W | X |
| M6 | 1/4″ | 30mm | 80mm | 4mm | 4mm | 12mm | 24mm | 16mm | 32mm |
ATO-AT210D
| Q | A | B | C | D | E | F | G | H | I |
| Φ140mm | 530mm | 226mm | 113mm | 113mm | 297mm | 257mm | 30mm | 130mm | PF |
| J | K | O | P | S | T | U | V | W | X |
| M6 | 1/4″ | 30mm | 90mm | 4mm | 4mm | 12mm | 24mm | 16mm | 32mm |
Specification:
| Ball Valve | Model | ATO-PBV-150A | |
| Ball Valve Type (Optional) | 2 Way Flanged Type, 3 Way Flanged Type | ||
| Port Size | 6 inch (DN150, 150mm) | ||
| Environment Temperature | -10°C to 60°C | ||
| Medium Temperature | -10°C to 180°C | ||
| Medium Pressure | 1.6MPa | ||
| Seat Material | Plastic (PTFE) | ||
| Body Material | Stainless Steel (SS 316/ 304), PVC | ||
| Pneumatic Actuator | Model | ATO-AT160D | ATO-AT210D |
| Bore Size | 160mm | 210mm | |
| Air Supply Port | 1/4 inch | 1/4 inch | |
| Power Source | Compressed Air | ||
| Actuator Type | Double Acting | ||
| Pressure Range | ≤1000PSI (6.9MPa) | ||
| Air Pressure | 0.3 ~ 0.8MPa | ||
| Actuator Body Material | Aluminum Alloy | ||

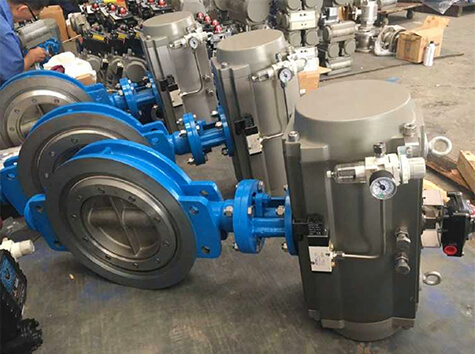

Pakistan AL-MORIZE Sugar Factory
Main products:
Control/On-off butterfly valves, Control globe valves, Control ball valves, Angle seat valves.
Client feedback:
WESDOM’s valves are not only of high quality, but also of very good service and price. At the same time, you can also customize your own logo and color. The delivery time is very punctual. They are very satisfied with the cooperation with WESDOM, and they will choose WESDOM if you need it;

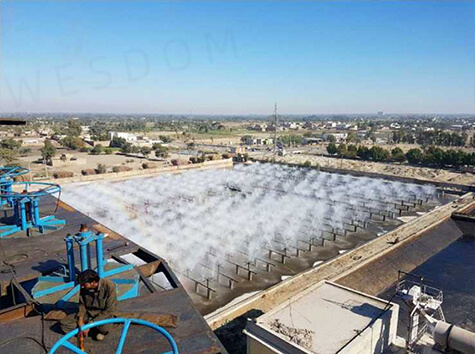

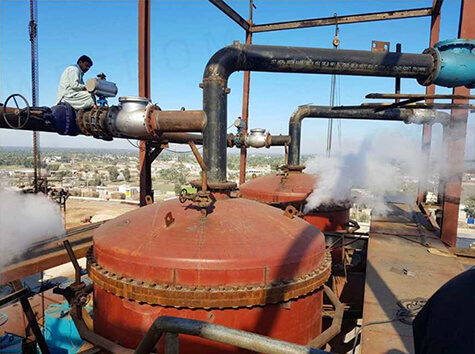

Project pictures:
