gate valve wesdom

Product

WESDOM

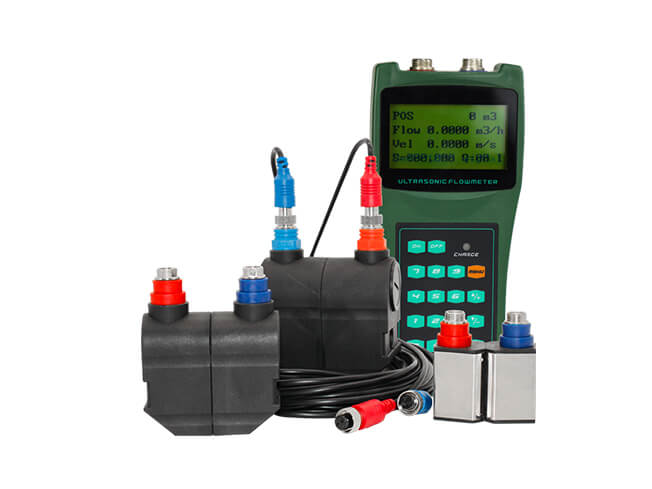

Portable ultrasonic flow meter

Size: DN15mm-6000mm

Linearity: 0.5%

Repeatability: 0.2%

Accuracy: ±1% of reading at rates>0.2 mps

Response Time: 0-999 seconds, user-configurable

Velocity: ±32 m/s

Medium: Water, salt water, alcohol, various oil stable liquid

Applied projects: This flow meter is widely used in tap water, heating, water conservancy, metallurgy chemical,machinery, energy and other industries. It can be used for production monitoring, flow verification, temporary detection, flow inspection, water meter balance debugging,heating network balance debugging,energy-saving monitoring, and it is a necessary tool and meter for timely flow detection

CATALOGUE DOWNLOAD

Product details

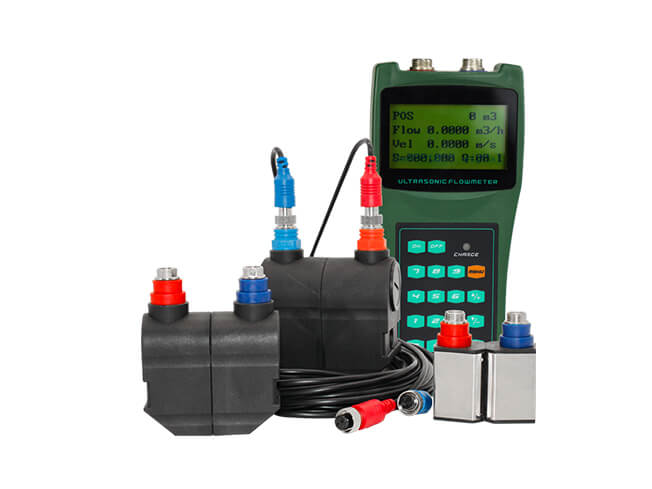

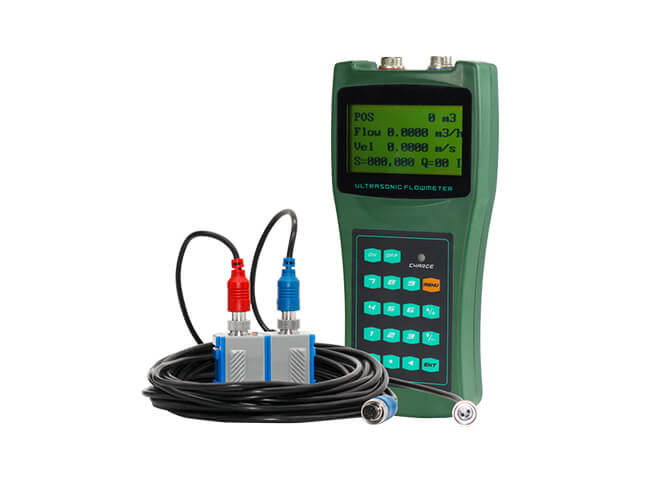

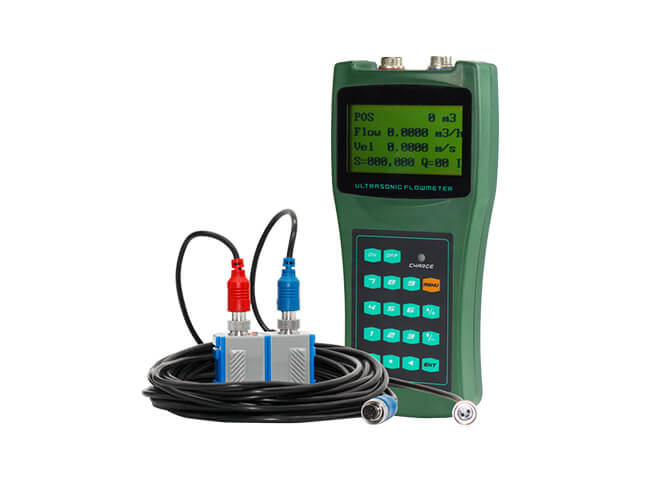

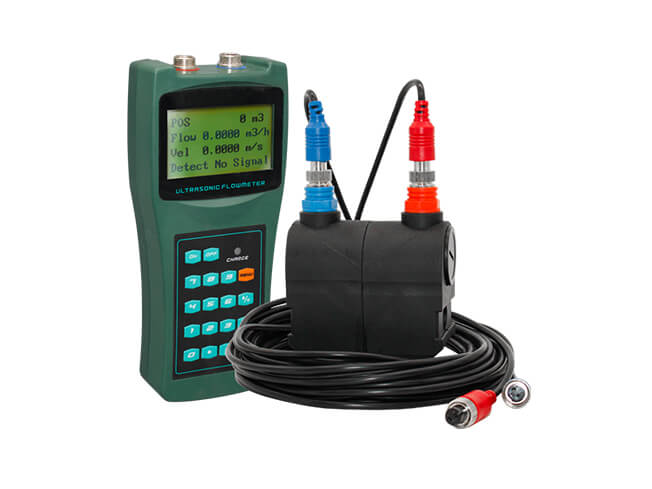

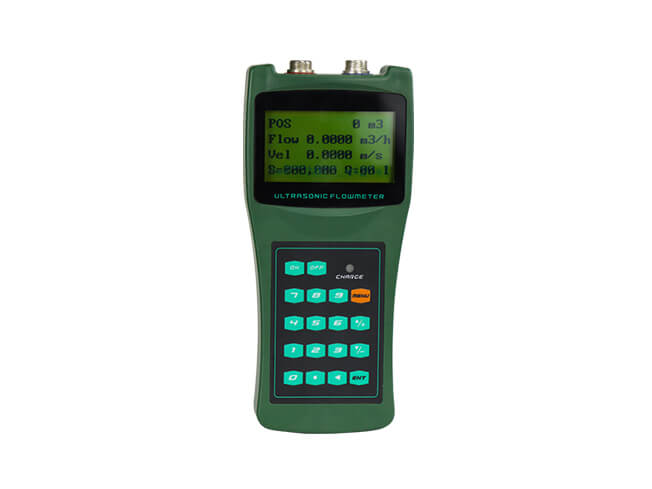

WESDOM handheld ultrasonic flow meter realizes non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipeline to complete the flow measurement. It has the characteristics of small size. Convenient carrying and accurate measurement.
Handheld Ultrasonic Flow meter Principle Working: Time-transit measurement principle is adopted, the signal transmitted by one flow meter transducer passes through the pipe wall, the medium, and the other side pipe wall, and is received by another flow meter transducer. At the same time, the second transducer also transmits the signal received by the first transducer. The influence of the medium flow rate, there is a time difference, and then the flow value Q can be obtained.

Parameter





Model Number:

LC
Product Name: Ultrasonic Flow Meter
Repeatability: Better than 0.2%
Transducer: Clamp-on, easy and convenient operating
Output: Non-isolation RS232 (FUJI extended protocol)
Liner Material: Epoxy asphalt /rubber/mortar, polypropylene/polystyrene/PT
Accuracy: Better than 1%
Medium: Water, salt water, alcohol, various oil stable liquid

Technical data

Linearity 0.5%
Repeatability 0.2%
Accuracy ±1% of reading at rates>0.2 mps
Response Time 0-999 seconds, user-configurable
Velocity ±32 m/s
Pipe Size DN15mm-6000mm
Rate Units Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. Users configurable
Totalizer 7-digit totals for net, positive and negative flow respectively
Liquid Types Virtually all liquids
Security Setup values Modification Lockout. Access code needs unlocking
Display 4×8 Chinese characters or 4×16 English letters
Communication Interface RS-232C, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry.
Transducers Model M1 for standard, other 3 models for optional
Transducer Cord Length Standard 2×5 meters, optional 2x 10 meters
Power Supply 3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation.100V-240VAC for the charger
Data Logger Built-in data logger can store over 2000 lines of data
Manual Totalizer 7-digit press-key-to-go totalizer for calibration
Housing Material ABS
Case Size 100x66x20mm
Handset Weight 514g (1.2 lbs) with batteries

Installation

Wall mount type ultrasonic flow meter installation requirements
The state of the pipeline for measuring the flow will greatly affect the measurement accuracy, the detector installation location should be selected in a place that meets the following conditions:
①It must be ensured that the straight pipe section where the probe is installed is: 10D on the upstream side(D is the pipe diameter), 5D or more on the downstream side, and there must be no factors that disturb the fluid(such as pumps,valves, throttles, etc.) in the 30D on the upstream side. And try to avoid the unevenness and welding position of the pipeline under test.
②The pipeline is always full of liquid, and the fluid should not contain bubbles or other foreign objects. For horizontal pipelines, install the detector within ±45°of the horizontal centerline. Try to choose the horizontal centerline position.
③When install the ultrasonic flow meter, need to input these parameters:  pipe material,pipe wall thickness and pipe diameter. Fulid type, whether it contains impurities,bubbles, and whether the tube is full.

Handheld Ultrasonic Flow Meter

Transducers installation

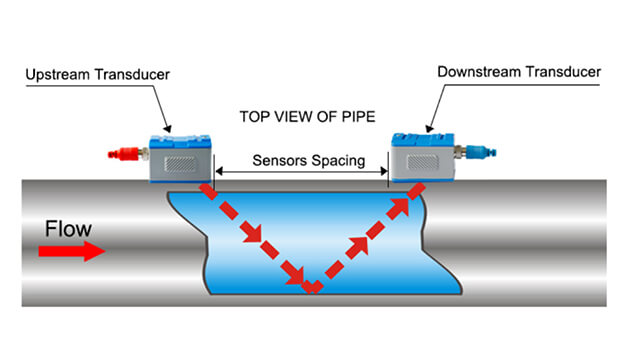

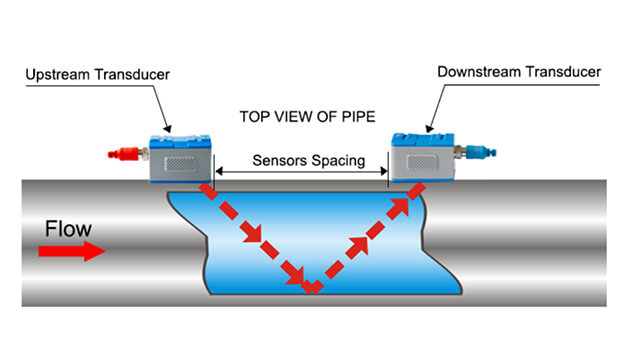

1.V-method Installation
V-method installation is the most widely used mode for daily measurement with pipe inner diameters ranging from DN15mm ~ DN200mm. It is also called reflective mode or method.

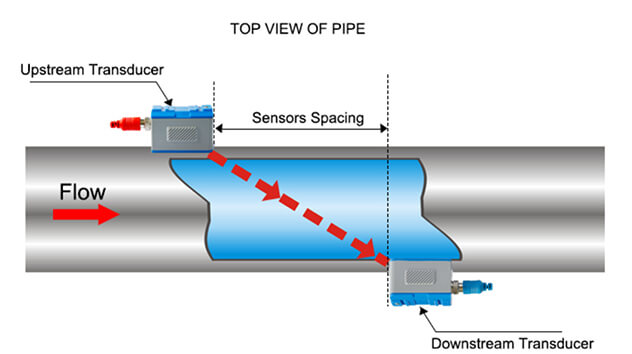

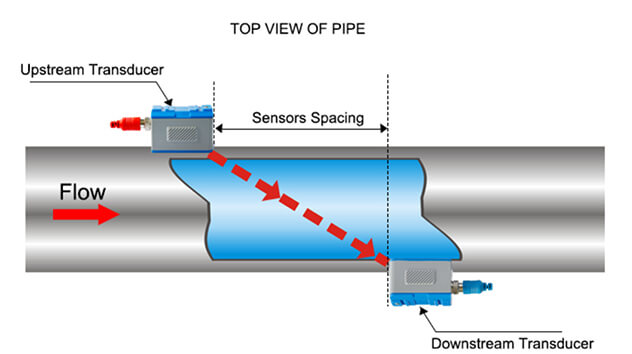

2.Z-method Installation
Z-method is commonly used when the pipe diameter is above DN300mm.

Project case

Flow Meter project – Pakistan

Portable ultrasonic flow meter is used in temporary on-site measurement of different pipelines throughout the project.

Product packaging and transportation



wesdom gate valve

Certificate

Applications

Handheld Ultrasonic Flow Meter Applications
This flow meter is widely used in tap water, heating, water conservancy, metallurgy chemical,machinery, energy and other industries. It can be used for production monitoring, flow verification, temporary detection, flow inspection, water meter balance debugging,heating network balance debugging,energy-saving monitoring, and it is a necessary tool and meter for timely flow detection.
