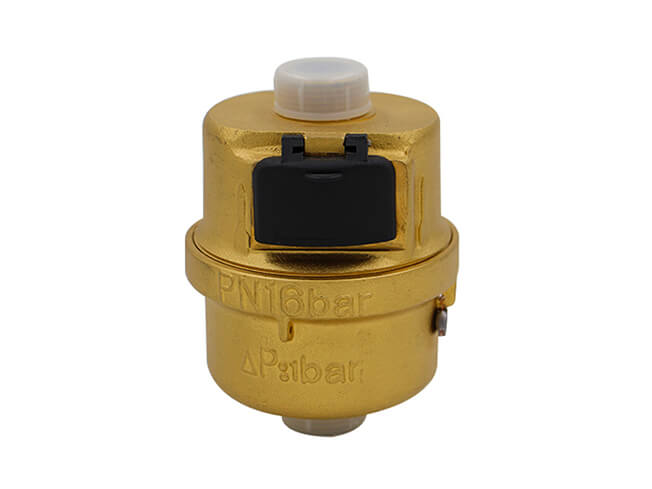

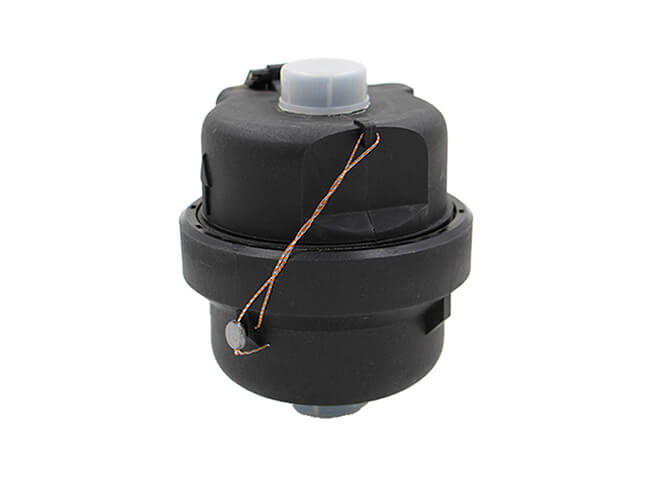

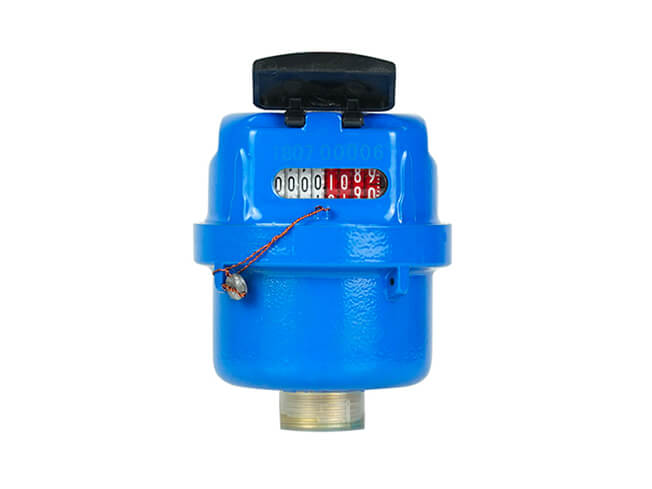

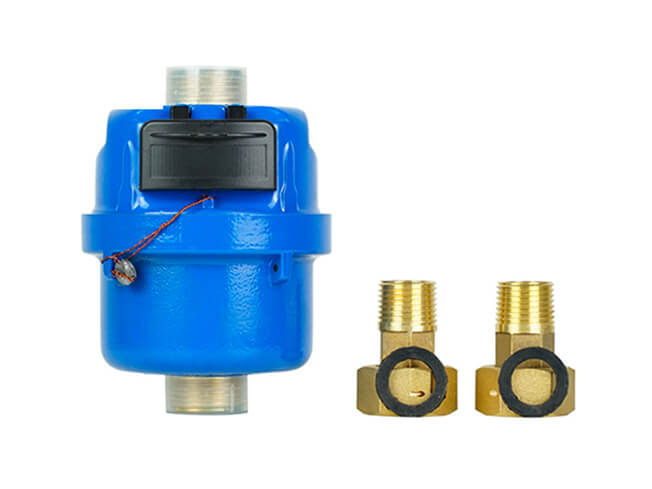

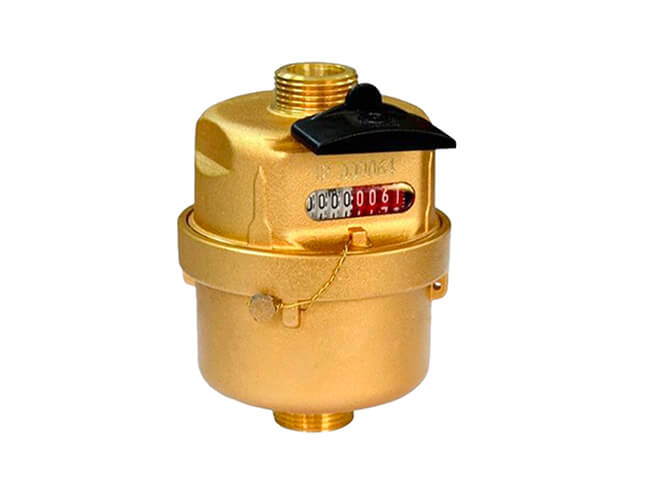

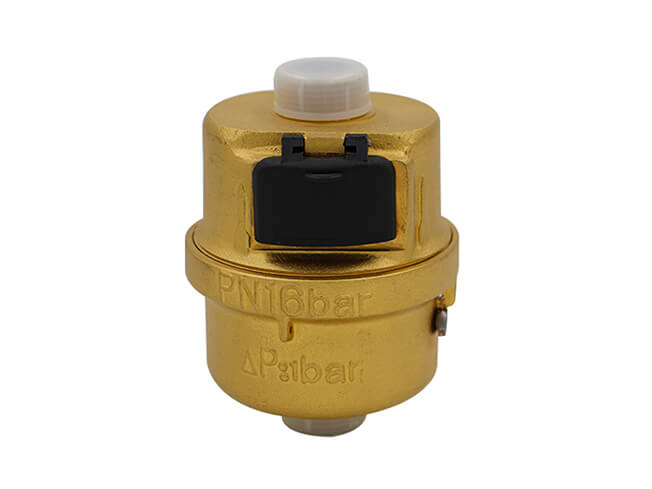

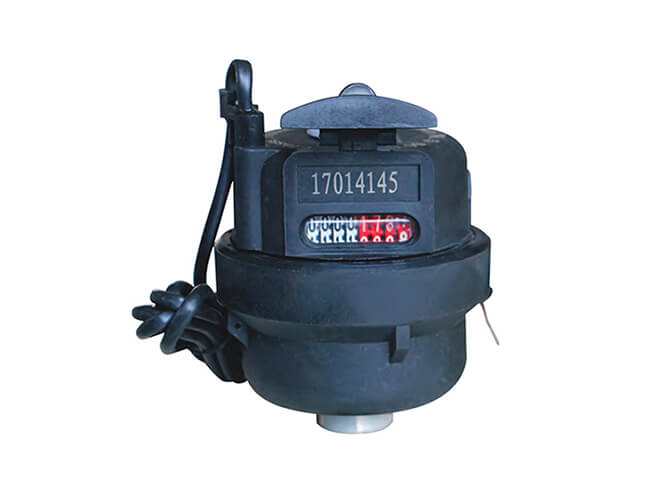

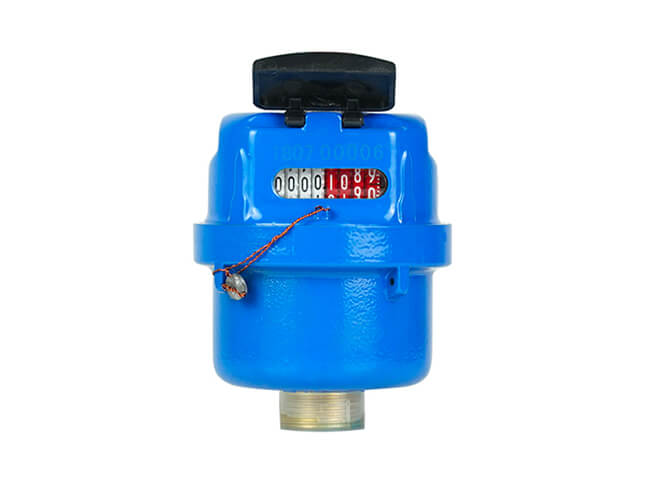

Volumetric water meter
Size: Plastic body: DN15-20; Brass body: DN15-50
Pressure Rating:≤1.6Mpa (16 bar)
Material:Brass/plastic
Design Standard:Standards Compliance
Inspection Standard:Technical data conform to international standard lSO 4064
Application medium:Water
Application Temperature:0.1 °C~40°C for cold water meter
Applied projects:Water Treatment
Features

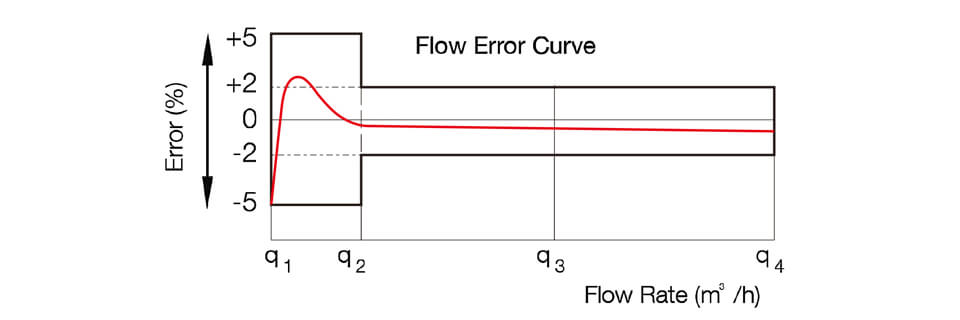

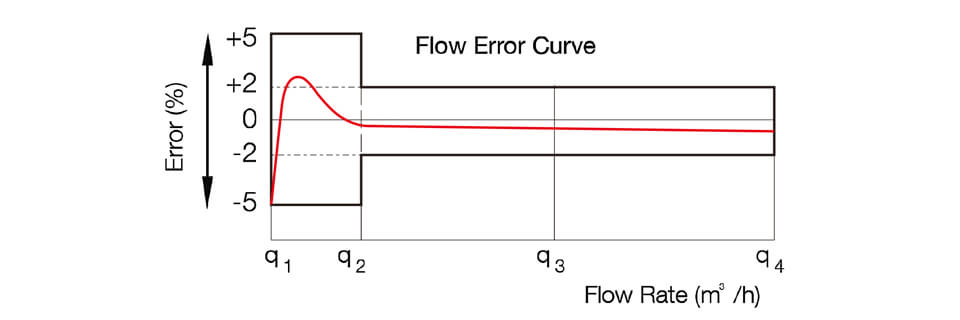

Maximum Permissible Error
WESDOM flow meters are in high quality, from raw meter to final inspection, there is a strict quality control system. The flow maters and water meters WESDOM provide are all in high accuracy!
| Description | Unit | Hydraulic Data And Dimensions | |||||
| Nominal Size | mm(inch) | DN15(1/2) | DN20(3/4) | DN25(1) | DN32(1-1/4) | DN40(1-1/2) | |
| Q4 Error Limit +/-2% | m3h | 3.125 | 5 | 7.785 | 12.5 | 20 | |
| Q3 Error Limit +/-2% | m3h | 2.5 | 4.0 | 6.3 | 10 | 16 | |
| Q2 Error Limit +/-2% | l/h | 25 | 40 | 63 | 100 | 160 | |
| Q1 Error Limit +/-5% | l/h | 15.6 | 25 | 39.4 | 62.5 | 100 | |
| Min. Reading | l | 0.05 | 0.05 | 0.005 | 0.5 | 0.5 | |
| Max. Reading | m3 | 9999.9999 | 9999.9999 | 9999.9999 | 9999.9999 | 9999.9999 | |
| MAP | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Press Loss △PAT Q3 | MPa | <0.063 | <0.063 | <0.063 | <0.063 | <0.063 | |

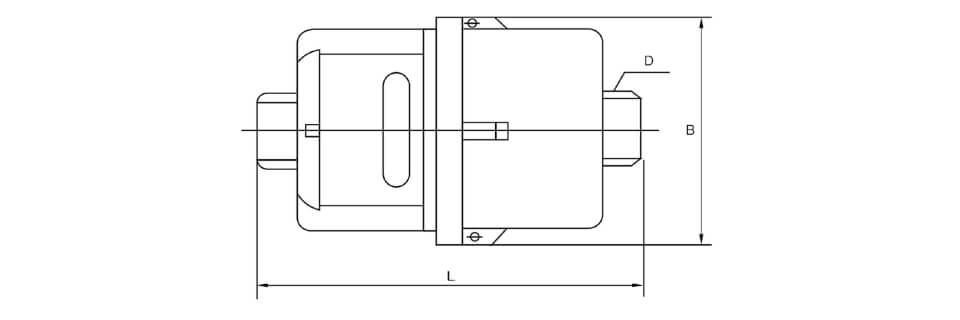

| L | mm | 195 | 267 | 319 | 384 | 428 | |
| I | mm | 115 | 165 | 199 | 260 | 300 | |
| B | mm | 43 | 43 | 53 | 60 | 77 | |
| weight | Without
Connections |
Kg | 1.14 | 1.56 | 2.48 | 3.47 | 5.65 |
| Without
Connections |
Kg | 0.97 | 1.3 | 2.05 | 2.75 | 4.7 | |

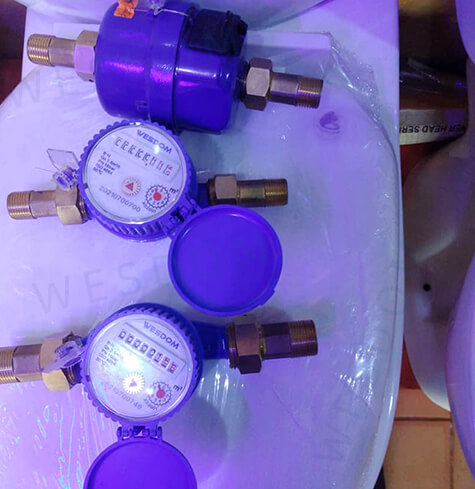

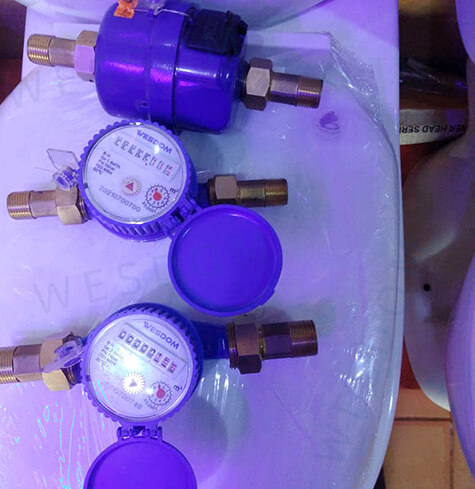

Cameroon customer single flow water meter and volumetric water meter order
Main products:
Single-flow water meters and volumetric water meters

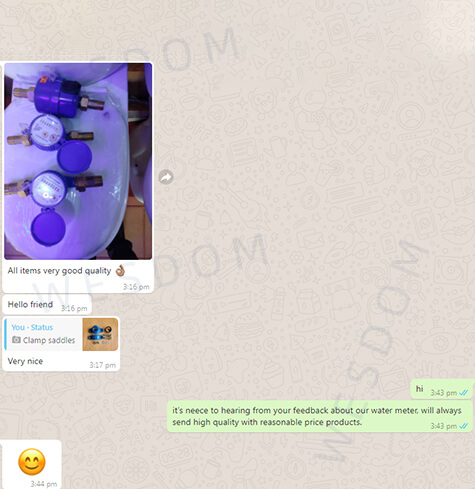

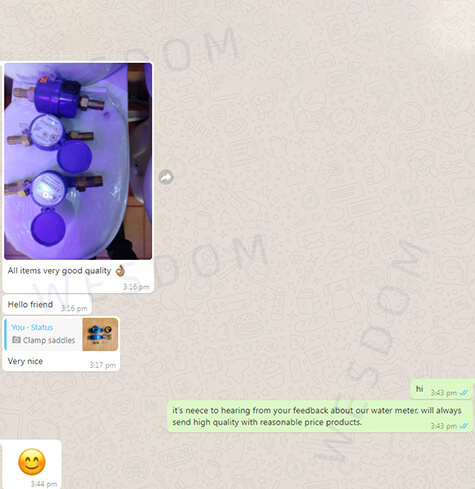

Customer feedback:
All items are of great quality!
wesdom is a very trustworthy friend. Every time the products acquired are great, we will establish a long-term cooperative relationship with wesdom!
Features
–Low start-up flow rate.
–volumetric rotary piston principle of measurement.
–LXHY-15~20 is no location limitation for installation.
–Accuracy is not to be affected wherever installed at horizontal, vertical or inclined pipeline.
–Register is sealed with a special liquid to keep a clear reading in long term service.
–Mechanism uses high-quality material to ensure a stable characteristic.
–Accurate measurement with conformity to lSO
–4064 class C.

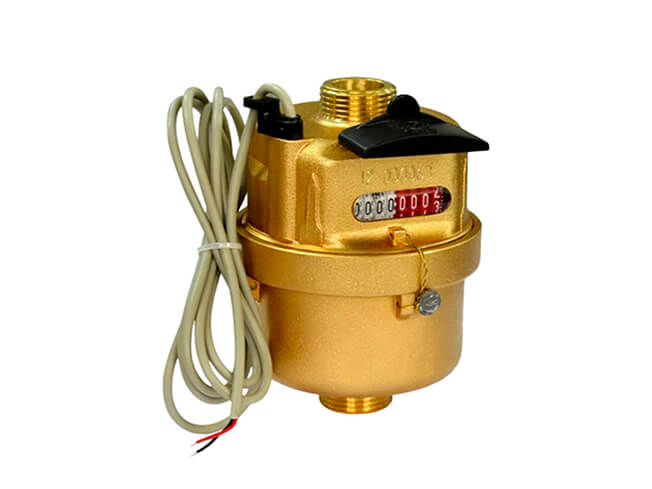

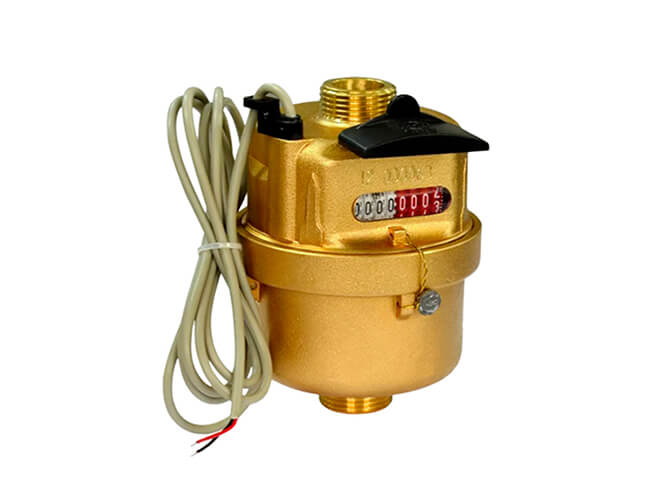

–On request, the series can be equipped with a kind of remote transmission device.
Optional Features
–Register sealed type: Dry type; Semi-dry type; Super-dry type.
–Accuracy: R=80; 100;125;160.
–Size: 15~50mm.
–Cold / hot water.
–Non return valve.
–Reed switch option.

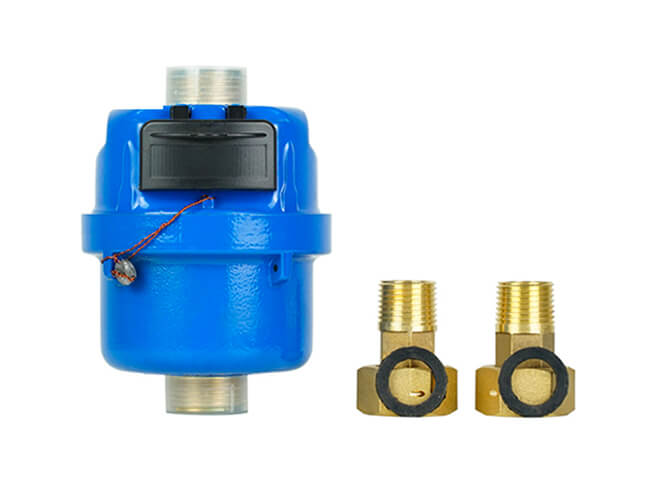

–Several lengths and connections available on request.
–Thread end type: BSP/NPT.
Maximum Permissible Error
Note

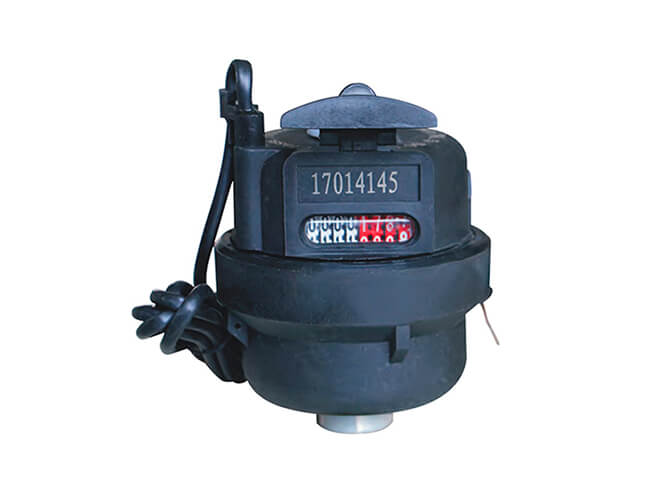

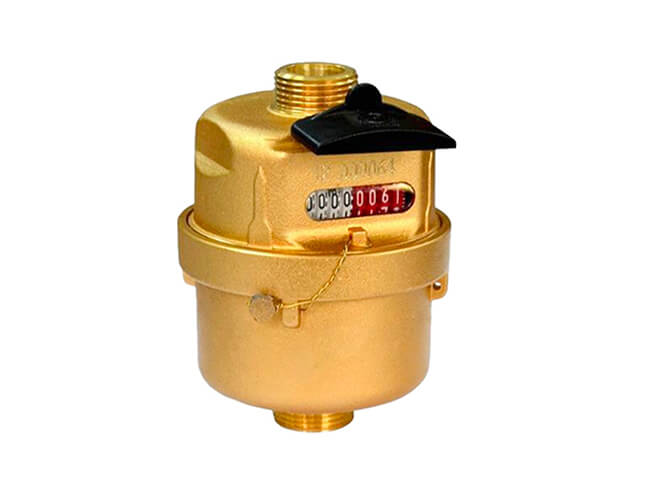

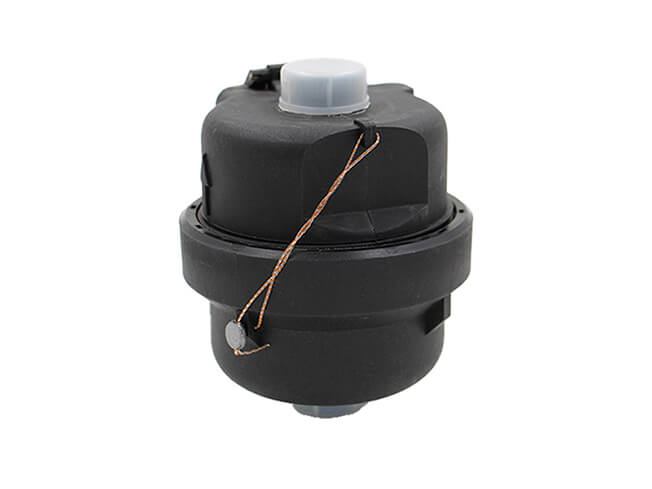

–Body material: Brass body / Plastic body.
–Size: Plastic body: DN15-20; Brass body: DN15-50.
–Different registers can be chosen
