In any water supply and drainage system, preventing reverse flow is not just a matter of efficiency—it is a critical requirement for protecting pumps, preserving water quality, and ensuring the safety of the entire pipeline network. When a pump suddenly stops, or when downstream pressure surges, the resulting backflow can cause catastrophic damage to impellers, contaminate clean water supplies, and trigger dangerous water hammer events.
To address these challenges, engineers require a reliable, fast-acting backflow prevention device. Enter the Wafer Check Valve—a compact, highly efficient one-way valve designed to deliver rapid, spring-assisted closure in the most space-constrained environments.
Unlike traditional swing check valves with bulky, flanged bodies, the wafer design is ultra-thin and lightweight, designed to be clamped directly between two standard pipe flanges. This unique construction not only saves valuable space in pump stations and valve chambers but also reduces material costs and structural load on the piping system.
In this comprehensive guide, we will explore the working principles of wafer check valves, their key advantages, typical applications in water systems, and essential installation best practices. Whether you are designing a municipal water network, an industrial pump discharge line, or a building booster system, understanding the capabilities of the wafer check valve will help you ensure reliable, long-term system integrity.

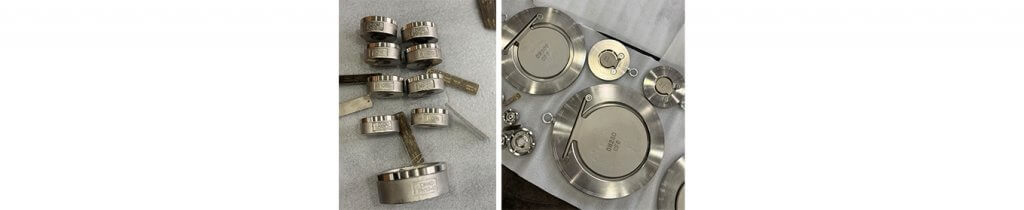

A Wafer Check Valve is a compact, automatic one-way valve designed to allow water to flow in only one direction while preventing reverse flow (backflow). The term "wafer" refers to the ultra-thin, lightweight body design that is clamped between two pipe flanges rather than having integral flanges of its own.
Unlike swing check valves that use a hinged disc, wafer check valves typically employ one of two internal designs:

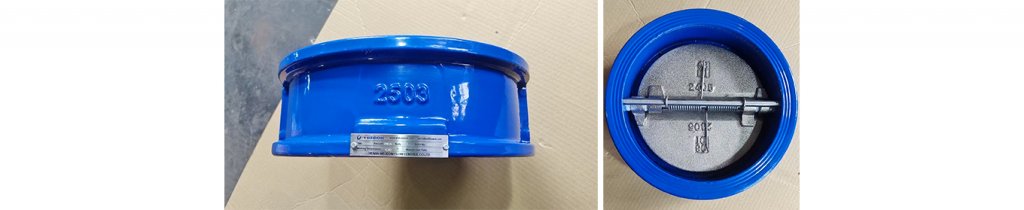

Dual-plate (twin-disc) design: Two spring-loaded half-discs that open like butterfly wings under forward flow and close under reverse flow
Single-disc design: A spring-assisted disc that lifts off the seat under forward flow and returns under reverse flow
The wafer design offers significant advantages: very short face-to-face length (saving space between flanges), lightweight construction, and lower material usage. When forward flow occurs, the disc(s) open automatically. When forward flow stops or reverses, springs and backflow pressure immediately close the disc(s), creating a tight seal.
In water supply and drainage systems, the Wafer Check Valve serves as a compact, rapid-response backflow prevention device that protects equipment and maintains system integrity.
| Function | Description |
| Preventing Backflow | When pumps stop or downstream pressure becomes higher than upstream pressure, the spring-assisted disc(s) close immediately to prevent water from flowing backward — protecting upstream equipment and preventing contamination. |
| Protecting Pumps | Installed on pump discharge lines, the check valve prevents rapid backflow when the pump stops — avoiding pump impeller reverse rotation, seal damage, and potential pump casing rupture. The rapid closure also helps reduce backflow velocity. |
| Preventing Water Hammer (Quick Closure) | The spring-assisted closure responds quickly to flow reversal, which can help reduce the magnitude of pressure surges in some systems compared to slow-closing swing checks (depending on system characteristics). |
| Maintaining System Pressure | By preventing reverse flow, the check valve helps maintain pressure in isolated sections of the water distribution network — ensuring consistent supply to downstream users. |
| Preventing Back-Siphonage | In drinking water systems, back-siphonage can draw contaminated water from fixtures back into the clean water supply. Check valves prevent this cross-contamination. |
| Space-Constrained Installations | The wafer design's ultra-short length allows installation in valve chambers, pump stations, and pipe racks where traditional flanged check valves cannot fit. |
| Protecting Flow Meters & Other Instruments | Reverse flow can damage sensitive flow measurement equipment and cause inaccurate readings. A check valve upstream of meters prevents this damage. |
| Lightweight System Integration | The lightweight wafer design reduces the structural load on pipe supports and flanges — particularly beneficial in large-diameter installations (DN800) or on elevated piping. |
✔ Pump discharge lines (municipal, industrial, building booster pumps)
✔ Space-constrained valve chambers and pump stations
✔ Vertical pipeline installations (with upward flow)
✔ Upstream of flow meters and water meters
✔ Fire protection system branch lines
✔ Irrigation system mainlines
✔ Building water entry points
✔ Retrofits where space between existing flanges is limited
WEIZIDOM’s Wafer Check Valve is engineered specifically for water supply and drainage applications, providing rapid, reliable backflow prevention in an ultra-compact package.
| Feature | Advantage |
| Wafer (Compact) Body Design | Ultra-short face-to-face length allows installation between standard pipe flanges — saves valuable space in valve chambers, pump stations, and pipe racks. Significant weight reduction compared to flanged check valves reduces structural load and shipping costs. |
| JB/T8937-2010 Compliance | Manufactured to Chinese national standard for wafer check valves — ensures quality, dimensional accuracy, and performance consistency verified by 12-step testing. |
| Wide Diameter Range (DN50–DN800) | Covers everything from building service lines (DN50–DN150) to large municipal mains (DN800) — a single valve family for diverse project needs. |
| Ductile Iron (DI) Construction | High-strength ductile iron body provides excellent mechanical properties, impact resistance, and durability — ideal for buried or above-ground water pipeline installations. |
| Pressure Ratings PN10/PN16 | Suitable for low to medium pressure water systems — covers typical water supply and drainage pressure ranges (gravity lines to standard distribution mains). |
| Spring-Assisted Rapid Closure | Internal springs ensure immediate disc closure upon flow reversal — minimizes backflow volume and protects pumps from reverse rotation more effectively than gravity-only check valves. |
| Low Pressure Drop Design | Streamlined flow path and lightweight discs create minimal resistance when open — reduces pumping energy costs compared to higher-resistance check valve designs. |
| Easy Installation Between Flanges | Simple placement between standard PN10/PN16 flanges with through-bolts — no flange gaskets required on the valve itself, reducing installation time and potential leak points. |
| Installation Guideline | Reason |
| Install between two standard PN10/PN16 flanges | The wafer body is designed to be clamped — not bolted directly to a single flange. |
| Ensure correct alignment of the valve between flanges | Misalignment can cause disc binding, leakage, or valve damage. |
| Use proper length through-bolts | Bolts must be long enough to pass through both flanges and the wafer valve body. |
| Observe flow direction arrow | The valve will not function if installed backward — the arrow indicates proper orientation. |
| Install isolation valves on both sides (recommended) | Allows removal or maintenance of the check valve without draining the entire pipeline. |
| Horizontal installation is standard | For horizontal pipelines, the hinge pin axis should be horizontal. |
| Vertical installation: flow must be upward | Spring-assisted discs can close against gravity, but downward vertical flow is not recommended. |
| Do not install directly adjacent to a pump discharge without a minimum straight pipe section | Turbulent flow from the pump can cause disc flutter and premature wear — 3–5 pipe diameters of straight pipe recommended. |
| Install a strainer upstream if debris is present in the water | Debris can lodge under the disc, preventing full closure and causing leakage. |
The Wafer Check Valve represents a perfect synergy of compact design, rapid response, and cost-effective performance. Its ultra-short face-to-face dimensions make it the ideal solution for space-constrained installations, while its spring-assisted dual-plate or single-disc mechanism ensures immediate, bubble-tight shut-off the moment flow reverses.
For engineers and procurement professionals, choosing the right check valve is about balancing reliability with practicality. By selecting a high-quality, JB/T8937-compliant wafer check valve (such as those manufactured by WEIZIDOM), you can:
Protect critical equipment like pumps and flow meters from destructive backflow.
Prevent water hammer and maintain stable system pressures.
Reduce installation and shipping costs thanks to its lightweight, gasket-free design.
At WEIZIDOM, we engineer our ductile iron wafer check valves to withstand the rigors of both municipal and industrial water systems, covering diameters from DN50 to DN800 and pressure ratings of PN10/PN16. With strict 12-step quality control, our valves are built to deliver decades of reliable, maintenance-free service.
Ready to optimize your water pipeline system? Contact our technical team today to discuss your specific requirements and get a customized, no-obligation quote for your next project.
