In industrial piping systems, butterfly valves are widely used in water treatment, oil and gas, chemical, power, and mining industries due to their compact structure, rapid opening and closing, and significant cost advantages. However, many users, when purchasing butterfly valves, often only focus on the valve body itself, neglecting a crucial question - what accessories does a butterfly valve require?
In reality, a butterfly valve is not a "single product," but a system composed of multiple components. Its operational stability, control accuracy, and service life all depend on the proper configuration of butterfly valve accessories.
This article will systematically analyze the complete system of butterfly valve accessories from four aspects: structural composition, accessory function, operating condition selection, and industry solutions, helping you achieve scientific selection and efficient application.

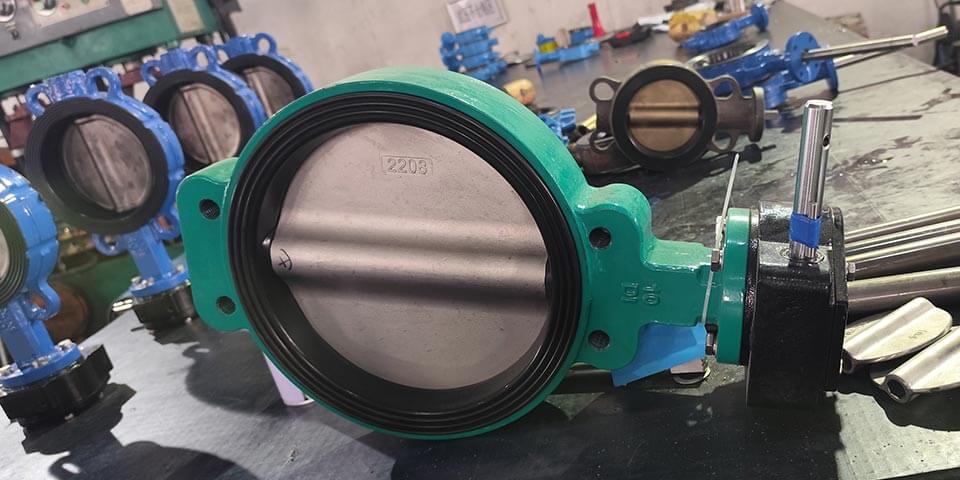

Butterfly valve accessories refer to all auxiliary components, excluding the valve body, used for driving, controlling, sealing, and connecting the butterfly valve.
A complete butterfly valve system typically includes:
Valve Body
Actuator
Control Accessories
Sealing System
Installation Parts
These components together constitute a complete fluid control unit, and none can be omitted.

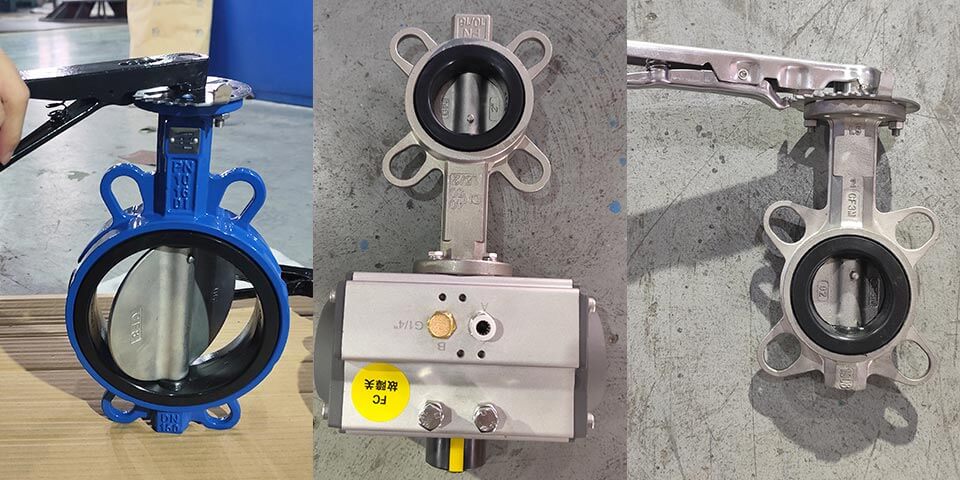

1. Actuator (Drive Core)
The actuator is one of the most critical butterfly valve components, responsible for controlling the valve's opening and closing.
Common types include:
Manual Actuator
Handle (suitable for small diameters)
Worm Gear Box (suitable for large diameters)
Pneumatic Actuator
Single-acting (air cut-off reset)
Double-acting (bidirectional drive)
Electric Actuator
Suitable for remote control and precise adjustment
👉 In industrial automation, pneumatic butterfly valve components are the most widely used.
2. Control Accessories (Core of Automation)
To achieve automated control, butterfly valves typically require the following components:
Solenoid valve (controls the air supply switch)
Limit switch (provides feedback on switch status)
Valve positioner (enables precise adjustment)
Air supply treatment unit (filtration, pressure reduction, lubrication)
These components determine the control accuracy and automation capability of the butterfly valve.
3. Sealing Components (Key to Performance)
The sealing system directly affects whether the butterfly valve leaks.
Common sealing materials include:
EPDM (suitable for water treatment)
PTFE (corrosion resistant)
Metal seals (high temperature and high pressure resistant)
👉 Correctly selecting sealing materials is crucial for extending the butterfly valve's lifespan.
4. Installation and Connection Accessories
Includes:
Flange
Bolts and nuts
Gaskets
👉 Function: Ensures a safe connection between the butterfly valve and the piping system.
The combination of butterfly valve components varies depending on the application scenario:
Basic Type: Valve body + Handle
Automation Type: Valve body + Pneumatic actuator + Solenoid valve + Limit switch
Regulating Type: Valve body + Actuator + Positioner
👉 Butterfly valve performance = Overall matching of valve body and components
1. Water Treatment System
Characteristics: Relatively clean medium or containing a small amount of impurities
High automation requirements
Recommended Configuration: Pneumatic actuator
EPDM seal
Solenoid valve + Limit switch
2. Chemical Corrosive Environment
Characteristics: Strongly corrosive media
Recommended Configuration: PTFE seal
Stainless steel actuator
Valve positioner
3. High Temperature Conditions
Characteristics: High temperature
Strict sealing requirements
Recommended Configuration: Metal-sealed butterfly valve
High-temperature resistant actuator
4. Automated Control Systems
Recommended Configuration:
Pneumatic or Electric Actuator
Positioner
Control System Interface
Inappropriate selection of butterfly valve accessories may lead to valve malfunction, leakage problems, automation system failure, increased maintenance costs, and system downtime risks.
👉 Correct selection = Reduced total lifecycle cost
| Industry | Products/Components | Characteristics/Requirements |
| Water Treatment | Pneumatic Actuator + Solenoid Valve | High stability, low cost |
| Oil & Gas | Explosion-proof Actuator | High-reliability accessories |
| Chemical Industry | PTFE-lined Butterfly Valve | Precision control components |
| Power Industry | Metal-seated Butterfly Valve | High-temperature actuator |
As a professional fluid control equipment manufacturer, WEIZIDOM provides complete butterfly valve and accessory systems, including:
1. Butterfly Valves (Manual / Pneumatic / Electric)
2. Actuators (Single-acting / Double-acting control valves, control accessories (solenoid valves, positioners, limit switches), and installation connection components are also available.
Our products are widely used in water treatment, oil and gas, chemical, power, and mining industries.
WEIZIDOM also provides: operating condition analysis, torque calculation, complete solution design, and customized services to help customers achieve optimal configurations.
Butterfly valves, as crucial equipment in industrial pipeline systems, depend not only on the valve body itself but also on the proper configuration of its accessories. From actuators to control systems, from sealing structures to installation components, every aspect affects the system's operational efficiency and safety. By scientifically selecting butterfly valve accessories, system reliability can be significantly improved and long-term operating costs reduced.
With extensive industry experience, WEIZIDOM provides high-quality butterfly valves and complete solutions to customers worldwide, helping to build safer and more efficient industrial pipeline systems.
