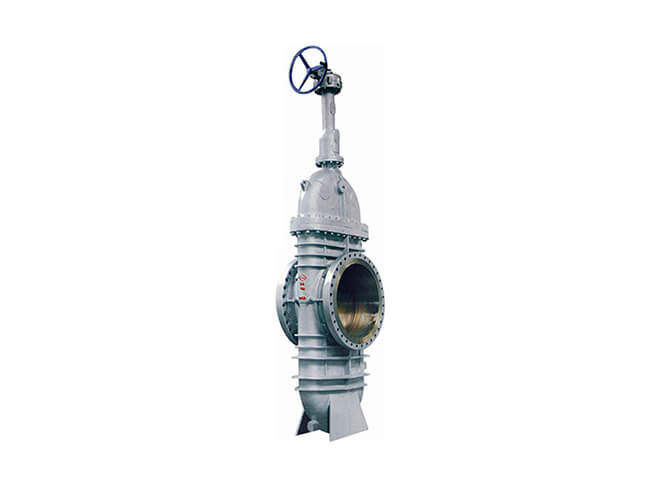

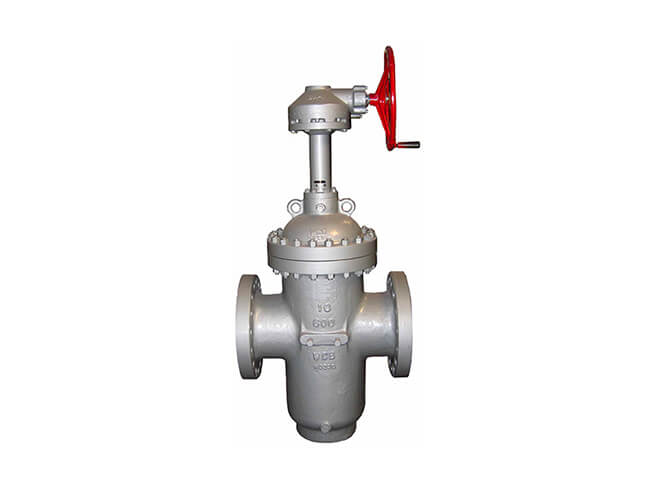

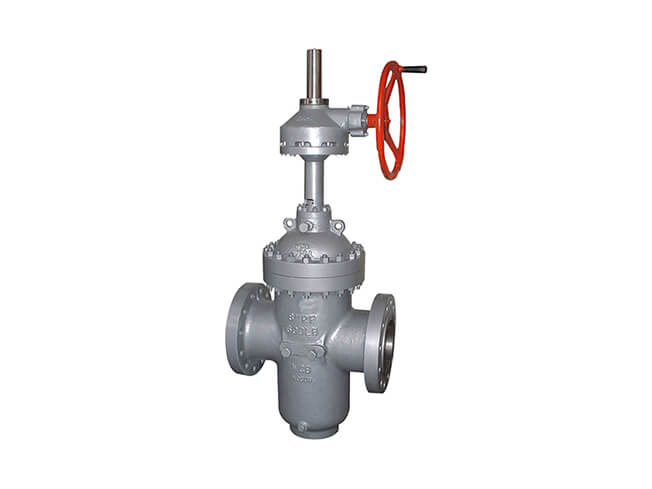

API Slab Gate Valve

API Slab Gate Valve

Size:2”~36"

Pressure Rating:150Lb,300LB

Material:Carbon steel, alloy steel, stainless steel

Design Standard: API 6D

Inspection Standard:API598

Application medium:water, oil, powder

Application Temperature:-38-+900℃(medium Temperature)

Applied projects:Natural gas, petroleum, chemical, environmental protection, urban pipeline, gas pipeline

Slab gate valves also named “through conduit gate valve” are manufactured and tested in accordance with the api-6d standard. This type of valve is very useful in transportation pipe lines for gas, crude oil and oil products. The slab gate valve is through conduit and piggable. Slab gate valve has been designed to minimize pressure drop and catch foreign materials such as slurries into the disc cavity to keep clean the sealing surface areas.

CATALOGUE DOWNLOAD

Product details

Slab gate valves also named “through conduit gate valve” are manufactured and tested in accordance with the api-6d standard. This type of valve is very useful in transportation pipe lines for gas, crude oil and oil products. The slab gate valve is through conduit and piggable. Slab gate valve has been designed to minimize pressure drop and catch foreign materials such as slurries into the disc cavity to keep clean the sealing surface areas.

Describe

Design standard: API 6D
Length of structure: API 6D
Flange connecting end: ASME B16.5/ASME B16.47
Butt welding connecting end: ASME B16.25
Wall thickness: ASME B16.34
Inspection and test: API 6D
Pressure and temperature rating: ASME B16.34
Product scope: NPS 2″~NPS 60″,CL150~CL1500
Main body material: WCB, LCB, WCC, WC6, WC9, CF8, CF8M, CF3, CF3M, A890 4A etc.
Operator Handle, Bevel gear, Electric, Pneumatic, etc.



wesdom gate valve

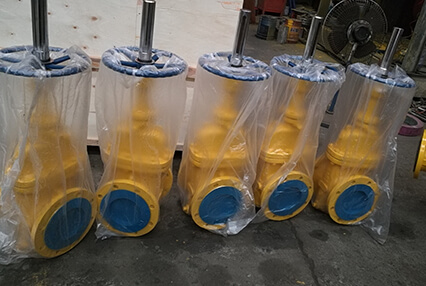

Product packaging and transportation

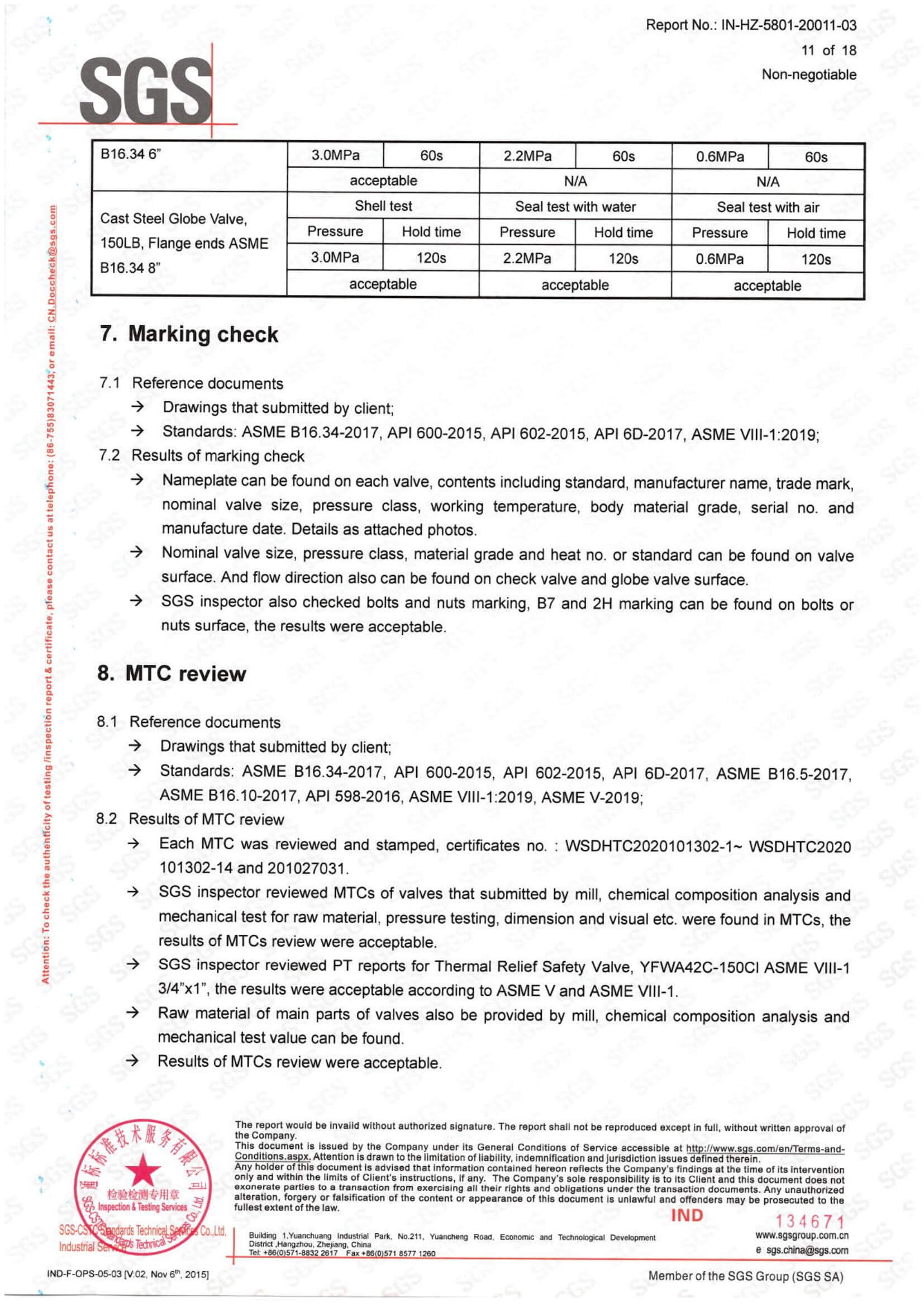

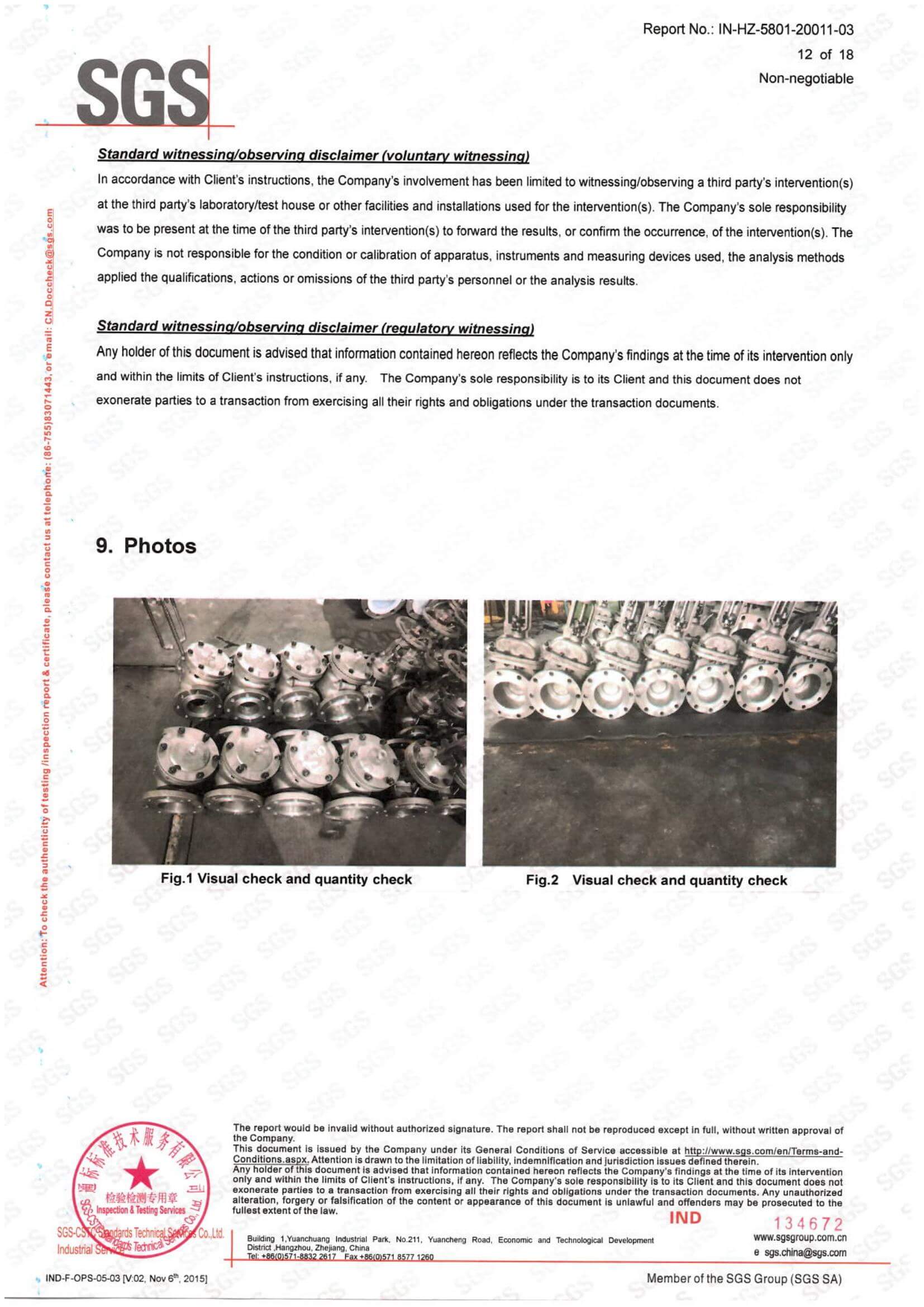

Certificate



wesdom gate valve

Features

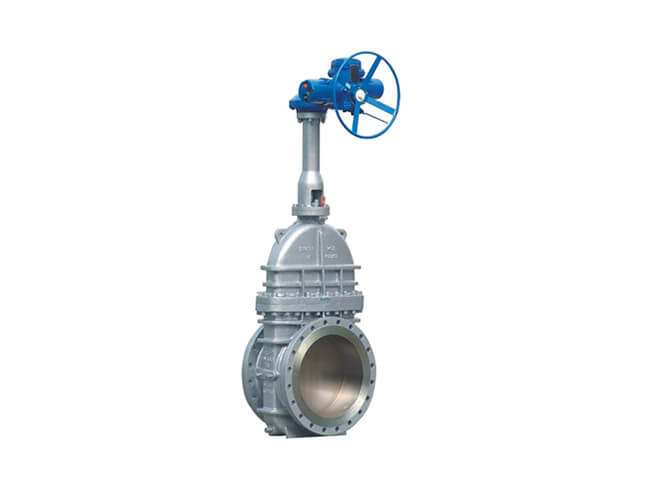

API 6D Gate Valve

Petro Valves through conduit gate valves are designed, manufactured and test in accordance with API ANSI and ASME requirements.

High-quality, through-conduit, expanding gate valves engineered for performance in critical isolation applications where a tight mechanical seal that is normally unaffected by pressure variations and vibrations is needed.

Main Features:

The two sealing faces of a slab gate valve are perpendicular to the pipeline axis, its closing member is a single disc, valve equipped with a stretching mechanism. The gate valve is widely applicable for transmission pipeline system of natural gas 、oil products and chemical engineering.

From the aspect of structure style, the through conduit gate valve can be divided into two types of valves with diversion holes and valves without any diversion hole.

Applied projects

Sugar Mill

Marine & Mining

Winery Factory

Fertilizer Factory

Paper mill

Industrial Chemical Pipeline

Oil, Gas, Petrochemical Plant

Textile and Process Industries

Thermal and Nuclear Power Plant
