WESDOM

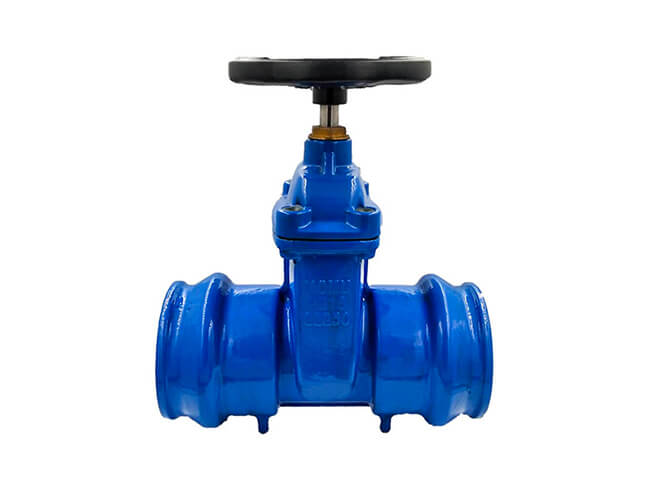

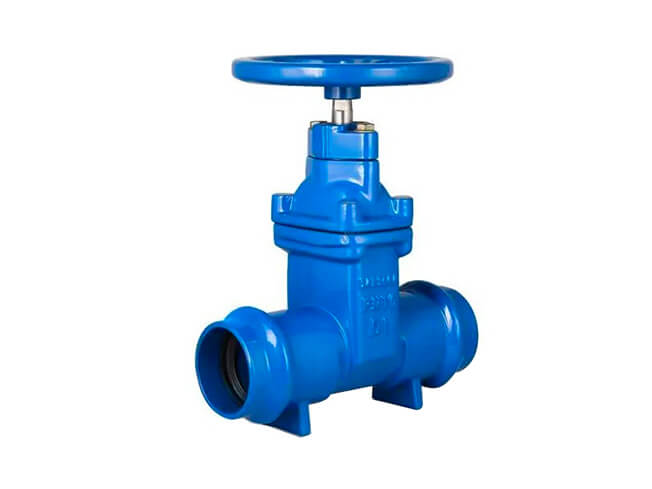

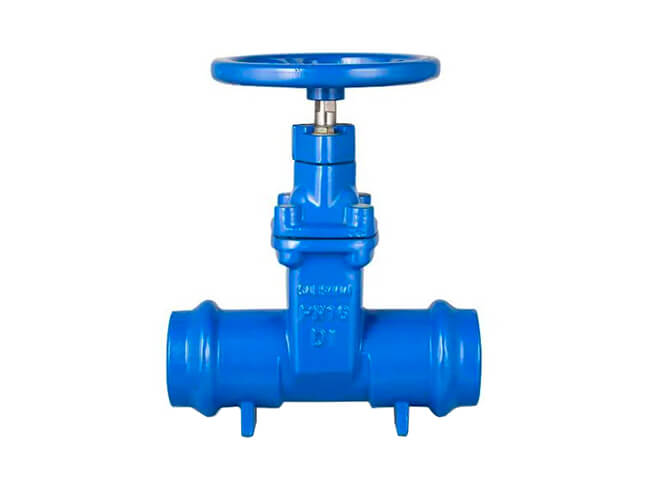

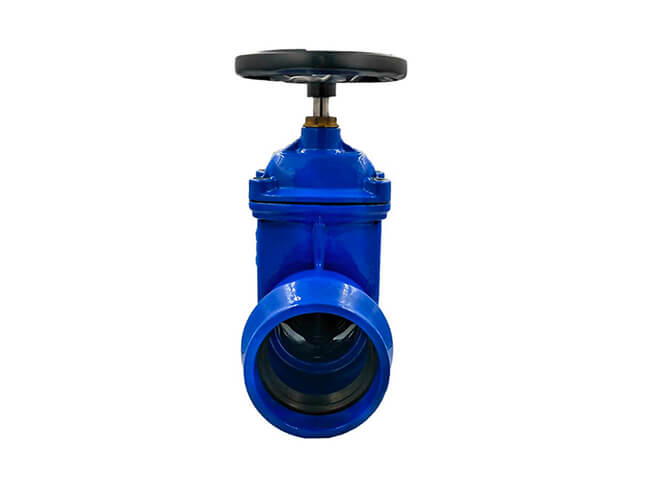

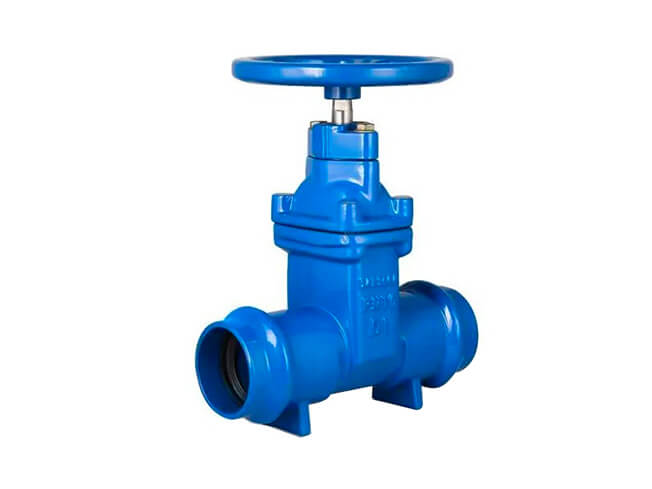

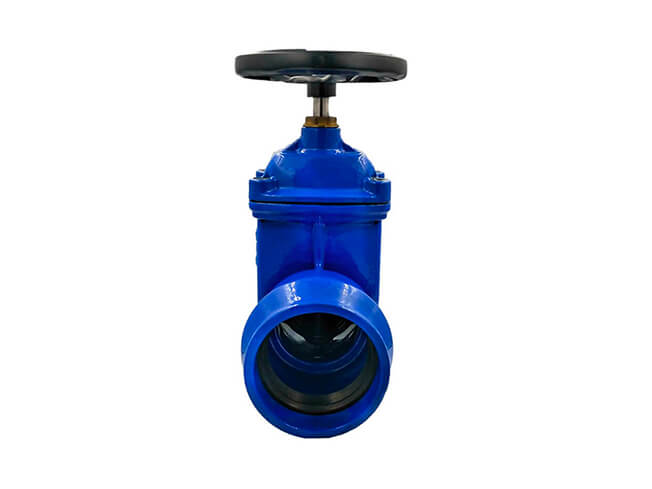

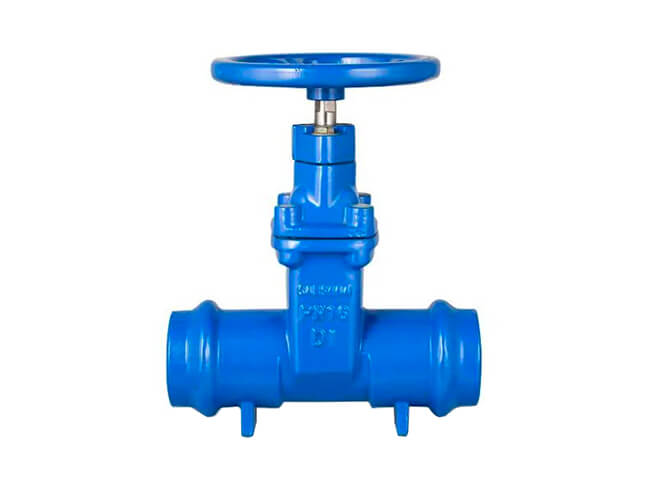

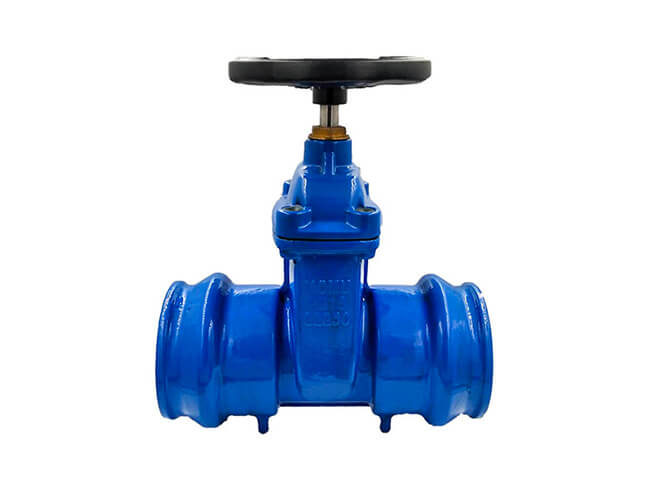

DIN F5 Socket connection soft seal gate valve

DIN F5 Socket connection soft seal gate valve

Size:DN50-DN300

Pressure Rating:PN10/PN16

Material:ductile iron

Design Standard: DIN3352 F5, BS5163

Inspection Standard:EN12266

Application medium:water and waste water

Application Temperature:-40°C~150°C

Applied projects:These valves are suitable for heating and conditioning (HVAC), water treatment and water distribution, waste water, industrial applications, agricultural purposes.

CATALOGUE DOWNLOAD

Product details

The Socket Gate Valve wedge is constructed of ductile iron and provided with protective wedge guide covers.

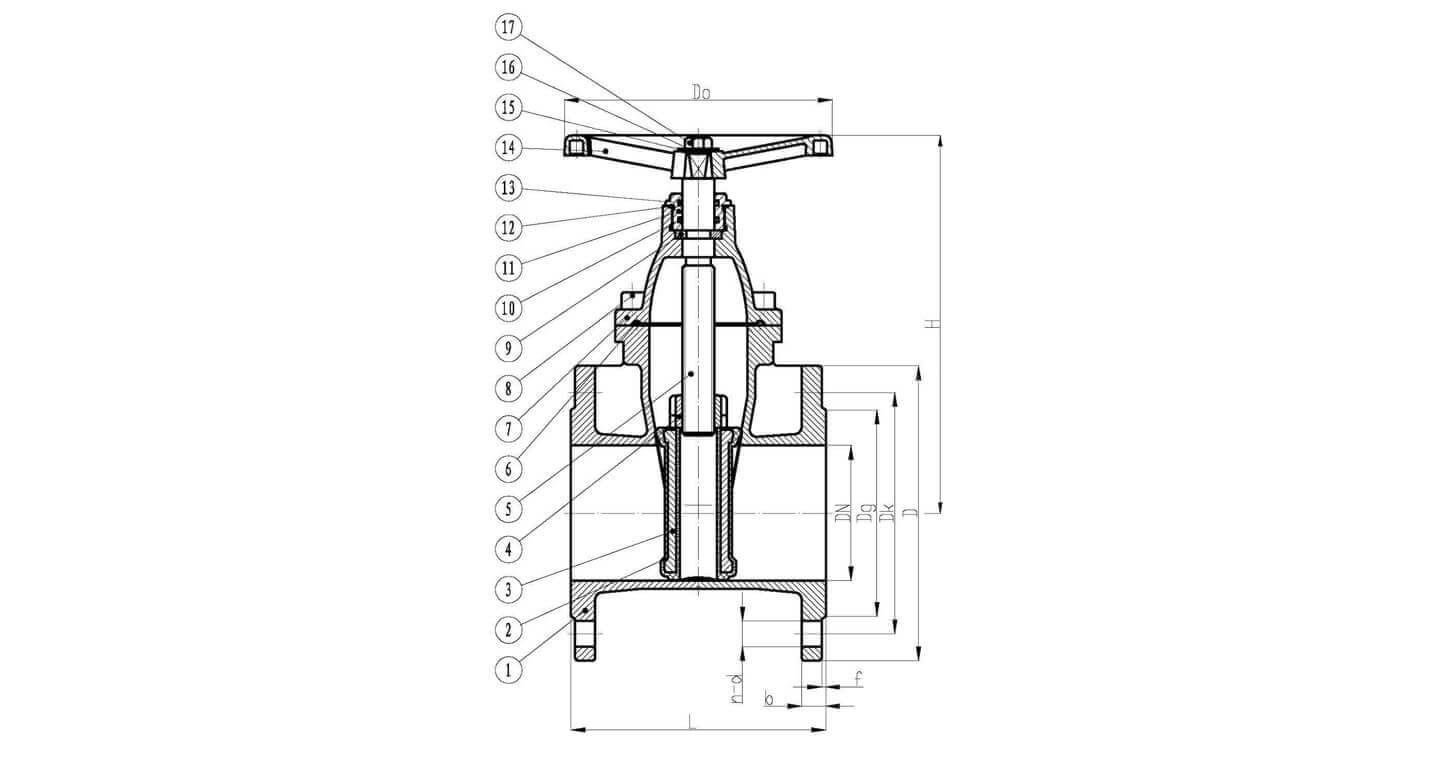

Size L(mm) PVC tubes(mm) H(mm)
DN50 250 63 280
DN65 270 75 305
DN80 280 90 350
DN100 300 110 390
DN125 325 125 470
DN150 350 160 525
DN200 400 200 630
DN250 450 250 780
DN300 500 300 870



wesdom gate valve

Project case

Laos Water Project Treatment

Main products:

Soft seal gate valve, ductile iron fittings

Client feedback:

Very satisfied with the products received, and have been applied to the project, and will order more products from WESDOM;

Project pictures:

Product packaging and transportation



wesdom gate valve

Certificate

Features

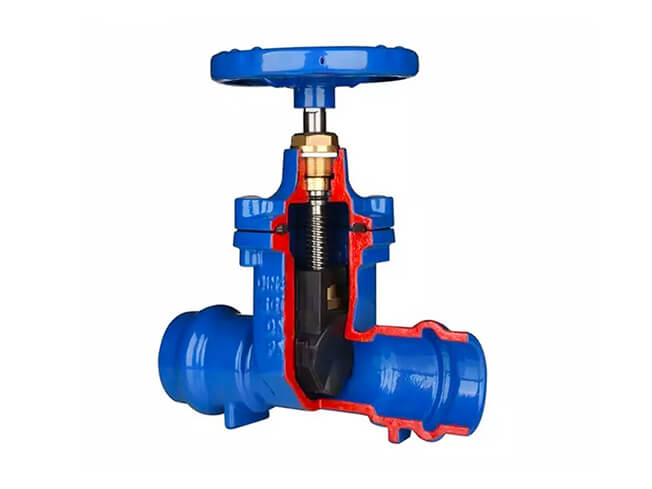

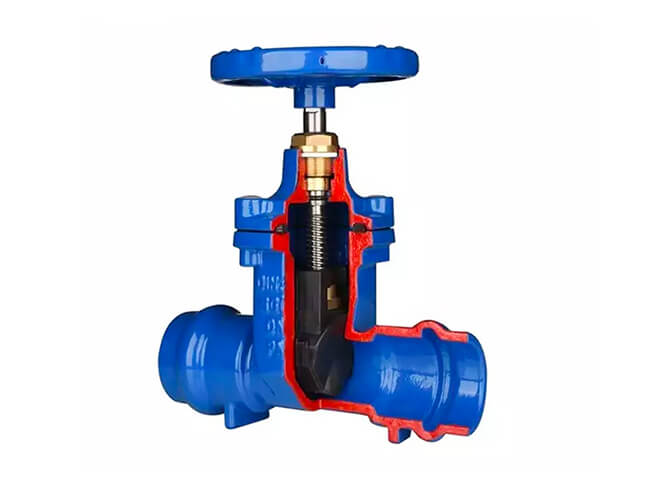

Socket Gate Valve

DIN F5 are resilient seated gate valves, made of ductile iron, manufactured in accordance with severe product norms and relevant norms, and in conformity to EN ISO 9001;

Gate valve with socket ends for PVC pipes.

NRS Socket Gate Valve fully corrosion resistant construction.

Ductile iron wedge, fully vulcanized with EPDM rubber.

O-ring stem seals replaceable under pressure.

The Socket Gate Valve wedge is constructed of ductile iron and provided with protective wedge guide covers.

The bolt holes and body-to-bonnet flange surfaces are fully epoxy coated.



Material

Material Ductile iron
Design DIN 3352/SABS 664
Bonnet Gasket EPDM
Body Ductile Iron
Flange DIN EN 1092-2
Wedge Ductile Iron + EPDM (or NBR)
O-ring seal EPDM
Bonnet Ductile Iron
Face to face DIN 3302 F5/SABS664
Thrust Collar Brass
Pressure PN16/PN10
Working temperature -10° C to +70° C
Size DN50 – DN300
Operation Hand wheel



Application

Working conditions: -10° C to +70° C, PN16 rated.

The NRS Socket Gate Valves are suitable in a variety of applications. Suitable for use with water and waste water
