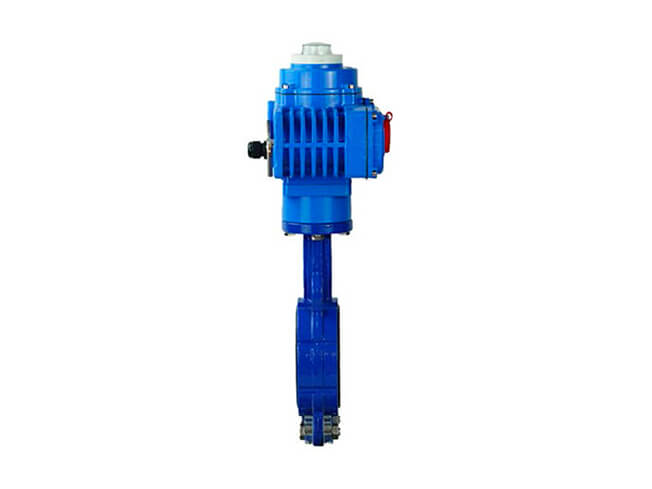

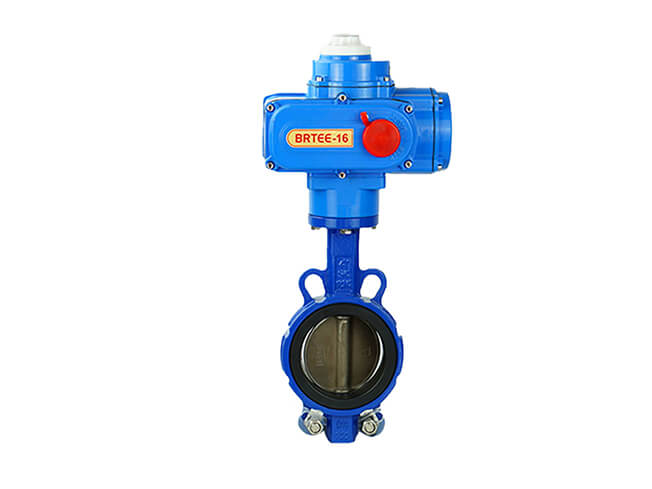

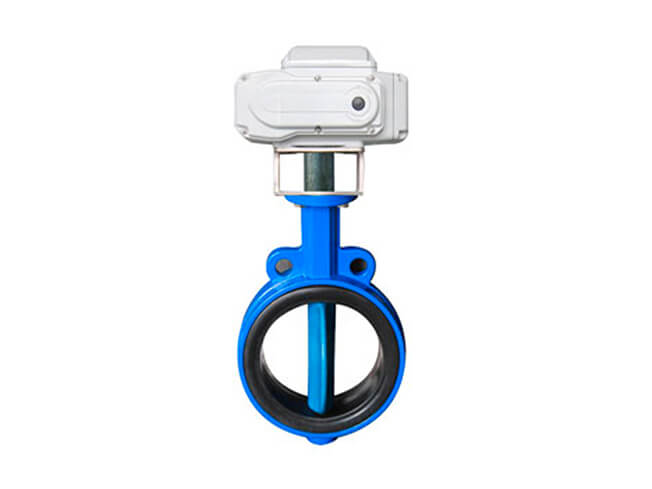

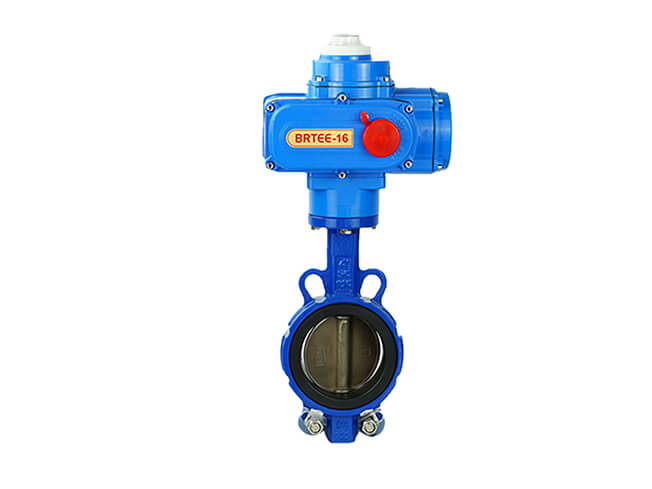

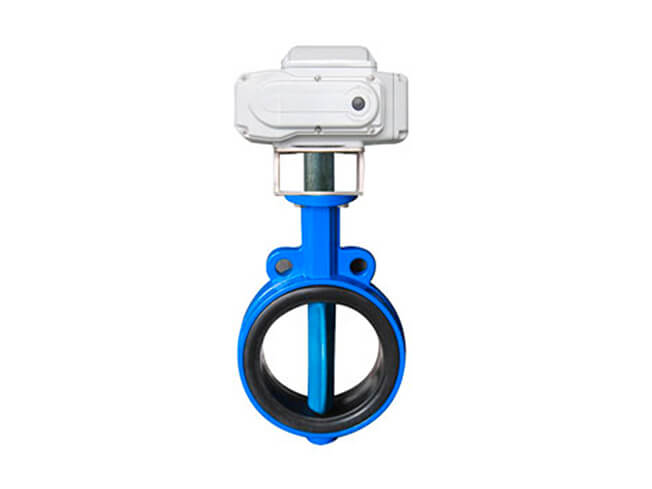

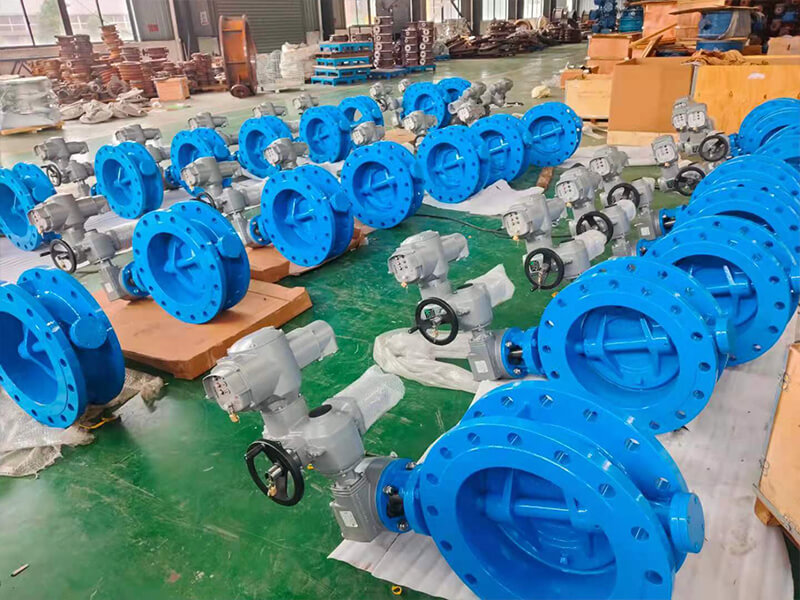

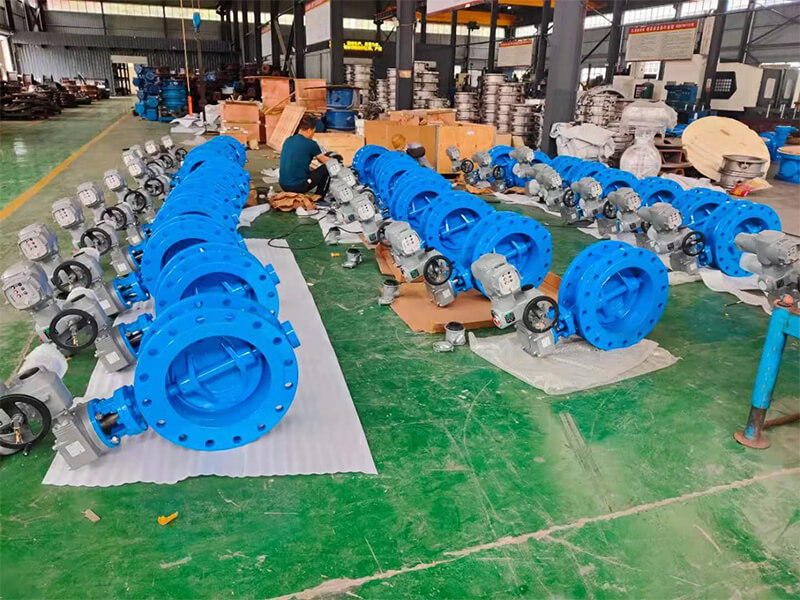

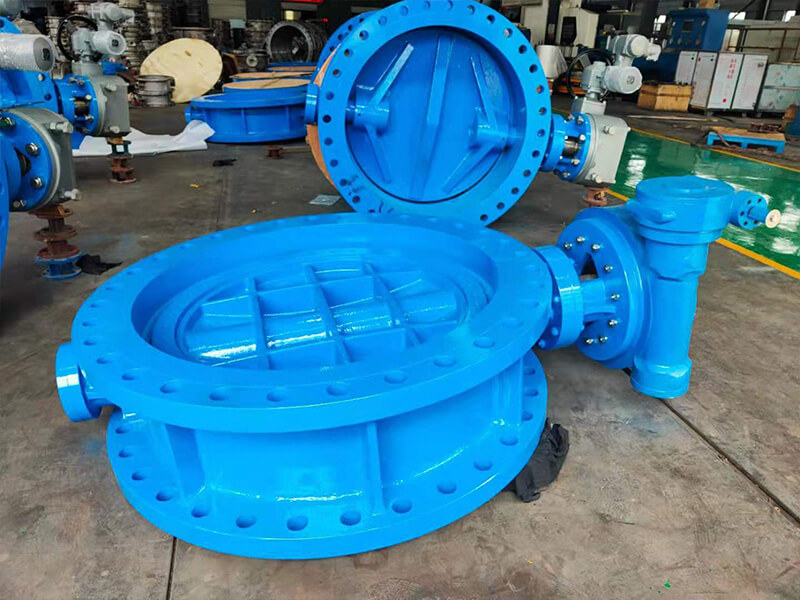

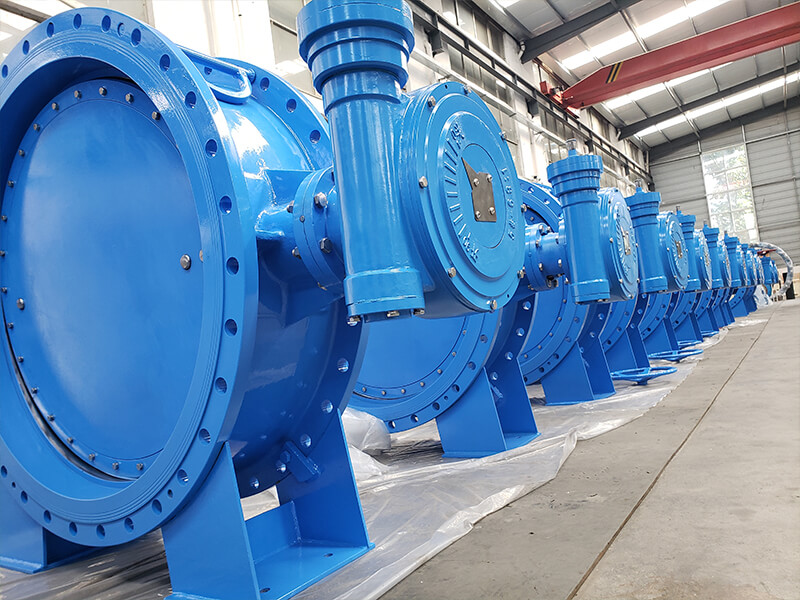

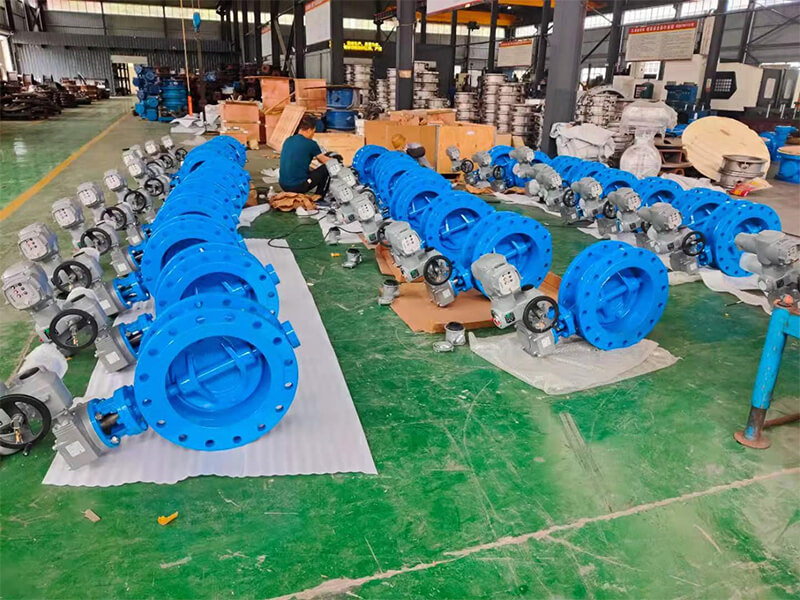

Electric soft sealing wafer butterfly valve

Electric soft sealing wafer butterfly valve

Size:DN50-DN1200/2" -48"

Pressure Rating:PN0.6/PN1.6MPa

Material:WCB, QT450-10, HT200, HT250

Design Standard:API609/ISO5752

Inspection Standard:API609

Application medium:Water, air, natural gas, oil and weak corrosive fluid

Application Temperature:Normal Temperature (-40°C<T<120°C)

Applied projects:The butterfly valve applied to the industries of food, beverage, pharmaceutical, chemical purify management and industrial environmental protection, water treatment, high buildings, drainage, etc., function as opening, closing and regulating the flow purpose

The butterfly valve applied to the industries of food, beverage, pharmaceutical, chemical purify management and industrial environmental protection, water treatment, high buildings, drainage, etc., function as opening, closing and regulating the flow purpose.

CATALOGUE DOWNLOAD

Product details

The butterfly valve applied to the industries of food, beverage, pharmaceutical, chemical purify management and industrial environmental protection, water treatment, high buildings, drainage, etc, function as opening, closing and regulating the flow purpose.

DN L H HO A B 0.6MPa 1.0MPa 1.6MPa
DO n-d DO n-d DO n-d
50 43 63 438 125 125 110 4-14 125 4-18 125 4-18
65 46 70 453 125 125 130 4-14 145 4-18 145 4-18
80 46 83 478 125 125 150 4-18 160 8-18 160 8-18
100 52 105 519 125 125 170 4-18 180 8-18 180 8-18
125 56 115 713 325 245 200 8-18 210 8-18 210 8-18
150 56 137 749 325 245 225 8-18 240 8-22 240 8-22
200 60 164 843 325 245 280 8-18 295 8-22 295 8-22
250 68 206 947 363 313 335 12-18 350 12-22 355 12-26
300 78 230 1013 363 313 395 12-22 400 12-22 410 12-26
350 78 248 1046 363 313 445 12-22 460 16-22 470 16-26
400 102 289 1135 363 313 495 16-22 515 16-26 525 16-30
450 114 320 1328 465 439 550 16-22 565 20-26 585 20-30
500 127 343 1226 546 481 600 20-22 620 20-26 650 20-33
600 154 413 1394 546 556 705 20-26 725 20-30 770 20-36
700 165 478 1534 546 556 810 24-26 840 24-30 840 24-36
800 190 525 1159 546 556 920 24-30 950 24-33 950 24-39
900 203 585 1748 617 706 1020 24-30 1050 28-33 1050 38-39
1000 216 640 1805 632 706 1120 28-30 1160 28-36 1170 28-42
1200 254 755 2035 632 706 1340 32-33 1380 32-39 1390 32-48



wesdom gate valve

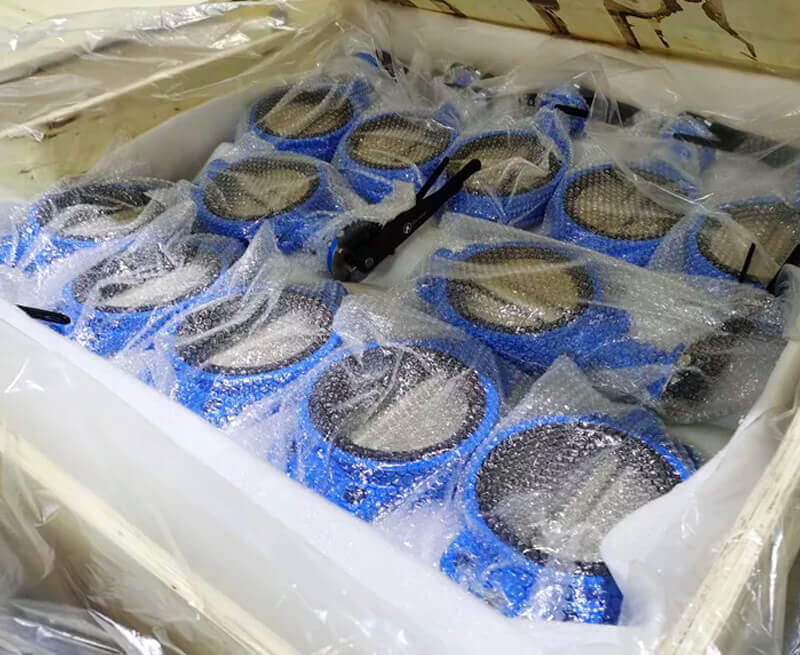

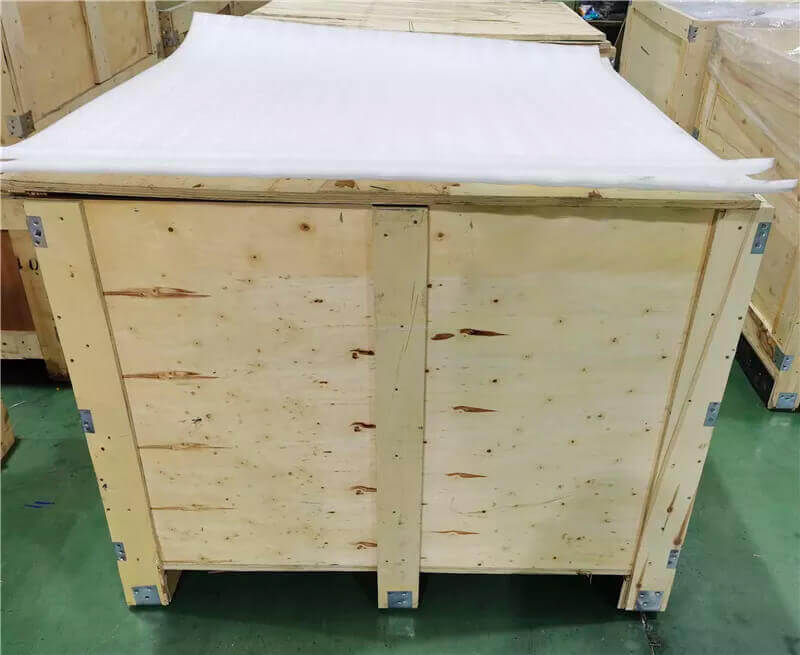

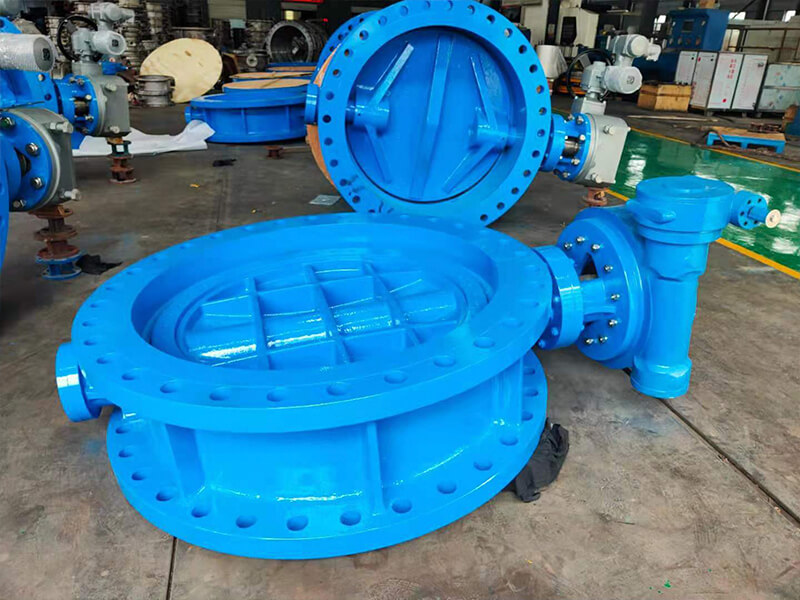

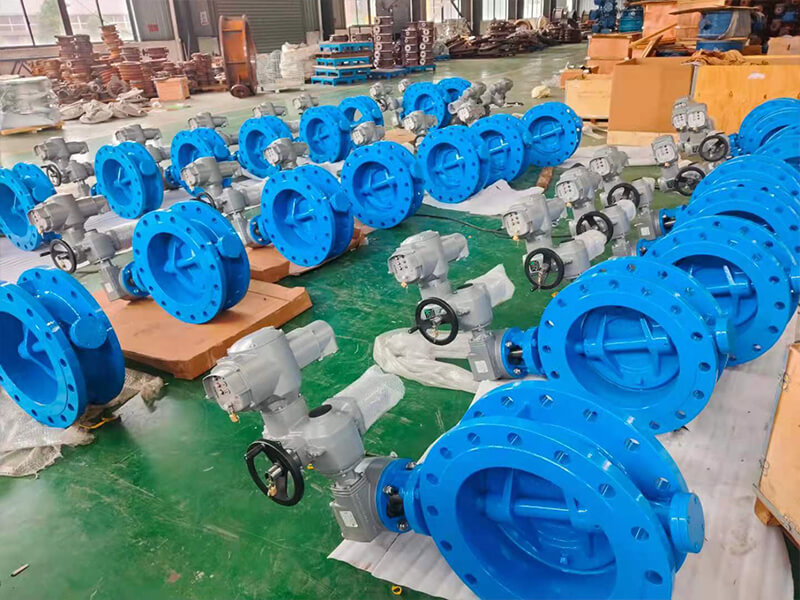

Product packaging and transportation



Certificate



Description

Detailed Description of butterfly valve
Series: wafer type spline butterfly valve
Design Standard: API609/ISO5752
Size: DN50-DN1200/2″ -48″
Flange: PN6, PN10, PN16, PN25, ANSI150, ANSI125, JIS 10K, TABLE” D” , TABLE” E” etc.
Face to face: ISO 5752
Body: Cast Iron/Ductile Iron/Stainless Steel
Disc: Ductile Iron/Ni-plated ductile iron/Stainless steel/Al-Bronze
Stem: Zine Plated Steel/ Stainless Steel
Seat: EPDM/NBR/PTTE
Application: petroleum, chemical industry, water and electricity, foodstuff, medicament, light textile, paper making, metallurgy etc.
Certification: ISO9001: 2008, CE, SGS,WRAS

Standard

Double eccentric butterfly valve Standard Test :

Body Test:  1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test:  1.1 times the working pressure with water.

Special Test: On request, any other test can be carried out according to special instruction by client.
