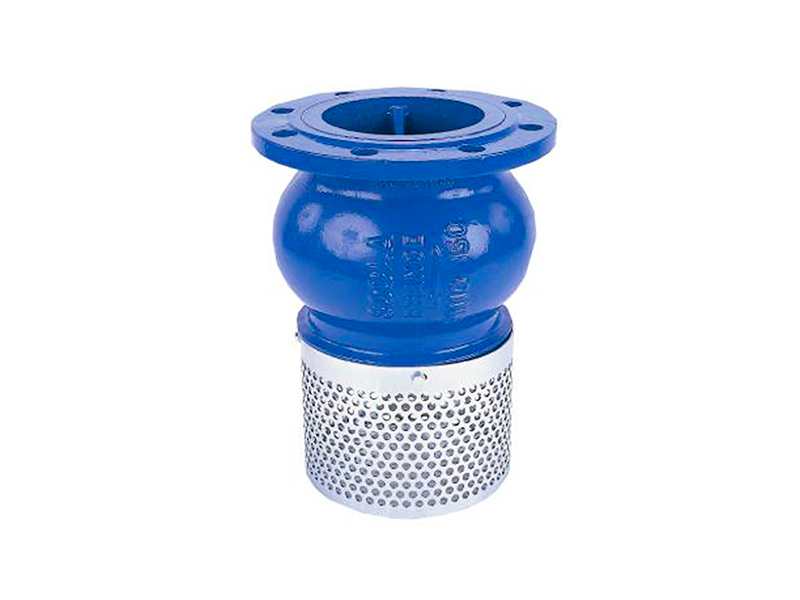

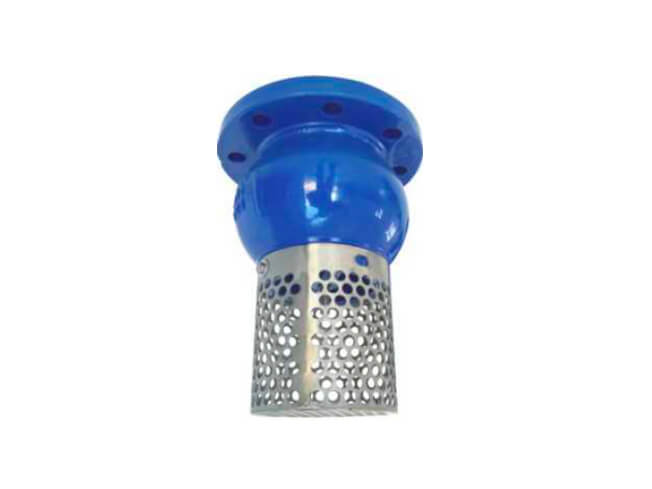

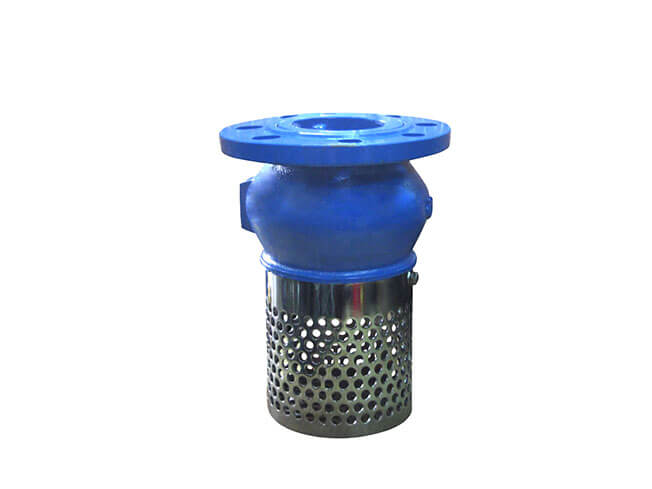

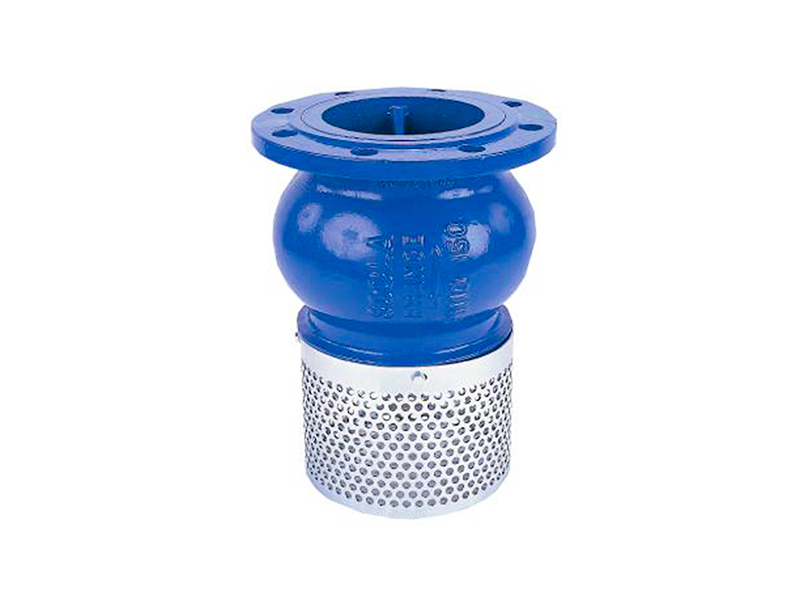

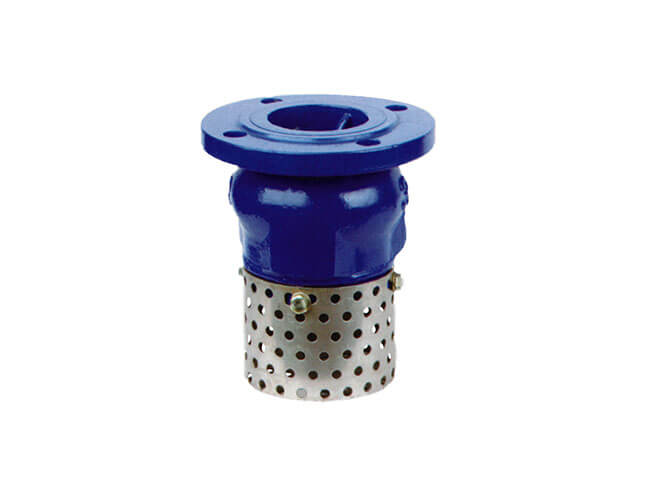

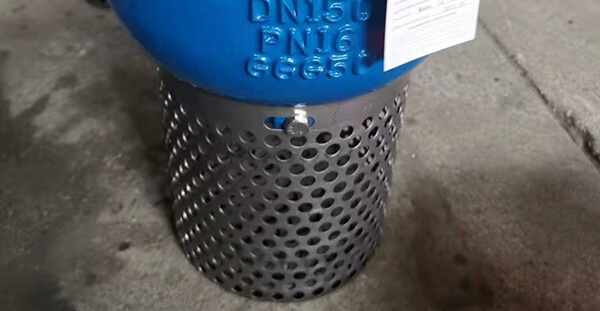

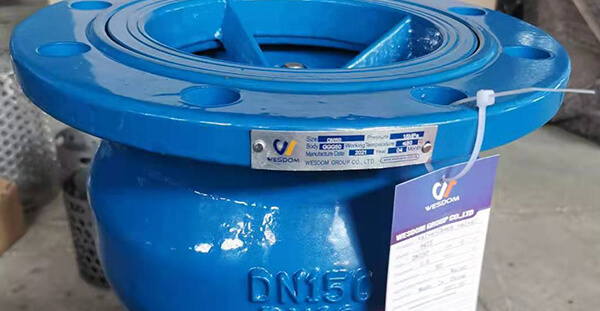

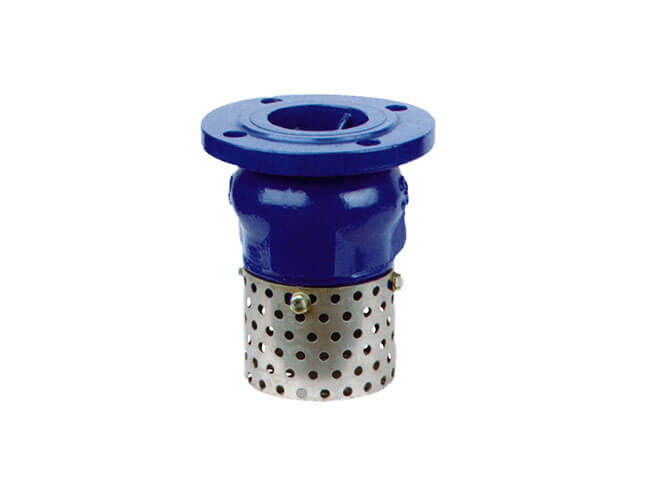

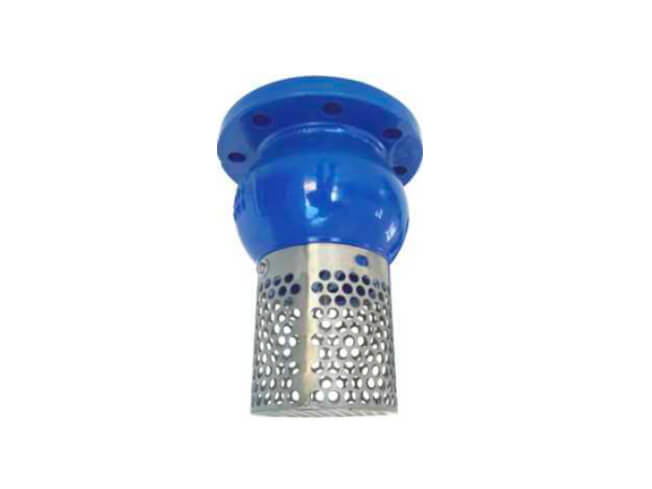

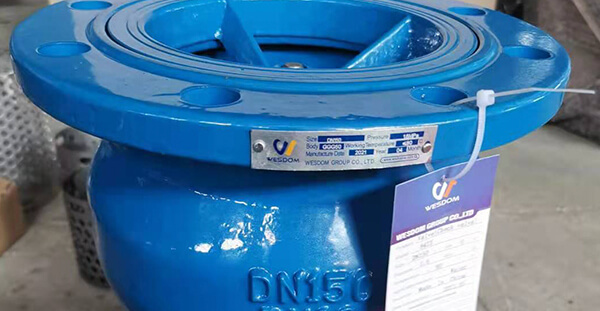

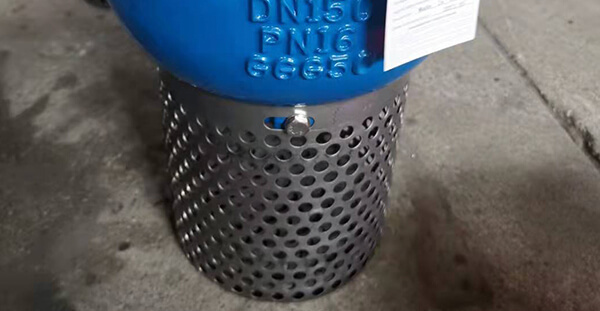

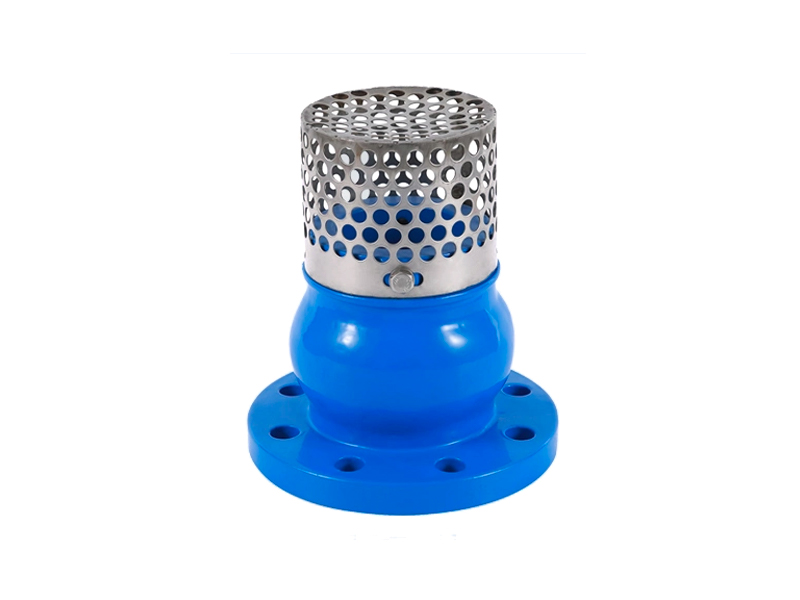

Foot check vavle
Size:2”-12”
Pressure Rating:PN10/PN16/10K/150LB
Material:Ductile Iron
Design Standard:EN 122334.EN1074
Inspection Standard:BS EN12266
Application medium:Clean Water , Sewage
Application Temperature:-5C-85℃
Applied projects:Hydraulic system/Petroleum/Electricity/Metallurgy/Water/Sewage/Energy/Construction
The axial foot check valve Type 302 is designed for the equipment of the pumping station. When the pumping stops, the disc is quickly closed by spring pressure before any overpressure occurs due to the return flow.
Features:
(1)Reasonable design, can effectively avoid turbulence;
(2)Easy to install, maintenance and replacement FBE coating inside and outside Min 250卩：
(3)It’s widely use in pumping stations and networks for clean water distribution, irrigation and water treatment.
(4)Easy to install, maintenance and replacement FBEcoating inside and outside Min 250u;
(5)lt’s widely used in pumping stations and networks for clean water distribution, irrigation and water treatment;
(6)Reasonable design. can effectively avoid turbulence.
Characteristics:
(1)Axial disc foot valve for protection and non-return on pumping equipment for either clean and/or filter water
(2)High hydraulic performance
(3)Total sealing (from 3 m.w.c. in vertical position)
(4)Silent operation
(5)May be fitted in horizontal or vertical position
(6)Excellent water hammer performance
(7)Anti-corrosion epoxy protection
(8)Easy maintenance
| Item | Description | Material |
| 1 | Body | Cast Iron EN GJL 250 Blue epoxy coated (105 microns mini outside – 80 microns mini inside) |
| 2 | Bush | Bronze CuSn12 -C |
| 3 | Guide DN50
Guide DN65-300 |
Bronze CuSn5Zn5Pb5-C
Cast Iron EN GJL 250 blue epoxy coated |
| 4 | Spring | Stainless steel X10CrNi18-8 |
| 5 | Seals | Elastomer type EPDM |
| 6 | Monobloc Wedge DN50-65
Wedge DN80-300 |
Bronze CuSn5Zn5Pb5-C
Cast iron EN GJL 250 blue epoxy coated |
| 7 | Stem | Bronze CuSn5Zn5Pb5-C |
| 8 | Screw DN50-200
Screw DN250-300 |
Galvanised steel Brass |
| 9 | Screen | Galvanised steel |
Dimension (mm)
| NPS | DN | D | K | G | H | B | n-ΦdPN10 | n-Φd PN16 |
| 2 | 50 | 165 | 125 | 102 | 190 | 19 | 4-Φ19 | 4-Φ19 |
| 21/2 | 65 | 185 | 145 | 122 | 210 | 19 | 4-Φ19 | 4-Φ19 |
| 3 | 80 | 200 | 160 | 138 | 240 | 19 | 8-Φ19 | 8-Φ19 |
| 4 | 100 | 220 | 180 | 158 | 250 | 19 | 8-Φ19 | 8-Φ19 |
| 5 | 125 | 250 | 210 | 188 | 310 | 19 | 8-Φ19 | 8-Φ19 |
| 6 | 150 | 285 | 240 | 212 | 370 | 19 | 8-Φ23 | 8-Φ23 |
| 8 | 200 | 340 | 295 | 268 | 450 | 20 | 8-Φ23 | 12-Φ23 |
| 10
|
250 | 405 | 355 | 320 | 470 | 22 | 12-Φ23 | 12-Φ28 |
| 12 | 300 | 460 | 410 | 378 | 500 | 25 | 12-Φ23 | 12-Φ28 |
