WESDOM

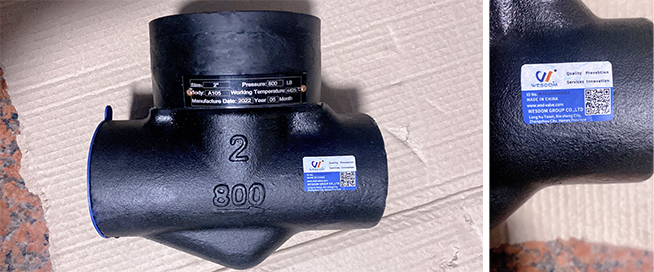

Forged Steel Thread Check Valve

Forged steel thread check valve

Size: 1/2"(DN15) to 2"(DN 50)

Design Standard: BS 5352/API 602/ASMEB 16.34

lnspection & Testing Standard: BS EN ISO 12266-l(BS 6755- I)/API 598/ ISO 5208

Face To Face Distance: BS 5352/API 602 /ANSI B 16.10

End Connection: Screwed - Threaded End to ANSI B 1.20.1

Socket Weld End to ANSI B 16.11

Flanged Ends to ANSI B 16.5

Pressure Rating of Valve: 800# /1500# / 2500 # for screwed ends and 150# / 300#/600# for Flanged Ends

CATALOGUE DOWNLOAD

Product details



Forged Steel Check Valve screwed and flanged ends feature a Heavy RuggedBody with Bolted Cover Design Designed as per API 602, BS 5352, ASMEB 16.34 available in End

Connection of Socket Weld, Butt Weld, and Threaded (Screwed)BSP or NPT having Pressure Ratings of Class 800# and 1500#.

Forged steel check valve incorporates self-cushioning effect. BodyGuided piston assuring accurate return to seat ring to achieve leak tightness.

Forged Steel Piston Lift Check Valve screws are available in a wide range of Body Materials like ASTMA105-Forged Carbon Steel, ASTHMA 182F304/304L/316/316 L and ASTMA182F 11/22-Alloy Steel for various industrial application. For High Pressure & Temperature application Stellited F6 Face Seat & is Discavailable.

Design Standard BS 5352/API 602/ASMEB 16.34
lnspection & Testing Standard BS EN ISO 12266-l(BS 6755- I)/API 598/ ISO 5208
Face To Face Distance BS 5352/API 602 /ANSI B 16.10
End Connection Screwed – Threaded End to ANSI B 1.20.1
Socket Weld End to ANSI B 16.11
Flanged Ends to ANSI B 16.5
Manufacturing Size Range 1/2″(DN15) to 2″(DN 50)
Pressure Rating of Valve 800# /1500# / 2500 # for screwed ends and 150# / 300#/600# for Flanged Ends



wesdom gate valve

Project case

A customer in Pakistan purchases check valves, gate valves, pipe fittings, etc.

Main products:

check valve, gate valve, pipe fittings, etc.

Project description:

The client in this case is from Pakistan and is a large-scale local valve distributor. They have their own store locally and often import some valves from abroad to store or supply to local customers.

This client has cooperated with WESDOM many times. Almost every once in a while, they will contact the foreign trade salesman of WESDOM. They bought a batch of valves from WESDOM and stocked them in their store.

Through many cooperations with WESDOM, the two sides have established a very close cooperative relationship. Of course, they contacted WESDOM without hesitation, and purchased check valves, gate valves, pipe fittings, etc. from WESDOM.

Client feedback:

We have worked with WESDOM many times and have been very satisfied each time. We are very willing to maintain a long-term cooperative relationship with WESDOM.

Project pictures:

Product packaging and transportation



wesdom gate valve

Certificate

Features

①A Compact But Extremely Sturdy Design for High Pressure & Temperature ServiceBolted Cover ②Design, easy to open cover

③Piston Type Body Guide Disc

④Assure Perfect Alignment of Disc & Seat RingSpring Loaded on request

⑤Stellited F6 Disc & Seat optionalHigh Tensile B7/2H Fasteners

Application

①Power Plants & Process Industries

②Petrochemical Plants & Refineries

③Cement & Fertilizers Plants

④Steel Plant

⑤Process & General Industries

⑥Sugar Industries & Distillery Plants

⑦Water, Steam, Gas, Oil & other Non-aggressive media
