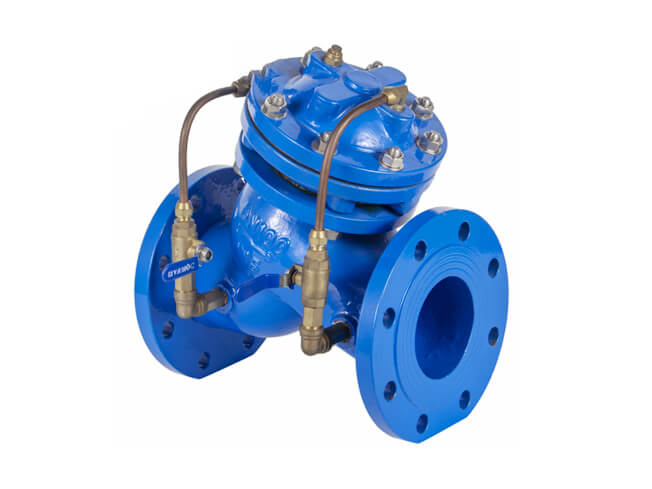

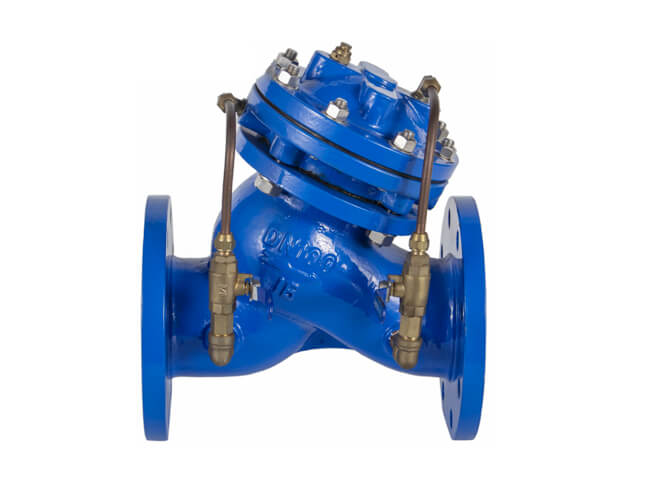

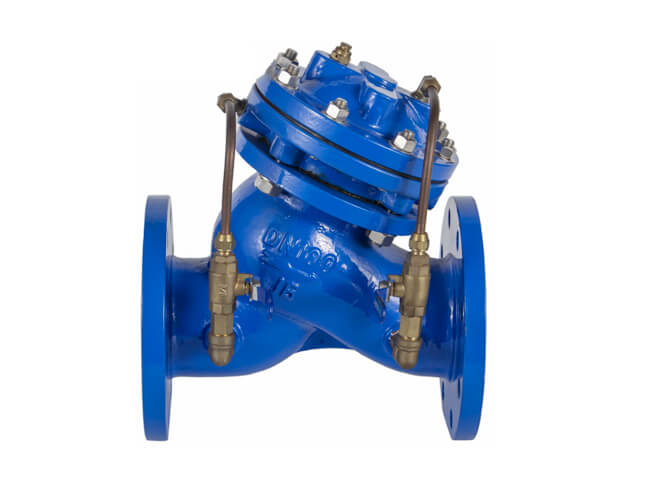

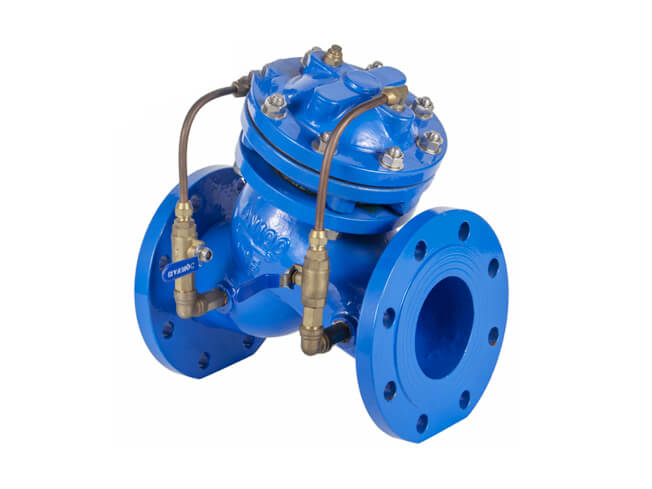

Multifunctional water pump control valve

Multifunctional water pump control valve

Flange standard:EN1092-2, BS4504

Valve Test:EN12266

Face to Face Length: BS EN558

Inspection Standard:EN13709-2002

Application medium:Water

Application Temperature:<=80℃

Applied projects:Water conservancy construction


Product details

The piston type multi -function pump control system Is the intellient valve installed In the outlet of the pump outlet of the large- -caliber water supply pipe network, preventing the backflow of the medium, waiter hammer and water hammer, The valve has three functions of electric valve, reverse stop valve and water hammer eliminator,which can effectively improve the safety and ability of water supply system.

Double Chambers and double disc structure can make the valve after the pump stopped quickly closed90% (to prevent the back flow medium pump inversion), and then aiowly Closing the remaining 10% (eliminate destructive water hammer) piston valve ls reliable In performance, high strength, smooth movement, prevent pumping water hammer and 8top the pump water hammer,  The valve can automatically realize the opening and closing according to the operating procedures of the pump motor, and the discharge volume and pressure loss are small.


This valve is used mainly for water supply and drainage system and can be set on the pump outlet to prevent the pump from getting harmed the medium back flow. it can also be set on the mouth of a water outlet pipe to prevent the medium from backflow.


Simple structure, reliable performance, long durable, open-close times can be up to over million ones, suitable for sewage.

Executive standard:

GB/T 9113.1

API 609 Category A

BS EN593/BS5155

Performance parameters:

Nominal diameter:2″-24″/DN50-DN1200

Working pressure:10Bar/16Bar/25Bar

Face-to-face: API 609 Table 1/ISO 5752 Series 20/BS 5155

Flange accommodation: ANSI B16.1 Class125/150

EN1092-2 PN6/10/16/25

Top Flange:ISO5211

Tightness Inspection: API 598/ISO 5208,/EN12226-2

Main part material:

Body: Ductile Iron ,Cast steel, Stainless Steel

Disc: Ductile Iron ,Cast steel, Stainless Steel

Stem: Stainless Steel

Sealing ring: Stainless Steel/PTFE

Packing: Flexible Graphite/PTFE

Performance parameters:

DN 40—–1200 mm
PN 1.0—-2.5 MPa
Suitable temperature 100 °C max
Media Water, gas, oil.
Operation Manual

water pump control valve

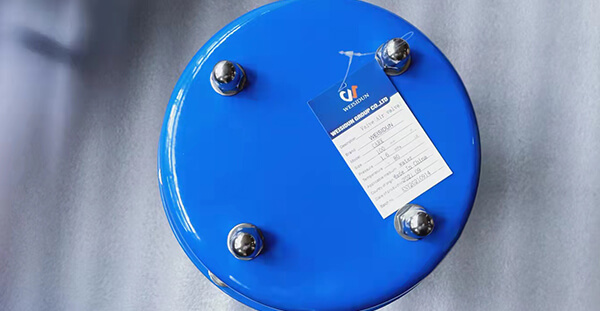

Product packaging and transportation
