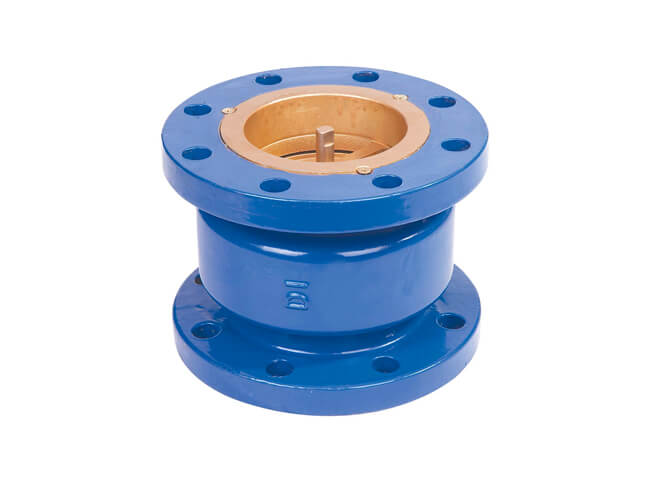

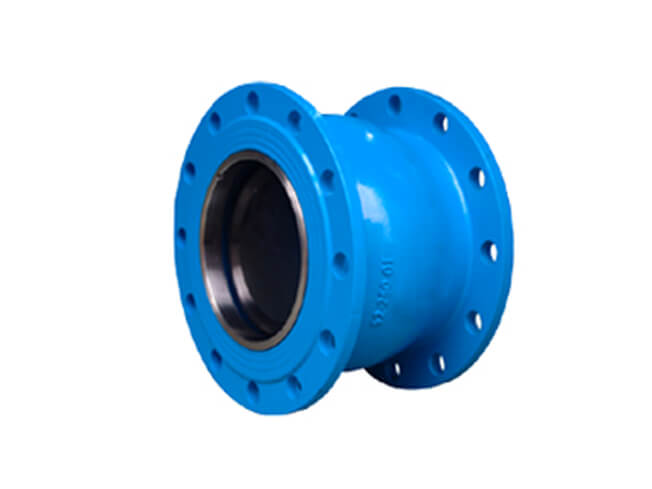

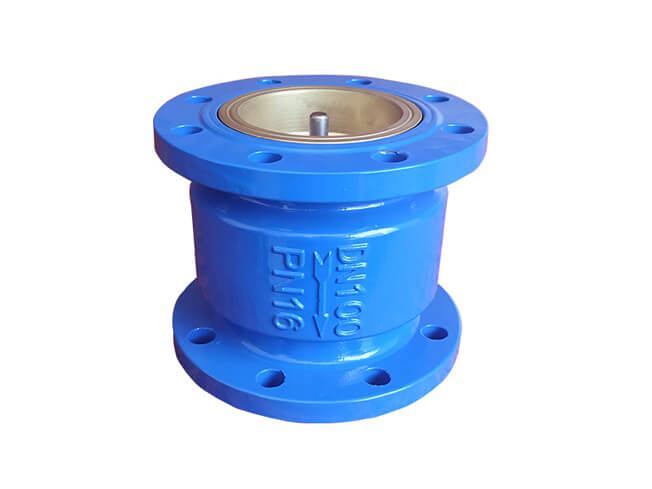

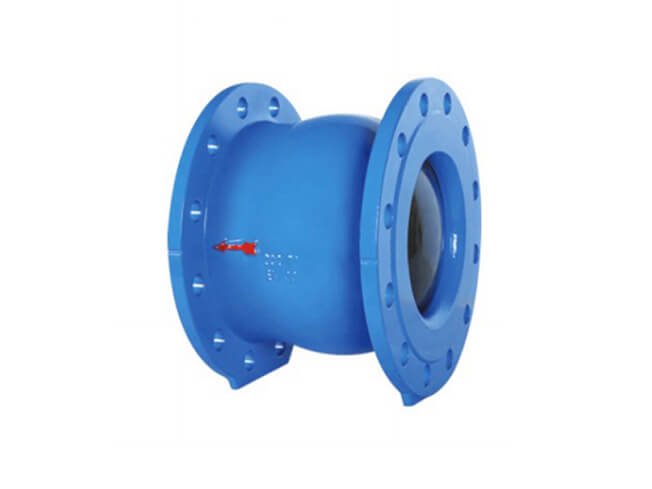

Silent Check Valve

Silent Check Valve

Size:2”~14”

Pressure Rating: PN10/16

Material:Ductile iron

Design Standard:  EN 122334,EN1074

Inspection Standard:  BS EN12266

Application medium: Clean Water

Application Temperature:-5℃~85℃

Applied projects:Hydraulic system

CATALOGUE DOWNLOAD

Product details

We are professional on valves, fittings and water meters, own 5 factories in China. In addition to valves, pipe fittings and water meters, WESDOM is also committed to the development of piping relating products in order to provide customers with more convenient services. Now WESDOM is not only a valve manufacturer, but also an industrial piping solution provider.

Dimension (mm)

Size | DN L D K C n-ΦDPN10 n-ΦDPN16
2′ 50 150 165 125 19 4 一Φ19 4 一Φ19
21/2, 65 150 185 145 19 4 一Φ19 4 一Φ19
3′ 80 180 200 160 19 8 一Φ19 8 一Φ19
4* 100 190 220 180 19 8 一Φ19 8 一Φ19
5′ 125 210 250 210 19 8 一Φ19 8 一Φ19
6′ 150 210 285 240 19 8 一Φ23 8 一Φ23
8′ 200 230 340 295 20 8 一Φ23 12 一Φ23
10, 250 250 405 355 22 12 一Φ23 12 一Φ28
12′ 300 270 460 410 24.5 12 一Φ23 12 一Φ28
14′ 350 290 520 470 24.5 12 一Φ23 12 一Φ28



wesdom gate valve

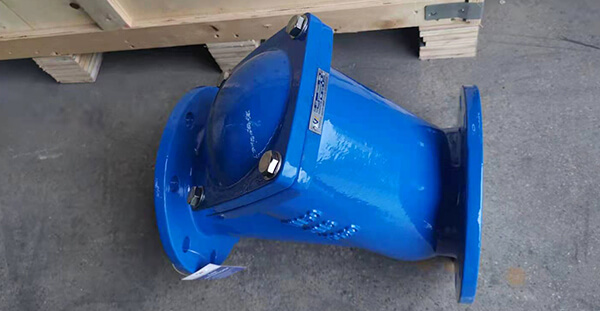

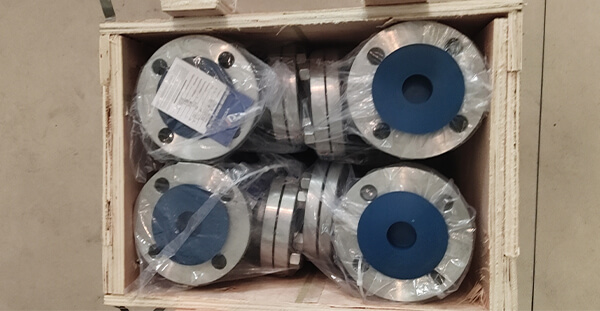

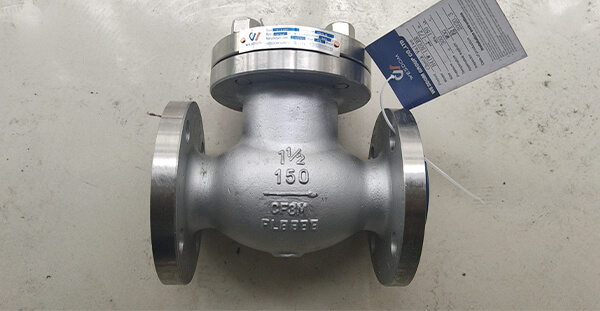

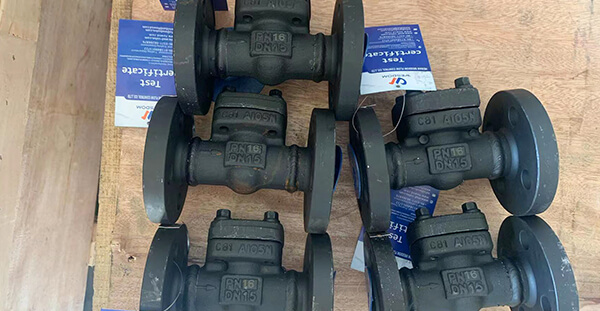

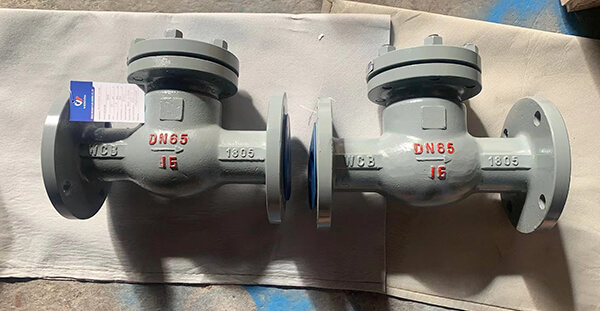

Product packaging and transportation

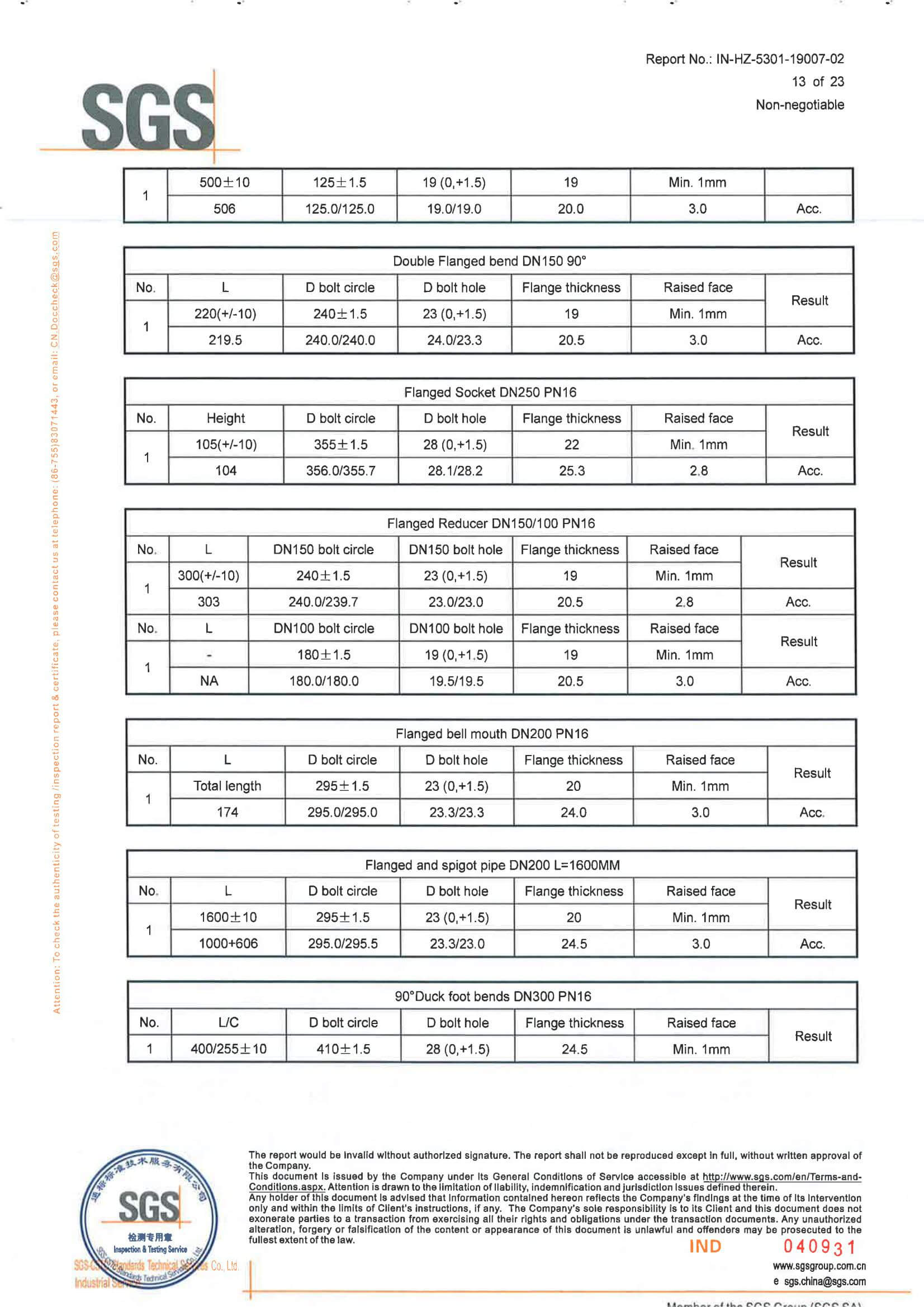

Certificate

Features

-The most reas onable and streamlined design;

-The MIN. Noise while direct flow or back flow;

-Head loss only 0.18bar with velocity of 2m/s;

-Shut off speed is only 0.2s;

-Integral body and flow guide design , full rubbercoated disc;

-FBE coating inside and outside Min 250 u .

Specification

Type

5106 Globe Silent Check Valve

Working Pressure and Temperature

16 bar/250 psi rated at -10°C to 120°C for EPDM disc ring.

16 bar/250 psi rated at -10°C to 82°C for NBR disc ring.

Corrosion Protection

Fusion bonded coating interior and exterior.
