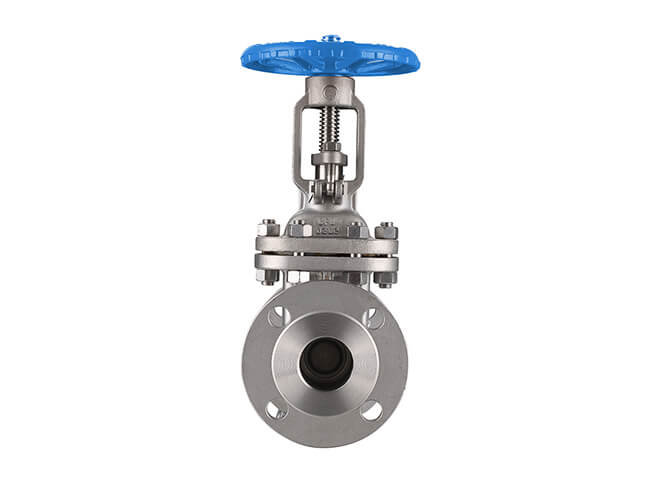

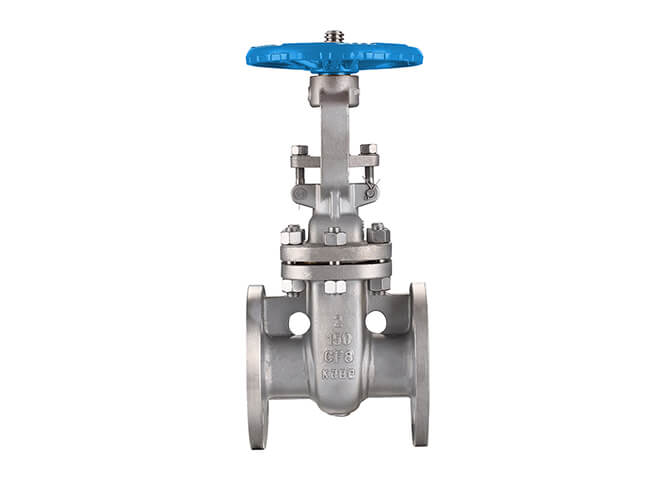

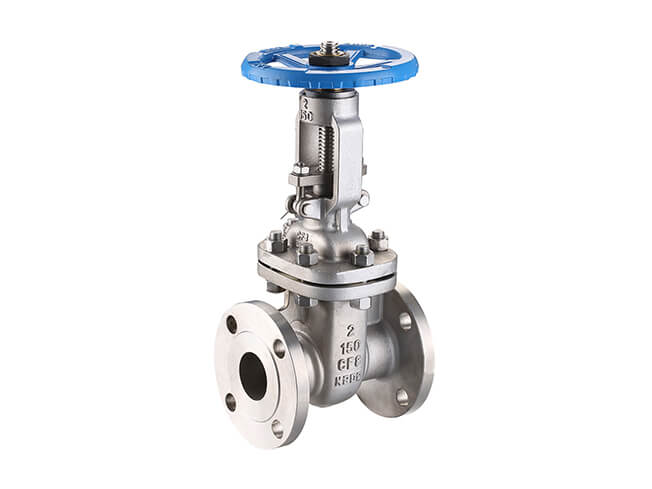

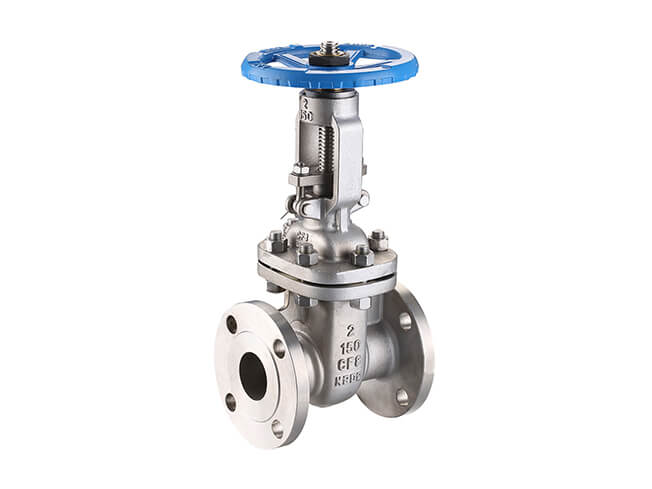

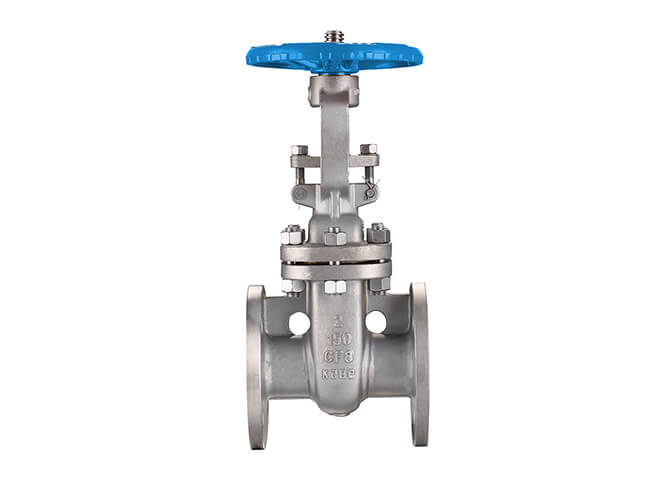

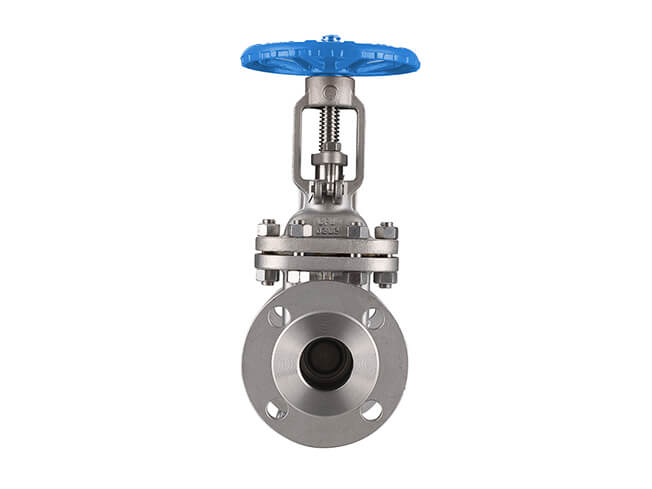

Stainless steel flange gate valve

Stainless steel flange gate valve

Size:1-1/4”~48”

Pressure Rating:PN10-PN64,150LB-600LB,10K-20K

Material:SS304, SS316

Design Standard:API600,BS5153,GB/T122234,JIS B2073

Inspection Standard:API 598,JB/T9092,JIS B2003

Application medium:Oil, Gas, Water, Steam Etc.,

Application Temperature:-29-425℃

Applied projects:Petrochemical/ Power plant/Refining/Oil & Gas/ Metallurgy etc.

Stainless steel Flange Gate valve is one kind of equipment which can be widely used on oil and steam pipelines in petrochemical plant and coal-fired power plants to connect or truncate the medium in pipelines. Only used for  full turn on or full turn off. This valve has the advantage of compact structure,reasonable design,good rigidity,smooth channel and small flow resistance coefficient.double sealing surface were made to wedge type.

CATALOGUE DOWNLOAD

Product details

Stainless steel Gate valve is one kind of equipment which can be widely used on oil and steam pipelines in petrochemical plant and coal-fired power plants to connect or truncate the medium in pipelines. Only used for  full turn on or full turn off. This valve has the advantage of compact structure,reasonable design,good rigidity,smooth channel and small flow resistance coefficient.double sealing surface were made to wedge type.

Stainless steel gate valve Dimension

Pressure Size L d 195 H1 W W1 Weight(kg)
NPS DN RF RTJ BW H.W G.O
Class150 1/2″ 15 108 119 108 14 210 120 4
3/4″ 20 117 130 117 19 240 120 5
1″ 25 127 140 127 25 300 140 7
11/4″ 32 140 153 140 32 395 180 10
11/2″ 40 185 178 165 38 400 200 14
2″ 50 178 191 218 51 435 200 19
21/2″ 65 191 203 241 64 515 200 25
3″ 80 203 216 283 76 595 250 33.5
4″ 100 229 241 305 102 725 280 48.5
5″ 125 254 267 381 127 780 300 310 60.5
6″ 150 267 279 403 152 975 820 350 310 77 104
8″ 200 292 305 418 203 1150 1020 400 310 115 150
10″ 250 330 343 457 254 1380 1200 450 310 175 215
12″ 300 356 368 502 305 1545 1430 500 310 280 315
14″ 350 381 394 572 337 1733 1580 500 480 385 435
16″ 400 406 419 610 387 1915 1780 600 480 500 552
18″ 450 432 446 680 438 2122 1990 600 480 601 853
20″ 500 457 470 710 489 2520 2220 600 480 784 816
24″ 600 508 521 813 591 2800 600 1007 1185
26″ 650 559 864 633 2800 600 1550
28″ 70 810 914 684 3050 600 1880
30″ 750 810 914 735 3130 600 2300
32″ 800 711 965 779 3280 600 2550
34″ 850 762 1016 830 3500 600 2950
36″ 900 700 1016 874 3720 600 3390



wesdom gate valve

Project case

Canadian Architecture Project

Main products:

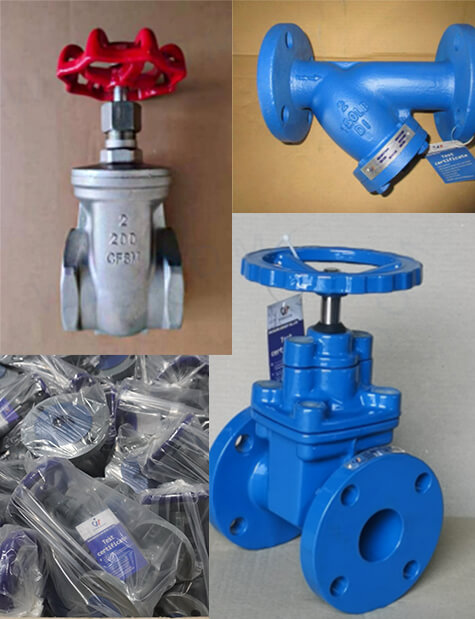

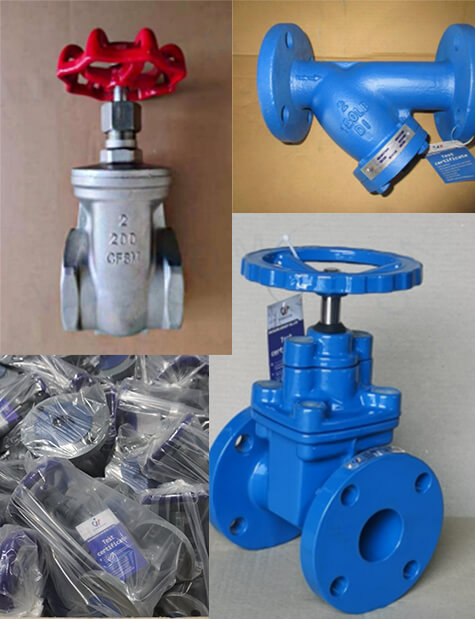

Gate valves, globe valves, Y strainers

Client feedback:

Customer feedback said: “Every time I received the products from WESDOM, I am always deeply shocked and moved. WESDOM is a very valuable and trusted partner”;

Project pictures:

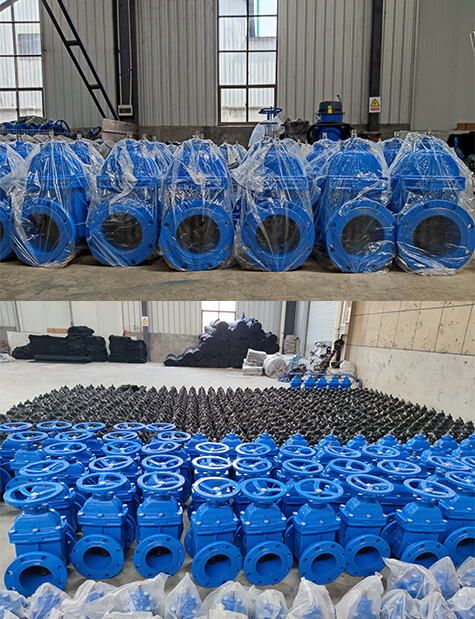

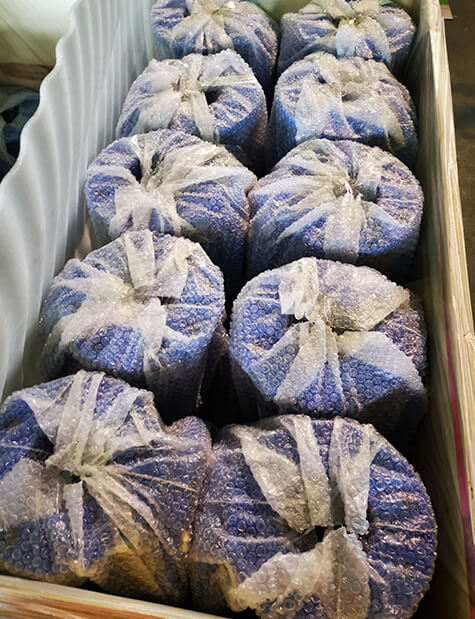

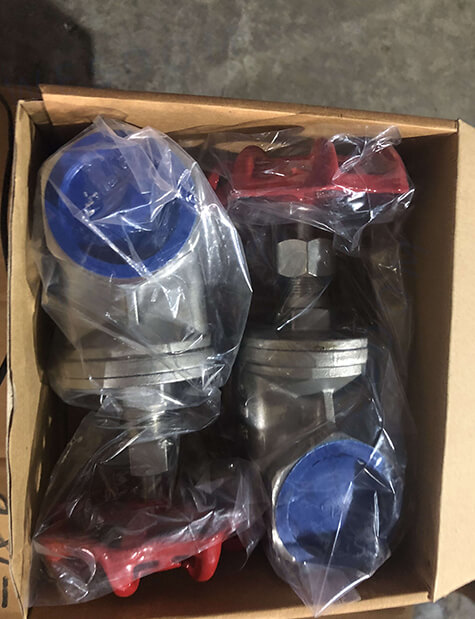

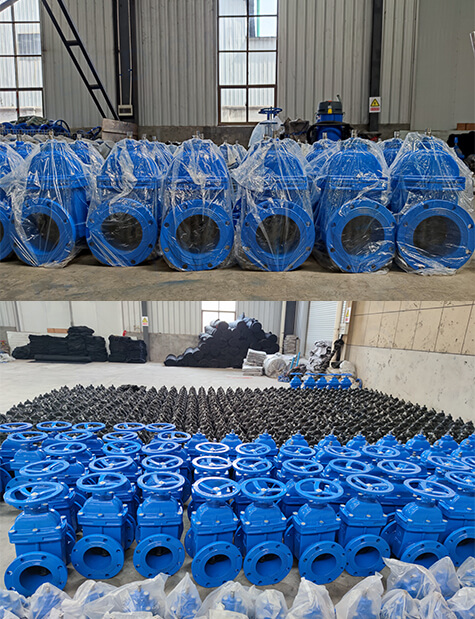

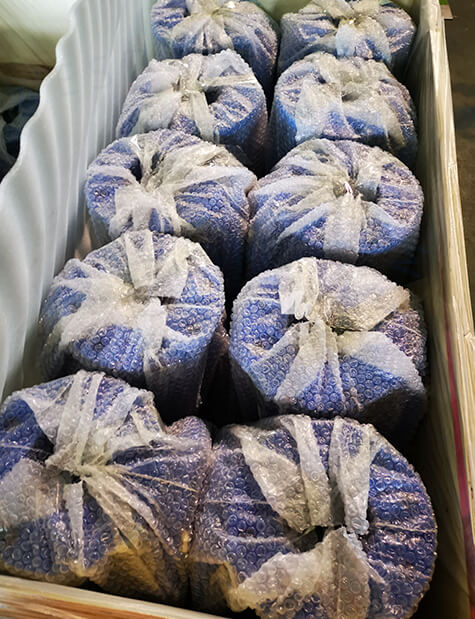

Product packaging and transportation



wesdom gate valve

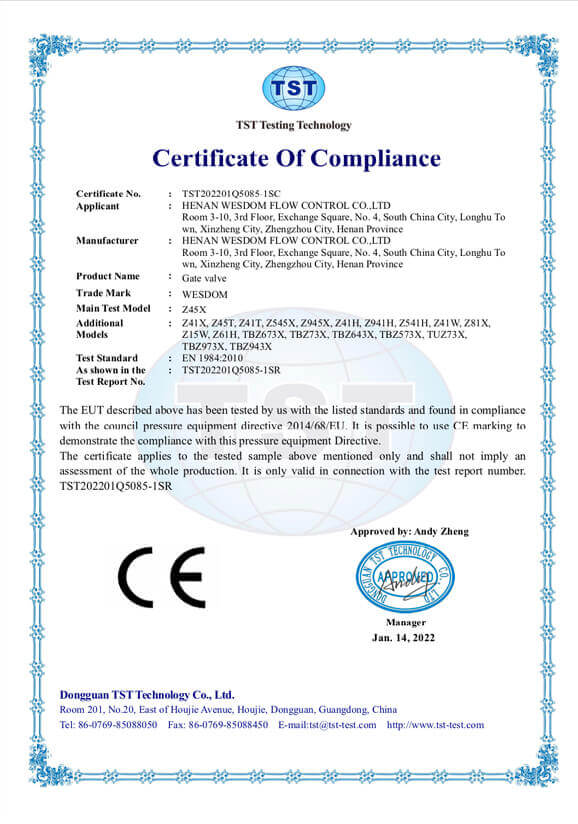

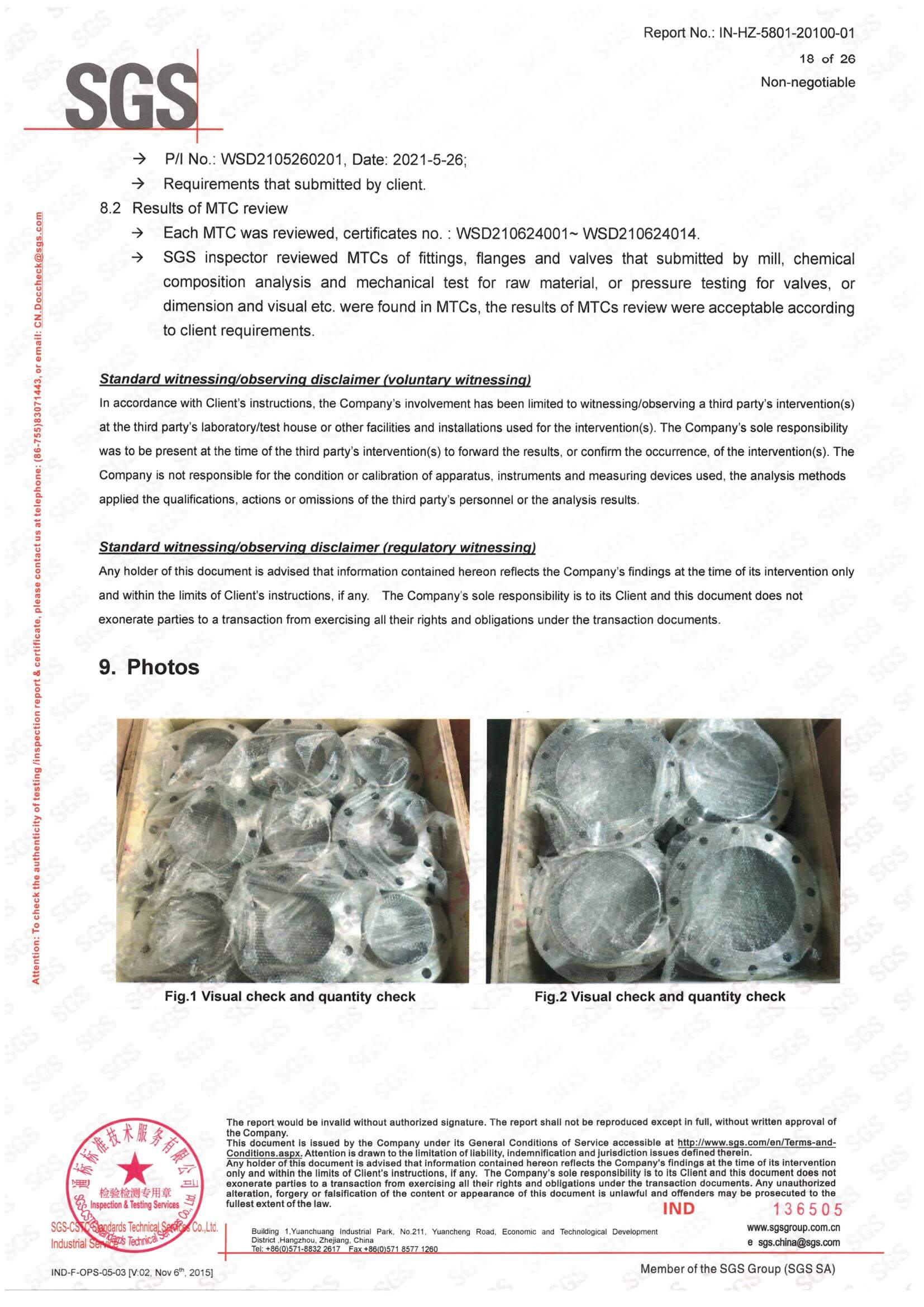

Certificate

Features

1.small flow resistance .the way inside valve is direct through,the media can easily through the inside way, flow resistance are small.

2,operate portable and flexibly,compare with globe valve ,the way of Disc move is Vertical with media whether open or close.

3.it is take a long time to open or close because long stem.

4.Water hammer phenomenon will nor happen because it cost long time to open and close.

5.The medium can flow in any direction on both sides, and is easy to install. Gate valves are symmetrical on both sides of the channel.

Standard

Design and manufacture standard according to :API600 and API 6D

Inspection and test standard according to:API 6D and API598

RF flange end according to : ANSI B 16.5 and Mss-SP-44

But weld end according to : ASME B 16.25

Face to Face according to: API 6D and ANSI B 16.10
