WESDOM

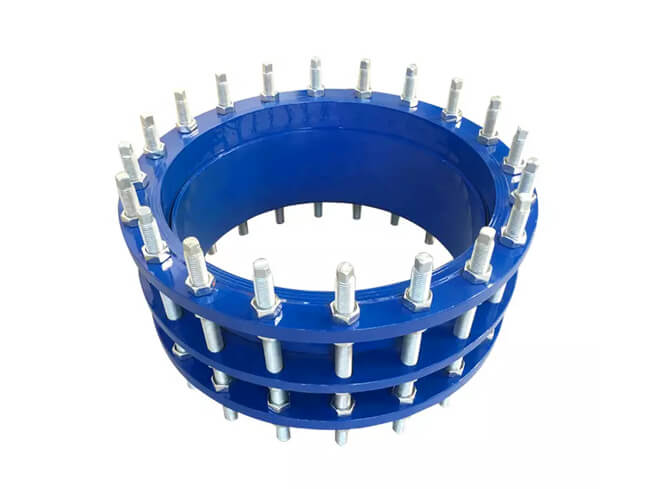

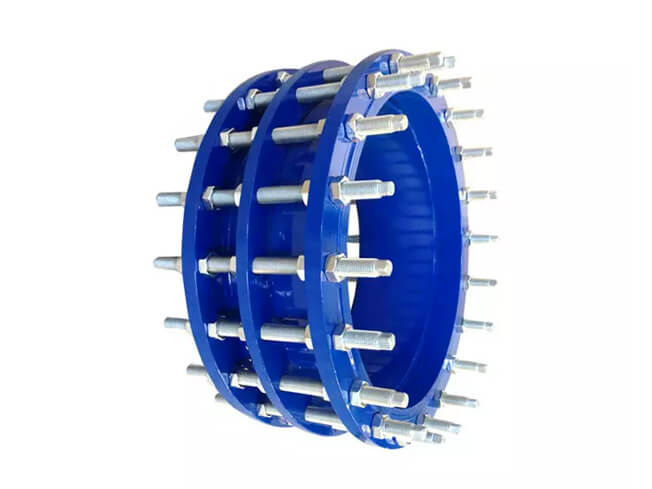

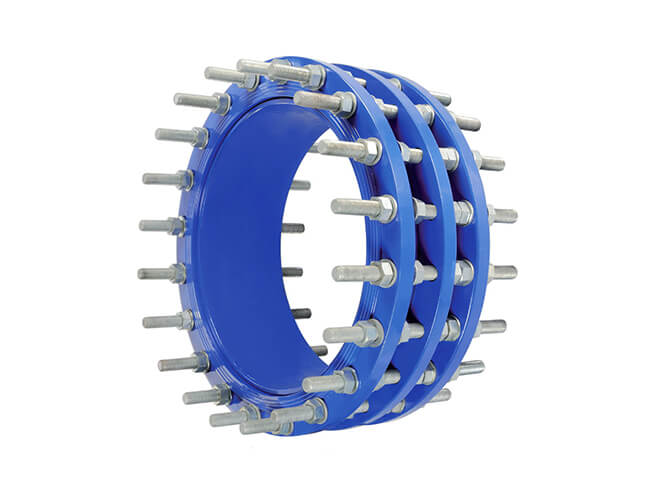

Transmission joint

Transmission joint

Size: 3”~128”

Pressure Rating: PN10/PN16

Material: Ductile iron

Design Standard: ISO2531,EN545

Inspection Standard: ISO2531,EN545

Application medium: Water

Application Temperature: 0-80℃

Applied projects: Water Treatment

Pipe fittings as the mandatory accessories in pipeline, WESDOM also could provide wide range of standard and materials to match your pipes and valves. One stop service, save your time, save your money!

CATALOGUE DOWNLOAD

Product details

Pipe fittings as the mandatory accessories in pipeline, WESDOM also could provide wide range of standard and materials to match your pipes and valves. One stop service, save your time, save your money!

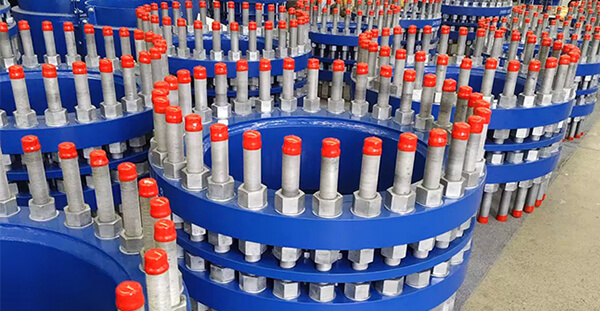

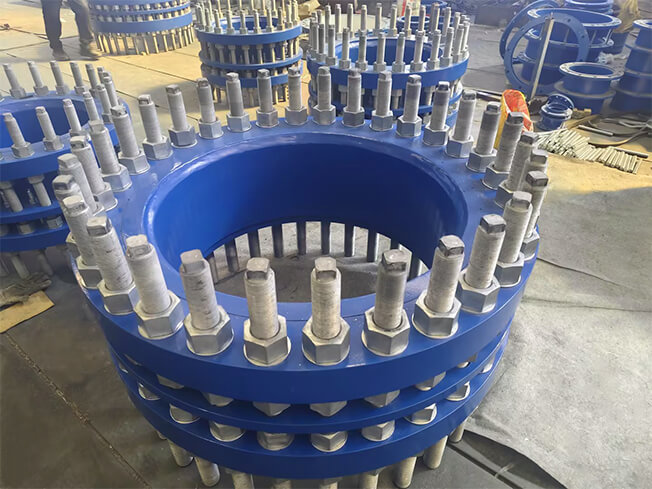

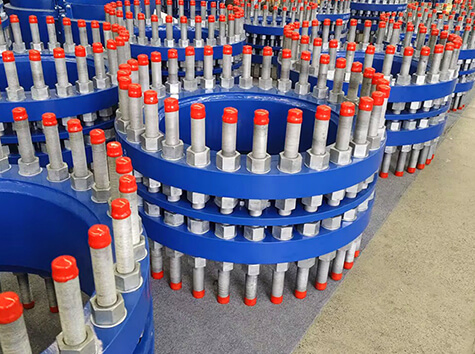

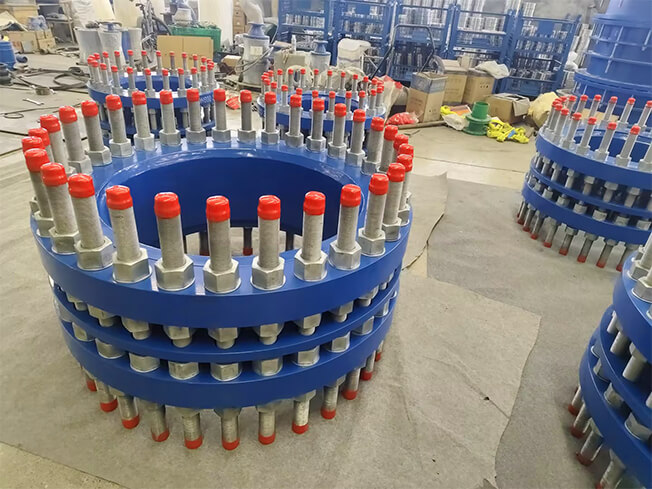

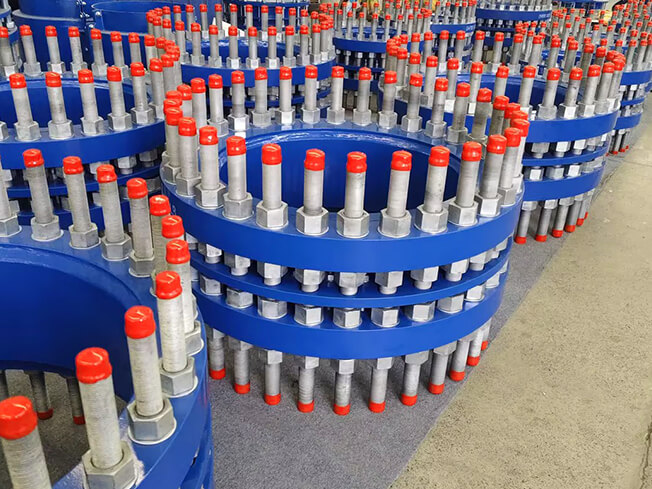

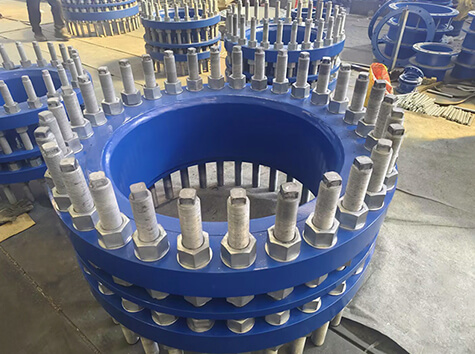

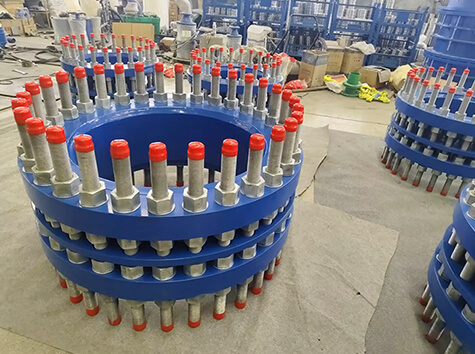

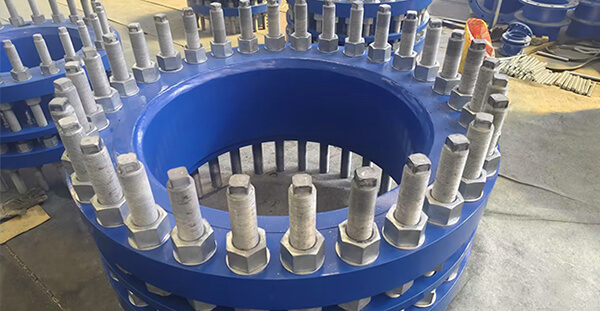

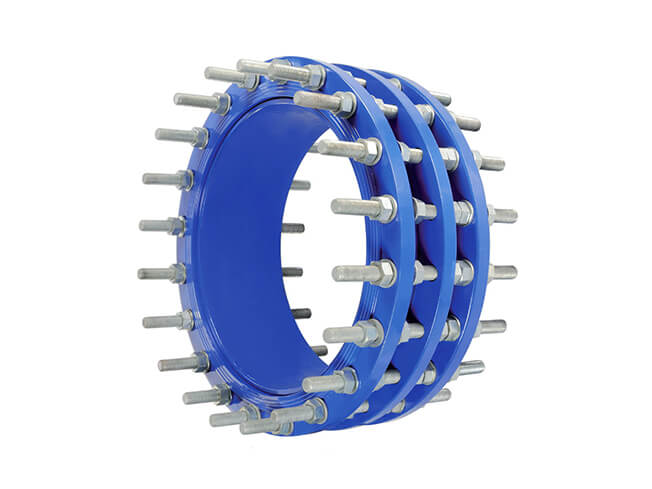

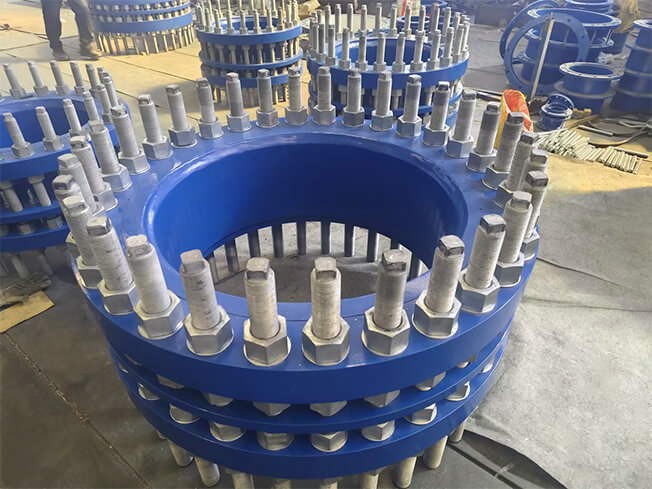

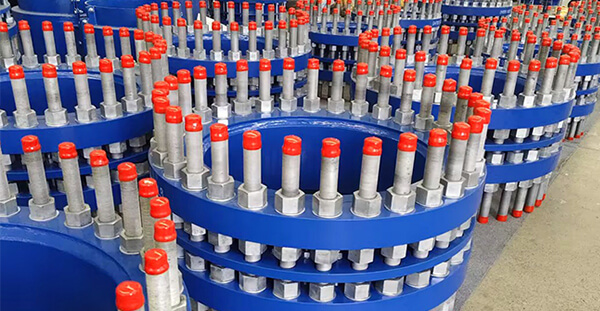

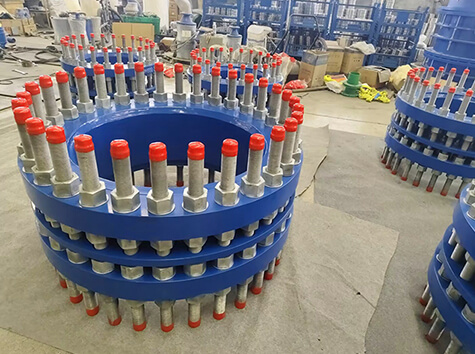

Introduction of dismantling joint:

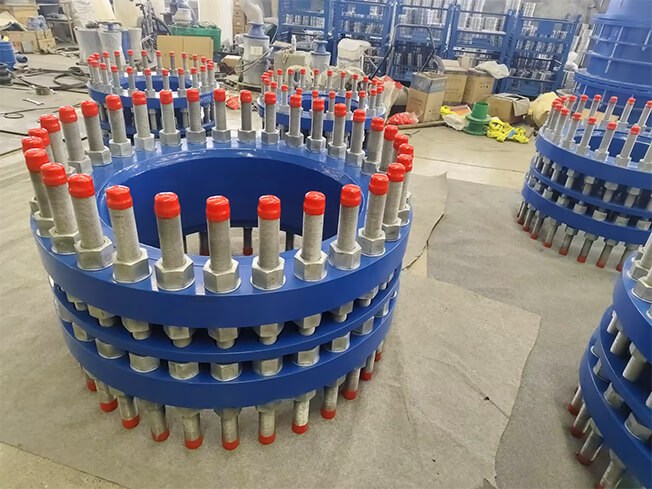

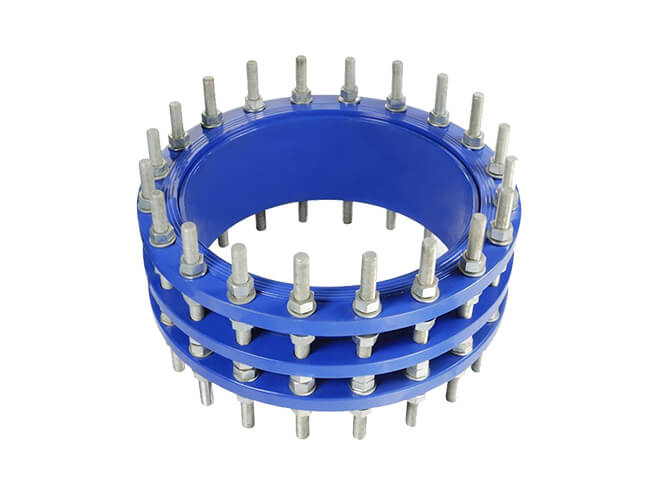

The dismantling joint consists of the main body, the sealing ring, the gland, the telescopic short pipe and other main parts. It is a new product that connects pumps, valves and other equipment with pipelines.

It connects them into a whole through full bolts, and has a certain displacement. In this way, it can be adjusted according to the installation size on site during installation and maintenance, and the axial thrust can be transferred back to the whole pipeline during work. This not only improves work efficiency, but also plays a certain protective role for pumps, valves and other equipment.

Advantages of dismantling joint

1.Installation is simple and convenient, convenient valve installation.2.Rubber is strong in compression and elasticity.

3.Metal and sealing rings are highly stringent.

4.In the pipeline, it can effectively compensate and ease the pipe and blind plate thrust.

The application range of transmission joint:

Suitable for conveying seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, finished oil, air, gas, steam with temperature not higher than 250 degrees and granular powder, and other media.

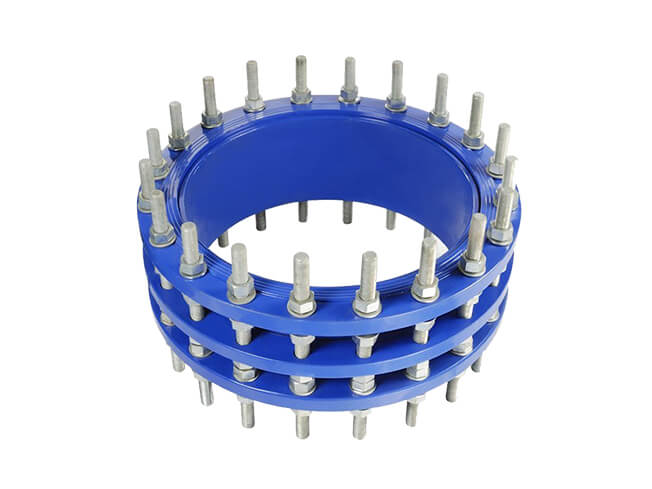

Transmission joint

Project case

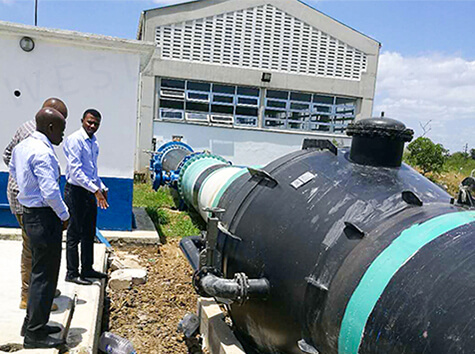

Tanzania Water Project

Main Products:

Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.

Client feedback:

The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

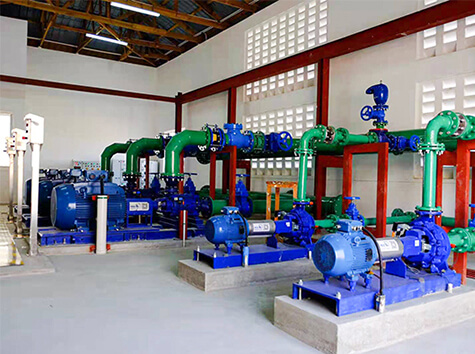

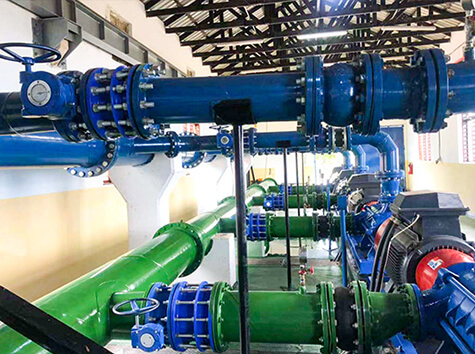

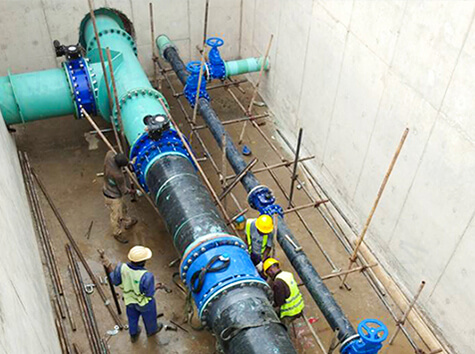

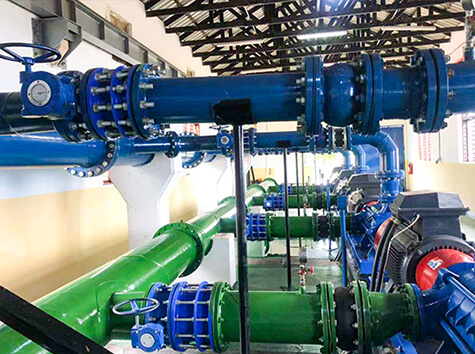

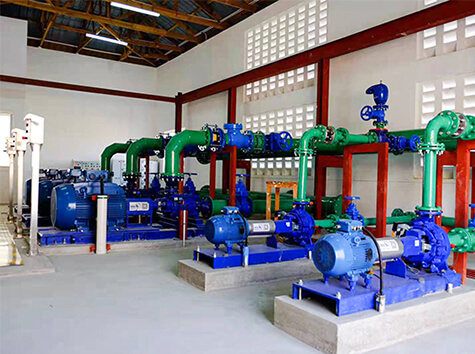

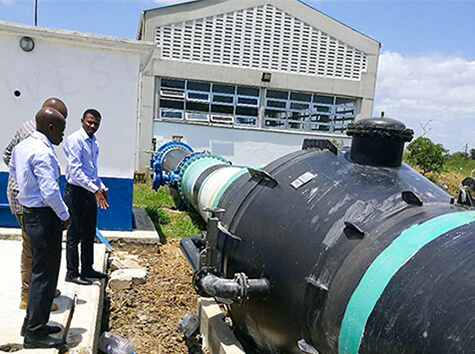

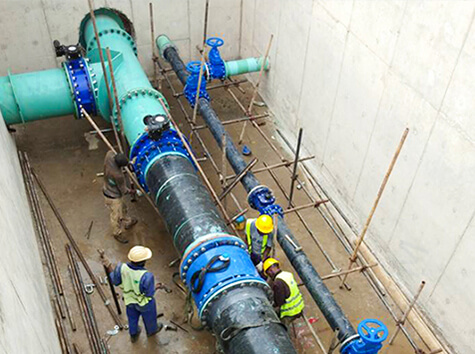

Project pictures:



wesdom gate valve

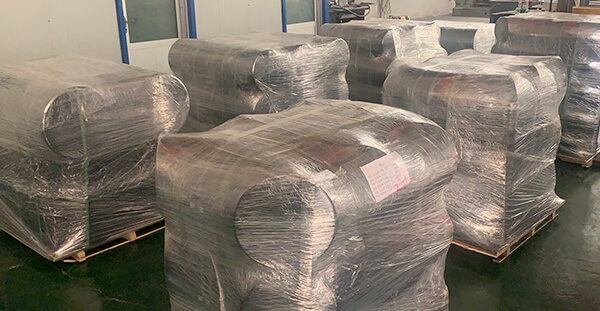

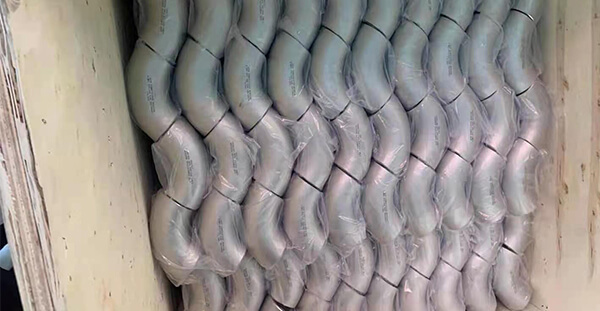

Product packaging and transportation
