Advantages of ultrasonic water meters

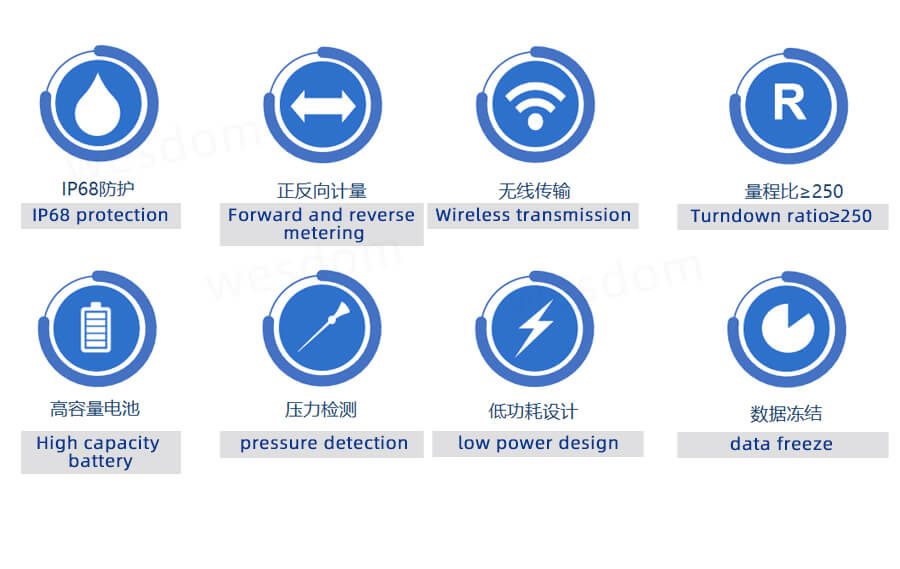

Advantages of ultrasonic water meters:

1. Power consumption design, large-capacity battery power supply (battery life ≥ 10 years);

2. Wide range ratio, low starting flow, high accuracy level, good stability, can be used for water leakage detection;

3. After the data measurement and control terminal is selected, the pipeline network assessment, pipeline network monitoring and analysis (SCADA, DMA) can be realized;

4. Alarm for abnormal water use and pipe network abnormality;

5. When the pipeline is full, it can be installed at any angle, and the measurement accuracy will not be affected;

6. Data freezing function, the freezing frequency can be set in advance and packaged and uploaded;

7. IP68 design of the whole machine;

8. Forward and reverse measurement, suitable for measurement environment such as ring pipe network.

ultrasonic water meters

IP68 protection class

The ultrasonic water meters circuit board part of the ultrasonic water meter adopts the full potting process of silicone gel, which can effectively prevent the intrusion of moisture and water, and prolong the service life of the product.

Power-off protection function

The ultrasonic water meters data is not lost when the power is turned off, the data can be saved for more than ten years, and the historical data is automatically saved for 23 months.

Advantages of ultrasonic water meters

Long battery life

Large capacity lithium battery with a capacity of 8500mAh. The battery life can be up to 8-10 years.

Display function

The LCD screen displays flow rate, cumulative flow, temperature, date, elapsed time, table address, historical data, etc.

Remote function

The water meter can transmit wired data through M-BUS or RS485 communication, and can also use LoRa wireless or NB-IoT wireless remote transmission for wireless data transmission.

Drip metering function

In case of malicious small flow of water by users, the ultrasonic water meter can also accurately measure the water consumption.
