In modern industry, whether it's natural gas pipelines, chemical production, compressed air systems, food processing, or electronics manufacturing, gas flow meters are crucial equipment for ensuring energy management, process control, and safe operation. However, the low density and high compressibility of gases, coupled with complex on-site conditions, often lead to problems such as large errors, short lifespans, and unstable readings during the selection process for many companies.
To help you quickly find the most suitable gas flow meter, this article will guide you step-by-step through the complete selection process, from operating parameters and instrument types to industry applications and installation and maintenance. If you are looking for a professional flow meter supplier, WEIZIDOM can also provide you with full-process technical support and selection guidance.
Before selecting an instrument, you must first understand your operating requirements. This is the most critical step in achieving accurate measurement, including the following five aspects:
✔ 1. Gas Type Natural gas, compressed air, oxygen, nitrogen, hydrogen, corrosive gases, gases containing impurities, etc. Different flow meters have different requirements for media conditions.
✔ 2. Temperature and Pressure Range
Does the application involve high temperature, high pressure, or pressure fluctuations? These will directly affect the instrument's materials and structure.
✔ 3. Flow Rate Range
Does the minimum flow rate need to be accurately measured? Are there excessively high flow rate fluctuations?
✔ 4. Pipe Diameter and Installation Space
Do the pipe size and straight pipe length meet the requirements? Can the pipe be drilled or cut?
✔ 5. Accuracy and Budget
High accuracy is required for trade settlements, while medium-accuracy, economical instruments can be selected for general process monitoring.
Clarifying these parameters can avoid the common problem of "buying an expensive instrument that doesn't work well."

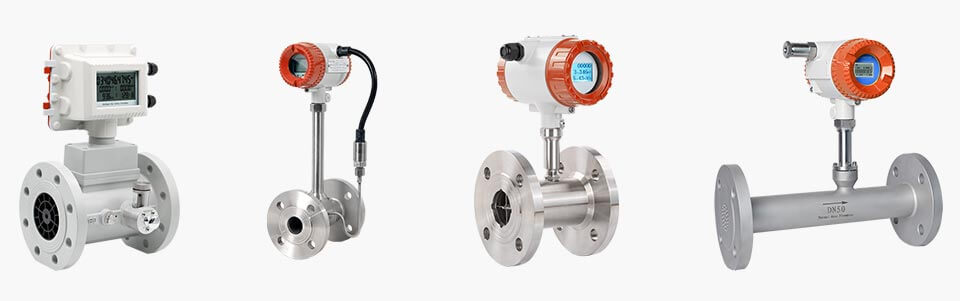

Different models of gas flow meters have different measurement principles and advantages. Here are some of the most commonly used types in industrial settings:
1. Vortex Flow Meter – Versatile for multiple scenarios
Advantages: Simple and durable structure; suitable for various gases such as compressed air, steam, and natural gas; moderate cost.
Restrictions: Insensitive to low flow rates; unsuitable for environments with strong vibrations.
Applicable industries: Compressed air systems in manufacturing, food processing, textiles, and power plants.
2. Thermal Mass Flow Meter – Ideal for low flow rates and large diameters
Advantages: Meets ultra-low flow rates; measures mass flow rate without temperature or pressure compensation; particularly suitable for monitoring large air pipeline networks.
Restrictions: Not suitable for gases containing impurities or oil.
Applicable industries: Air compressor stations, environmental protection, and gas monitoring.
3. Ultrasonic Flow Meter – Non-contact, high-precision measurement
Advantages: No pressure loss; can be installed without interrupting production (clamp-on type); high accuracy and low maintenance.
Restrictions: Higher cost; requires high gas purity.
Applicable industries: Large-diameter natural gas pipelines and energy management systems.
4. Turbine Flow Meter – Commonly Used for Natural Gas Measurement
Advantages: High accuracy, good repeatability
Limitations: High requirements for clean gases
Applicable Industries: Natural gas trade settlement, city gas systems
To make selection easier, the following are more specific selection suggestions based on industry characteristics:
Natural Gas Systems
Recommendation: Turbine Flow Meter / Ultrasonic Flow Meter / Differential Pressure Flow Meter
Reason: Requires high accuracy, long-term stability, and can be used for trade measurement.
Air Compression Systems and Energy-Saving Projects
Recommendation: Thermal Mass Flow Meter
Reason: Can measure low flow velocities, suitable for monitoring leaks, significant energy-saving effect.
Chemical Industry (Including Corrosive Gases)
Recommendation: Special Material Vortex Flow Meter / Ultrasonic Flow Meter
Reason: Corrosion resistant, high-temperature resistant, adaptable to complex media conditions.
Mining and Dust-Prone Environments
Recommendation: Vortex Flow Meter
Reason: Strong anti-interference capability, unaffected by dust.
Many customers fail to fully consider their operating conditions before purchasing, resulting in instruments that are inaccurate, have short lifespans, and experience frequent malfunctions. The following are common misconceptions:
❌ Choosing only based on price, ignoring operating conditions
❌ Ignoring straight pipe section requirements
❌ Choosing a vortex flow meter for low-velocity conditions
❌ Choosing a thermal or turbine flow meter for dirty gases
❌ Ignoring installation methods and costs for large-diameter applications
The correct approach: First determine the operating conditions → then select the principle → finally choose the brand and model.
🔧 1. Ensure sufficient straight pipe section (generally 10D upstream, 5D downstream)
🔧 2. Avoid vibration, interference sources, and high-temperature areas.
🔧 3. Regular calibration (especially important for commercial applications).
🔧 4. Keep probes clean for thermal flow meters.
🔧 5. Ensure proper installation, tightness, and coupling for ultrasonic flow meters.
Proper installation and maintenance can significantly improve instrument lifespan and accuracy.
Common types include vortex, thermal mass, turbine, ultrasonic, differential pressure, and Roots flow meters.
Select the type based on gas type, temperature, pressure, flow range, pipe diameter, accuracy, and budget.
Yes, but it depends on the type. For gases with many impurities, a filter is recommended; thermal and turbine flow meters are not suitable for oily gases.
Insertion-type thermal flow meters or clamp-on ultrasonic flow meters are the most economical.
Yes, they are commonly used for steam and natural gas metering.
