Water systems form the backbone of modern infrastructure — from municipal water supply networks and drainage systems to industrial process water, fire protection, and irrigation. A reliable, efficient water system requires a carefully engineered combination of valves, fittings, meters, and accessories working together to control flow, maintain pressure, prevent backflow, remove air, and protect equipment.

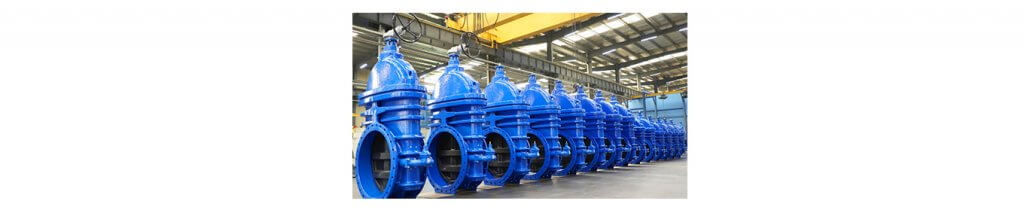

What it does: A rubber-lined gate valve that provides bubble-tight shut-off with minimal flow resistance when fully open.
Main role in water systems: Acts as the primary isolation device for water mains, pump stations, and distribution lines. The resilient rubber wedge creates a leak-proof seal against the seat, while the full-bore design allows pigging and creates virtually no pressure drop.
Why it matters: When you need to shut down a section of pipeline for maintenance or emergency repair, the resilient gate valve delivers reliable, zero-leakage isolation without requiring high operating torque.
What it does: A metal-seated gate valve designed for high-temperature, high-pressure, or abrasive water conditions.
Main role in water systems: Handles demanding applications where soft rubber seals would fail — high-temperature water, high-pressure transmission mains, raw water with sand/sediment, and corrosive water conditions.
Why it matters: For industrial water systems, power plant cooling circuits, and high-pressure booster stations, the hard seal gate valve provides decades of service where soft-seated valves would quickly wear out.

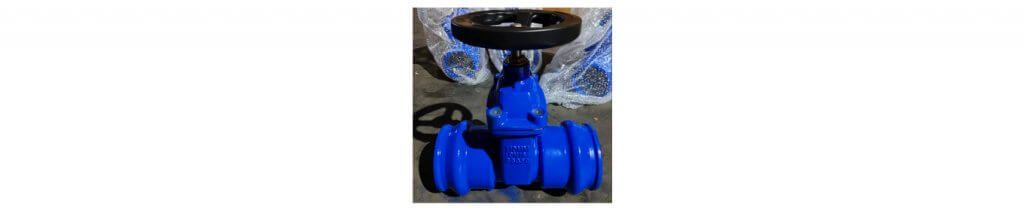

What it does: A compact, non-rising stem gate valve with threaded socket ends for small-diameter lines.
Main role in water systems: Provides isolation for residential and commercial building plumbing, fire protection branch lines, water meter bypasses, and underground service connections where space is limited.
Why it matters: The non-rising stem design allows installation in pits, trenches, and valve boxes with minimal vertical clearance — ideal for curb stops and property line shut-offs.

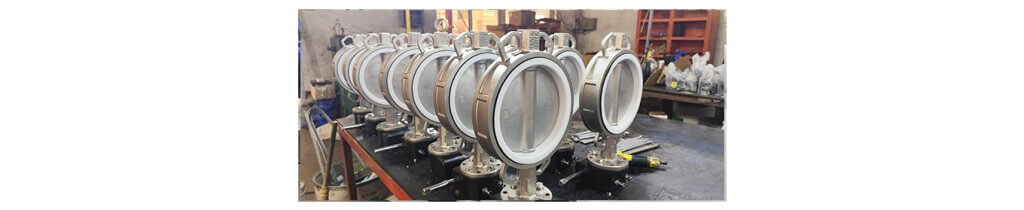

What it does: A versatile, quarter-turn butterfly valve that complies with GB, API, JIS, DIN, and BS standards.
Main role in water systems: Provides both isolation and throttling (flow regulation) in water supply and drainage networks, sewage treatment plants, and industrial cooling water circuits.
The wafer design saves space and weight between flanges.
Why it matters: One valve family works on projects worldwide without requalification — from DN50 to DN1200, handling everything from clean water to abrasive slurries.

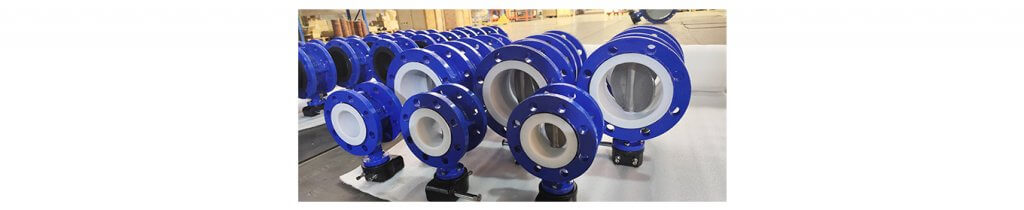

What it does: A butterfly valve with integral flanged ends for secure, rigid connection to pipeline flanges.
Main role in water systems: Ideal for large-diameter water transmission mains (up to DN2200) where the valve must be easily removable for maintenance without disturbing adjacent pipes.
Provides both isolation and throttling capability.
Why it matters: The flanged design offers superior mechanical strength for large diameters and allows valve removal from the line without cutting pipe — reducing downtime and maintenance costs.

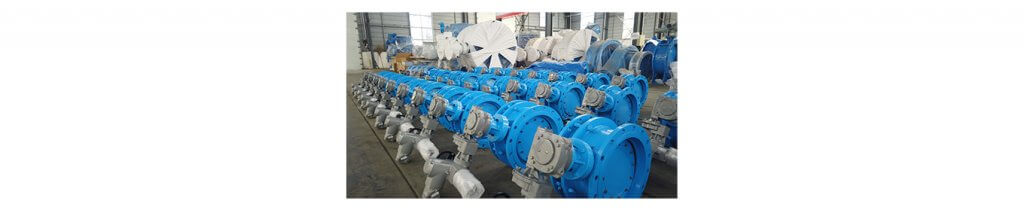

What it does: An advanced butterfly valve with two offsets that create a cam-like lift-off action — disc contacts the seat only at full closure.
Main role in water systems: Provides long-life, low-torque operation in large-diameter water supply and drainage pipelines (DN100 to DN3000), handling pressures from PN2.5 to PN40.
Why it matters: The lift-off design eliminates continuous friction, reducing wear by over 80% compared to concentric valves — ideal for applications requiring frequent operation and long service life.
What it does: A hinged disc valve that allows flow in one direction and closes automatically when flow reverses.
Main role in water systems: Installed on pump discharge lines to prevent rapid backflow when pumps stop — protecting pumps from reverse rotation, seal damage, and casing rupture. Also used at pressure zone boundaries to prevent backflow contamination.
Why it matters: Without a check valve, backflow can destroy pumps, contaminate potable water supplies, and cause damaging water hammer. The swing check's gradual closure helps minimize pressure surges.
What it does: A compact, spring-assisted check valve with ultra-short face-to-face length.
Main role in water systems: Provides rapid-response backflow prevention in space-constrained installations — pump stations, valve chambers, and retrofits where traditional flanged check valves cannot fit.
Why it matters: The compact wafer design saves valuable space and weight, while the spring-assisted closure provides immediate backflow protection — essential for modern pump stations.
What it does: A check valve with a hydraulic damping mechanism that controls closure speed, eliminating water hammer.
Main role in water systems: Protects large-diameter (DN150–DN2000), high-pressure transmission mains and pump stations from damaging pressure surges caused by rapid valve closure.
Why it matters: Water hammer can burst pipes, separate joints, and destroy pumps. The slow-closing check valve reduces pressure surge to 1.1–1.5 times normal pressure — preventing catastrophic failure.
What it does: A single valve that performs three air management functions — large-volume air release during filling, large-volume air intake during drainage, and continuous small-volume air release under pressure.
Main role in water systems: Installed at pipeline high points to prevent air locks during filling, vacuum collapse during drainage, and accumulated air pockets that reduce flow capacity and cause noise.
Why it matters: Trapped air is the enemy of water systems — it reduces flow, causes noise, accelerates corrosion, and can lead to destructive pressure surges. The triple-function air valve manages all three scenarios automatically.

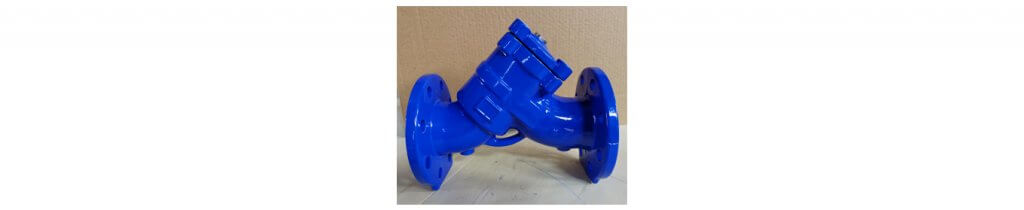

What it does: A mechanical filtering device that removes solid particles, debris, and sediment from flowing water.
Main role in water systems: Installed upstream of pumps, valves, water meters, flow meters, control valves, and sprinklers to capture sand, rust, welding slag, and pipe scale before they damage sensitive equipment.
Why it matters: A low-cost strainer prevents expensive pump impeller damage, valve jamming, meter inaccuracy, and sprinkler nozzle clogging — providing rapid return on investment.
What it does: A pilot-operated valve that automatically reduces a higher inlet pressure to a stable, lower outlet pressure — regardless of upstream fluctuations or downstream flow variations.
Main role in water systems: Protects building plumbing from high municipal main pressure (10–15 bar) by reducing it to safe levels (2–4 bar). Also used for zone pressure management in municipal networks, protecting sensitive equipment, and reducing water consumption.
Why it matters: Excessive pressure causes burst pipes, leaking fittings, and wasted water. A PRV maintains consistent safe pressure, extends equipment life, and reduces water bills.
What it does: A mechanically automatic valve that uses a floating device to sense water level and control inflow into a tank or reservoir.
Main role in water systems: Maintains water level in rooftop tanks, fire protection storage, elevated water towers, cooling tower basins, and irrigation ponds — opens when water drops below set level, closes when full. No external power required.
Why it matters: Float valves provide reliable, automatic tank filling without electricity, sensors, or controllers — ideal for remote sites and backup systems.
What it does: A combination check valve and strainer installed at the submerged inlet of a pump suction pipe.
Main role in water systems: Maintains pump prime by preventing water in the suction pipe from draining back into the source when the pump stops. The built-in strainer blocks debris from entering the pump.
Why it matters: Without a foot valve, pumps lose prime and run dry — causing rapid seal and impeller damage. The foot valve ensures pumps start against a full line every time.
What it does: An adjustable-length flange connector that can be lengthened or shortened to facilitate valve and equipment removal.
Main role in water systems: Installed adjacent to gate valves, butterfly valves, and pumps — shortens to create clearance for removing equipment without cutting pipe or moving adjacent pipes.
Why it matters: Reduces valve replacement time from hours (with pipe cutting and re-welding) to minutes — minimizing system downtime and maintenance costs.
What it does: A pipe fitting that provides angular deflection and axial movement while maintaining a leak-tight seal.
Main role in water systems: Accommodates pipe settlement, thermal expansion/contraction, and minor installation misalignment — protecting pipes, valves, and equipment from bending stresses.
Why it matters: Pipelines move due to temperature changes and ground settlement. Flexible joints prevent cracking, joint separation, and equipment damage.

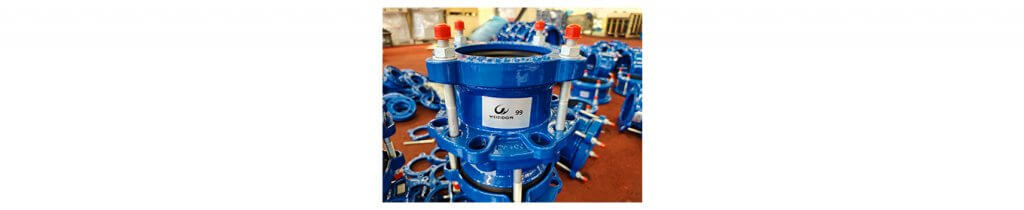

What it does: A fitting that connects plain-ended (non-flanged) pipes to flanged equipment without welding or threading.
Main role in water systems: Allows quick connection of plain pipe to flanged valves, pumps, and meters — eliminates field welding, threading, and hot work permits.
Why it matters: Reduces installation time by 50–80% and allows future equipment replacement without cutting pipe.

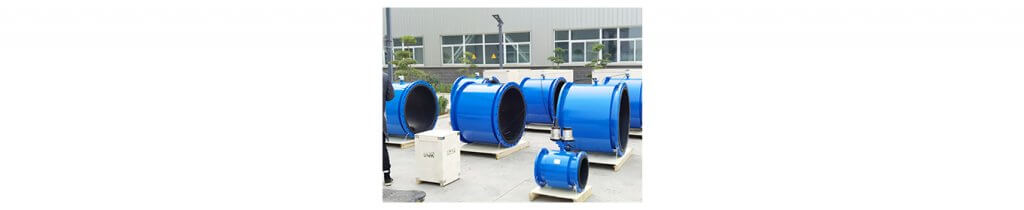

What it does: A flow measurement device that uses electromagnetic induction to measure the velocity of conductive liquids — with no moving parts and zero pressure drop.
Main role in water systems: Provides accurate flow measurement for water supply billing, pump station monitoring, treatment plant chemical dosing, leak detection, and water balance calculations.
Why it matters: No moving parts means no maintenance, no pressure loss, and long-term accuracy unaffected by debris or wear.
What it does: A battery-powered, LoRaWAN-enabled ultrasonic water meter for residential and small commercial water supply.
Main role in water systems: Measures water consumption for individual households and apartments — provides remote meter reading, leak detection, and consumption data without manual site visits.
Why it matters: No moving parts — never sticks or wears out. 6–8 year battery life and LoRaWAN communication eliminate manual meter reading and enable daily consumption data.
What it does: A mechanical water meter that uses multiple angled jets to drive an impeller — providing accurate, cost-effective flow measurement.
Main role in water systems: Measures water consumption for residential billing, apartment submetering, and commercial water monitoring where cost is a primary consideration.
Why it matters: Decades of proven reliability at an affordable price point — the workhorse of residential water metering worldwide.
A reliable water system integrates all these components into a cohesive whole:
| Component | Primary Function |
| Gate Valves | Isolation (on/off) |
| Butterfly Valves | Isolation and throttling |
| Check Valves | Backflow prevention |
| Air Release Valves | Air management |
| Strainers | Debris protection |
| PRVs | Pressure control |
| Float Valves | Tank level control |
| Foot Valves | Pump priming |
| Dismantling Joints | Maintenance access |
| Flexible Joints | Movement accommodation |
| Flange Adaptors | Pipe-to-flange connection |
| Flow Meters | Consumption measurement |
Each component must be correctly sized, properly selected for the specific application (clean water, raw water, wastewater, pressure rating, temperature), and correctly installed to achieve optimal system performance, longevity, and safety.
