Mining operations are among the harshest environments for industrial valves. Slurries containing sharp rock particles, abrasive tailings, crystallizing solutions, and corrosive chemicals rapidly destroy standard gate, ball, and butterfly valves—leading to costly downtime, safety hazards, and frequent maintenance. Selecting the right valve for mining applications is not just a procurement decision; it is a critical reliability and safety choice.
This guide covers four essential valve types for mining service: Pneumatic Pinch Valves, Ceramic-Lined Gate Valves, Ceramic-Lined Ball Valves, and Three-Way Directional Valves. Each is engineered to address specific challenges—from high abrasion and clogging to flow diversion and crystallizing media—helping engineers and procurement professionals make informed selections for mineral processing, tailings management, power plant ash removal, and coal chemical applications.
In mining applications, valves face a unique combination of destructive forces that quickly degrade standard designs. According to industry experts, high solid content accelerates wear on internal components, uneven particle sizes erode sealing surfaces, and slurries tend to settle—causing buildup, clogging, or complete blockages inside valve cavities. In some cases, chemical composition adds another layer of corrosion risk.
| Challenge | Impact on Valves |
| High Abrasion | Sharp particles wear through metal seats, gates, and balls |
| Erosion | High-velocity slurry erodes sealing surfaces |
| Clogging | Solids settle and pack in valve cavities |
| Corrosion | Acidic or saline slurries attack metal components |
| High Pressure | Pump discharge and pipeline pressures exceed standard ratings |
| Crystallization | Media crystallizes inside valve, causing jamming |
To survive these conditions, mining valves must be engineered with specialized materials—ceramics, wear-resistant rubber, and hardfaced alloys—and designed with clog-free, full-bore flow paths.

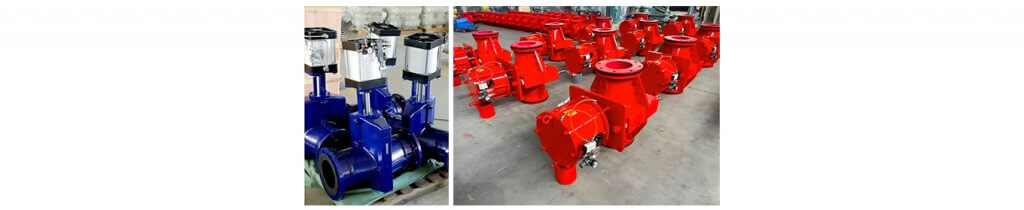

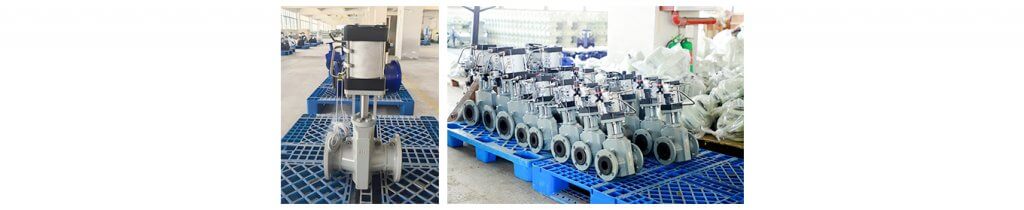

A Pneumatic Pinch Valve is a fully enclosed, straight-through flow control valve that uses compressed air to pinch a flexible rubber sleeve shut—stopping or regulating flow. Unlike traditional valves with complex internal mechanisms, the pinch valve has no internal cavities, no packing glands, and no metal parts in contact with the flow media. The flexible sleeve is the only wetted component.
Key Specifications (WEIZIDOM):
| Parameter | Details |
| Design Standard | Q/JBGN02 |
| Diameter Range | DN20 – DN600 |
| Pressure Range | 0.1 MPa – 1.0 MPa |
| Media | Slurry, silt, sewage, crystallizing media |
| Housing Materials | Aluminum alloy, cast iron, cast steel, 304, 316L |
Pinch valves are the only valve type where the sleeve is the only wetted component—the metal body never contacts the media . This provides three critical advantages:
No Clogging – The pinching action crushes and dislodges any build-up inside the sleeve; the straight-through, full-bore design prevents settling.
Self-Cleaning – Each closure cycle squeezes the sleeve, breaking up crystals and debris that would jam other valves.
Bubble-Tight Shut-Off – Full closure even with solids present.
Primary Functions in Mining:
Slurry flow isolation (ore, tailings, concentrate)
Tailings line control—rubber sleeve resists abrasion from sharp rock particles
Crystallizing media isolation—pinching action breaks up crystals and prevents jamming
Sewage and effluent control—self-cleaning prevents rag-balling
| Sleeve Material | Best For | Temperature Range | Abrasion Resistance |
| Natural Rubber | Slurries, sand, gravel, water-based media | -50°C to +80°C | Excellent |
| EPDM | Dilute acids, alkalis, water treatment, sewage | -40°C to +120°C | Good |
| NBR (Buna-N) | Oily slurries, petroleum-based media | -30°C to +100°C | Good |
| Viton (FKM) | High-temperature chemicals, strong acids/solvents | -20°C to +180°C | Good |
For highly abrasive slurries (e.g., taconite, copper ore, sand), natural rubber sleeves provide the best abrasion resistance.
A Ceramic-Lined Gate Valve is a heavy-duty industrial gate valve where all wetted surfaces—the body interior, gate, and seats—are lined with high-performance engineering ceramic (typically alumina ceramic, Al₂O₃). The ceramic lining provides exceptional wear and erosion resistance—hardness of 9 on the Mohs scale, sapphire-level—far exceeding standard metal gate valves.
| Parameter | Details |
| Design Standard | JB/T8691-1998 |
| Diameter Range | DN50 – DN1000 |
| Pressure Range | PN10 – PN16 |
| Media | Slurry, slag, blast furnace gas ash, dry ash, pulverized coal, cement, granular materials |
| Body Materials | WCB, CF8, CF8M |
For large-diameter slurry pipelines (DN50–DN1000), ceramic-lined gate valves offer a combination of extreme abrasion resistance and full-bore flow that no other valve type can match. According to industry sources, ceramic lining lasts 5–10 times longer than hardened steel in abrasive service.
Mining slurry isolation—ore, tailings, concentrate, and sand lines
Power plant ash removal—fly ash, bottom ash, slag, and blast furnace gas ash
Coal chemical black water—high-temperature, high-pressure, abrasive, corrosive effluent
Metallurgical slurry control—smelting, refining, copper, gold, iron ore processing
Dry ash and pulverized coal isolation—smooth ceramic surface prevents sticking and bridging
| Ceramic Type | Hardness (Mohs) | Max Temperature | Best For |
| Alumina 92% | 8.5–9 | 1,200°C | General abrasive slurry—most common, cost-effective |
| Alumina 95% | 9 | 1,200°C | Higher abrasion resistance—silica powder, high-intensity ash |
| Alumina 99% | 9 | 1,200°C | Maximum abrasion + corrosion—acid slurries, black water |
| Zirconia (ZrO₂) | 8–8.5 | 800°C | High impact, thermal shock—molten slurry, asphalt slurry |
A Ceramic-Lined Ball Valve is a quarter-turn valve where the ball, seats, and body interior are lined with engineering ceramic. The polished ceramic ball and seats provide extremely low friction and bubble-tight shut-off even with abrasive powders and slurries.
| Parameter | Details |
| Design Standard | GB/T12237-2007 |
| Diameter Range | DN20 – DN350 |
| Pressure Range | PN10 – PN64 |
| Media | Silica powder, coal powder, coal slurry, molten slurry, acid, hydrochloric acid, calcium carbonate |
| Body Materials | A105, E304, F316 |
For fast-acting isolation in high-pressure, abrasive service (PN10–PN64), the ceramic-lined ball valve offers unique advantages. According to industry experts, the KSV ceramic-lined ball valve is ideal for dosing and control tasks in mining operations with highly abrasive and corrosive media.
Abrasive powder handling—silica powder, coal powder, calcium carbonate
Coal slurry and molten slurry isolation—withstands both abrasion and high temperatures
Powdery slurry and asphalt slurry control—smooth ceramic surface prevents sticking and bridging
Highly corrosive media handling—hydrochloric acid, sulfuric acid in slurry form
Coal chemical black water and ash service
New energy material preparation—lithium, cobalt, nickel powders/slurries
| Body Material | Best For | Key Characteristics |
| A105 | General slurry service (neutral pH, non-corrosive) | Cost-effective, good strength |
| E304 (SS304) | Mildly corrosive slurries, food/mineral processing | Good general corrosion resistance |
| F316 (SS316) | Highly corrosive slurries (acids, hydrochloric acid, chlorides) | Excellent corrosion resistance, molybdenum for chlorides/pitting |

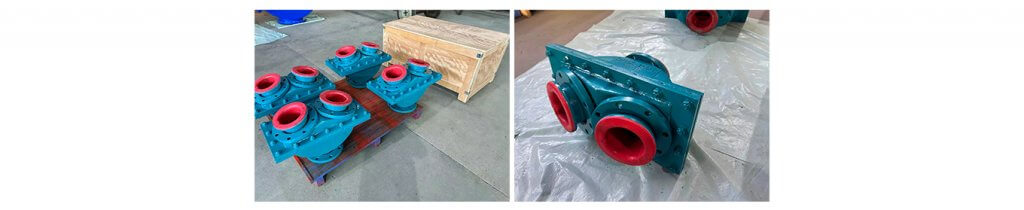

A Three-Way Directional Valve is a specialized flow control valve designed to selectively direct flow from one inlet to one of two outlets—or combine flow from two inlets to one outlet. This eliminates the need for multiple valves and complex piping arrangements, reducing leakage points and space requirements.
| Parameter | Details |
| Design Standard | API 599, GB/T 26144 |
| Diameter Range | DN50 – DN800 |
| Pressure Range | PN6 – PN25 / 150LB |
| Media | Sewage, slurry, mud, low-concentration acid/alkali solutions |
| Body Materials | WCB, CF8, CF8M |
| Rubber Material | NR (Natural Rubber) |
Traditional flow diversion systems require three-way pipe fittings, two isolation valves, and a check valve—resulting in complex structures, numerous leakage points, large space occupation, and high maintenance workload . The three-way directional valve integrates all these functions into a single unit.
Slurry conveying and distribution—mill discharge, thickener underflow to multiple destinations
Tailings line switching—alternating tailings dams or storage cells with one tailings line
Sintering dust removal system switching—baghouse compartment or scrubber train selection
Alternating feed to parallel processing equipment—flotation cells, thickeners, filters
Low-concentration acid/alkali solution distribution—leach solutions, neutralization reagents
Sludge and mud flow selection—dewatering devices or disposal lines
| Configuration | Function | Typical Application |
| L-Port (Diverter) | Common inlet diverts to EITHER outlet A OR B (one outlet closed) | Slurry distribution to alternating destinations (tailings dam cells, multiple processing lines) |
| T-Port (Mixing/Distributing) | Common port can flow to BOTH outlets simultaneously | Mixing reagents, combining flows, distributing to multiple destinations |
| Valve Type | Best For | Diameter Range | Key Material | Key Advantage |
| Pneumatic Pinch Valve | Abrasive slurries, crystallizing media, clog-prone service | DN20–DN600 | Natural rubber sleeve | Only sleeve contacts media—no clogging |
| Ceramic-Lined Gate Valve | Large-diameter slurry isolation, ash handling | DN50–DN1000 | Alumina ceramic lining | 5–10× longer life than hardened steel |
| Ceramic-Lined Ball Valve | High-pressure, fast-acting abrasive service | DN20–DN350 | Alumina/zirconia ceramic | Quarter-turn operation, tight shut-off |
| Three-Way Directional Valve | Flow diversion, tailings switching, distribution | DN50–DN800 | WCB/CF8M + NR lining | One valve replaces 3+ components |
Mining applications demand valves that can withstand high abrasion, erosion, clogging, corrosion, and crystallization. Standard metal valves fail rapidly in these conditions, leading to costly downtime and safety risks. The four valve types covered in this guide—Pneumatic Pinch Valves, Ceramic-Lined Gate Valves, Ceramic-Lined Ball Valves, and Three-Way Directional Valves—are specifically engineered to address these challenges.
Choose Pneumatic Pinch Valves for clog-prone slurries and crystallizing media where no metal parts should contact the flow.
Choose Ceramic-Lined Gate Valves for large-diameter slurry pipelines, ash handling, and black water service where extreme abrasion resistance is required.
Choose Ceramic-Lined Ball Valves for fast-acting, high-pressure abrasive service where quarter-turn operation and tight shut-off are essential.
Choose Three-Way Directional Valves for flow diversion applications where one valve can replace multiple components and eliminate dead legs.
By matching the valve type to your specific mining application, you can ensure reliable operation, minimize downtime, and maximize equipment life.
