In many water pumping systems, efficiency and reliability are key. But did you know that a small component at the end of your suction pipe plays a critical role in maintaining prime and preventing backflow? That part is called a foot valve — a check valve that keeps your pump system working smoothly.
Whether you're managing an irrigation system, a deep well pump, or an industrial water transfer line, understanding the function and importance of a foot valve can save you time, energy, and cost.
A foot valve is a type of non-return (check) valve installed at the bottom of a pump suction line. It allows liquid (usually water) to flow in only one direction — into the pump — while preventing it from flowing backward when the pump is turned off.

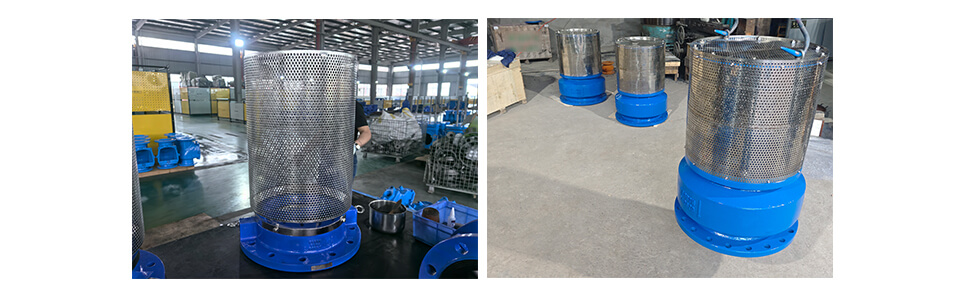

Unlike standard check valves, foot valves typically include a strainer to prevent debris and solids from entering the pipe system, ensuring both pump protection and flow efficiency.
Valve body: Usually made of brass, stainless steel, PVC, or cast iron
Disc or flapper: Moves to open or close the flow path
Spring (optional): Assists in closing the valve quickly
Strainer or mesh screen: Prevents debris from entering
The working principle of a foot valve is based on pressure and gravity:
When the pump is running, it creates a suction force that pulls water through the foot valve.
The water pressure lifts the valve disc, allowing liquid to enter the pump system.
When the pump stops, gravity and/or the valve spring force the disc to close.
This prevents the water in the pipe from flowing back into the source, maintaining the primed state of the pump.
Without a foot valve, the pump may lose its prime, leading to dry running, which can cause severe damage.
Foot valves are small but powerful components with many advantages:
By keeping the pump primed, foot valves protect it from dry running, overheating, and wear.
Maintaining prime reduces the energy required to re-prime the system, leading to lower power consumption.
The integrated strainer screen keeps large particles, sand, or leaves out of the system.
Available in various materials (PVC, stainless steel, brass), foot valves can withstand corrosive, high-pressure, or abrasive environments.
It reduces long-term maintenance costs and extends pump life significantly.
Foot valves are suitable for a wide range of systems where backflow prevention and pump priming are necessary.
* Agricultural irrigation systems
* Water wells
* Borehole pumps
* Municipal water supply systems
* Industrial fluid transfer
* Fountain and pond pumping systems
* Fire protection systems
* Marine and bilge pumping
PVC foot valves are commonly used in chemical or corrosive environments, while stainless steel foot valves are ideal for high-pressure and clean water systems.
Proper installation is key to performance and longevity. Follow these simple steps:
* Shut off the pump system.
* Clean the suction pipe thoroughly and remove any debris.
* Choose the right foot valve size to match the pipe diameter.
* Attach the foot valve to the suction line using the correct threads or solvent cement (for PVC).
* Ensure the valve is vertically positioned at the lowest point of the suction line.
* Submerge the valve completely in the water source (well, tank, etc.).
* Prime the pump after installation and test the system for leaks or flow issues.
Tip: Always ensure the valve’s strainer is above the bottom surface (not buried in sediment) to avoid clogging.
Foot valves are designed for long-term use, but regular inspection and proper maintenance are essential to keep your pumping system running efficiently. A poorly maintained foot valve can lead to loss of prime, increased energy consumption, system downtime, and even pump damage. Follow these best practices to extend the life of your foot valve and ensure stable operation.
Perform a visual and functional check of the foot valve at least once a month, especially if you're drawing water from sources with high levels of sediment or organic matter (e.g., rivers, ponds, or wells).
Look for signs of corrosion, especially on metal components (like brass or stainless steel).
Check the strainer for debris accumulation such as leaves, algae, or sand.
Listen for abnormal sounds during pump operation — gurgling or rattling may indicate air entry or valve wear.
A clogged strainer is one of the most common causes of pump failure or flow restriction. Clean the foot valve every 1–3 months depending on the water quality.
Cleaning Steps:
Shut off the pump and disconnect the suction pipe safely.
Remove the foot valve from the pipeline or water source.
Rinse the strainer thoroughly with clean water using a hose or pressure washer.
Use a soft brush to remove any mineral buildup, mud, algae, or sediment.
If the valve is made of PVC, avoid using metal brushes or harsh chemicals to prevent damage.
For valves used in seawater or chemical applications, consider soaking the strainer in a mild vinegar solution to dissolve scale.
Foot valves contain internal moving parts like a flapper, poppet, or spring. These parts should move freely and seal properly when closed.
Check that the disc or flapper seats tightly without gaps.
Ensure the spring (if present) is not deformed, broken, or corroded.
Replace any worn or hardened rubber gaskets or O-rings.
If the valve doesn't close securely, it may cause backflow, leading to pump failure.
Even if the valve appears intact visually, internal sealing performance can degrade over time.
After cleaning, re-install the valve and perform a leak test by priming the pump and shutting it off.
Monitor the system: if water drains back quickly, the foot valve may be leaking or stuck open.
Consider performing a vacuum test in professional setups to detect micro-leaks or sealing failure.
A foot valve may be just a small component in your pumping system, but its role is critical. It ensures efficiency, prevents backflow, protects your pump, and reduces maintenance costs. By choosing the right type and installing it properly, you can significantly extend the lifespan of your water system.
Whether you're working with irrigation, industrial fluids, or municipal water supply, a quality foot valve is a smart investment that pays off in performance and reliability.
